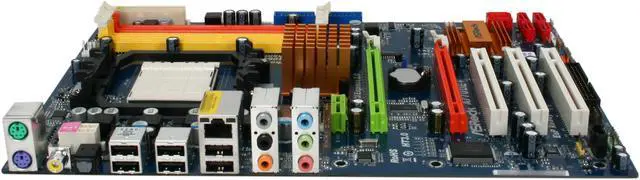

ASRock A770DE+ AM3/AM2+/AM2 AMD 770 ATX AMD Motherboard
- AMD 770
- Athlon II / Phenom II / Sempron
- DDR2 1066* / 800 / 667 / 533 (*Support with AM3 / AM2+ CPU)
Specs
Reviews (236)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock A770DE+
| Brand | ASRock |
|---|---|
| Model | A770DE+ |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Athlon II / Phenom II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 770 |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066* / 800 / 667 / 533 (*Support with AM3 / AM2+ CPU) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 slots (green @ x16 mode, orange @ x4 mode) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | VIA VT1708S |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.2" |
| Power Pin | 24 Pin |
| Features | Phenom II X6 6-Core CPU Ready Supports CPU up to 140W Supports AMD OverDrive with ACC feature (Advanced Clock Calibration) Supports ATI CrossFireX Supports ASRock Instant Boot, OC DNA Supports Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver |
|---|
| First Listed on Newegg | January 18, 2011 |
|---|
