The more you add, the more you'll save!Best Seller Ranking | #64 in AMD Motherboards |
---|
Brand | ASRock |
---|---|

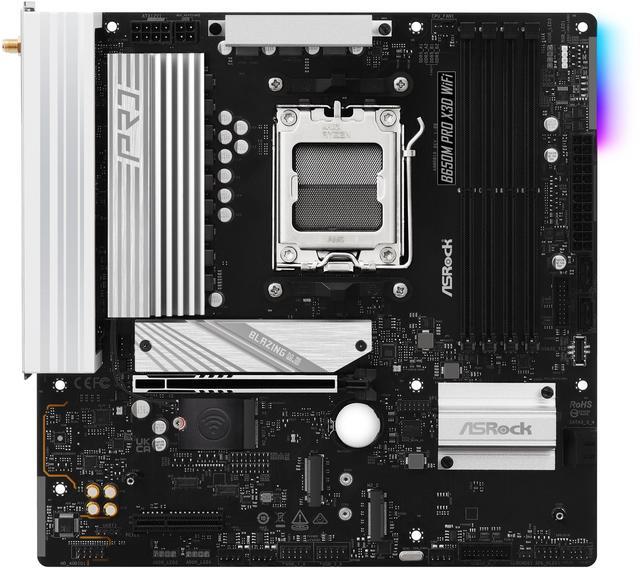

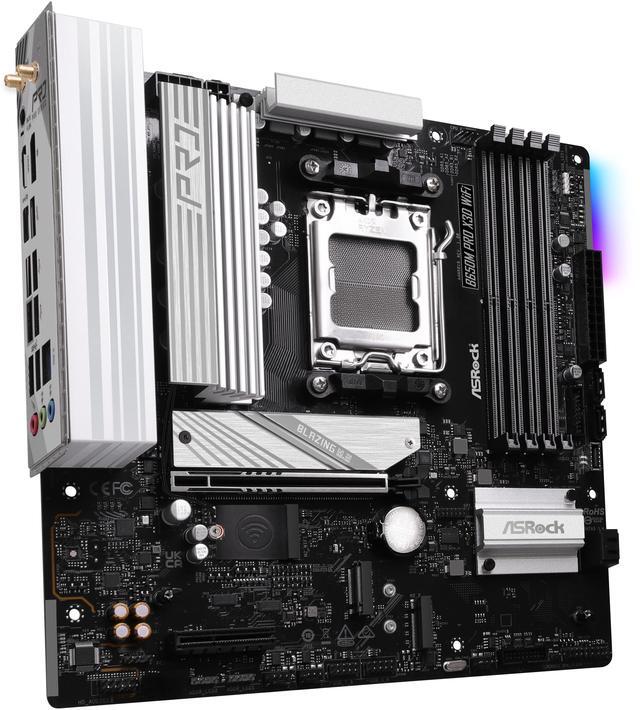

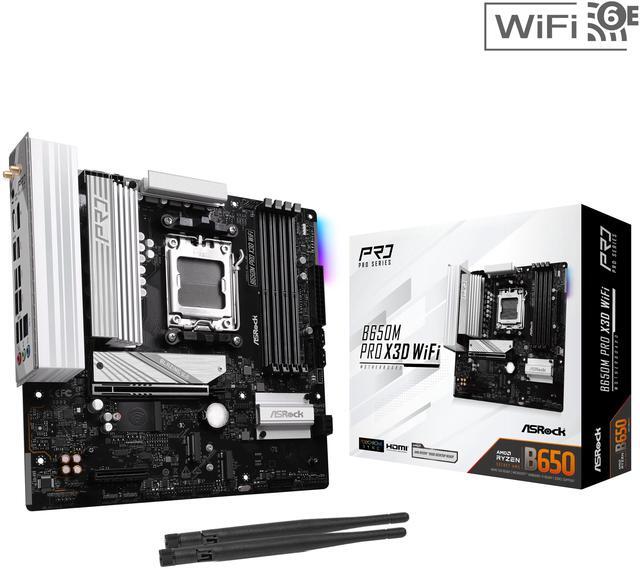

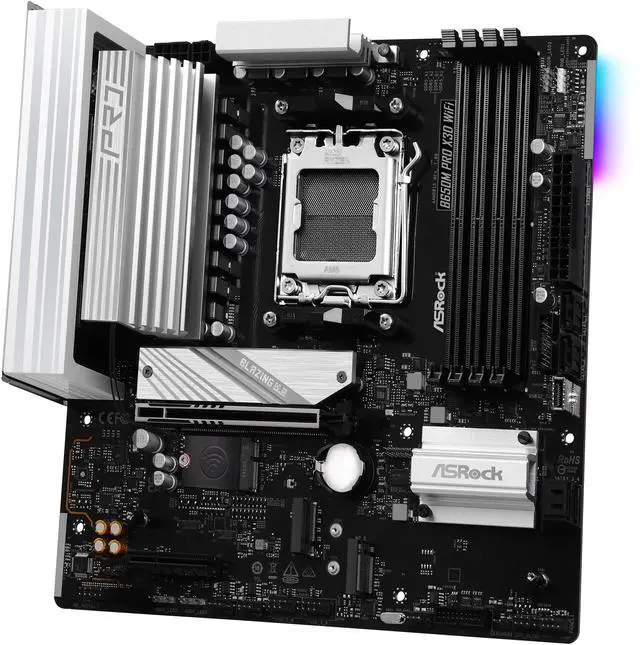

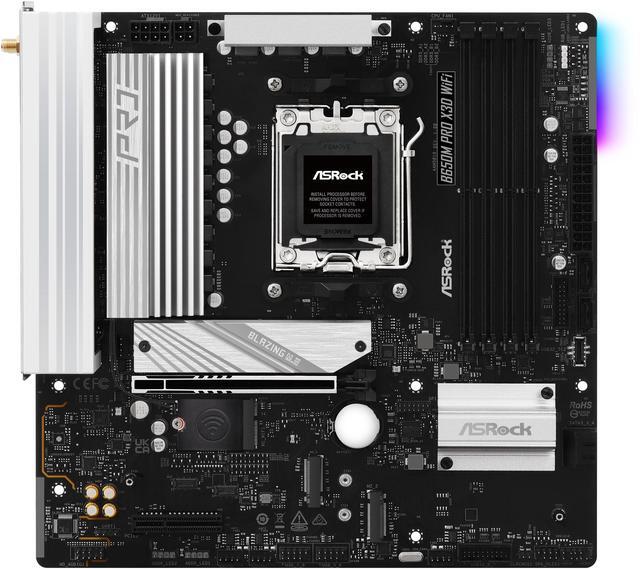

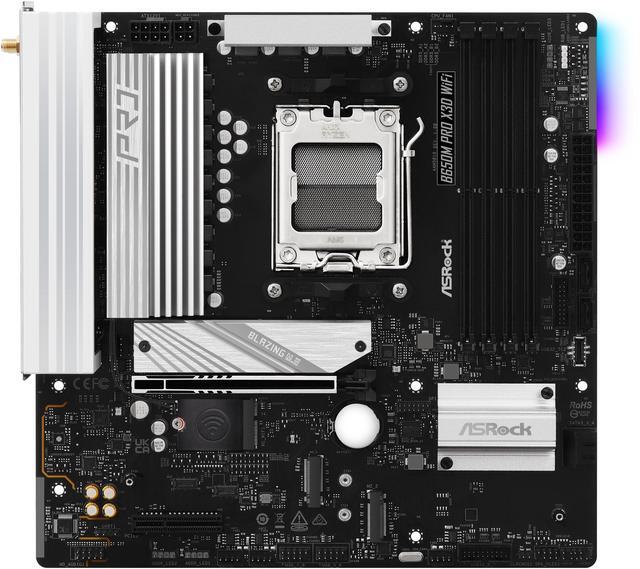

Model | B650M Pro X3D WiFi |
CPU Socket Type | AM5 |
---|---|
CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
Chipset | AMD B650 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Up to 8000+(OC) |
Maximum Memory Supported | 256GB |
Channel Supported | Dual Channel |
ECC Supported | Yes |
Buffer Supported | Un-buffered |
PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
---|---|
PCI Express x4 | 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode |
Serial ATA (SATA) | 4 x SATA 6Gb/s |
---|---|
M.2 | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
Audio Chipset | Realtek ALC897 |
---|---|
Audio Channels | 7.1 Channels |
Max LAN Speed | 2.5Gbps |
---|---|
Wireless LAN | Wi-Fi 802.11 ax |
Bluetooth | Bluetooth 5.2 |

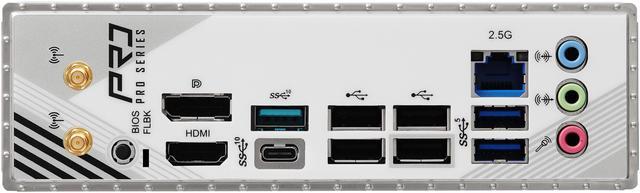

Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
---|
Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |
---|---|
Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W) |
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6" x 9.6" |
Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
---|---|
Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
Windows 11 | Supported |
Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
---|
Date First Available | June 10, 2025 |
---|
