Images from RETAIL item, box contents may vary.

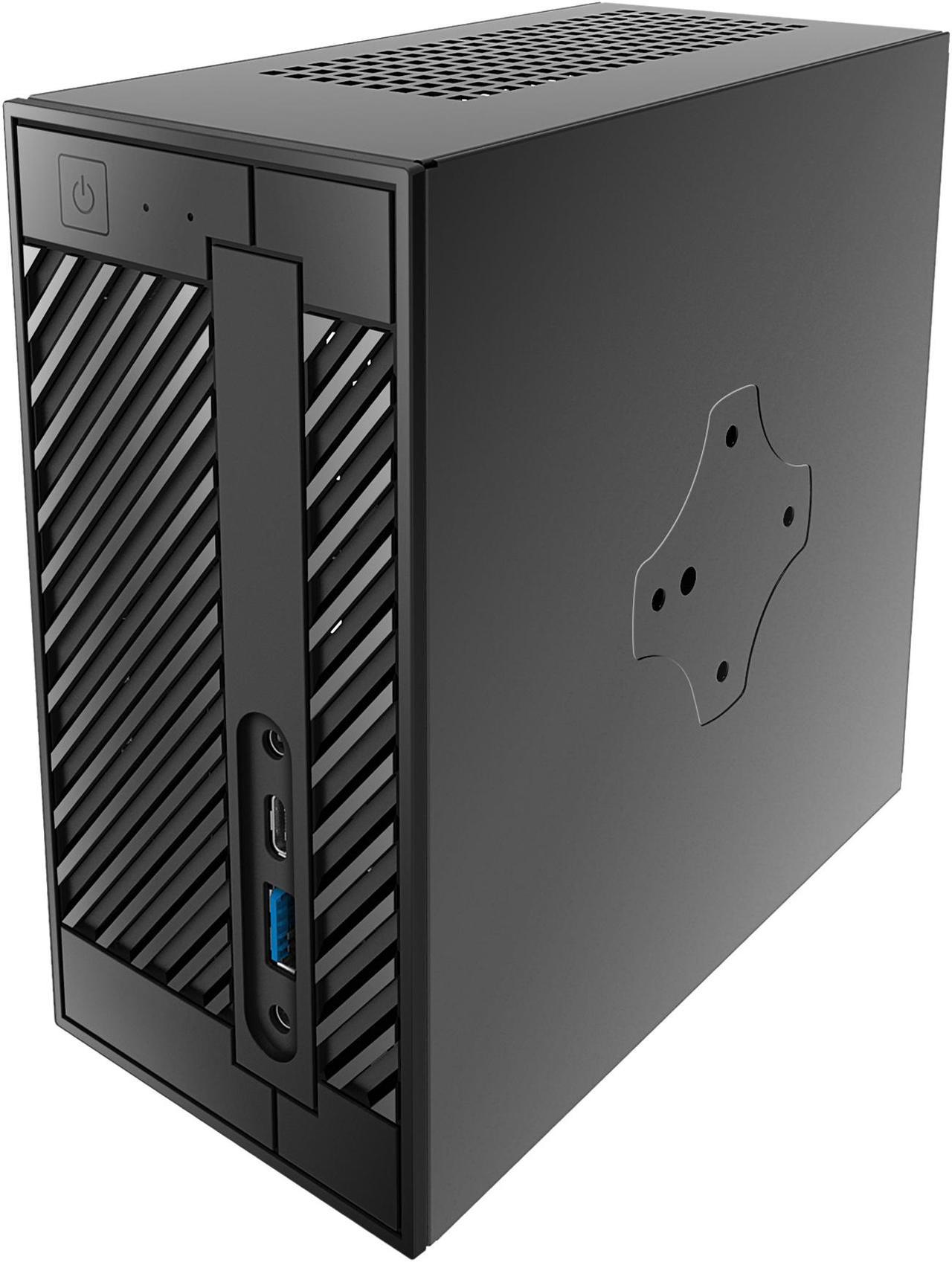

ASRock Deskmini 110W Intel Socket LGA1151 Intel H110 Barebone System
OPEN BOX Product Type
- Intel Core i7/i5/i3/ Pentium / Celeron (LGA1151)
- Intel H110
- 2 x 260Pin SO-DIMM DDR4 2400
- Intel HD Graphics
- DeskMini barebone do come with Wi-fi build in
Specs
Learn more about the ASRock Deskmini 110W
| Brand | ASRock |
|---|---|
| Model | Deskmini 110W |
| Color | Black |
|---|
| CPU Type | Supports Intel 7th/6th Gen LGA1151 Processors (Max. TDP 65W) * Not Compatible with Intel 8th Gen CPUs |
|---|---|
| CPU Socket | Intel Socket LGA1151 |
| North Bridge | Intel H110 |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 2 x 260Pin SO-DIMM |
| Memory Type Supported | DDR4 2400 |
| Max Memory Supported | 32GB |
| Other | 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 2 x SATA 6.0Gb/s |
| M.2 | 1 x M.2 SSD Slot (Supports type 2280 M.2 PCIe Gen3 x4)* * SATA type M.2 module is not supported. |
| Intergrated Graphics | Intel HD Graphics Integrated by CPU |
|---|
| Onboard Audio | Realtek ALC283 |
|---|
| LAN | Intel i219V |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |

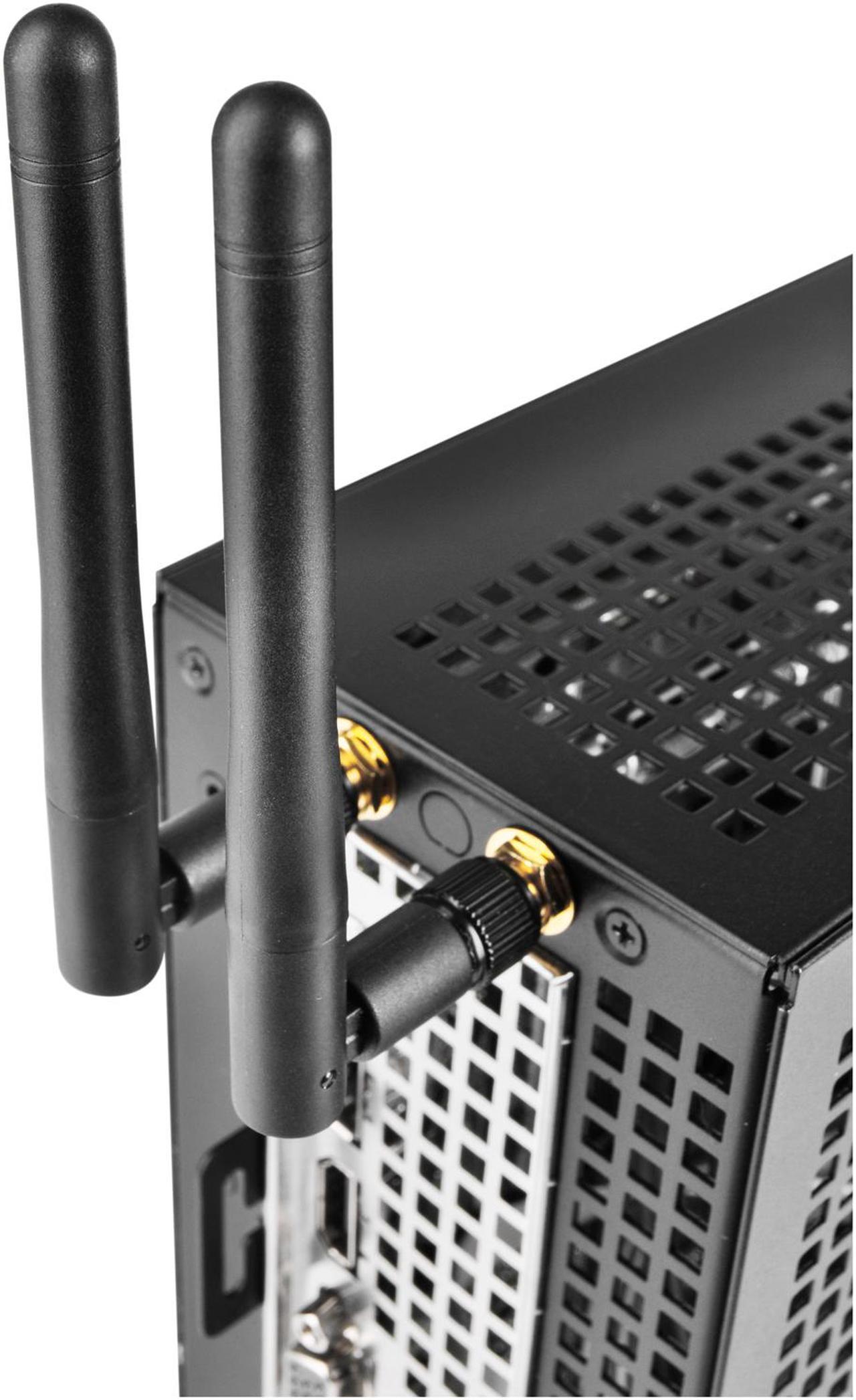

| Wireless LAN | 2.4G/5G, 802.11 a/b/g/n/ac |
| Bluetooth | BT4.0 |
| 2.5" Internal Bays | Supports 2 x 2.5" HDDs or SSDs * HDD support type: 2.5" SATA hard drive (7mm & 9.5mm) |
|---|

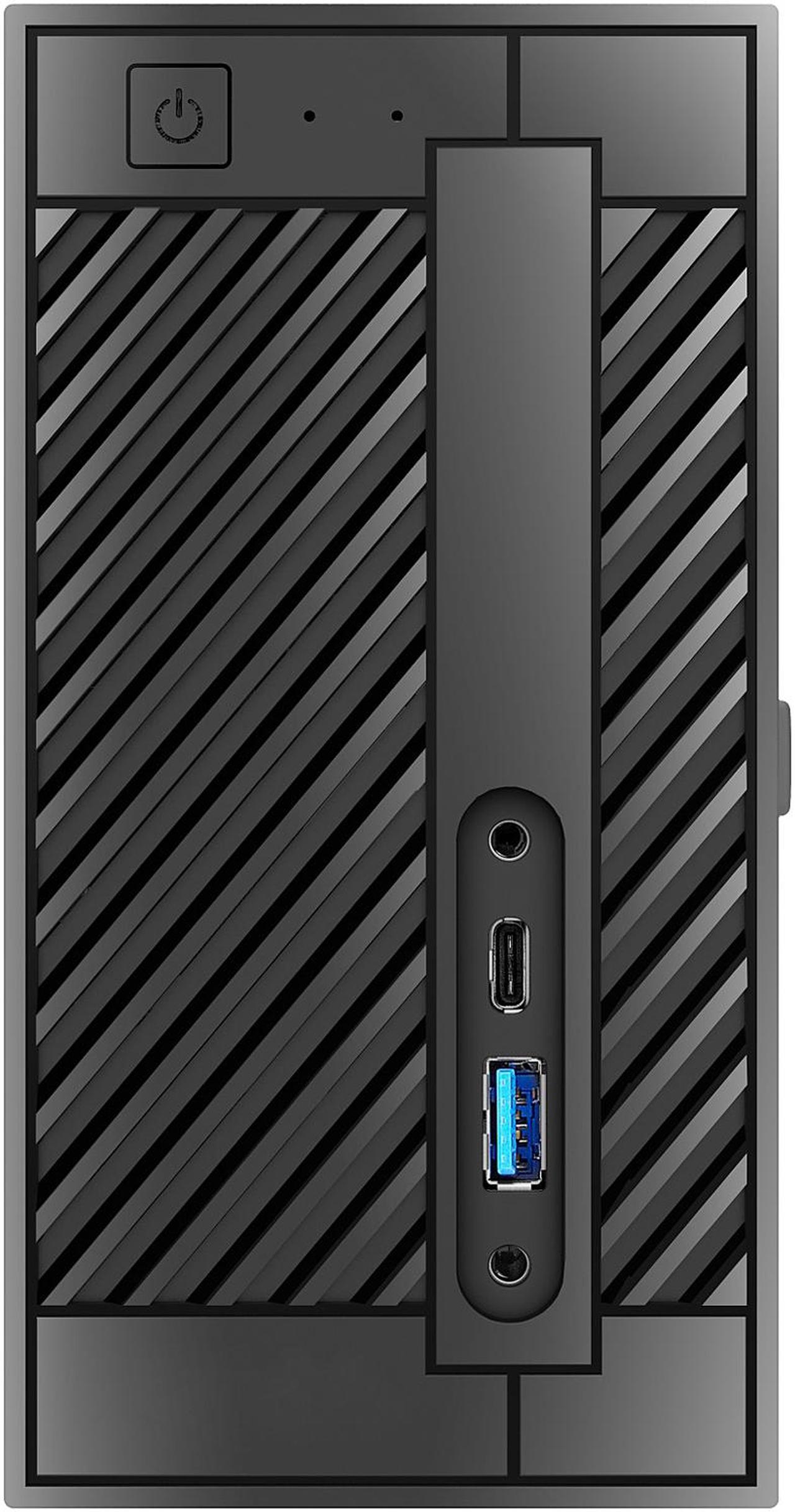

| Front USB | 1 x USB 3.1 Gen1 (Type-A) 1 x USB 3.1 Gen1 (Type-C) |
|---|---|
| Front Audio Ports | 1 x Headphone with MIC 1 x MIC-In |
| Other Front Ports | Onboard: - 1 x USB 2.0 Header - 1 x Front Panel Header - 1 x 4-Pin Fan Connector - 1 x 5-Pin Fan Connector - 1 x DC-In Jack (Supports 19V Power Adapters) - 1 x Internal Speaker Header - 1 x 2-Pin Chassis Intrusion Header |
| VGA | 1 x VGA * Supports up to 2 displays simultaneously. |
|---|---|
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |

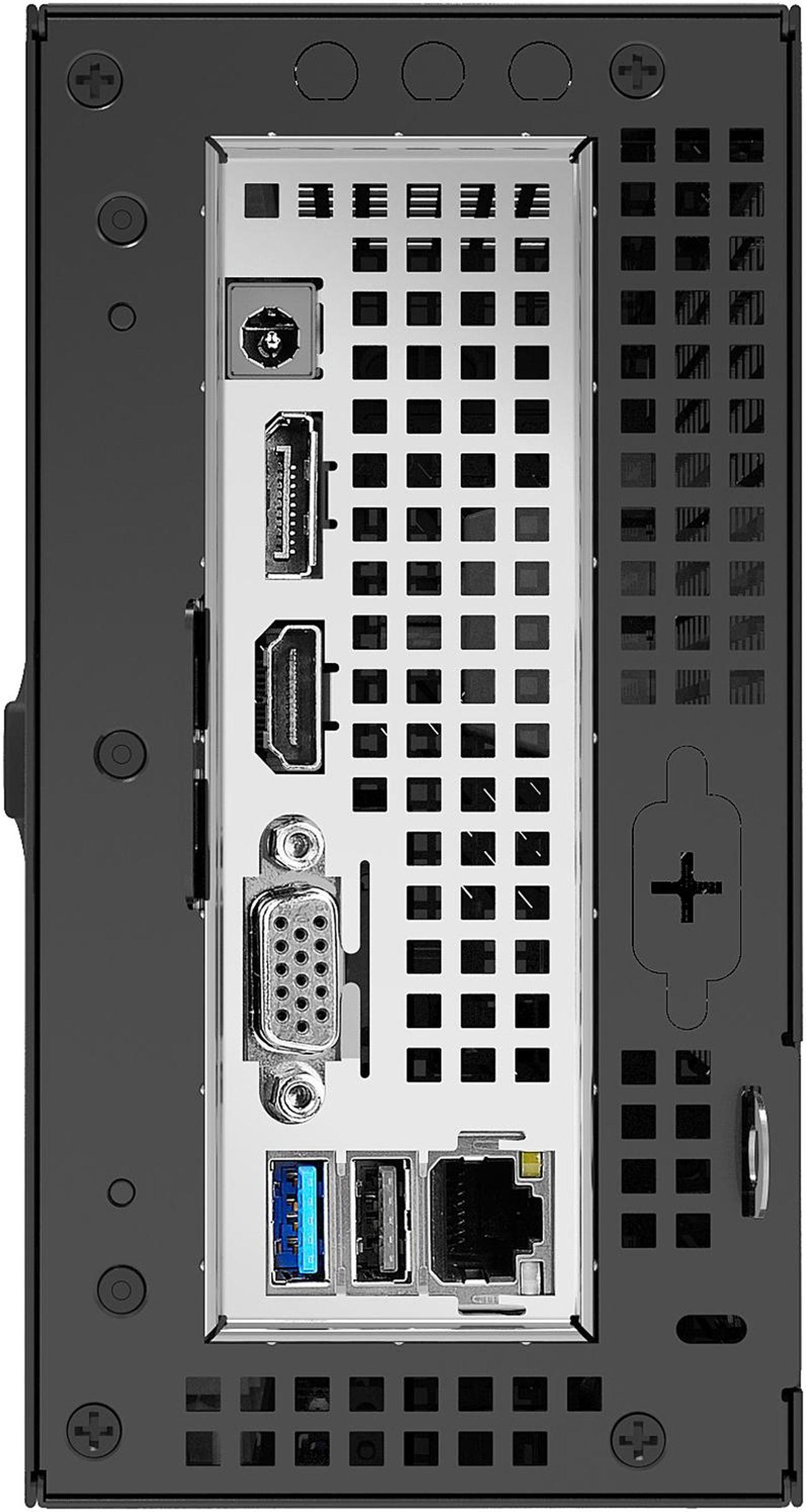

| Rear USB | 1 x USB 3.1 Gen1 Type-A 1 x USB 2.0 Type-A |
| RJ45 | 1 |
| Other Rear Ports | 1 x DC-In Jack |
| Power Supply | 120W/19V Power Adapter |
|---|
| Dimensions | 6.10" x 3.15" x 6.10" |
|---|---|
| Material | Steel Body & Plastic Bezel |
| Features | Smaller Size, Better Performance Compared to T-series CPU models, DeskMini 110 uses 65W CPUs and is still smaller than other HTPCs, bringing up to 23% more performance. Higher Value, Better Performance Compared to U-series CPU models, DeskMini 110 uses Intel standard CPUs that bring up to 21% more performance, while using cost effective Pentium or Core i3 processors. DC-In Adapter The DC-In adapter saves users up to 14% on power consumption compared to the traditional PSU design. Tons of Customization Options COM port header, TPM 2.0 chip, slim thermal fan or standard Intel box fan. Customize your own mini-STX. Two M.2 Slots A key E 2230 M.2 slot for supporting a Wi-Fi + BT module, and another type 2280 M.2 slot which is directly powered by the CPU, thus boasting 7% better performance than other M.2 slots for supporting PCIe Gen3 x4 M.2 SSDs. * SATA type M.2 module is not supported. USB 3.1 Gen1 Type-C A Type-C USB 3.1 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates. Dual Band 802.11 ac Wi-Fi No one has time for weak Wi-Fi signals and sluggish internet! That's why this motherboard comes with a 802.11 ac Wi-Fi (2.4G / 5G Wi-Fi) module which supports wireless networks and Bluetooth v4.0. * Available only with DeskMini 110W. Flexible LAN Choice Settle for the default Intel I219V LAN, or upgrade both your chipset to B150/Q170 and server grade Intel I219LM LAN. Two SATA3 Headers There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs. Three Graphics Outputs This motherboard supports all three kinds of graphics D-Sub, HDMI and DP. * Supports up to 2 displays simultaneously. |
|---|

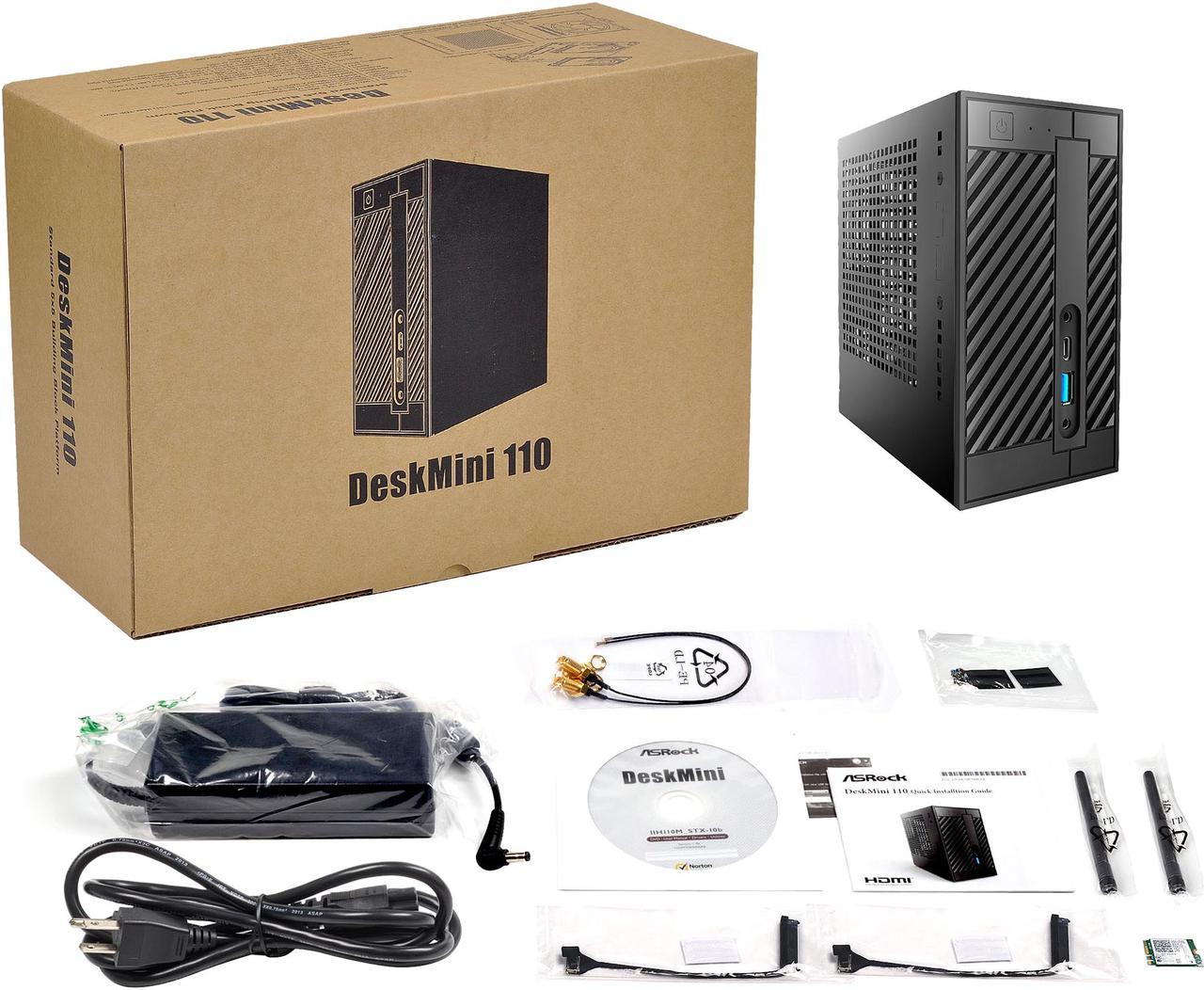

| Packaging | Accessory - 2 x ASRock Wi-Fi 2.4/5 GHz Antennas - 1 x CD - 1 x QIG - 1 x 120W Power Adapter - 1 x Power Cord (by region) - 2 x SATA Cables |
|---|
| Date First Available | February 23, 2017 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: This item is Final Sale
- Return for replacement within: This item is Final Sale
- This item is covered by Newegg.com's Final Sale Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-590-8308
- Support Email: support@asrockamerica.com
- Support Website
- View other products from ASRock
Open Box Product Disclaimer
- View full Open Box Product Disclaimer
