ASRock DESKMINI GTX 1060 6GB GDDR5 Intel Socket LGA1151 Intel B250 Mini / Booksize Barebone System

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Supports Intel 6th/7th Core i7/i5/i3/ Pentium / Celeron Processors (Socket 1151) (Max. TDP 65W)
  • 2 x 260Pin SO-DIMM DDR4 2400
  • NVIDIA GeForce GTX 1060 (6GB GDDR5)

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The ASRock DESKMINI can be configured to deliver the computing power of a full-sized PC in a super compact chassis of only 2.7L. It comes with NVIDIA GeForce GTX 1060 (MXM Type B) which is ready for VR and Ultra HD 4K. It can take 6th/7th Intel Core processors, DDR4 memory, M.2 SSD, and Intel Optane Memory to make a powerful mini workstation. You can also create a unique style by connecting LED strip to its RGB LED header.

z370 z370
1. LGA1151 Socket Type 4. Rich USB Ports 7. 2 x USB 3.1 Gen1
Supports Intel® 6th/7th Processors USB 3.1 Gen1 Type-C
USB 3.1 Gen1

2. MXM Type B Graphics 5. Great Connectivity 8. Multi 4K@60Hz Outputs
NVIDIA GTX GTX10XX Series
NVIDIA Quadro Cards
AMD RX5XX / RX4XX Series
Intel® Gigabit LAN
Intel® 802.11ac WiFi
DisplayPort
HDMI
Mini DisplayPort
3. Dual DDR4 SO-DIMMs 6. HDMI output
3200MHz DDR4, up to 32GB

MXM Type B Graphics
DeskMini GTX/RX supports MXM Type B graphic card for maximum performance to fulfill the need of gaming and other task with ease.

Multi 4K@60Hz Outputs
Equipped with multiple video output that supports revolutionary 4K@60Hz signal to give unhindered graphics performance.

VR READY
The tiny little machine with its rock-solid performance makes DeskMini GTX/RX the best VR machine, prepare yourself well to enjoy the impressive world of Virtual Reality

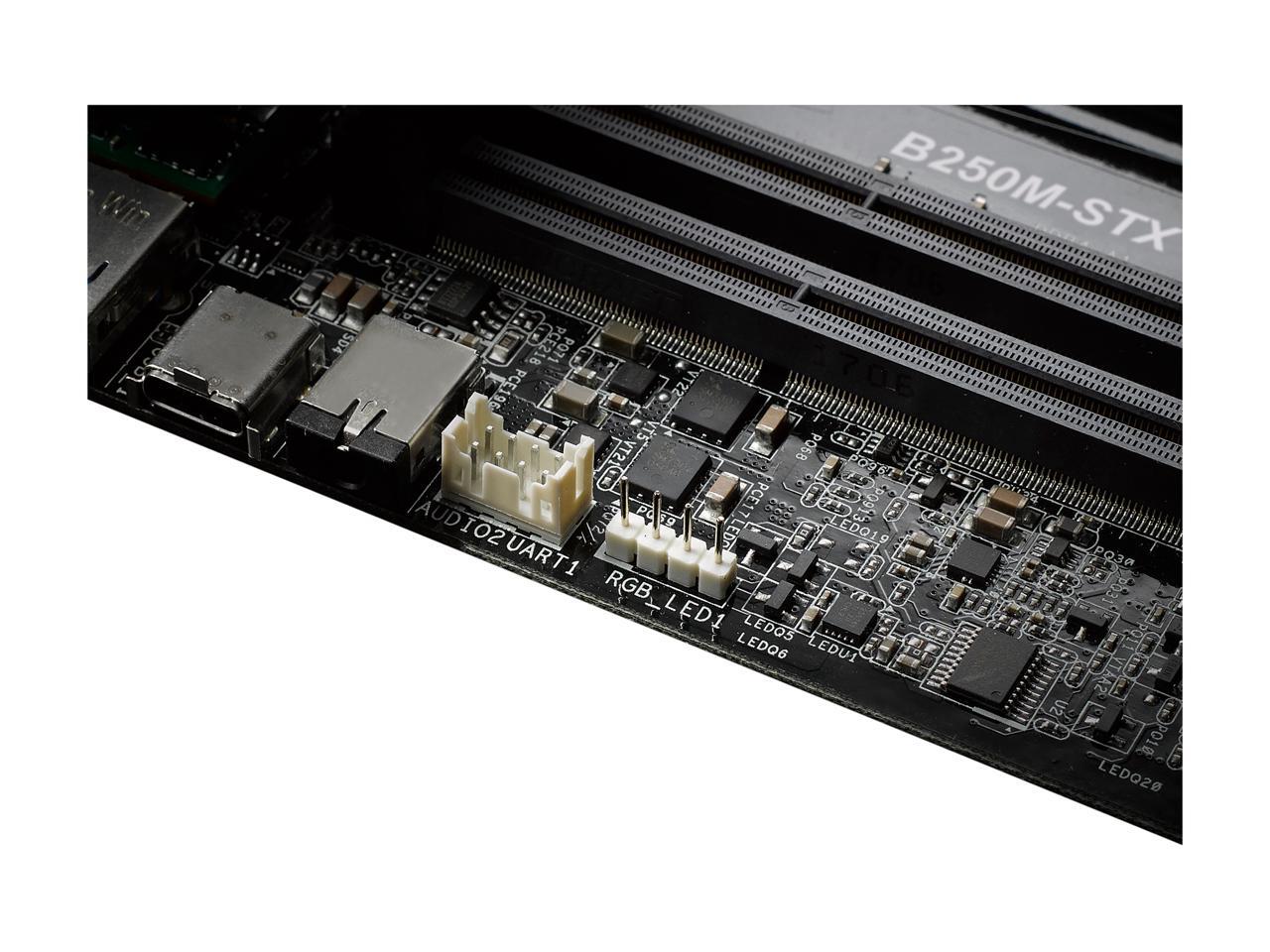

RGB LED Header
Build your own colorful lighting system! ASRock RGB LED allows user to connect LED strip and create their unique PC style easily.

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Triple Ultra M.2 (For Z270 SKU Only)
Triple of the world's fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, two of which also supports SATA3 6Gb/s M.2 modules.

USB 3.0 Type-C
A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates.

Small But Powerful
The World's First Micro-STX mini PC that supports Intel desktop processor, MXM Type-B graphic cards, 3x Ultra M.2 slots and three display outputs. Such incredible performance in a tiny 2.7-liter size.


Learn more about the ASRock DESKMINI GTX 1060

General

|
Brand
ASRock
Model
DESKMINI GTX 1060
Form Factor
Micro-STX

CPU Supported

|
CPU Type
Supports Intel 7th/6th Gen LGA1151 Processors (Max. TDP 65W)
* Not Compatible with Intel 8th Gen CPUs
CPU Socket
Intel Socket LGA1151

Chipset

|
North Bridge
Intel B250

Memory Supported

|
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
DDR4 2400
Max Memory Supported
32GB

Expansion Slots

|
Other
1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module

Storage

|
Hard Drive Installed
No Hard Drive
Serial ATA
2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)

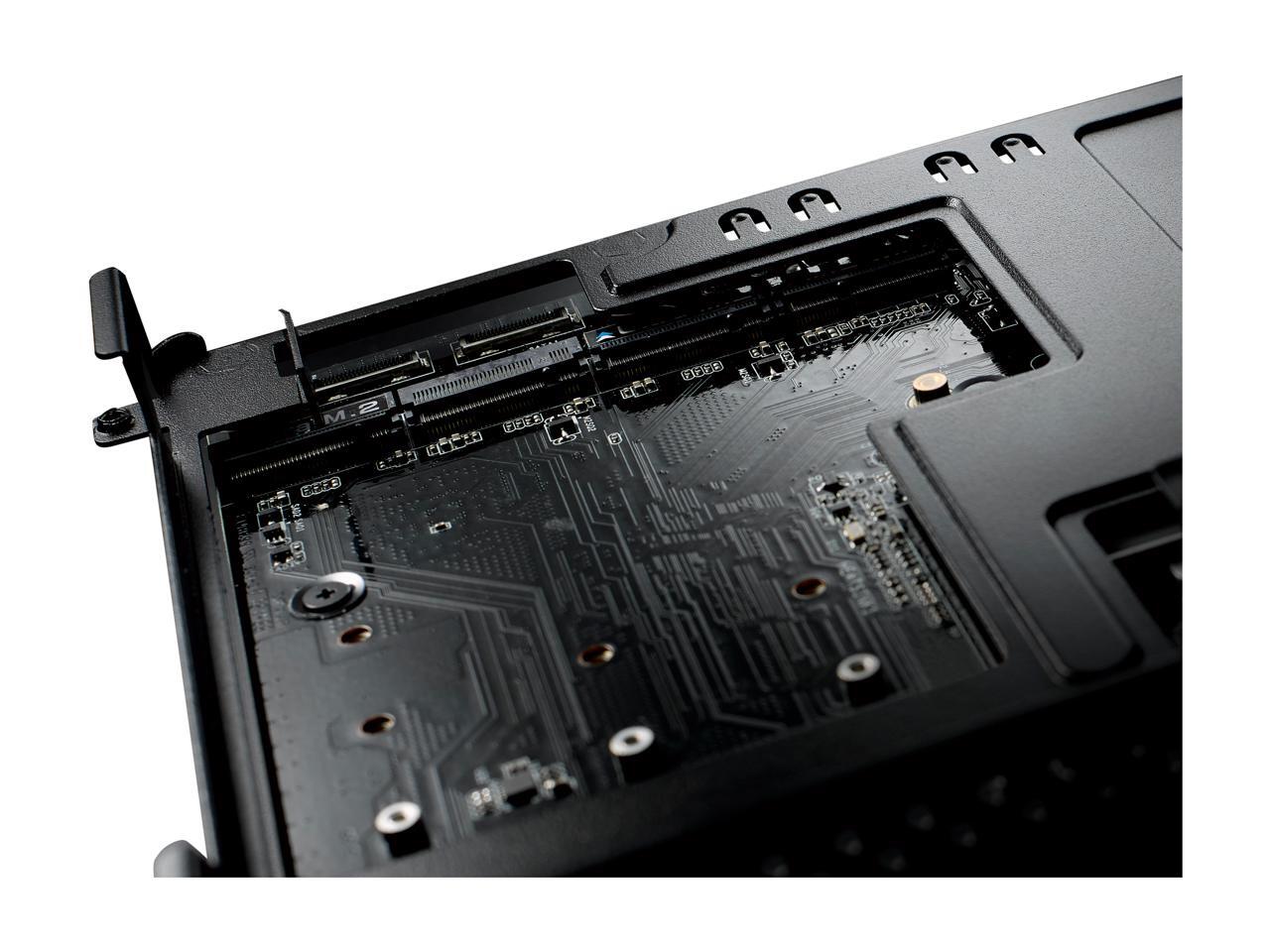

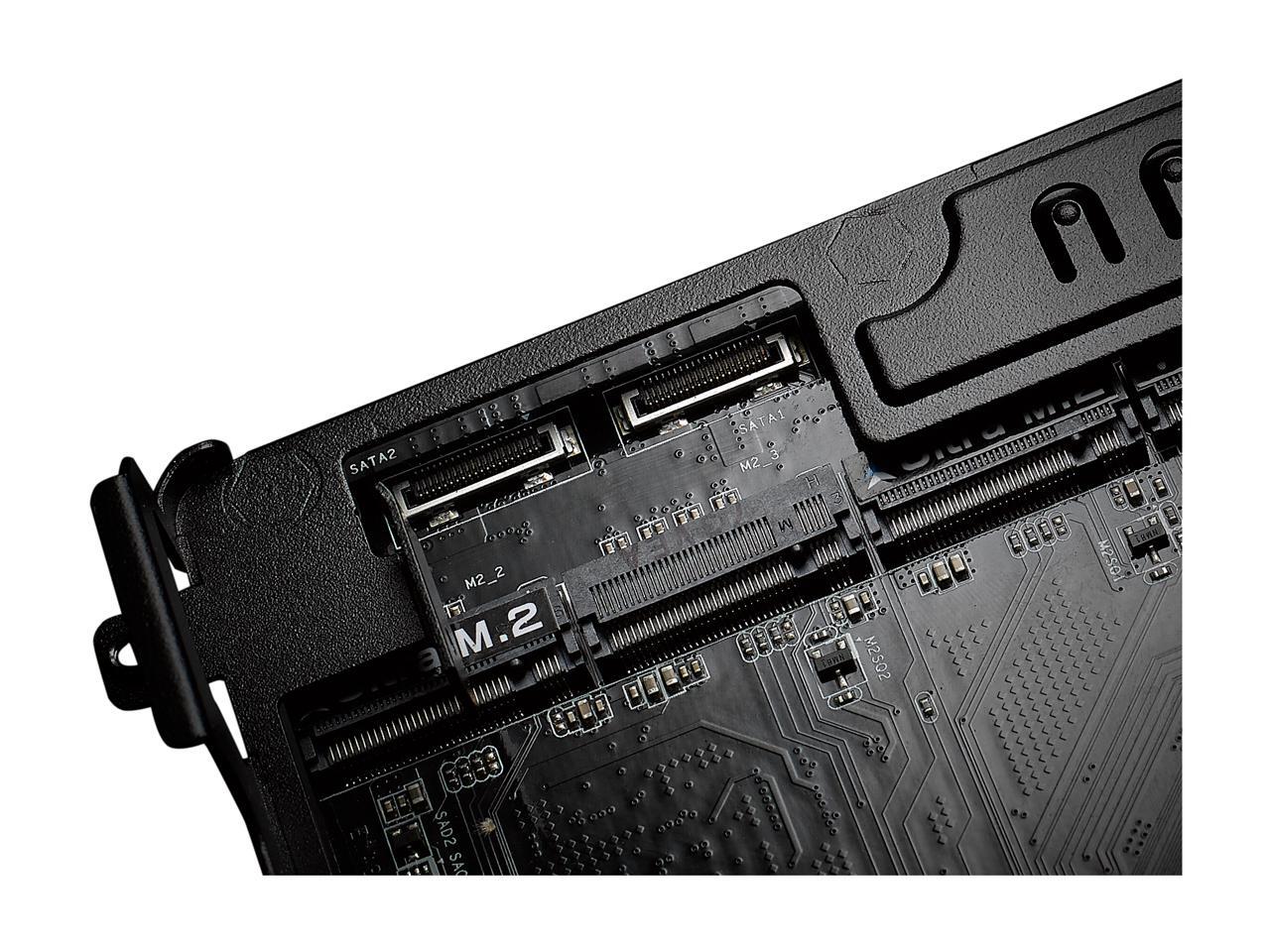

M.2
M.2_1: Type 2280/2260 PCIe Gen3 x4 & SATA 6Gb
M.2_2: Type 2280/2260/2242 PCIe Gen3 x4
M.2_3: Type 2280/2260 SATA 6Gb

Graphics

|
Discrete Graphic Card
NVIDIA GeForce GTX 1060 (6GB GDDR5)
Onboard Video
Intel HD Graphics Integrated by CPU

Audio

|
Onboard Audio
Realtek ALC283

Communications

|
LAN
Intel i219V
Max LAN Speed
10/100/1000Mbps

Extension Bays

|
2.5" Internal Bays
2

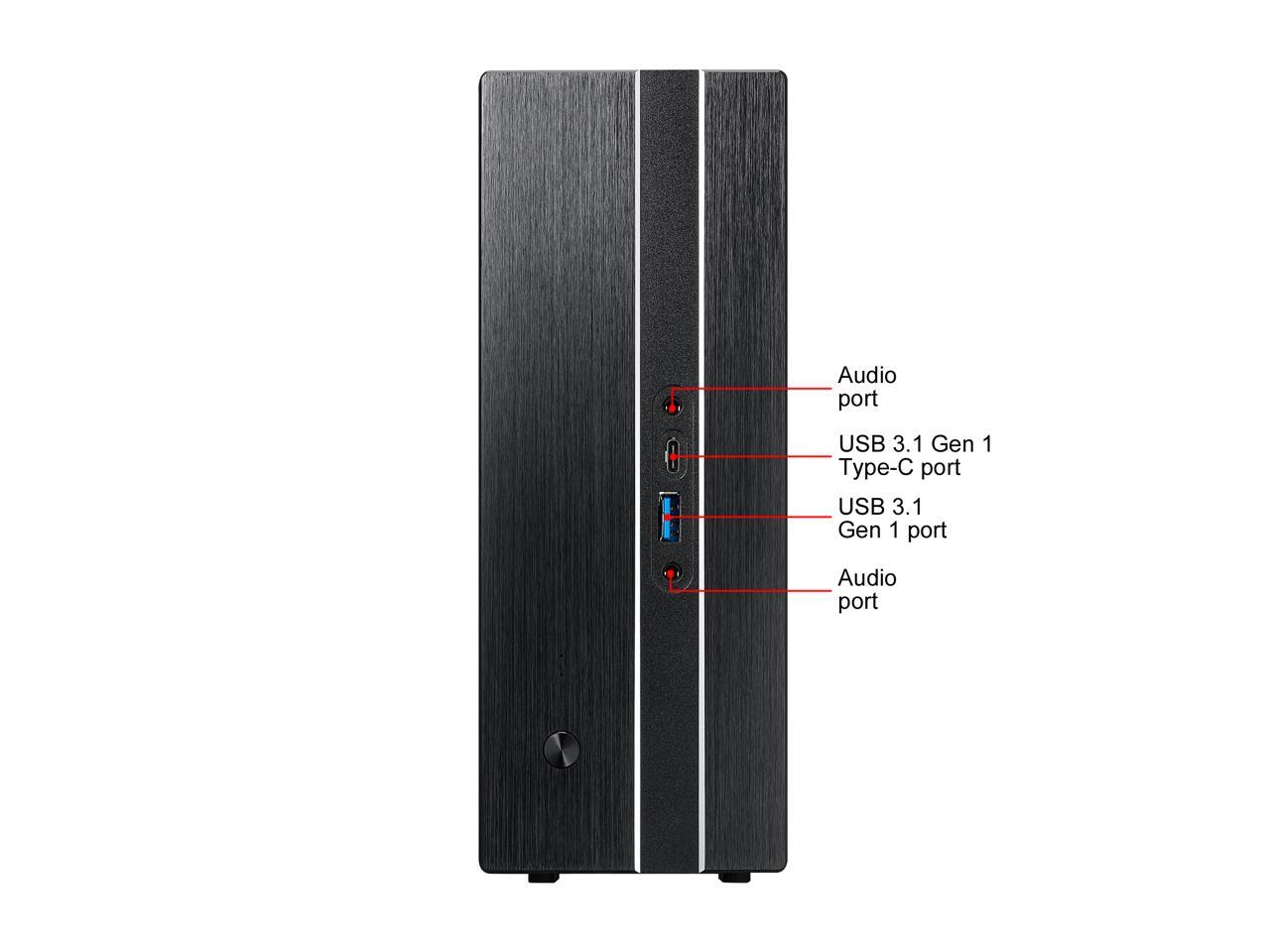

Front Panel Ports

|
Front USB
1 x USB 3.1 Gen1 Type-C
1 x USB 3.1 Gen1 Type-A
Front Audio Ports
1 x Head Phone with Mic Jack
1 x Mic-In
Other Front Ports
Connectors:
- 2 x USB 2.0 Headers
- 1 x Front Panel Header
- 2 x 4-Pin Fan Connectors
- 1 x GPU Fan Connector
- 1 x 4-Pin DC Power DIN (Supports 19V Power Adapters)
- 1 x RGB LED Header

Back Panel Ports

|
HDMI
2
DisplayPort
1 x DisplayPort, 1 x Mini DisplayPort
Rear USB
2 x USB 3.1 Gen1 Type-A

Power Supply

|
Power Supply
220W / 19V

Physical SPEC

|

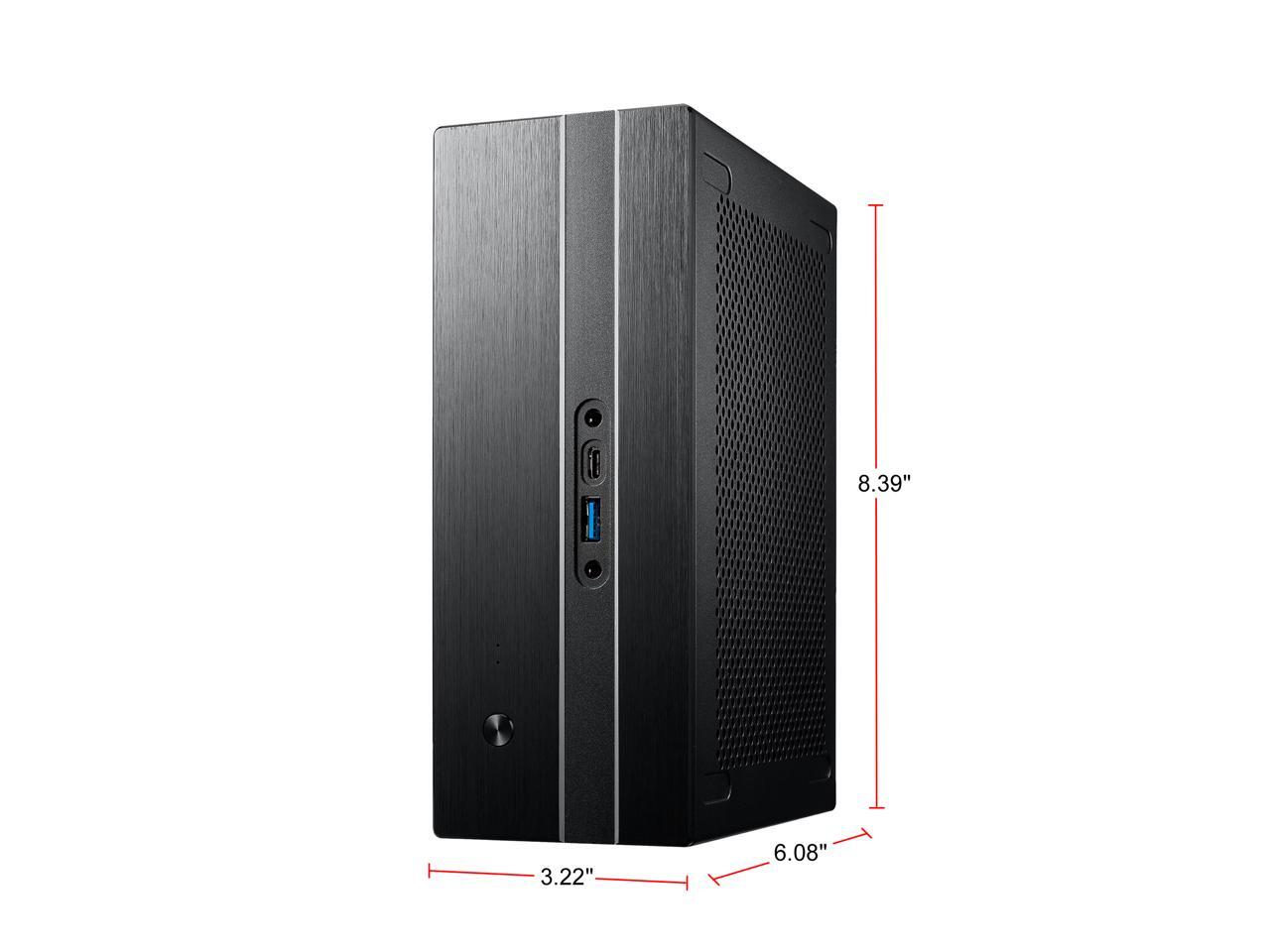

Dimensions
8.39" x 3.22" x 6.08"

Features

|
Features
Supports Intel 7th Core / Pentium / Celeron LGA1151 processors

Discrete MXM slots with Type A/B/B+, up to GeForce GTX1080

Dual DDR4 SO-DIMMs, up to 32GB

4K@60Hz video outputs: HDMI, DisplayPort, mini DisplayPort

Up to 3 x Ultra M.2 PCIe Gen3 x4 Slots

Supports Intel Optane Technology

USB 3.1 Gen1 type-C port

Brand new Micro STX platform

2.7 Liter tiny size

Packaging

|
Packaging
Accessory:
- 2 x SATA Data with Power Cable
- 1 x Screws Pack
- 1 x Intel AC-3168 Wi-Fi Kit

Additional Information

|
Date First Available
August 30, 2017
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Anonymous
Ownership: 1 week to 1 month
Verified Owner
5/ 5
10/28/2017 12:44:04 PM

Pros: Small form factor. Very classy looking case. Looks good in living room.
Support for high end hardware. Was also bundled with 16 gb Gskill ram.
I paired it with an Intel i7-7700K processor and a samsung evo 960 nvme drive.
Fairly easy to assemble. All necessary hardware was provided.

Cons: Not much available for aftermarket cpu coolers. I bought a Noctua NH-L9i cooler, which I knew in advance wasn't going to fit as is. I was able to trim a small amount from the corner of the cooler fins to clear the DC in port. Besides this the stock intel cooler is pretty much the only option.

Drivers come on a DVD. They could have shipped them on a USB thumb drive, which would be compatible with the unit as is without having to use another PC.

Instructions are very basic, mostly related to assembly.

17 out of 17 people found this review helpful. Did you?
