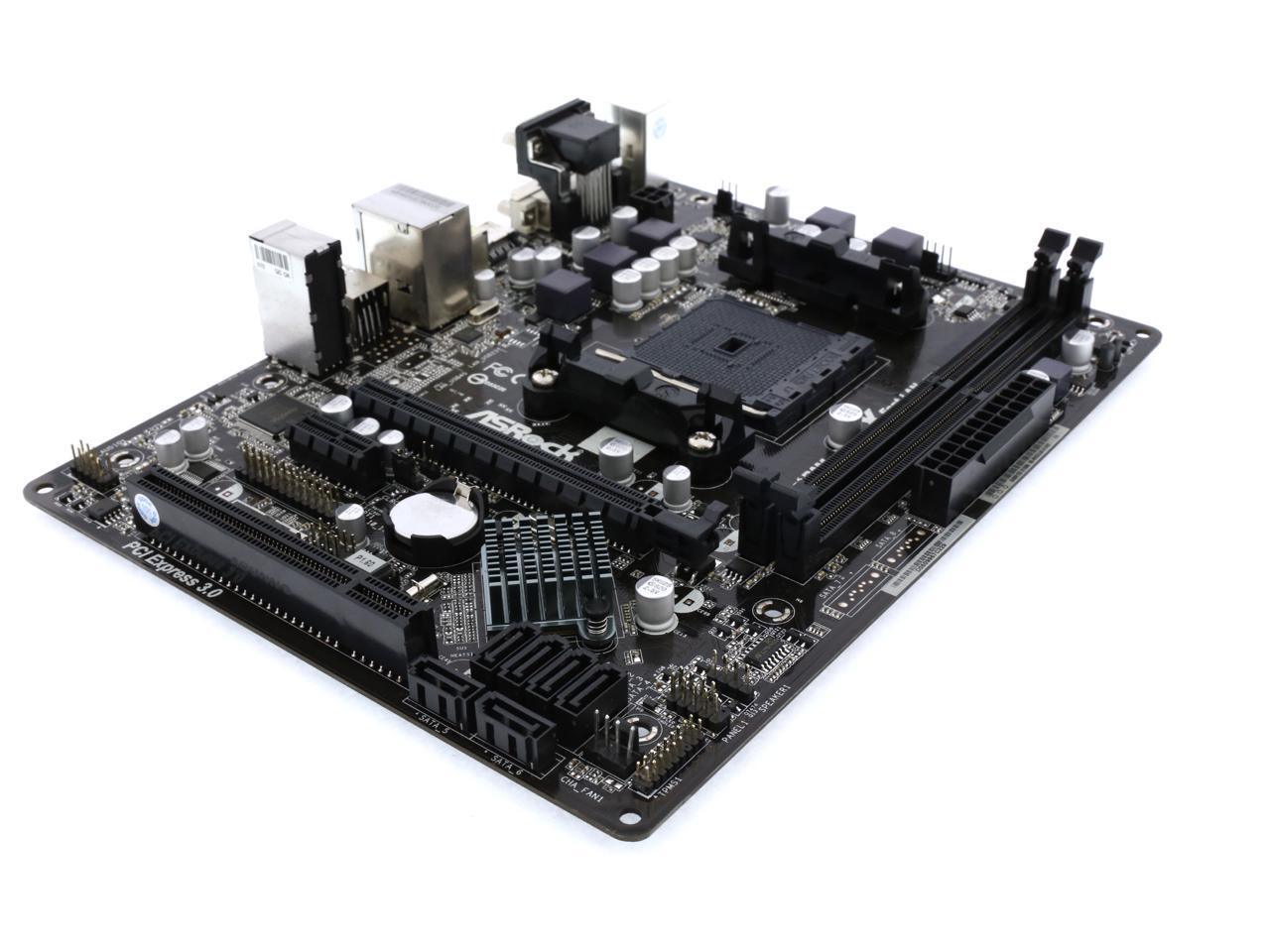

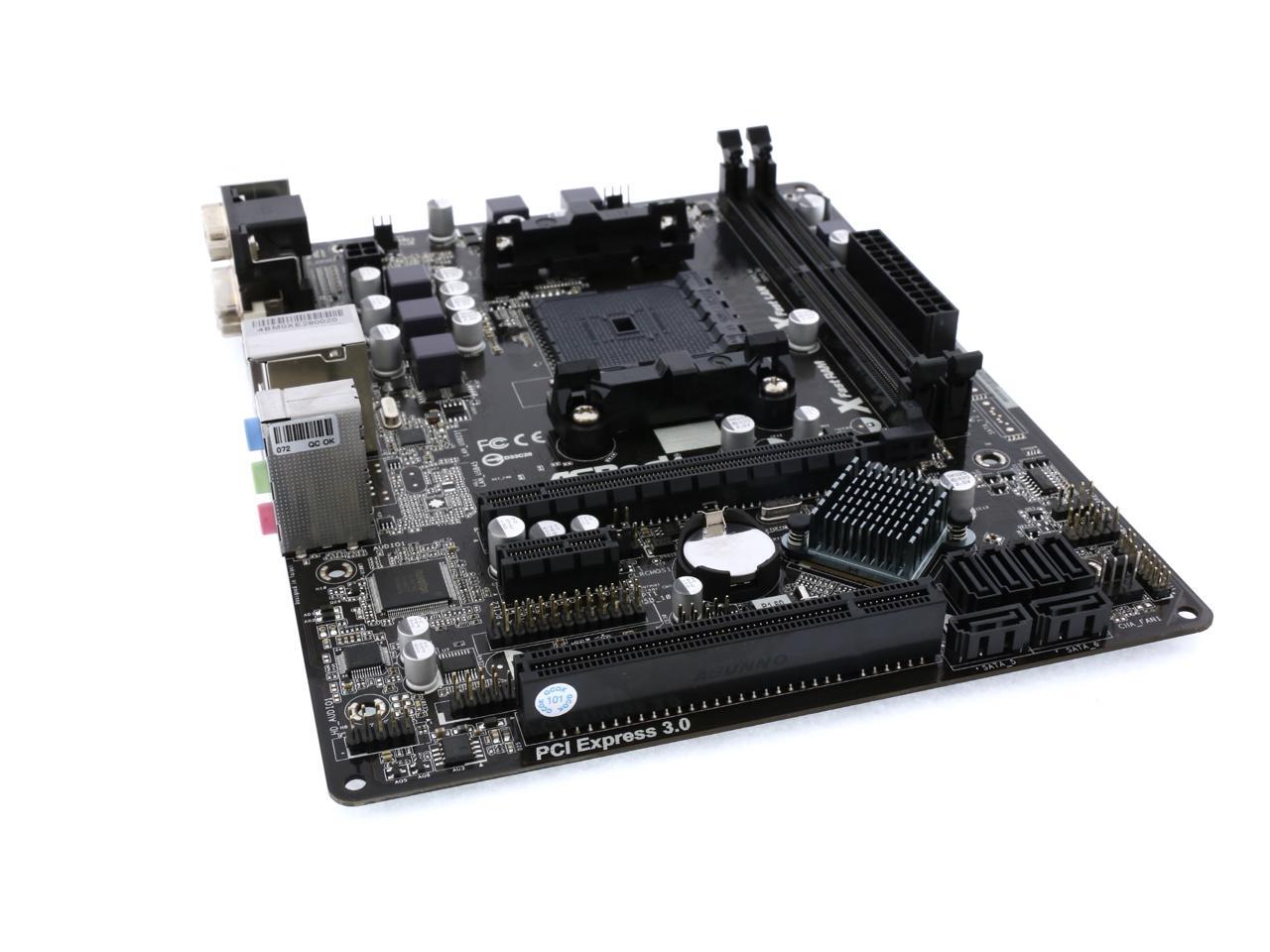

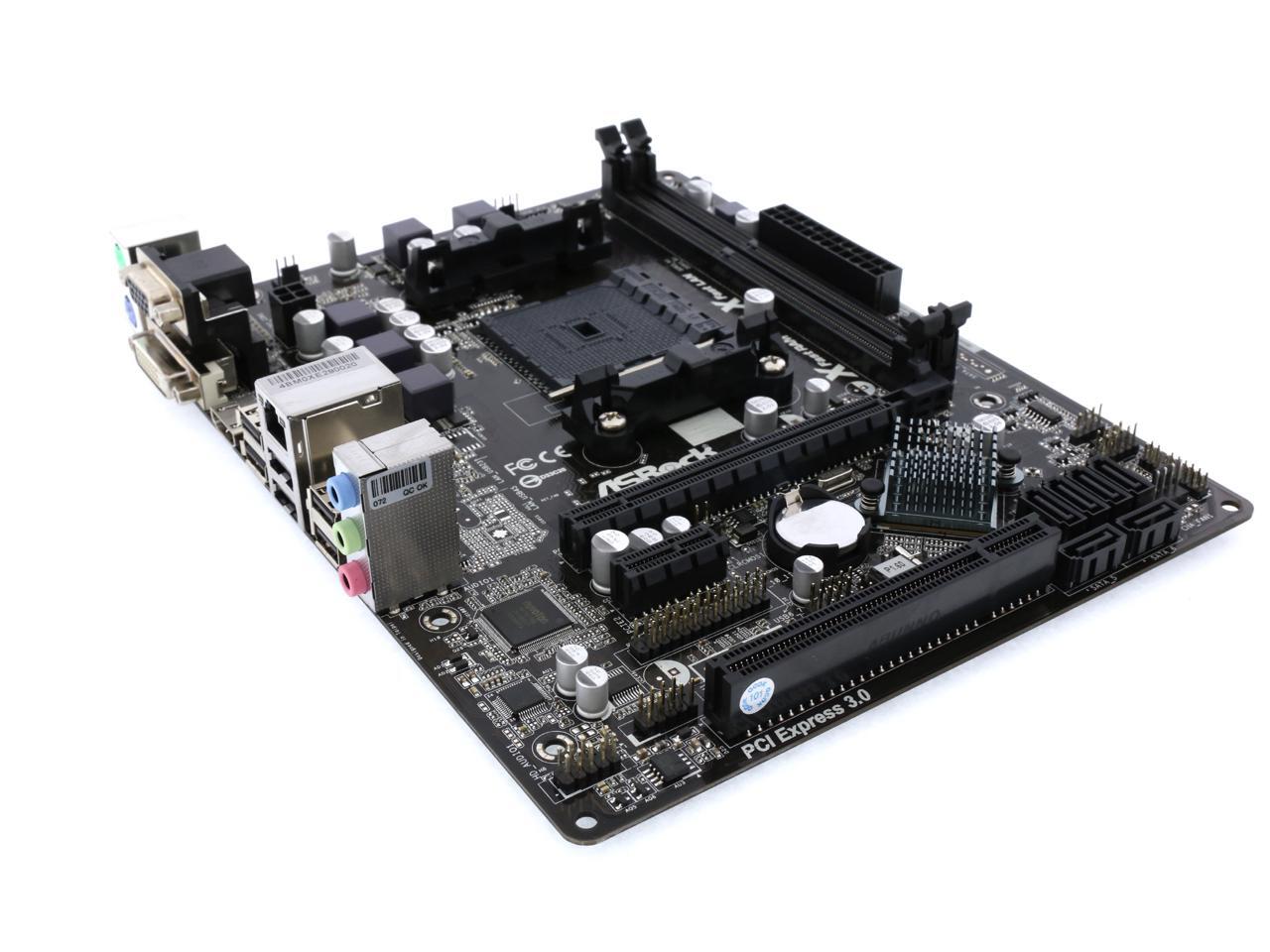

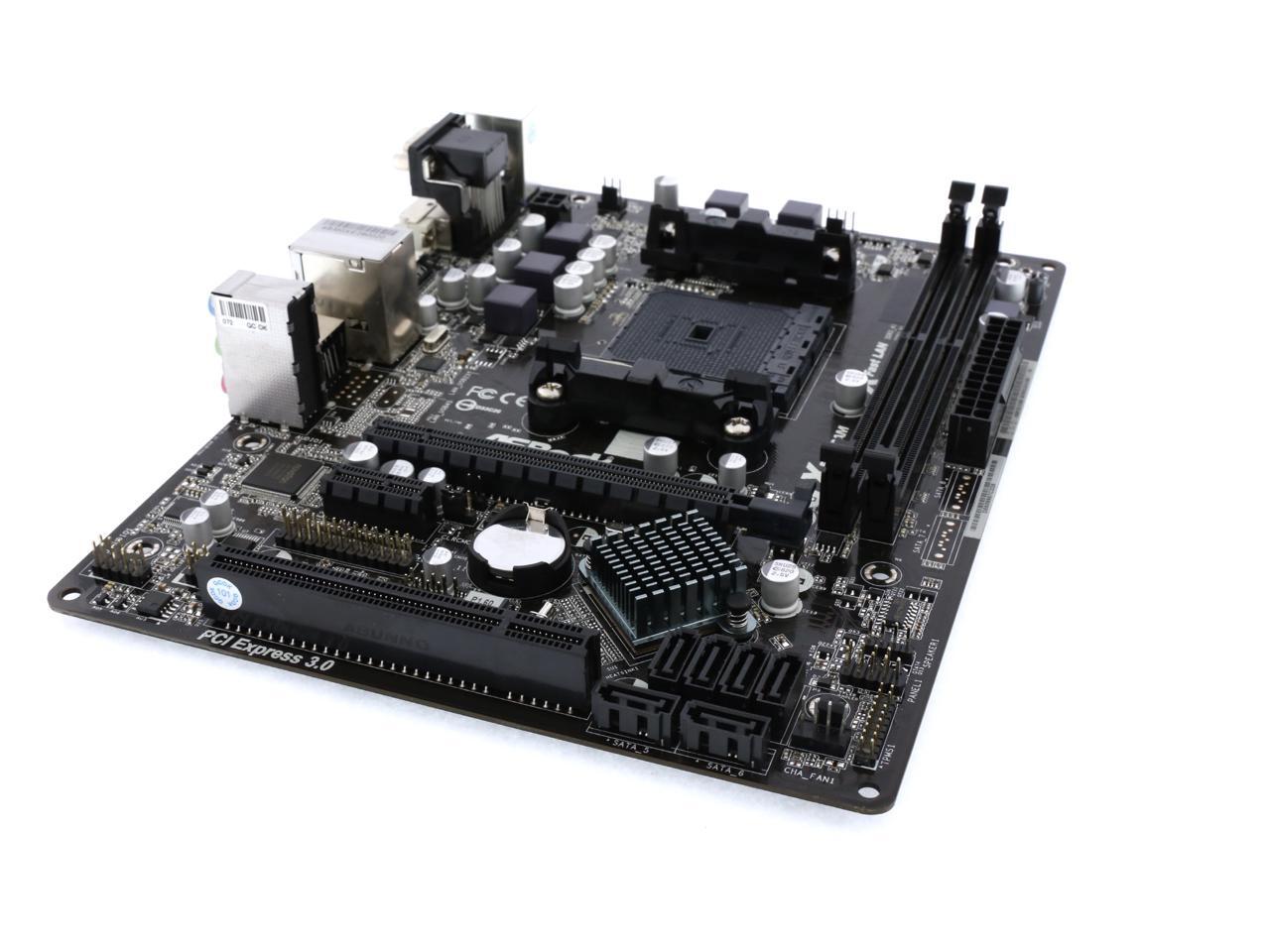

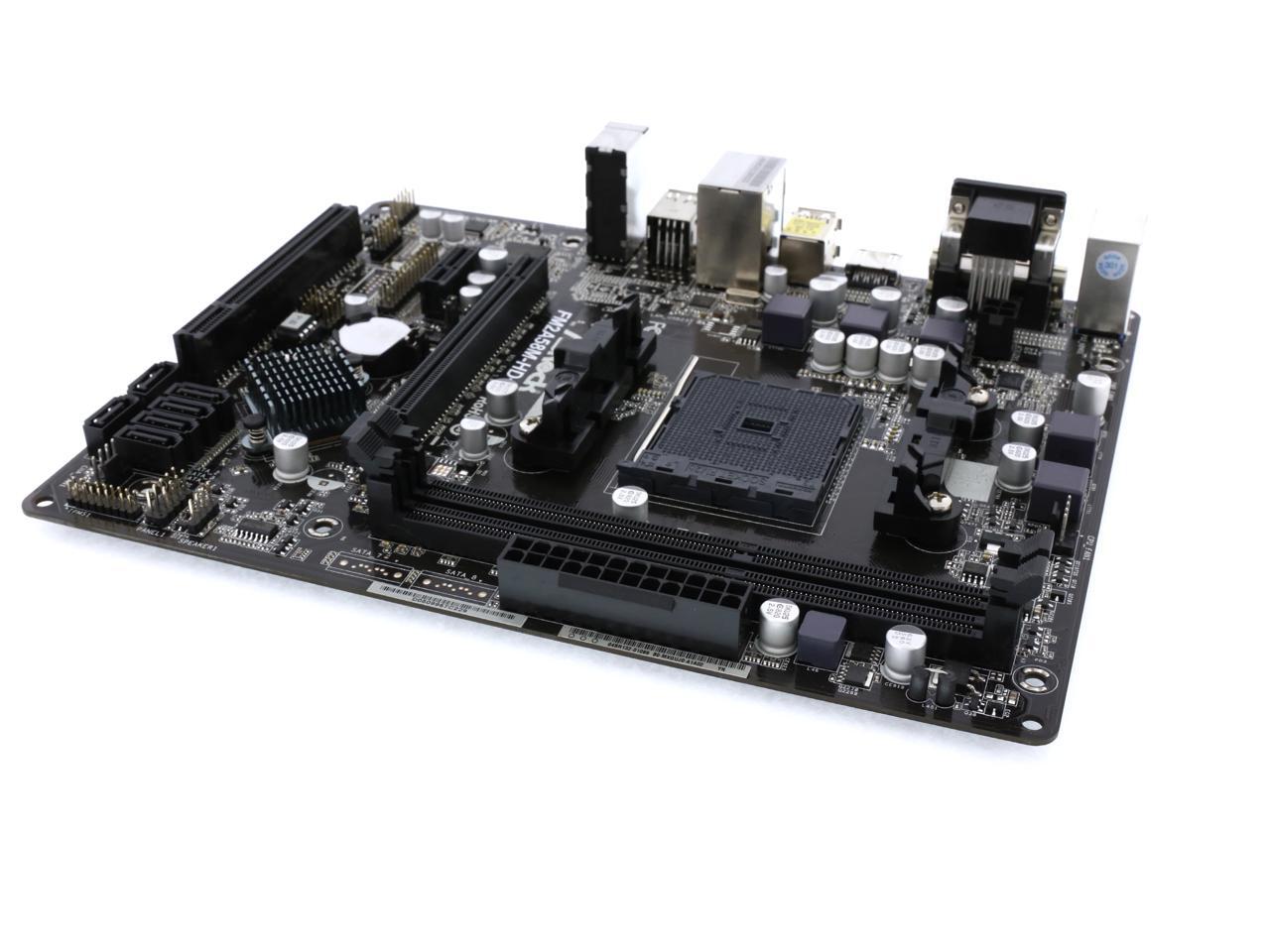

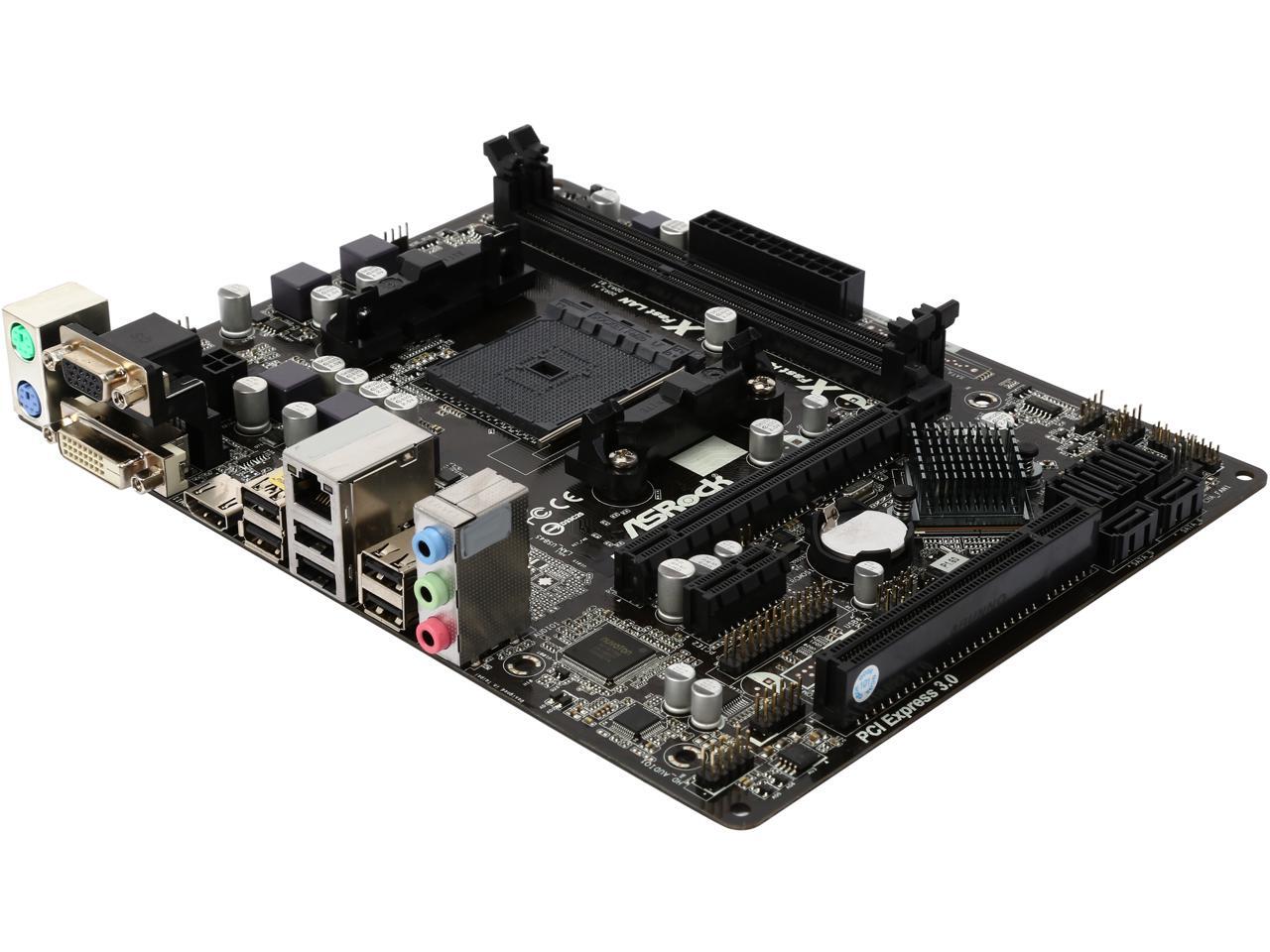

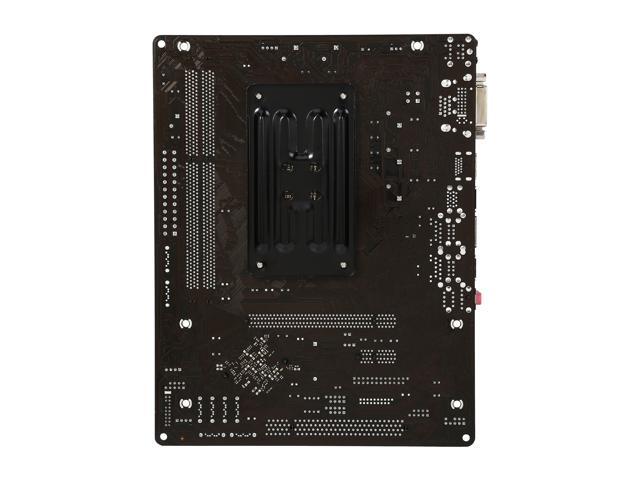

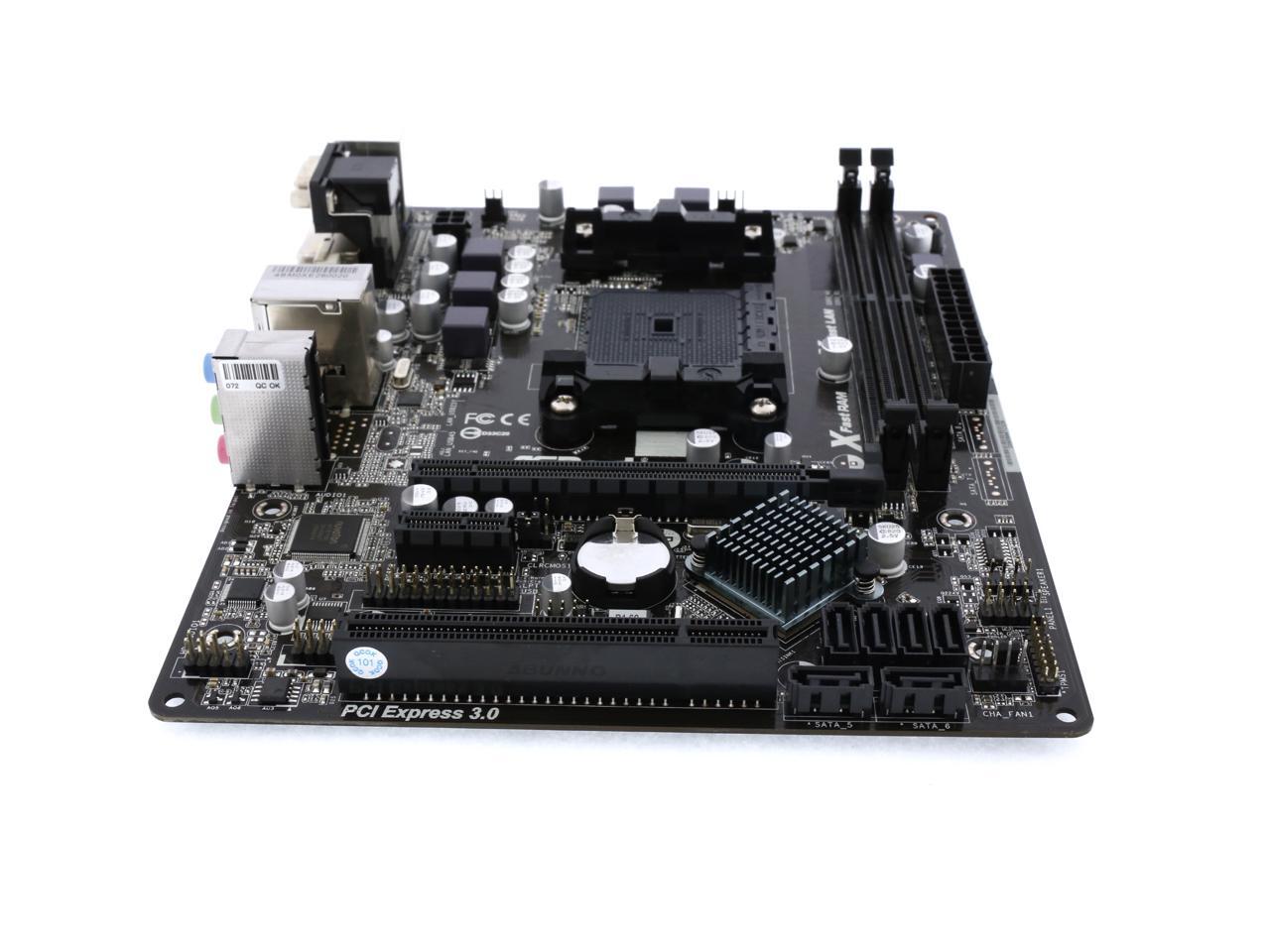

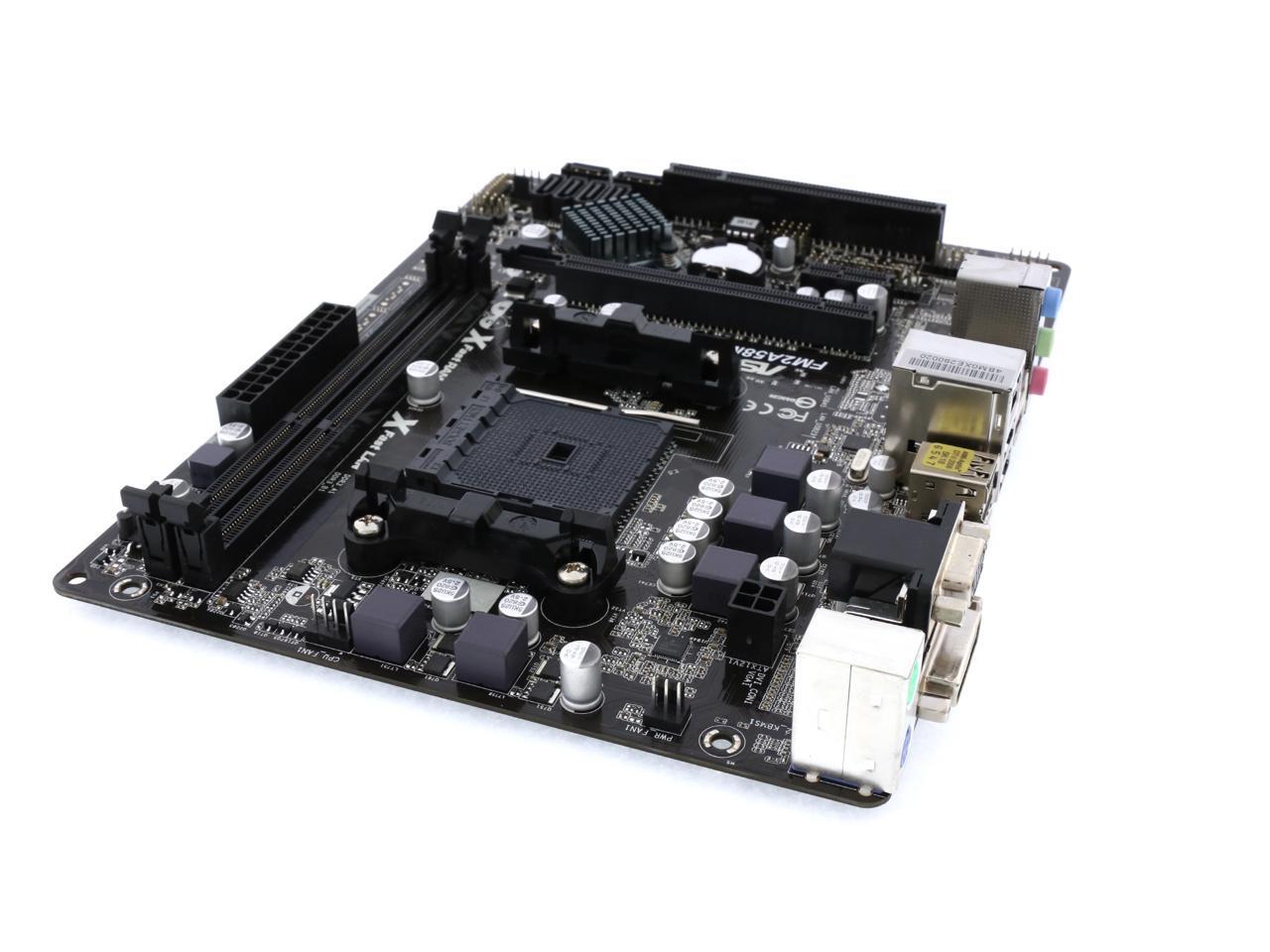

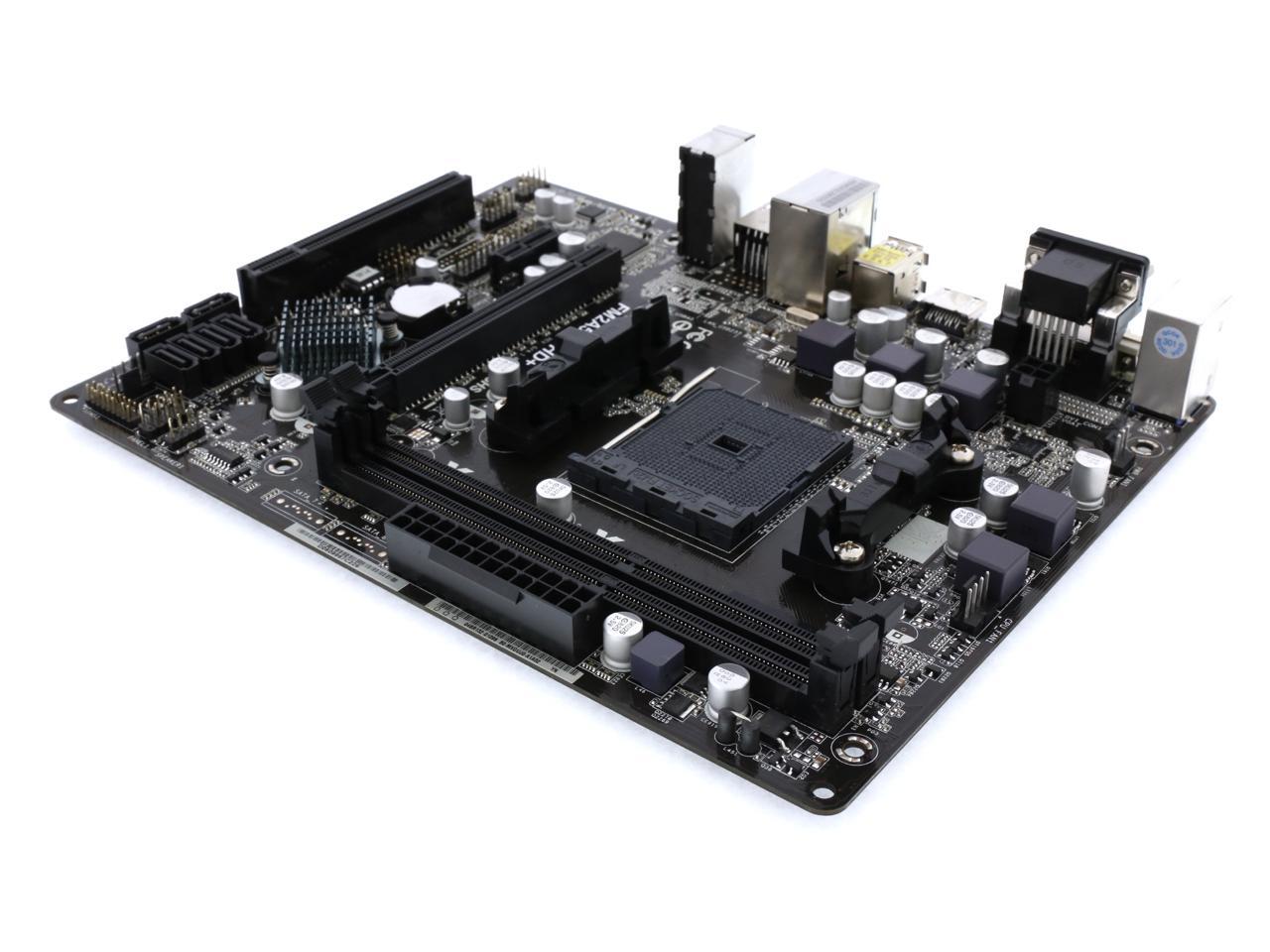

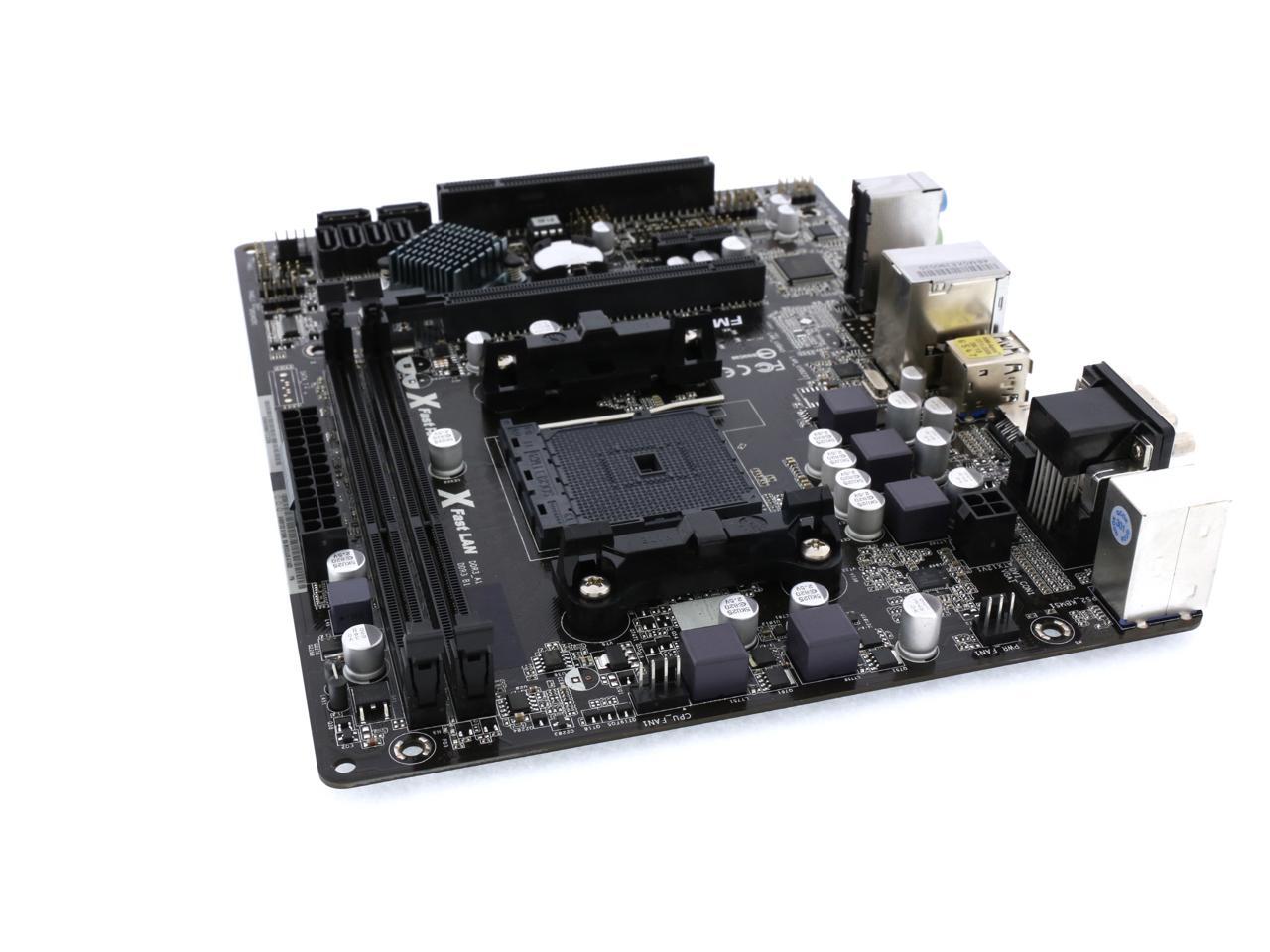

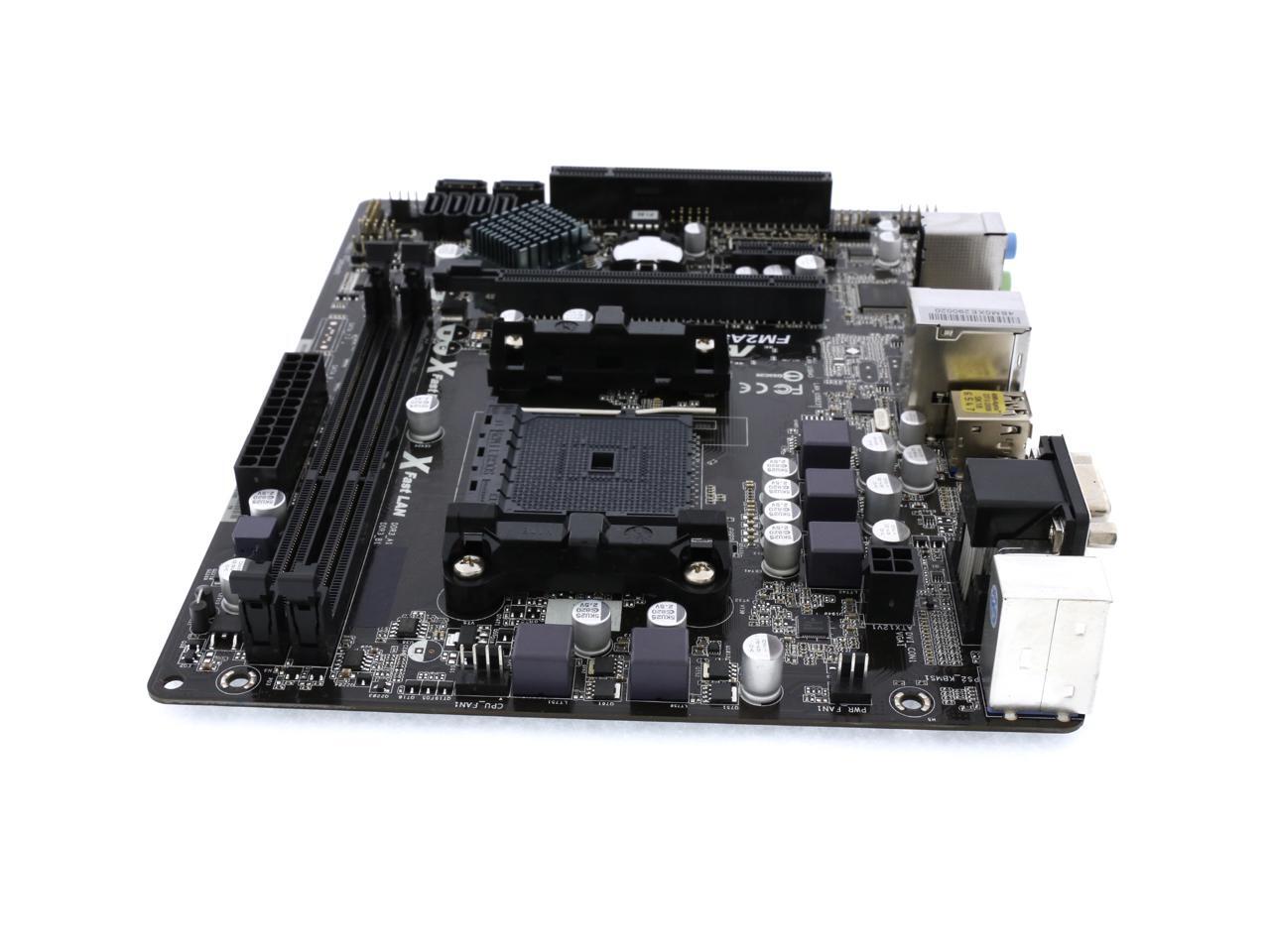

ASRock FM2A58M-HD+ FM2+ / FM2 AMD A58 FCH (Bolton-D2) HDMI Micro ATX AMD Motherboard

(7) Write a Review
OUT OF STOCK.
  • AMD A58 FCH (Bolton-D2)
  • FM2+ 95W / FM2 100W processors
  • DDR3 1866/ 1600/ 1333/ 1066 non-ECC, un-buffered
Specs
Reviews

Learn more about the ASRock FM2A58M-HD+

Model
Brand ASRock
Model FM2A58M-HD+
Supported CPU
CPU Socket Type FM2+ / FM2
CPU Type FM2+ 95W / FM2 100W processors
Chipsets
Chipset AMD A58 FCH (Bolton-D2)
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1866/ 1600/ 1333/ 1066 non-ECC, un-buffered
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
* PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
PCI Express x1 1 x PCI Express 2.0 x1 Slot
PCI Slots 1 x PCI Slot
Storage Devices
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID RAID 0, RAID 1 and RAID 10, NCQ, AHCI and Hot Plug
Onboard Video
Onboard Video Chipset Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
Max. shared memory 2GB
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz * Only FM2+ APU can support up to 4096x2160 resolution display via HDMI port
Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Blu-ray Stereoscopic 3D with HDMI Port
Supports AMD Steady Video 2.0: New video post processing capability for automatic jitter reduction on home/online video
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 5.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111FR
Max LAN Speed 10/100/1000Mbps

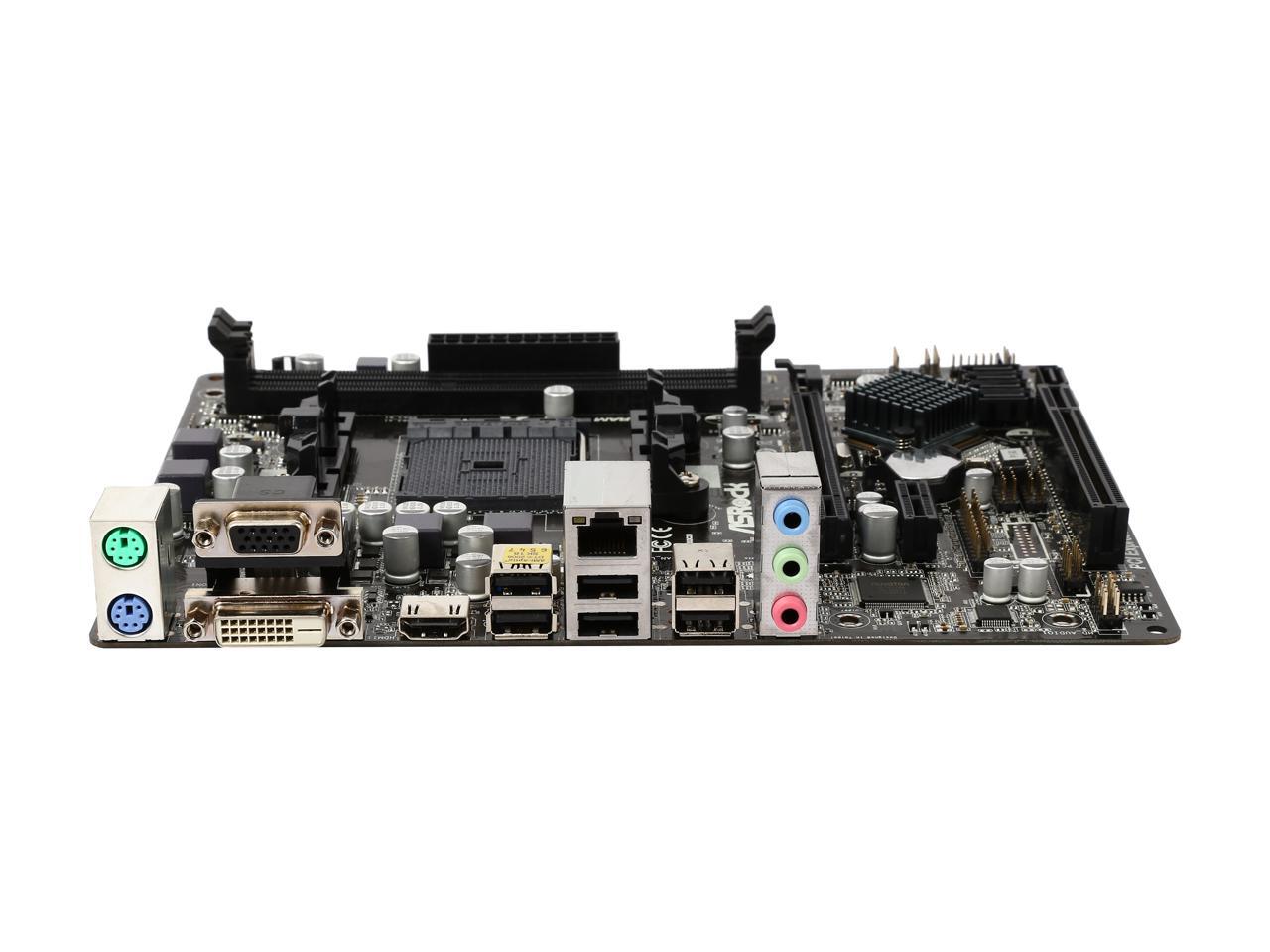

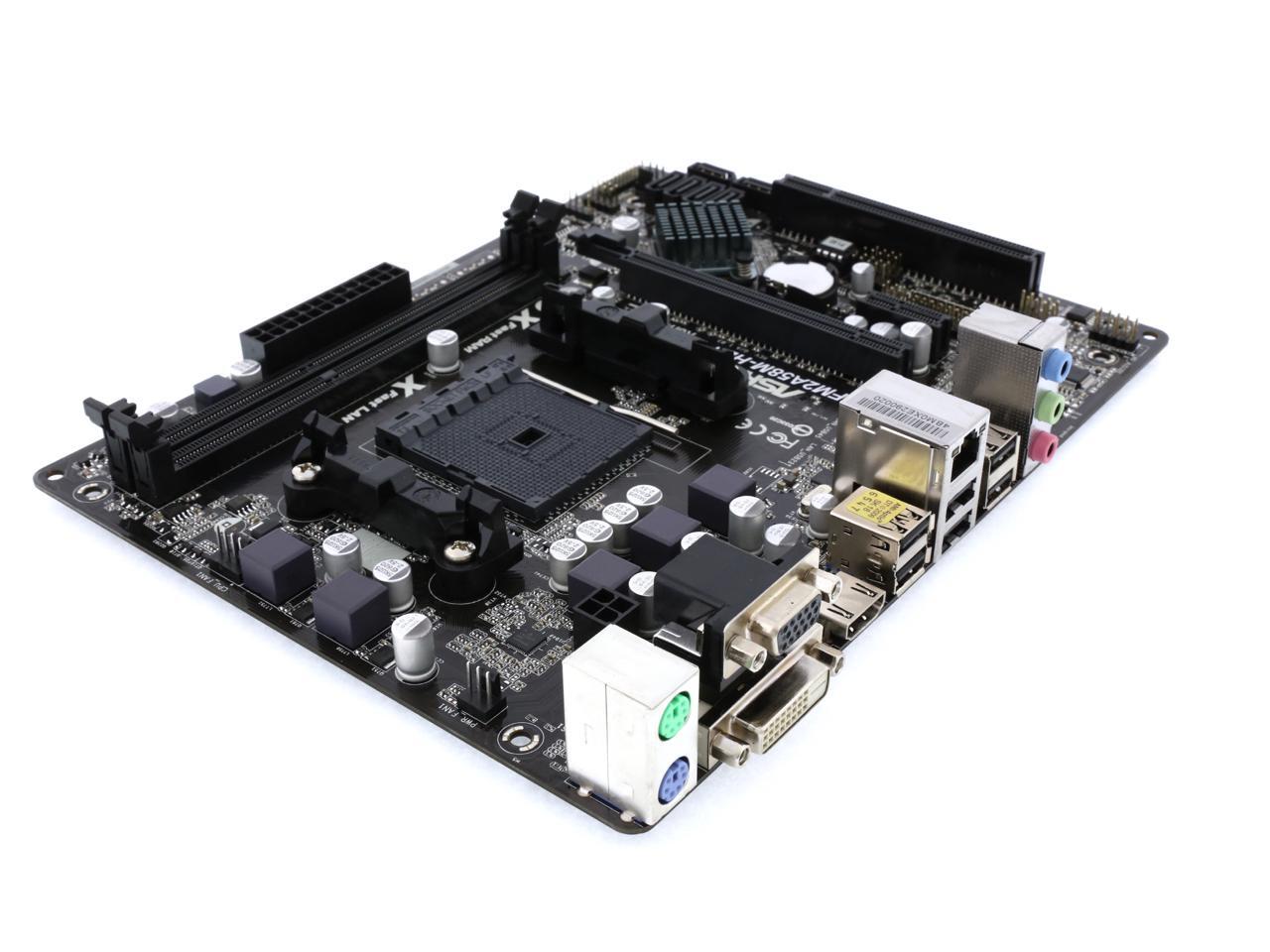

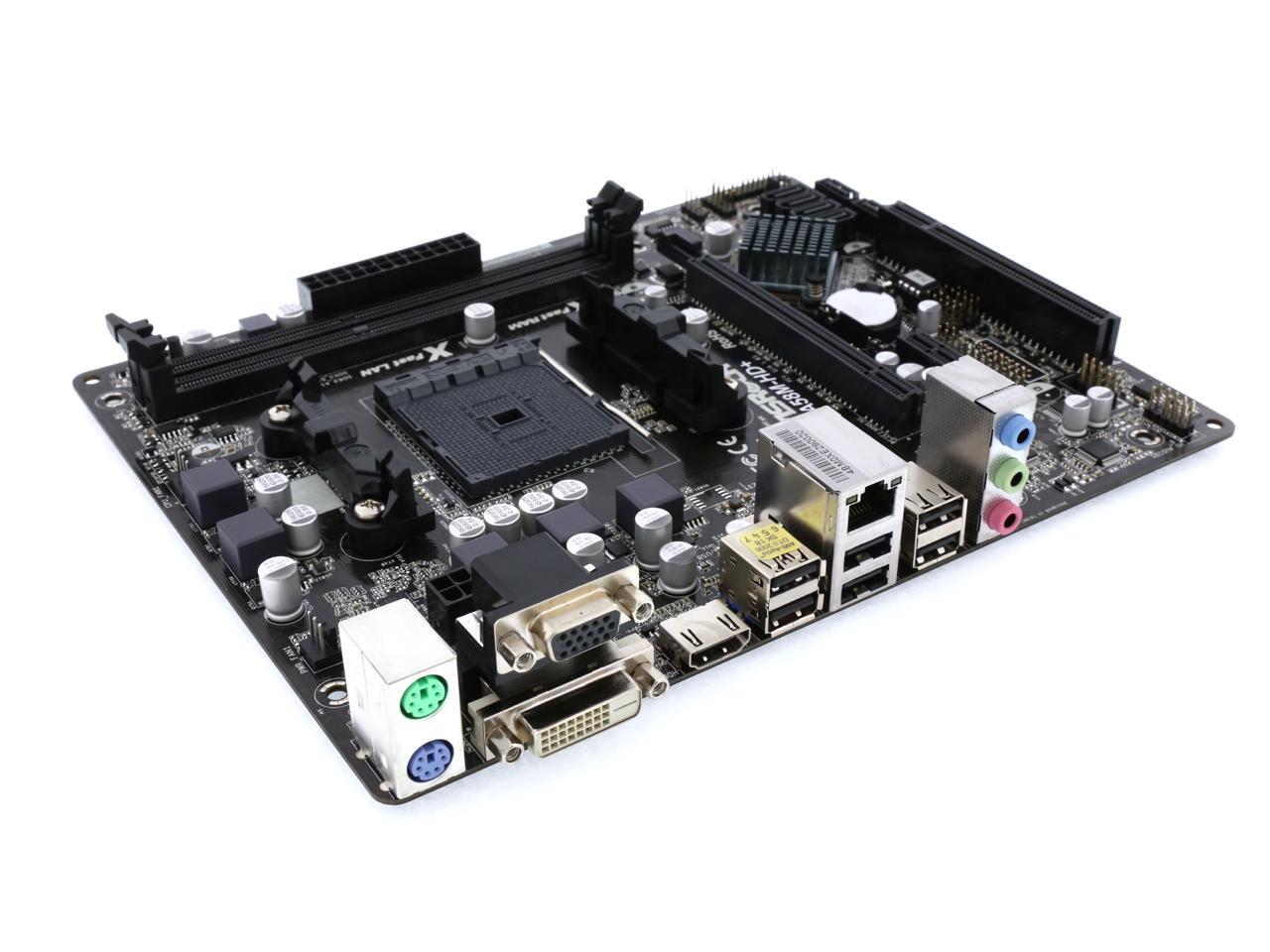

Rear Panel Ports
PS/2 1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
Video Ports 1 x D-Sub Port
1 x DVI-D Port
HDMI 1 x HDMI
RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 1.1/2.0 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors 1 x Print Port Header
1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
Physical Spec
Form Factor Micro ATX
Power Pin 24 Pin
Features
Features Support for Socket FM2+ 95W / FM2 100W processors
All Solid Capacitor Design
Supports Dual Channel DDR3 1866
1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
Supports AMD Dual Graphics
Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
Graphics Output Options : D-Sub, DVI-D, HDMI
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
6 x SATA2, 10 x USB 2.0 (4 Front, 6 Rear)
1 x COM Port Header, 1 x Print Port Header
Supports ASRock Full Spike Protection, X-Boost, FAN-Tastic Tuning, USB Key

Unique Feature:
ASRock A-Tuning
ASRock APP Shop
ASRock Instant Boot
ASRock Instant Flash
ASRock APP Charger
ASRock XFast LAN
ASRock XFast RAM
ASRock Crashless BIOS
ASRock OMG (Online Management Guard)
ASRock Internet Flash
ASRock UEFI Tech Service
ASRock Dehumidifier Function
ASRock Easy RAID Installer
ASRock Easy Driver Installer
ASRock Interactive UEFI
ASRock Fast Boot
ASRock X-Boost
ASRock Restart to UEFI
ASRock USB Key
ASRock FAN-Tastic Tuning
Hybrid Booster: ASRock U-COP

Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)

Hardware Monitor:
CPU temperature sensing
Chassis temperature sensing
CPU Fan Tachometer
Chassis Fan Tachometer
CPU/Chassis Quiet Fan
CPU/Chassis Fan multi-speed control
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, Vcore
Packaging

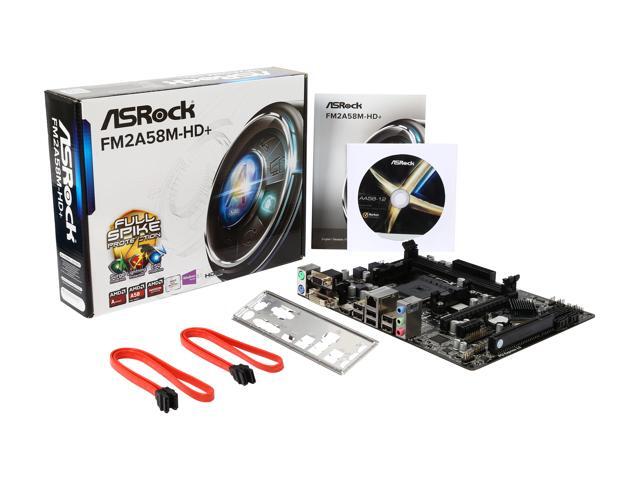

Package Contents Accessories:
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
Additional Information
Date First Available March 16, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
