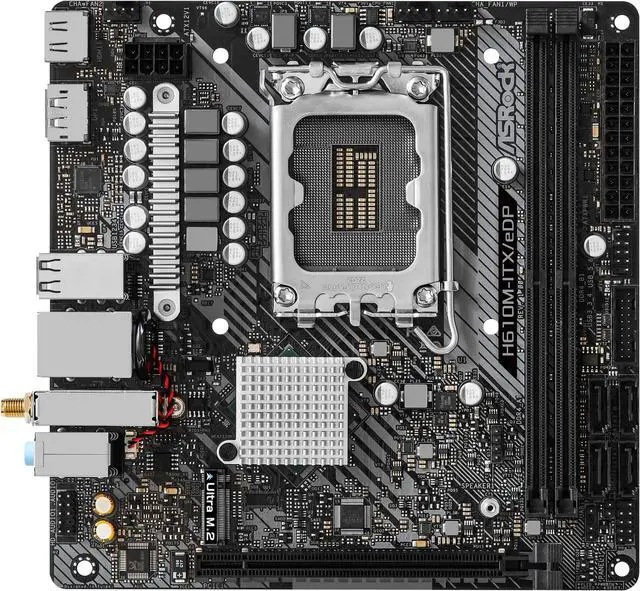

ASRock H610M-ITX/eDP LGA 1700 Intel H610 SATA3 6Gb/s DDR4 Mini-ITX Motherboard
- Supports 12th Gen Intel® CoreTM Processors (LGA1700).
- 6 Phase Dr.MOS Power Design.
- Supports DDR4 3200MHz: 2 x DDR4 DIMM Slot, Max. capacity of system memory: 64GB.
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode.
- Graphics Output Options: HDMI, DisplayPort.
- Realtek ALC897 7.1 CH HD Audio Codec.
- 4 x SATA3 6.0 Gb/s Connectors.
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3).
- 4 USB 3.2 Gen1 (2 Front, 2 Rear).
- 6 USB 2.0 (2 Front, 4 Rear).
- Intel® Gigabit LAN: Better performance, lowered CPU utilization and enhanced stability.
- Intel® 802.11ac WiFi + Bluetooth 5.1.
+
+
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock H610M-ITX/EDP
| Brand | ASRock |
|---|---|
| Model | H610M-ITX/EDP |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel H610 |
|---|
| Onboard Video Chipset | Intel Iris Xe Graphics |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* * Supports NVMe SSD as boot disks |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s ** ** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|---|---|
| M.2 | 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ac |
| Bluetooth | Bluetooth 5.1 + High speed class II |
| Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection)* * CNVi BT shares bandwidth with the top USB 2.0 port (USB_1). When CNVi BT is used, USB_1 becomes unavailable. 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x eDP Signal Connector 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x Chassis Fan Connector (4-pin) * The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector |
| Windows 11 | Supported |
|---|
| Form Factor | Mini ITX |
|---|

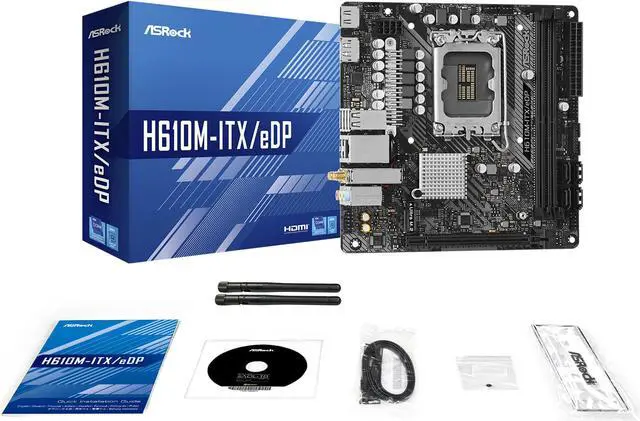

| Package Contents | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5 GHz Antennas 1 x Screw for M.2 Socket |
|---|
| First Listed on Newegg | August 04, 2025 |
|---|
