ASRock Phantom Gaming Z490 PG Velocita LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z490
  • Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
  • Supports DDR4 4666+(OC)/ 4600/ 4500/ 4400/ 4333/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews
Z490-PG-Velocita motherboard
Z490 PG Velocita
  • Supports 10th Gen and future generation Intel® Core™ Processors (Socket 1200)
  • 12 Phase Dr.MOS Power Design
  • Supports DDR4 4666MHz+ (OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
  • 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 9 USB 3.2 Gen1 (4 Front, 4 Rear, Front Type-C)
  • Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
  • ASRock Polychrome SYNC

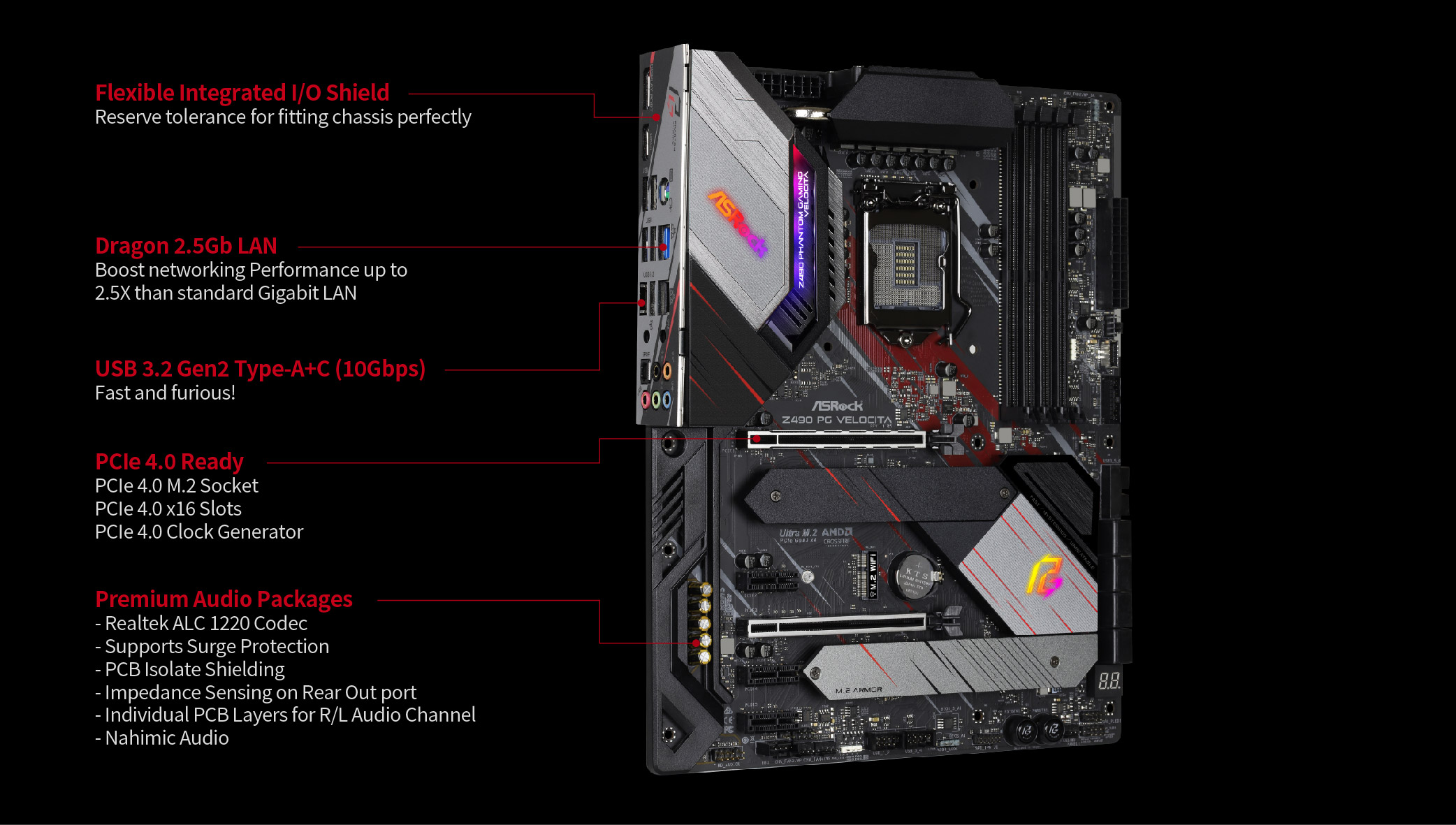

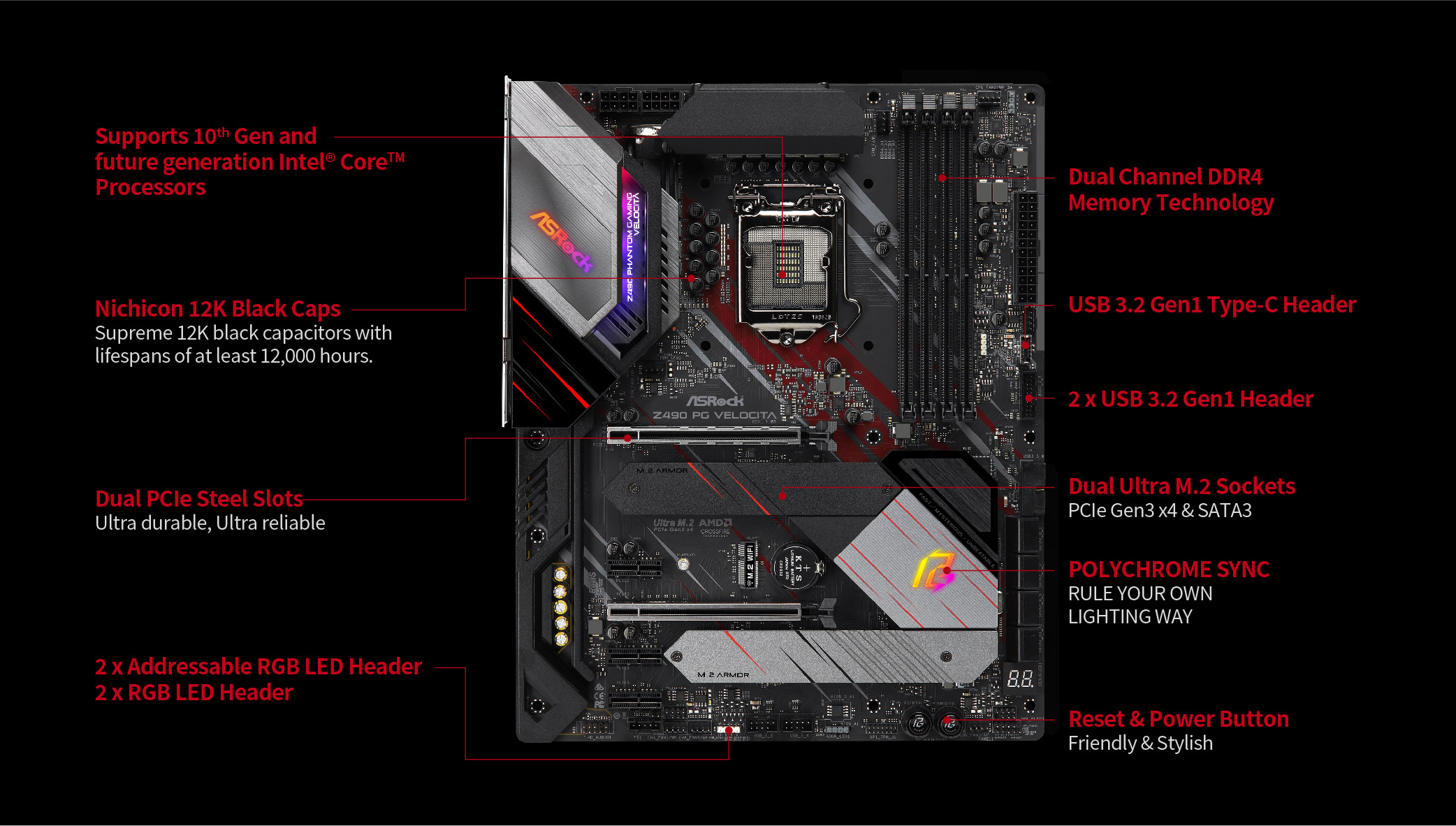

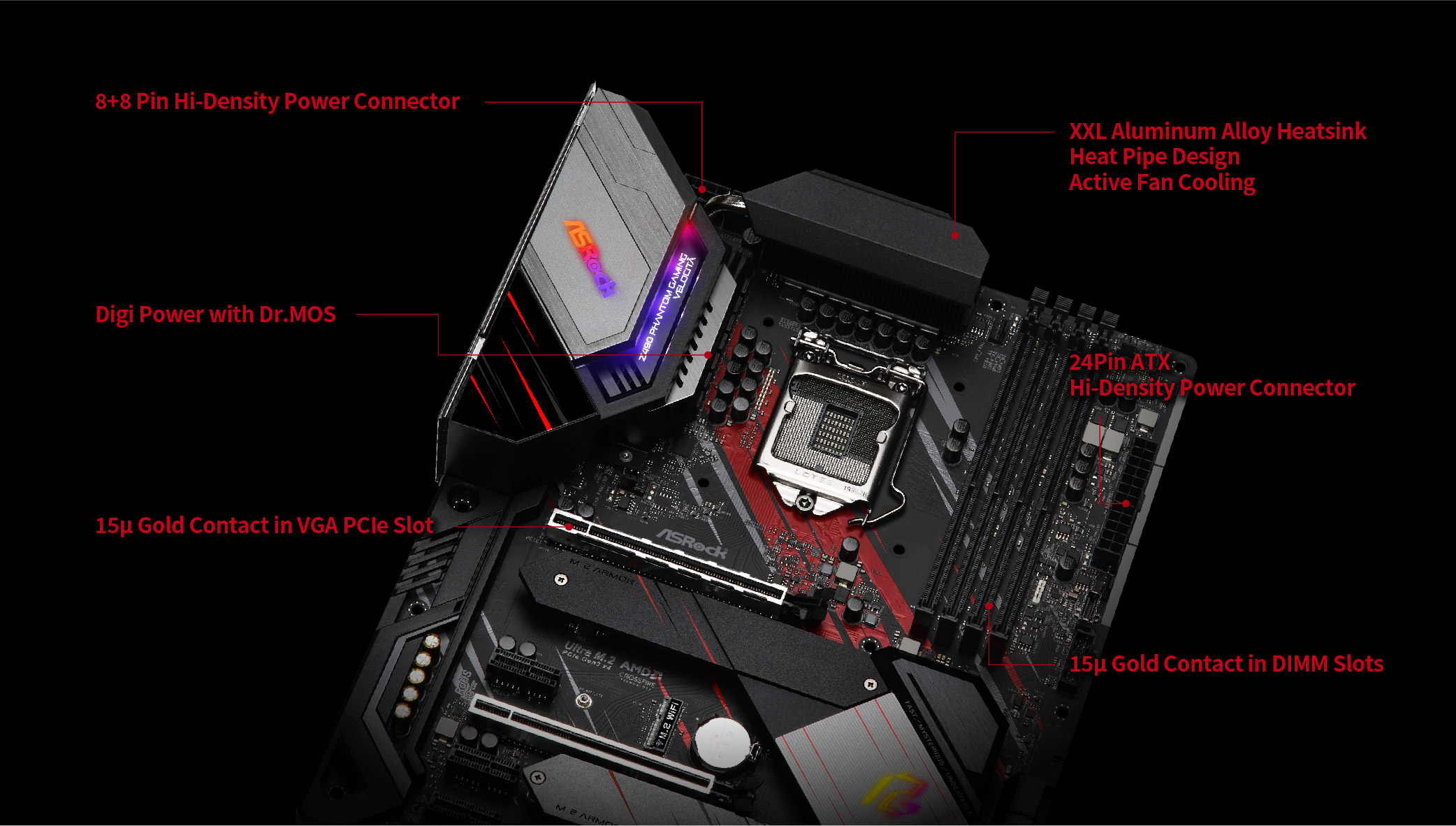

detail of the motherboard left side of the motherboard top side of the motherboard
Z490 PG Velocita motherboard

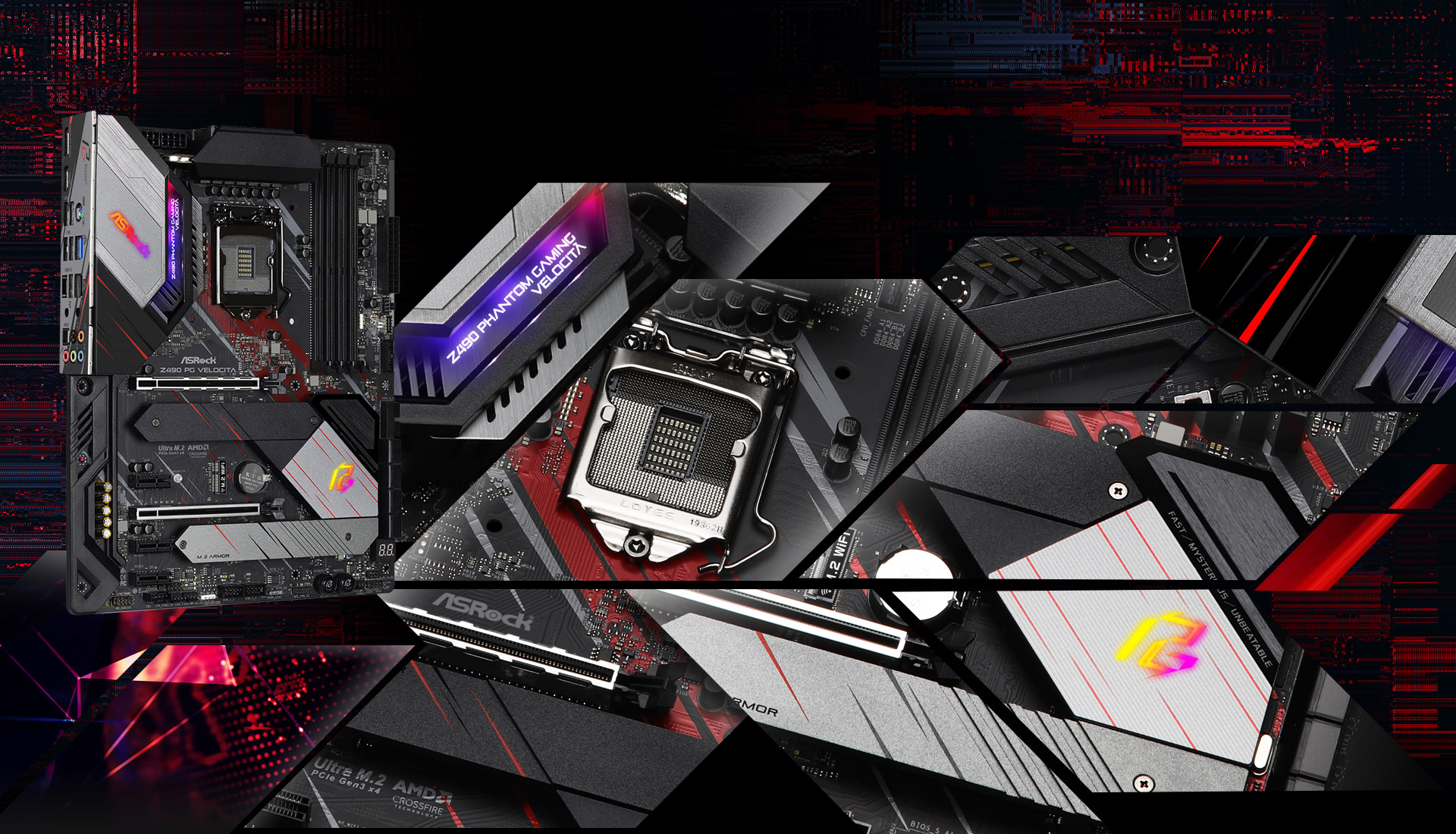

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!

Z490 PG Velocita motherboard
OPTIMIZED GAMING RESULTS :

Greater Air Flow, Faster Heat Dissipation Own Your Unique Gaming Style

PCI-E 4.0 icon
PCI Express 4.0 Hardware Ready!

Welcome to the PCI Express 4.0 new era and be a smart buyer with ASRock motherboards! Z490 enthusiast level motherboards equipped with luxury components that allows geeks to be hardware ready for PCI Express 4.0 standard !

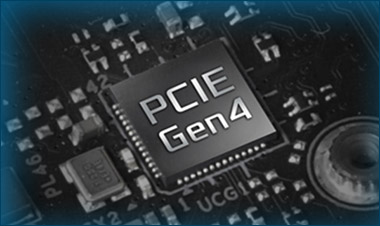

PCIE 4.0 Clock Generator
HR-Clock Generator

An additional external base clock generator that delivers PCI Express 4.0 standard.

PCIE 4.0 Steel Slot

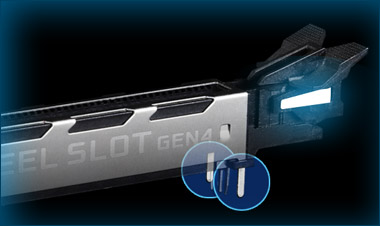

HR-Steel Slot

Equipped with reinforced steel slot which is based on PCI Express 4.0 hardware requirement.

PCIE 4.0 M.2 Socket

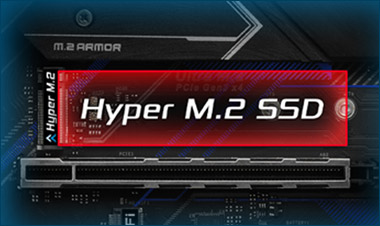

HR-M.2 Socket

Hyper M.2 Key M socket, wth PCI Express 4.0 hardware for x4 high speed SSDs.

Water Cooling of the motherboard
Optimized for Water Cooling –

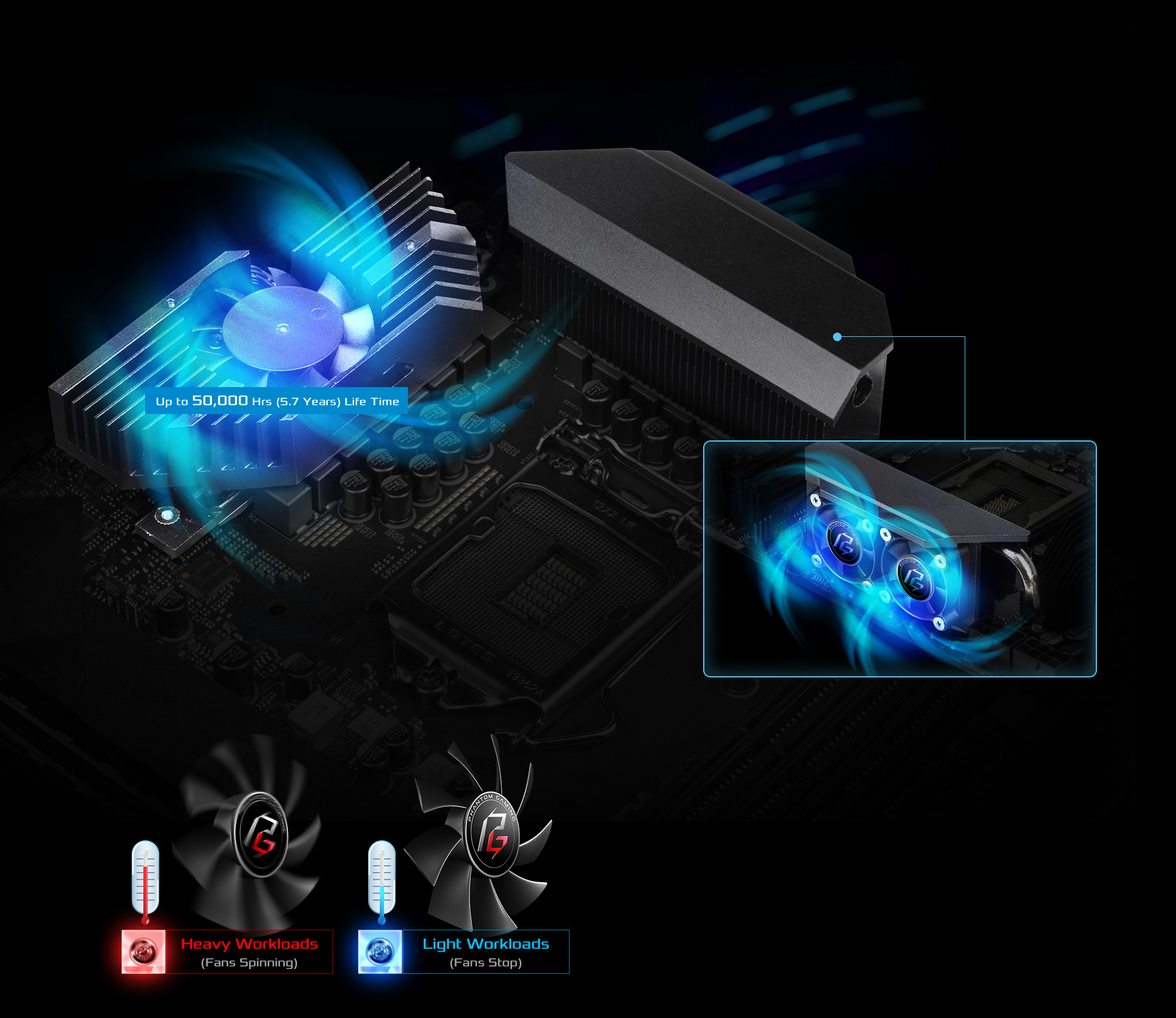

XXL Aluminum Alloy Heatsink with Active FAN Design

XXL Aluminum Alloy Heatsink design with active fan that effectively improve heat dissipation and promotes overall performance. This is aimed for die hard gamers and enthusiasts to bring a new computing experience paired with Intel's 10-core processors.

0dB Silent Cooling

Realize the completely silent computing by automatically adjusts fan speed and even command it stop working when the temperature goes low.
*It's recommended to use water cooling on this motherboard to avoid mechnical conflict on certain air cooling products.

a woman is listening music

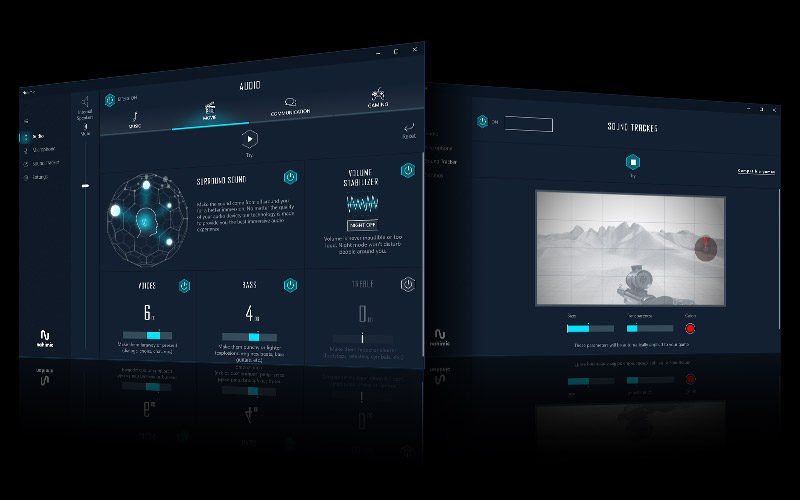

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

a woman is listening music

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Dr. MOS of the motherboard

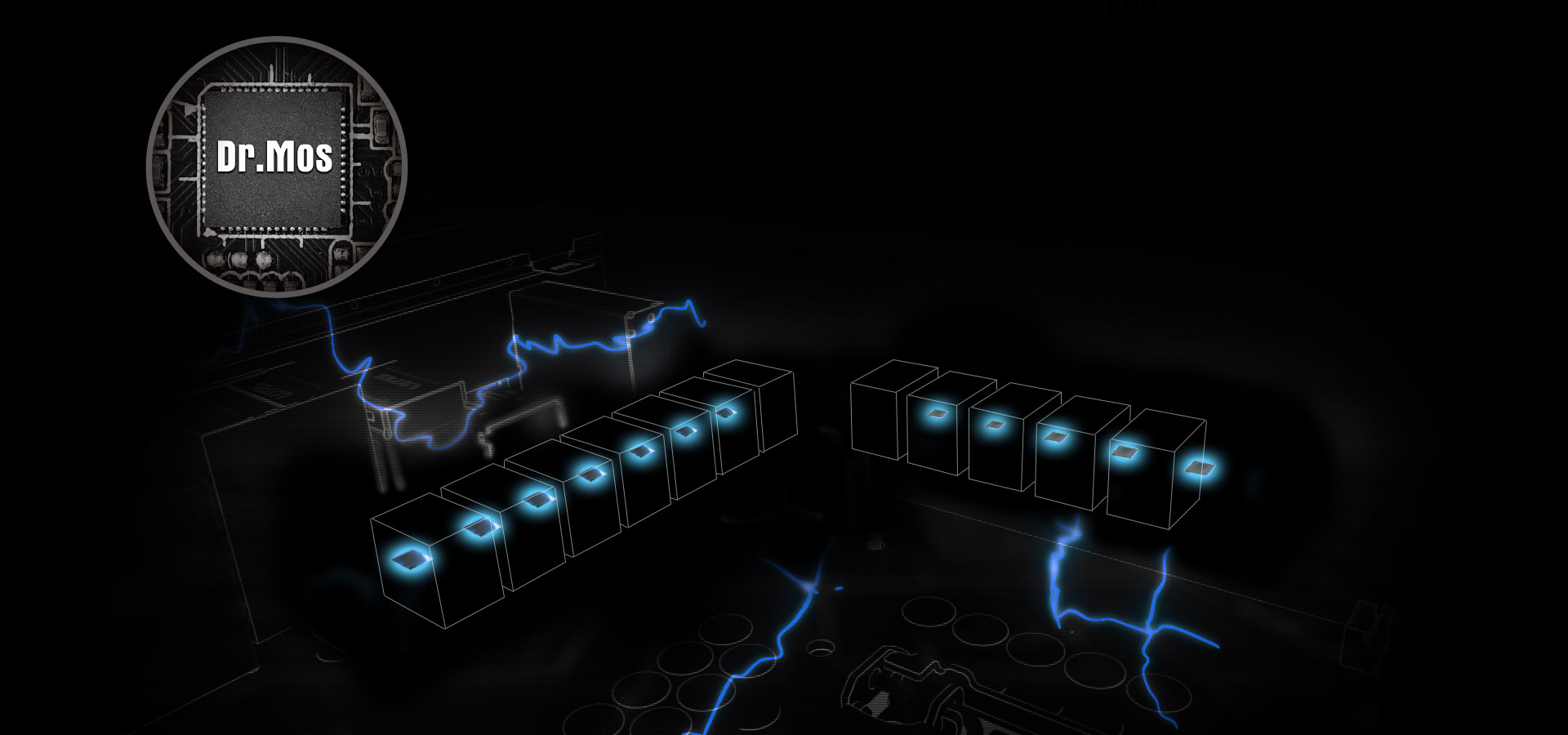

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

12 Power Phase Design of the motherboard
12 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Heat Dissipating of the motherboard

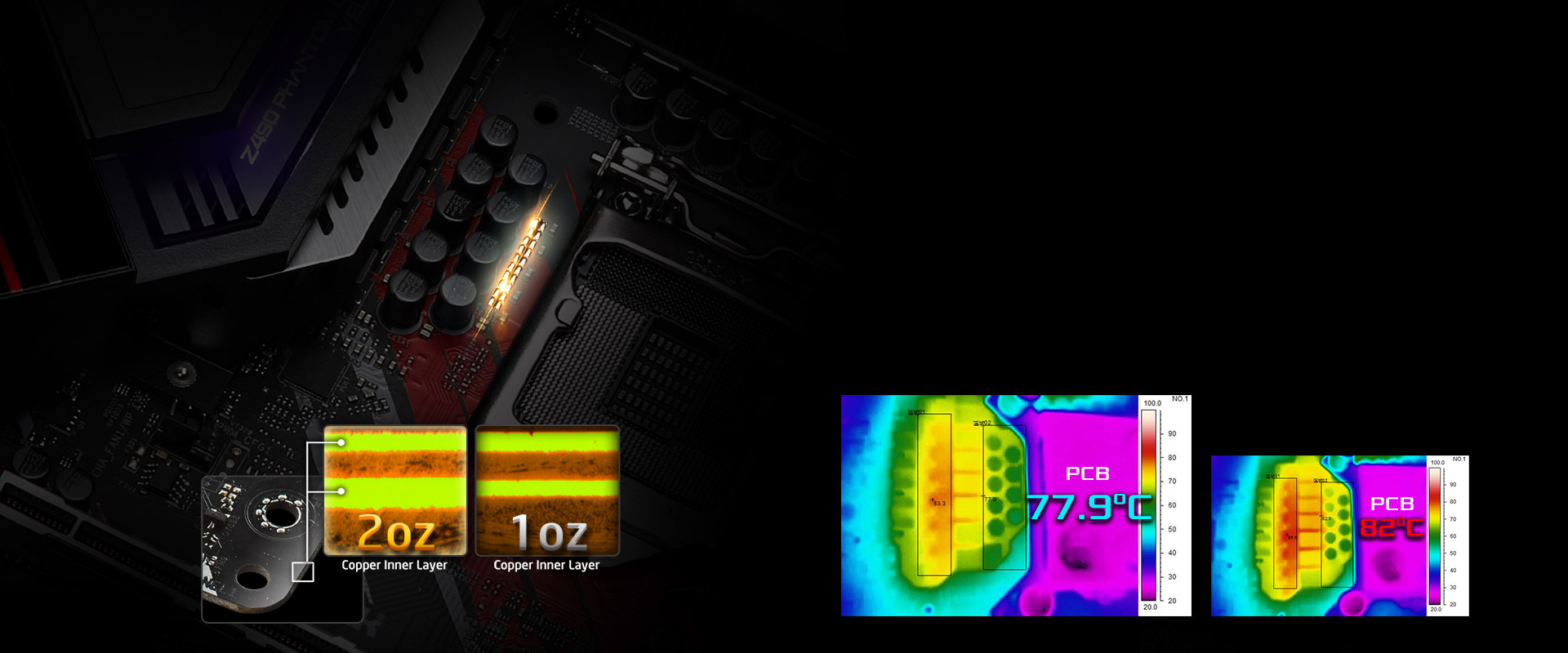

Heat Dissipating PCB Technology

Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

POLYRGBLED-X570 Phantom Gaming 4 WiFi ax
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Polychrome-RGB Phantom Gaming 4 WiFi ax *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Z490 PG Velocita motherboard
Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

PhantomGamingLAN-Speed icon
screenshot of PhantomGamingLANUI

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

A SOLID M.2-SOLUTION PERFORMER of the motherboard
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.

M.2 Armors

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

PCI-E 4.0 of the motherboard

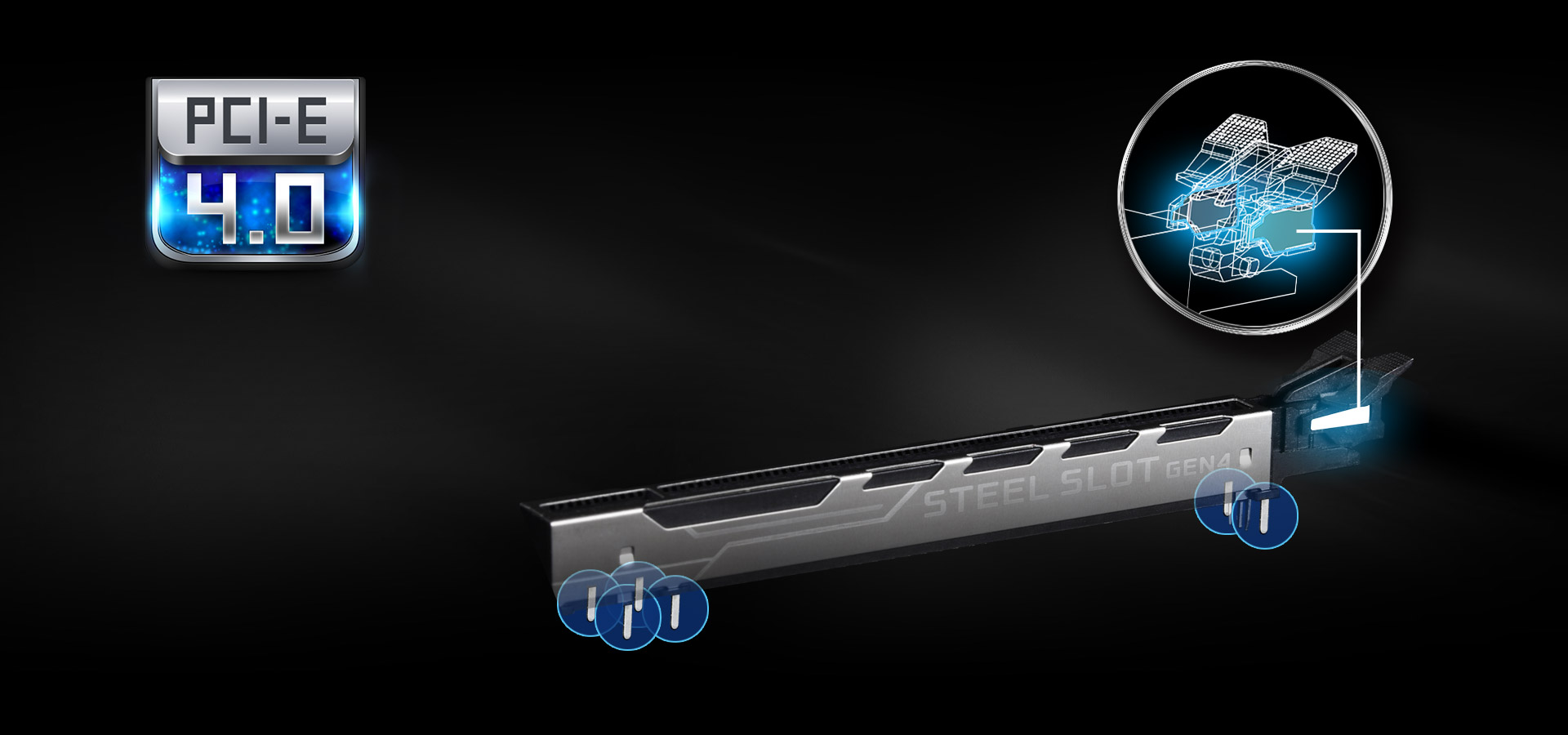

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.

USB 3.2 Gen1 Type-C of the motherboard
Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

2XUSB3.2Gen2 Phantom Gaming 4 WiFi ax
Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

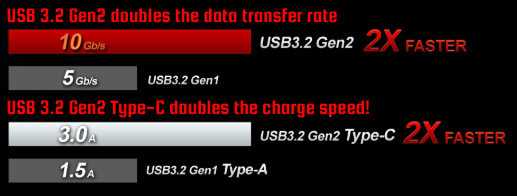

chart of USB3.2 Gen2
M.2 Key For WiFi of the motherboard

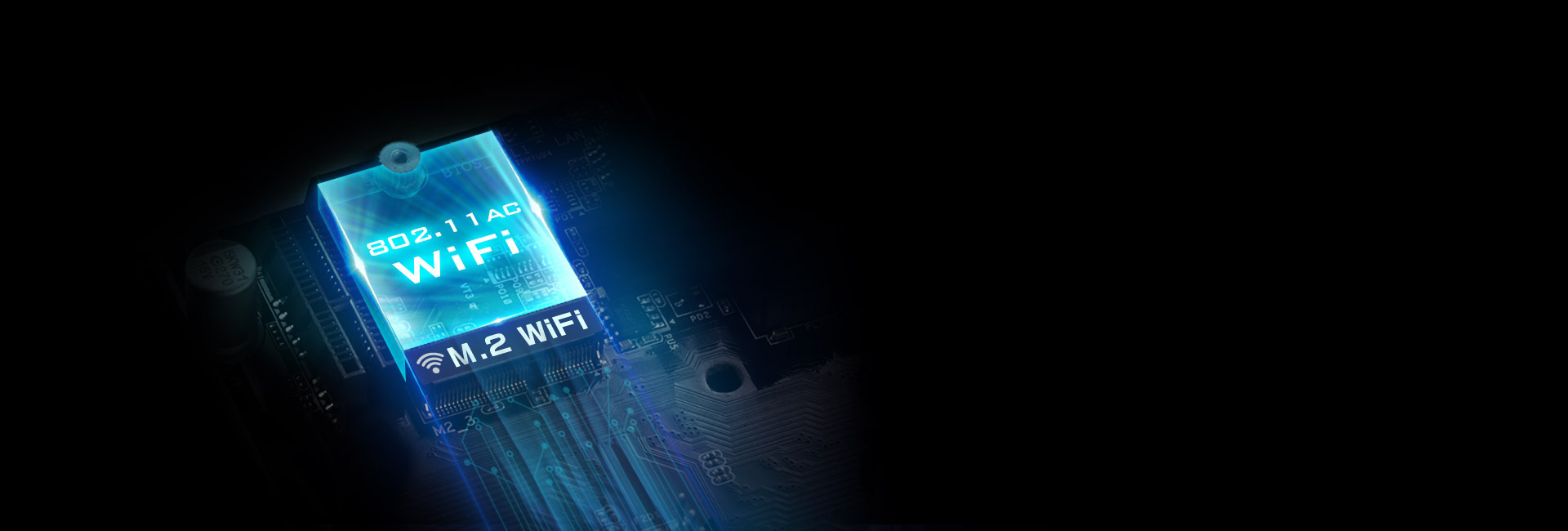

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included.

Integrated I/O of the motherboard

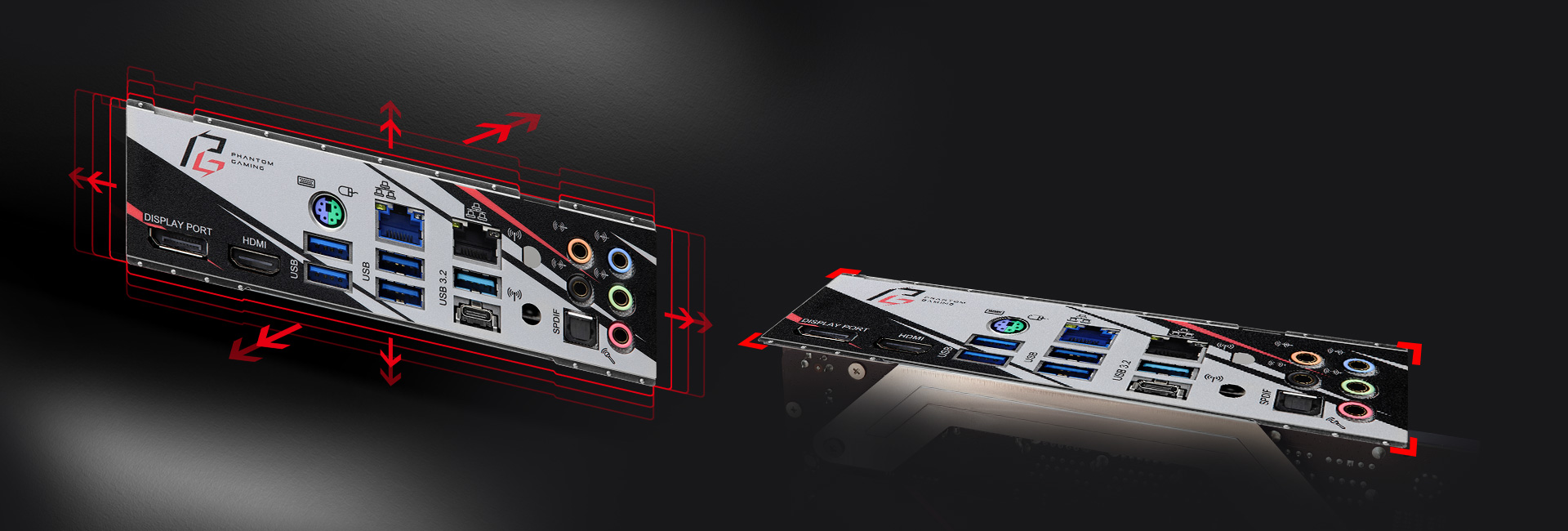

Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

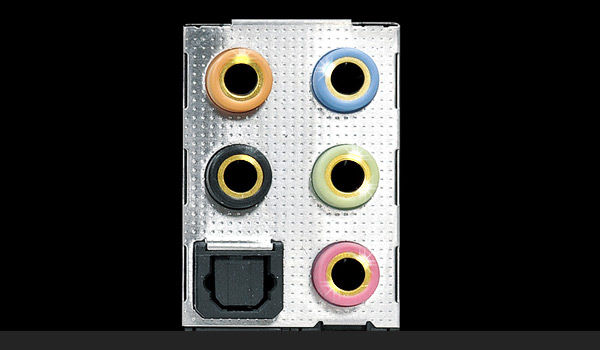

Gold Audio Jacks
Gold Audio Jacks

Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!

WaterPumpHeader of the motherboard

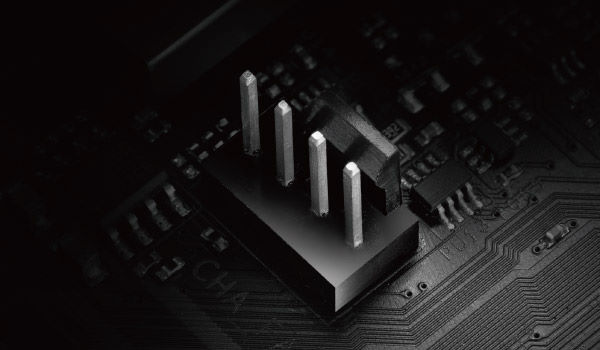

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

APPShop
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

FullSpike
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.


Learn more about the ASRock Z490 PG Velocita

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Great board so far! good features 6/26/2020 3:53:49 AM

Pros: Overclocking all cores 10700k 5.1 @ 1.3v stable
been using ASUS for the last few builds , this was Easy to setup, bios is great settings are clear and ...
no problems with the XMP profile on my Gskill Trident RGB 3866 RAM.
good price
love the VRM fans.. they are running 3000RPM and are not even noticeable

Cons: wish the right edge was RGB like the TaiChi, but other than that perfect board. good price!

Overall Review: Happy with my switch from ASUS maximus formula z270/7700k to this with a 10700k

ASROCK FTW
"This review for ASRock review rebate program."

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Asrock is the best motherboard company 6/5/2020 3:42:07 PM

Pros: Asrock makes the best motherboards i have had msi, asus,gigabyte and all of those boards are pickey on their ram frequencys even though those other 3 companies say 4600mhz ram that is only with a certain brand of ram and when i got a asrock it was very easy to increase frequency on ram to 4000mhz and i had no problems like i had on the other 3.

Cons: The cons are no onboard wifi and their rgb sync program.

Overall Review: If you want a good motherboard that is easy to troubleshoot then get this one but if you care about features this isnt for you.

Did you find this review helpful?
