Learn more about the ASRock Rack 2U24E2S-ROME
GeneralBrand | ASRock Rack |
---|
Model | 2U24E2S-ROME |
---|
Form Factor | 2U Rackmount |
---|
Workload | Storage Server |
---|
CPU SupportedCPU Type | Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 Series Processors
*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology |
---|
CPU Socket | Socket SP3 |
---|
Installed CPU | No CPU Installed |
---|
Max Processors | 1 |
---|
Memory SupportedMemory Slots | 16 x 288Pin |
---|
Installed Memory Size | No Memory Installed |
---|
Memory Type Supported | DDR4 3200 |
---|
Storage SupportedInstalled HDD | No Storage Installed |
---|
M.2 | 2 M.2 (PCIe4.0 x4/SATA) supports 22110/2280 form factor |
---|
GraphicsGPU/VPU | Aspeed AST2500 |
---|
Video Memory | 256MB DDR4 |
---|
Expansion SlotsPCI Express | 1 low-profile PCIe4.0 x8 |
---|
CommunicationsFirst LAN | Intel i350-AM2 |
---|
Max. LAN Speed | 10/100/1000Mbps |
---|

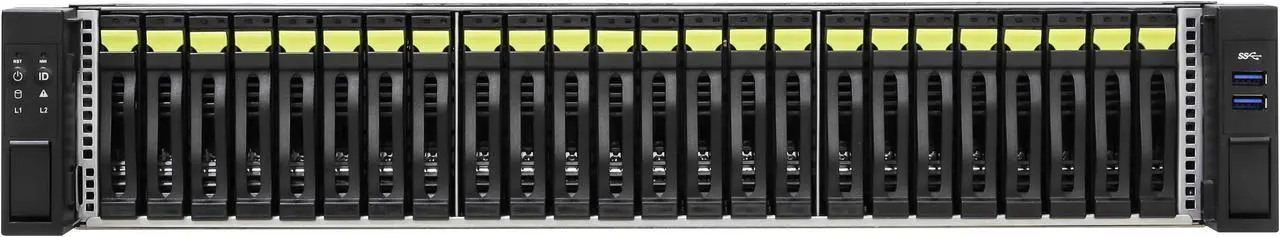

Expansion BaysHot-Swap Bays | Front Side Drive Bay: 24 Hot-swap 2.5" drive bays, Supports 24 NVMe (PCIe x4) drives Front Side Backplane: one 24-port NVMe/SAS/SATA passive backplane Rear Side: 2 Hot-swap 2.5" drive bays, supports 2 SAS/SATA Drives with optional HBA/RAID adapter card Rear Side Bakplane: one 2-port SAS/SATA passive backplane |
---|
Panel PortsFront USB | 2 x USB 3.2 Gen1 |
---|
COM | 1 |
---|
VGA | 1 |
---|
Rear USB | 2 x USB 3.2 Gen1 |
---|
RJ45 | 2 RJ45 (1GbE) by Intel i350-AM2 1 dedicated IPMI LAN |
---|
Power SupplyMax. Power | Type: 1+1 CRPS Output Watts: 1200W Efficiency: 80-PLUS Platinum AC Input: Lowline: 100-127V, Highline: 200-240V |
---|
EnvironmentTemperature | Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C |
---|
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
---|
Dimensions & WeightDimensions | 25.98" x 17.24" x 3.44" |
---|
Additional InformationDate First Available | September 12, 2022 |
---|
