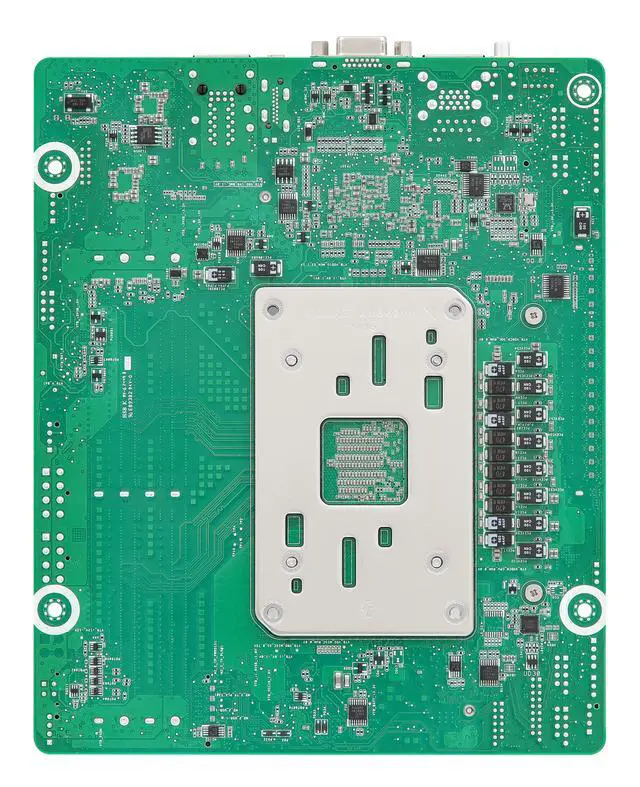

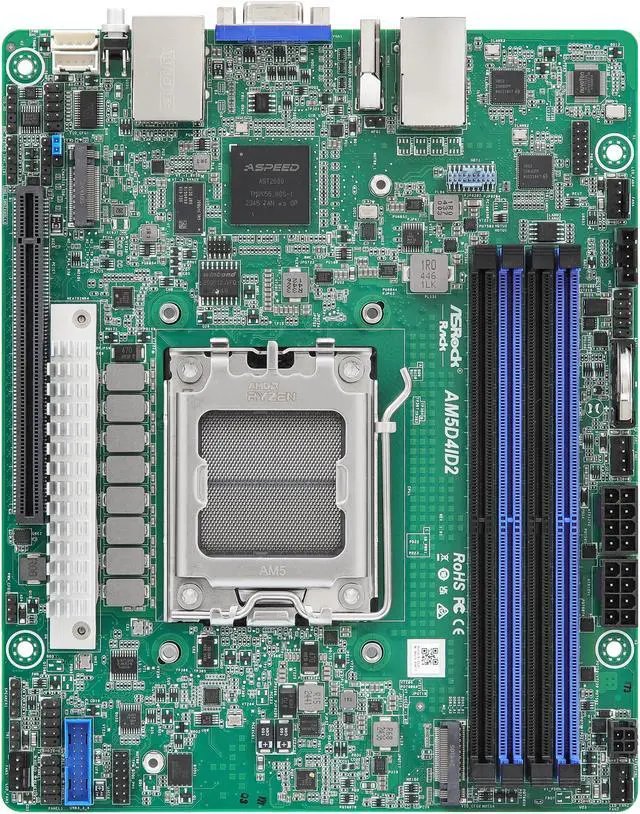

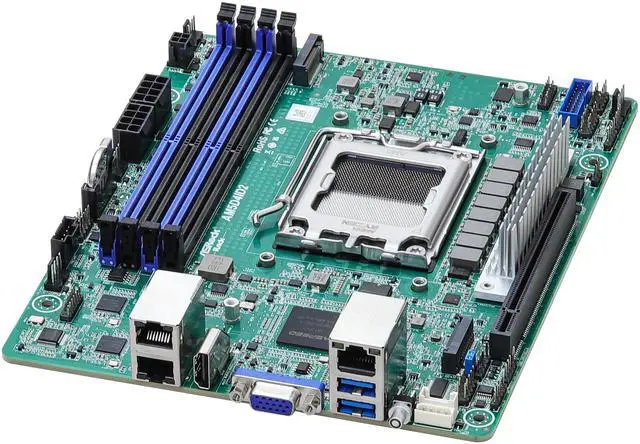

    ASRock Rack Server Motherboard AM5D4ID2 Deep mini-ITX Single Socket AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors - OEM

    Be the first to review this product...
    • Deep mini-ITX (6.7" x 8.2")
    • Supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors
    • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
    • 1 PCIe5.0 x16
    • Supports 2 M.2 (PCIe5.0 x4)
    • 2 RJ45 (1GbE) by Intel i210
    • 1 HDMI
    • Remote management (IPMI)
    Please note that this product is non-returnable and non-refundable.
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASRock Rack AM5D4ID2

    Model
    Brand AsRock Rack
    Model AM5D4ID2
    Supported CPU
    CPU Socket Type Socket AM5
    CPU Type AMD EPYC 4004 Series / AMD EPYC 4005 Series / AMD Ryzen 7000 Series / AMD Ryzen 8000 Series / AMD Ryzen 9000 Series
    Number of Processor Support 1
    CPU Features Thermal Design Power Up to 170W by proper cooling solution
    Memory
    Memory Slots 4 x DDR5 288-pin
    Memory Standard DDR5 5600
    Maximum Memory Supported 48GB
    ECC Supported Yes
    Expansion Slots
    PCI Express 5.0 x16 PCIe5.0 x16 [CPU]
    Storage Devices
    M.2 2 M-key (PCIe5.0 x4), supports 2280 form factor [CPU]
    Onboard Video
    Onboard Video Chipset Aspeed AST2600
    Onboard LAN
    Max LAN Speed 1Gbps
    Rear Panel Ports

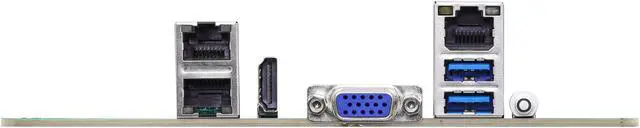

    Back I/O Ports 1 x D-Sub / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A
    Onboard Ports
    Onboard USB USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
    Other Connectors Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
    Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
    System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
    COM Header: 1
    Speaker Header: 1
    Fan Header: 4 (4-pin)
    Thermal Sensor Header: 1
    TPM Header: 1 (13-pin, SPI)
    SMBus header: 1
    PMBus header: 1
    IPMB Header: 1
    Clear CMOS: 1
    Others: 1 UID header (4-pin), 1 NCSI header (4-pin), 1 IPMI LAN LED header (4-pin), 1 80 debug port header (13-pin)
    Features
    BIOS Feature AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
    Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3
    Dimensions
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 8.2"
