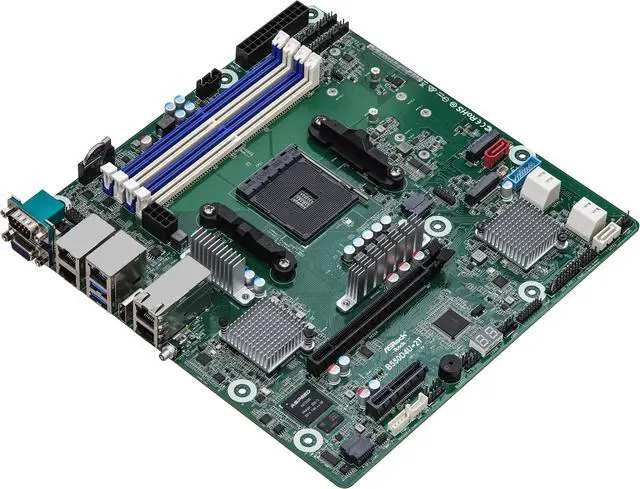

AsRock Rack B550D4U-2T mATX Server Motherboard Single Single Socket AM4 (PGA1331) AMD Ryzen 5000, AMD B550 Dual 1GbE+10GbE
- Micro-ATX (9.6" x 9.6")
- Support AMD Ryzen 5000 Series Desktop Processors
- Support 4 x DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- Support 1 x PCIe4.0 x16 + 1 x PCIe4.0 x4
- Support 6 x SATA 6Gb/s
- Support 1 x M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- Support 2 x RJ45 (10GbE) by Intel X710-AT2 + 1 x dedicated IPMI
+
+
Learn more about the ASRock Rack B550D4U-2T
| Brand | AsRock Rack |
|---|---|
| Model | B550D4U-2T |
| CPU Socket Type | Socket AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 G-Series Desktop Processors with Radeon Graphics Supports AMD Ryzen 5000 Series Desktop Processors Supports AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics Supports AMD Ryzen PRO 5000, 4000 and 3000 Series* Desktop Processors Supports 3rd Gen AMD Ryzen Desktop Processors * Not compatible with AMD Ryzen 3000 series processors with Radeon Graphics |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | SLOT6: Latch PCIe4.0 x16 [CPU] |
|---|---|
| PCI Express x8 | SLOT4: PCIe4.0 x4 [CPU] |
| SATA | 6 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| M.2 | 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242 form factor [FCH] |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | 1 Intel X710-AT2: 2 RJ45 (10GbE) |
|---|---|
| Max LAN Speed | 10Gbps |

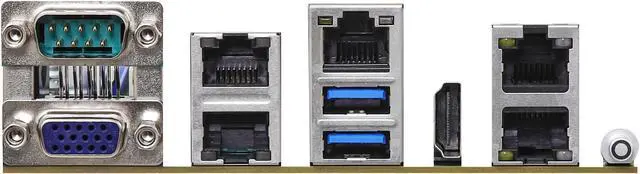

| Back I/O Ports | HDMI: 1 VGA Port: 1 DB15 USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1) Lan Port: 2 RJ45 (10GbE) Dedicate LAN: 1 dedicated IPMI Serial Port: 1 DB9 UID Button/UID LED: 1 button w/ LED |
|---|
| Other Connectors | Auxiliary Panel Header: 1 (19-pin): chassis intrusion, system fault LED, LAN activity LED TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) Thermal Sensor Header: 1 IPMB Header: 1 VGA Header: 1 PMBus CONN: 1 Buzzer: 1 Fan Header: 4 (6-pin), 2 (4-pin) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 (4-pin) BMC_SMB Header: 1 Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V) Clear CMOS: 1 (contact pads) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | April 12, 2023 |
|---|
