AsRock Rack E3C224D2I Mini ITX Server Motherboard LGA 1150 Intel C224 DDR3 1600 / 1333 ECC UDIMM memory

OUT OF STOCK.
  • Intel Xeon E3-1200 v3 / v4 and 4th / 5th Generation Core i3 / Pentium / Celeron Processors (Socket 1150)
  • 2 x DIMM DDR3 1600 / 1333, Max. 16GB
  • 1 x PCIe 3.0 x16
  • 4 x SATA3, 2 x SATA2 by Intel C224 support RAID 0, 1, 5, 10
Overview
Specs
Reviews

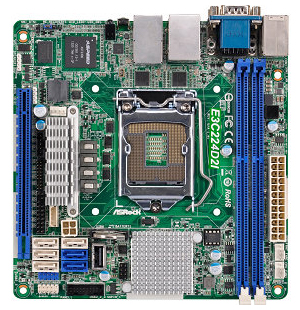

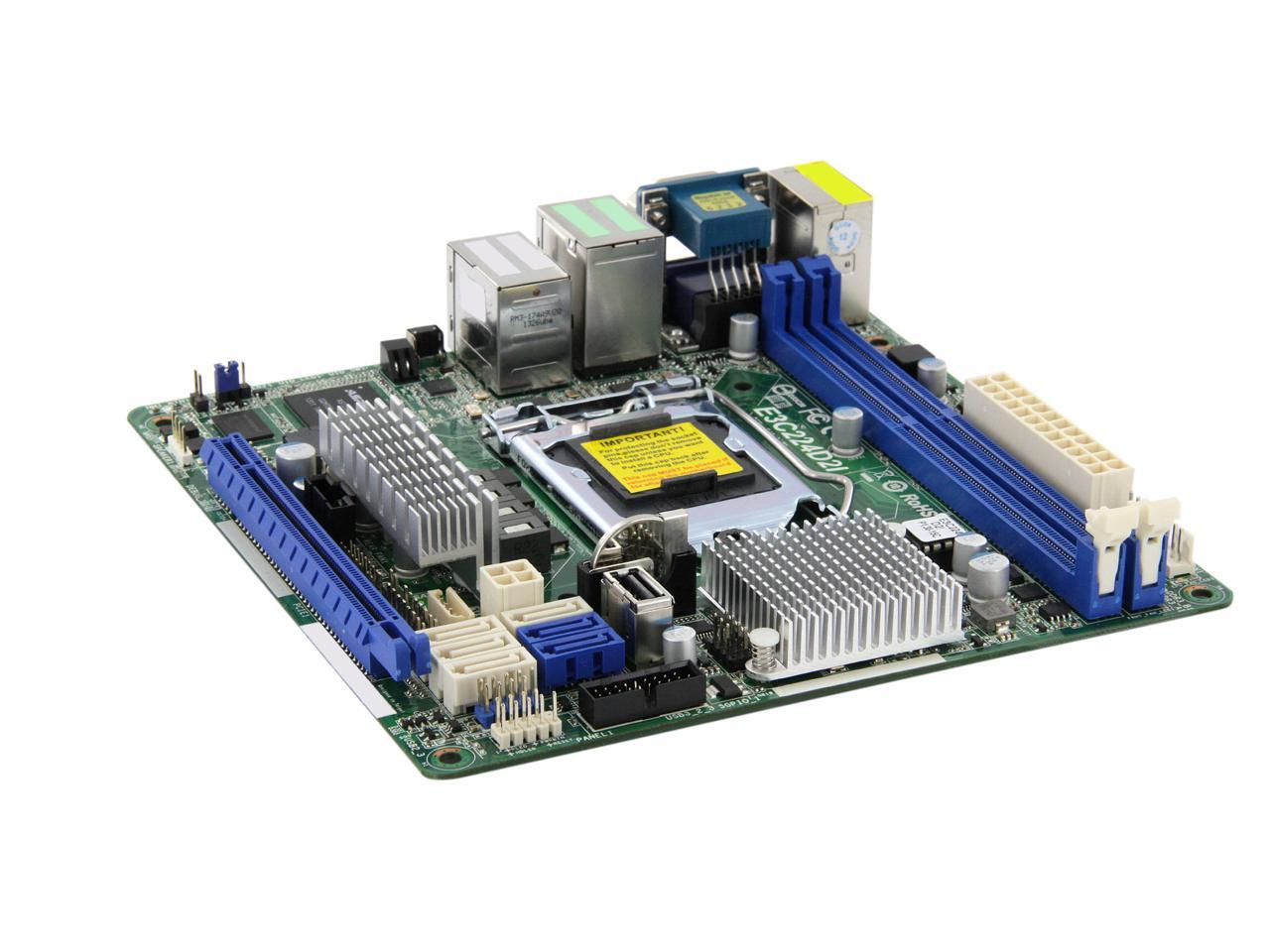

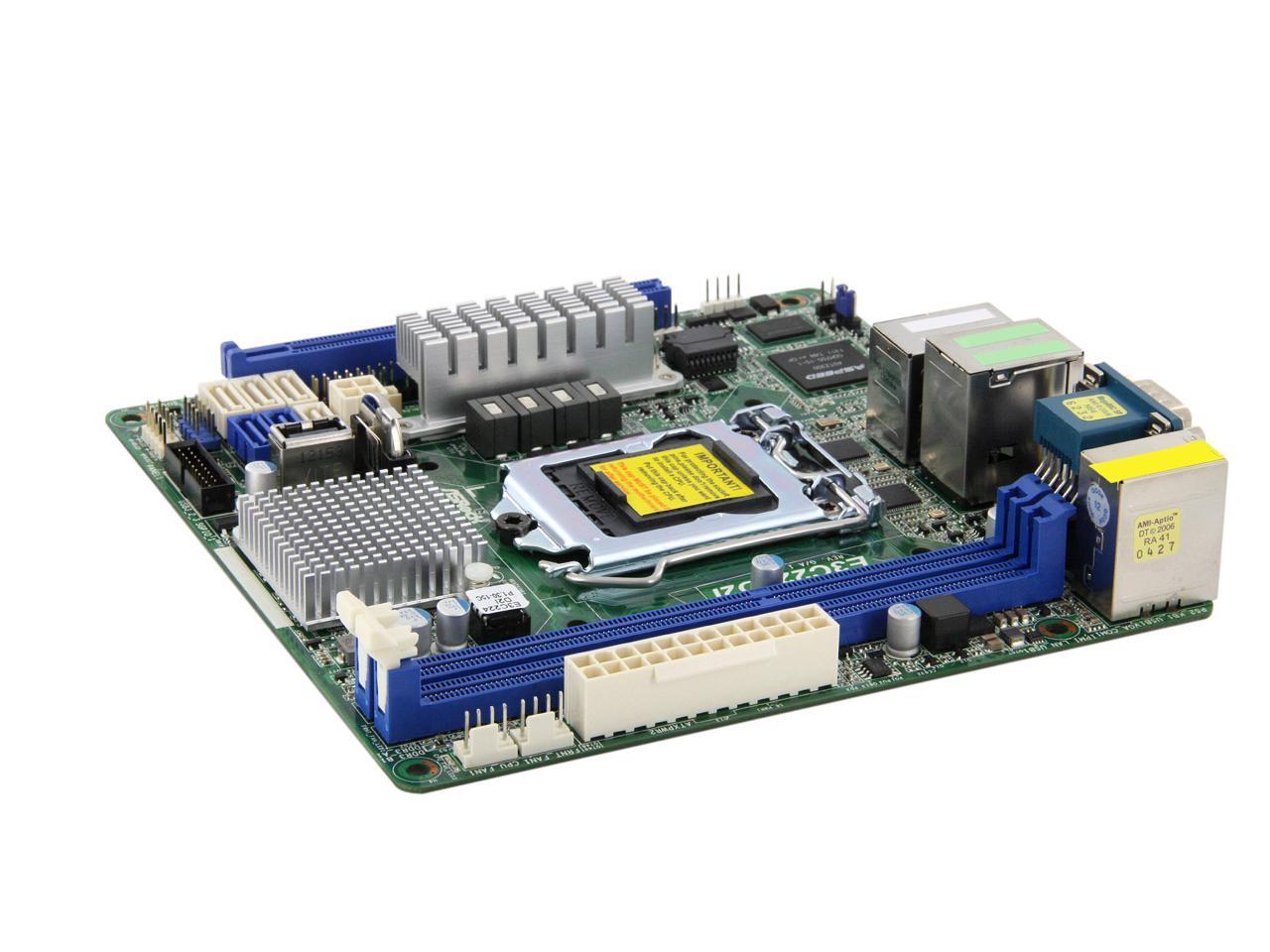

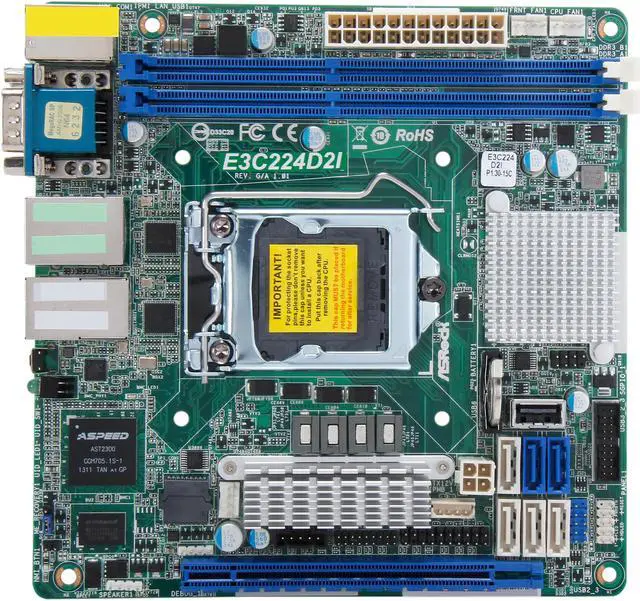

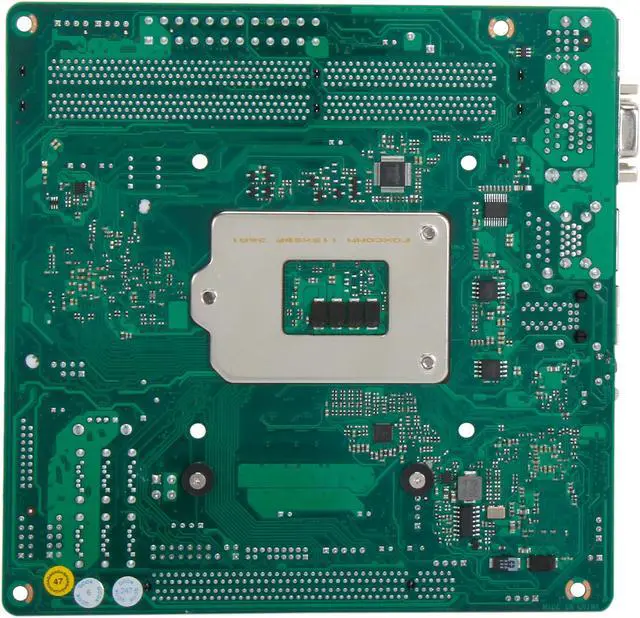

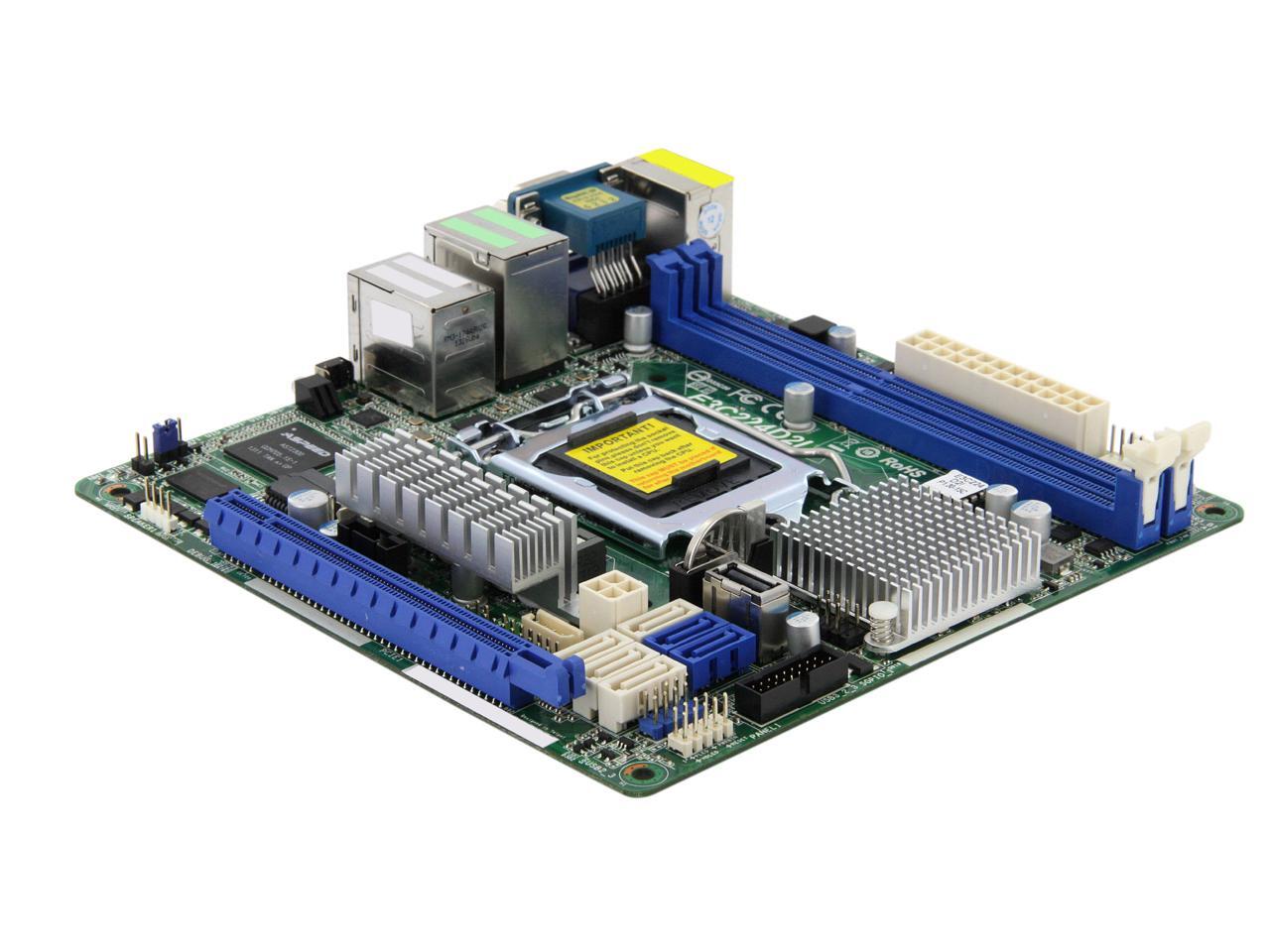

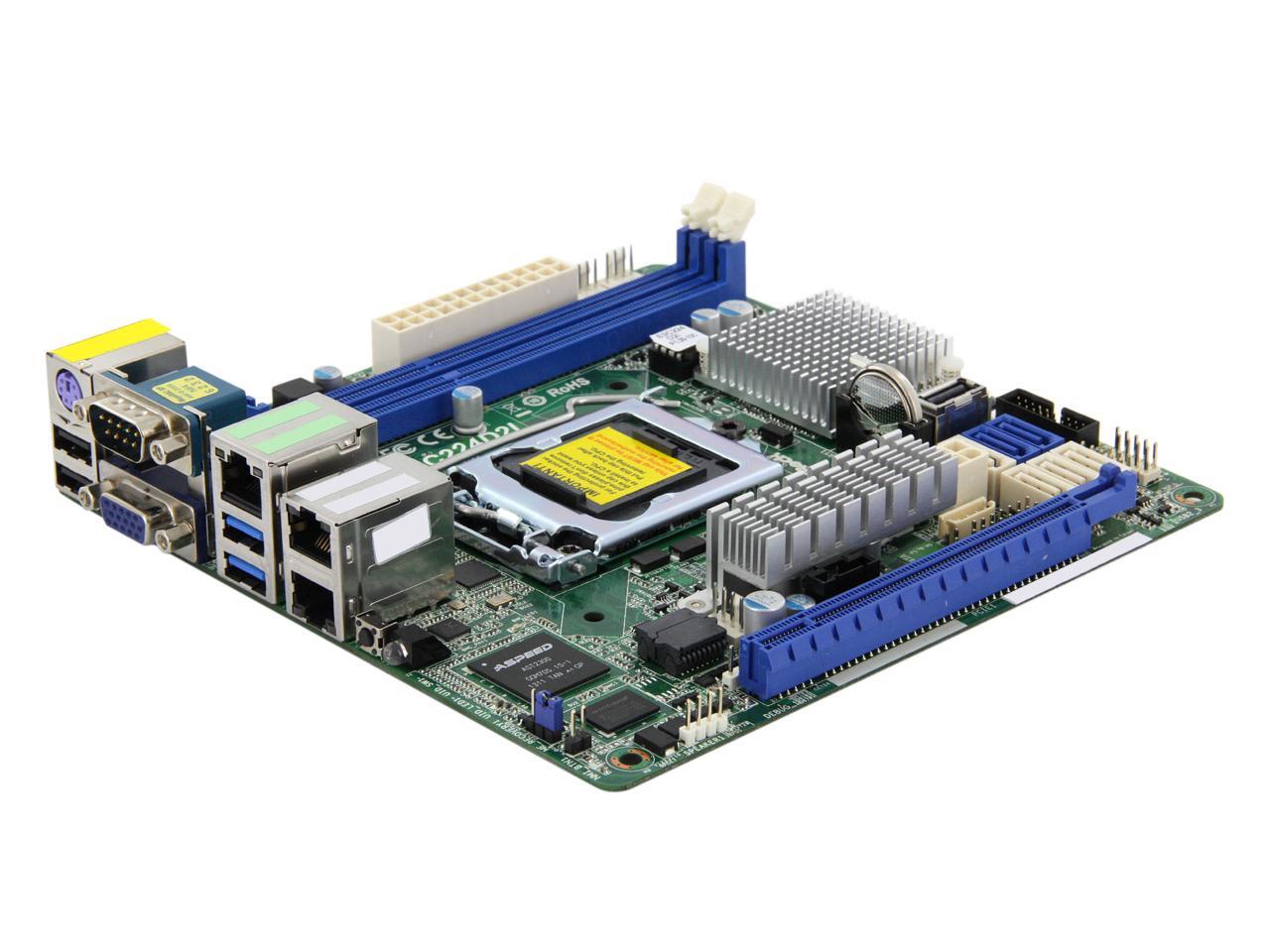

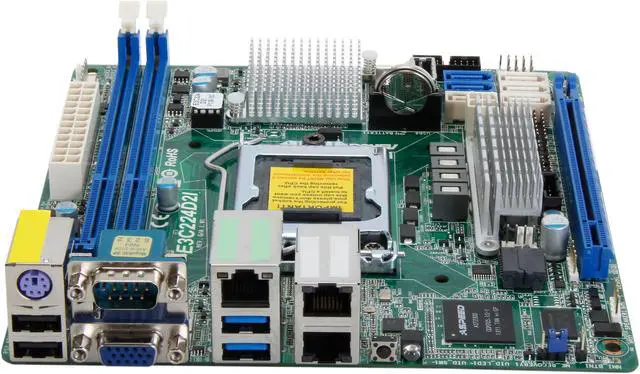

ASRock E3C224D2I Mini ITX Server Motherboard

The ASRock Rack E3C224D2I Mini ITX server motherboard is ideal for small form factor NAS for high capacity file storage. It comes with four SATA 3 and two SATA 2 ports, and supports RAID 0, 1, 5, and 10. Install multiple drives and share them across the network easily.

Three Ethernet RJ45 ports provide maximum networking flexibility. The two RJ45 Gigabit Ethernet LAN ports support teaming function for higher bandwidth. And the dedicated RJ45 IPMI GLAN port makes remote management a cinch.

Enjoy powerful performance. The single socket H3 (LGA 1150) is ready to take up to 4th and 5th Generation Intel Xeon E3-1200 v3 processors for massive computing power. To match up to the processing capability, it supports dual channel DDR3 1600 / 1333 ECC UDIMM memory with max capacity of 16 GB for fast memory speed and enhanced data protection. Four USB 3.0 ports are offered for fast data retrieval when external storage devices are connected.


Highlights

ASRock Server Motherboard
  • Mini ITX 6.7" x 6.7"
  • Single socket H3 (LGA 1150)
  • Supports Intel Xeon processor E3-1200 v3 series & Haswell i3 processors
  • 2 x DIMM DDR3 1600/1333, Max. 16GB
  • 1 x PCIe 3.0 x16
  • 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
  • 2 x Intel i210, support Dual GLAN with teaming function
  • ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
  • 4 x USB 3.0 ports (2 rear + 2 via header )
  • 5 x USB 2.0 ports (2 rear + 2 via header + 1 Type A)



Specifications

 MB Physical Status
Form Factor Mini ITX
Dimensions 6.7 x 6.7" (17.02 x 17.02cm)
 Processor System
CPU Single socket H3 (LGA 1150) supports Intel® Xeon processor E3-1200 v3 series & Haswell i3 processors
Supports Hyper-Threading Technology
Socket Single Socket H3 (LGA1150)
Chipset Intel® C224
 System Memory
Capacity 2 x 240-pin DDR3 DIMM slots
Support up to 16GB DDR3 ECC DIMM
Type Dual Channel DDR3 memory technology
Supports DDR3 1600/1333 ECC DIMM
Voltage 1.5V, 1.35V
 Expansion Slot
PCIe 3.0 x 16 1 slot (x16 mode)
 Storage
SATA Controller Intel® C224: 4 x SATA3 6.0Gbps, 2 x SATA2 3.0Gbps, Supports RAID 0, 1, 5, 10 and Intel® Rapid Storage
 Ethernet
Interface Gigabit LAN 10/100/1000Mbps
LAN Controller 2 x Intel® i210
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE
 Management
BMC Controller ASPEED AST2300: IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN 1 x Realtek RTL8211E for dedicated management LAN
Features Watch Dog
NMI
 Graphics
Controller ASPEED AST2300
VRAM DDR3 16MB
Output Supports D-Sub with max. resolution up to 1920 x 1200 @ 60Hz
 Rear Panel I/O
PS/2 KB/Mouse 1
VGA Port D-sub x 1
USB 2.0 Port 2
USB 3.0 Port 2
Lan Port 2 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port 1 (COM1)
UID Button/UID LED 1
 Internal Connector
Auxiliary Panel Header 1 (include chassis intrusion, location button & LED, front LAN LED)
IPMB Header 1
Fan Header 3 x 4-pin
ATX Power 1 (24-pin) + 1 (4-pin)
USB 2.0 Header 1 (each supports two USB 2.0)
Type A USB 2.0 Port 1
USB 3.0 Header 1 (each support 2 USB 3.0)
 System BIOS
BIOS Type 64Mb AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP)
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
DRAM Voltage Multi-adjustment
ASRock Instant Flash
 Hardware Monitor
Temperature CPU Temperature Sensing
System Temperature Sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Supported Operating Systems
OS

Microsoft Windows

  • Server 2008 R2 (x64)
  • Server 2012 (x64)

Linux

  • RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
  • CentOS 5.5 / 6.4 (x32 and x64)
  • SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
  • FreeBSD 9.1 (x32/x64)
  • Fedora core 18 (x64)
  • UBuntu 12.04/12.10 (x64)

Virtual
VMWare ESXi 5.1

 Environment
Temperature Operating temperature: 50 - 95°F (10 - 35°C) / Non-operating temperature: -40 - 158°F (-40 - 70°C)

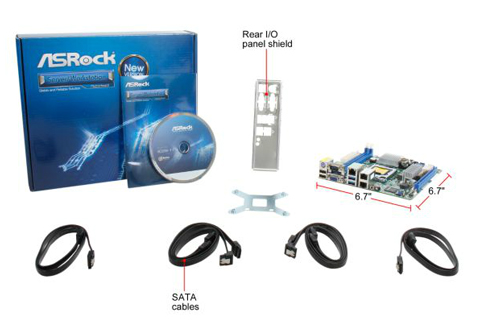

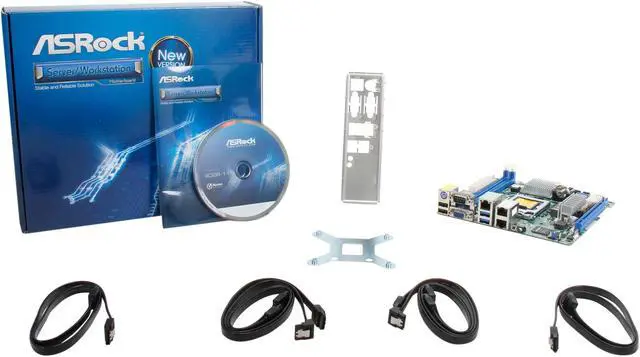

WHAT'S IN THE BOX

ASRock Server Motherboard

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
