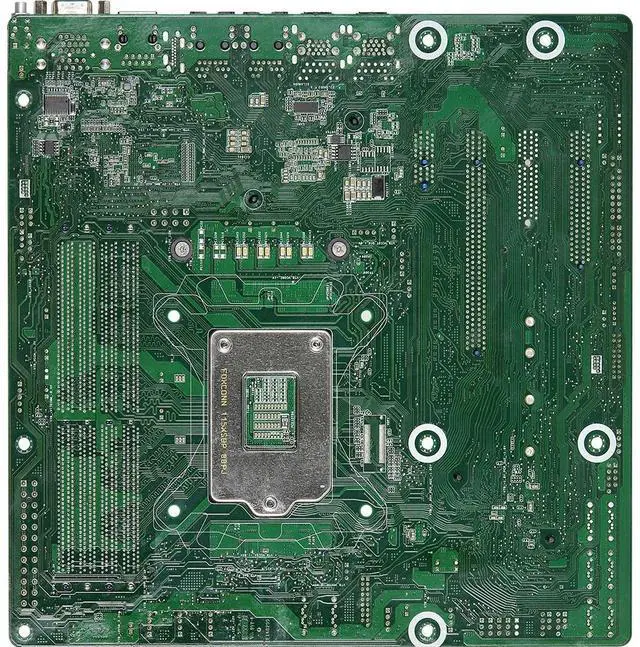

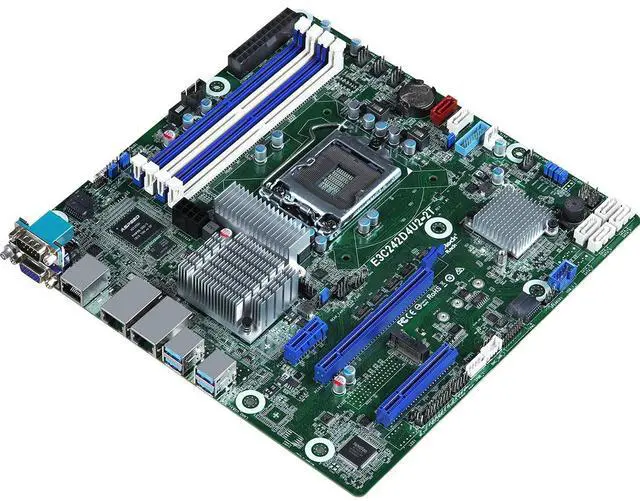

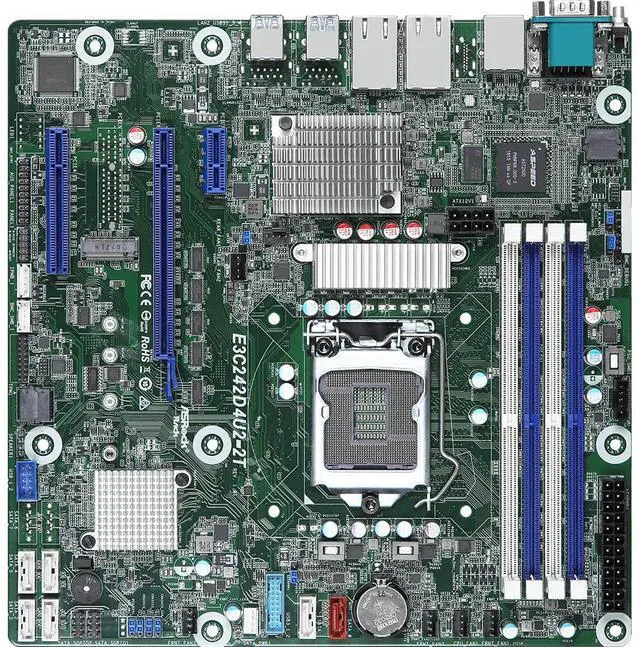

AsRock Rack Server Motherboard E3C242D4U2-2T - LGA1151 C242 DDR4 mATX Dual LAN

** Package Content: Motherboard Only (IO-Shield is Included). NO Original Box and No Other Accessories **

** International Version - R.O.Korea - No Warranty **

Key Specifications

Processor & Chipset:

1. CPU Support: Intel® Xeon® E-2100/E-2200 series processors.
2. CPU Socket: Single Socket LGA 1151
3. Chipset: Intel® C242

Memory:

1. Memory Slots: 4 DIMM slots
2. Memory Type: Dual Channel DDR4 ECC/non-ECC UDIMM
3. Max Capacity: Up to 128GB (some sources state 32GB, but others indicate 128GB)
4. Supported Speeds: 2666/2400/2133 MHz

Expansion Slots:

1. PCIe: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x1
2. M.2: 1 x M.2 slot (supports PCIe 3.0 x4 and SATA3, shared with SATA_0 connector)

Storage: 6 x SATA3 6Gb/s ports

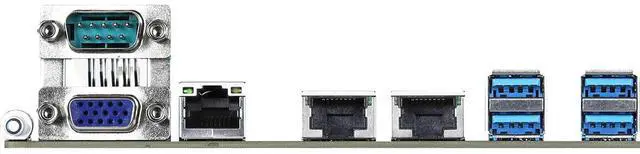

Networking:

1. 10GbE LAN: 2 x RJ45 10G base-T ports (Intel® X550-AT2)
2. IPMI LAN: 1 x RJ45 dedicated IPMI LAN port

Graphics: ASPEED AST2500, VRAM: 16MB or 256MB DDR4 (sources vary)

Form Factor: Micro ATX (9.6" x 9.6" / 244 mm x 244 mm)

This motherboard is designed for use in small-scale servers and workstations, featuring robust server-grade components like ECC memory support and IPMI for remote management.
