Where does the ATX power supply plug in? I don't see either a 20 or 24-pin connector....

This board comes with a 24-to-4 pin ATX 12V adapter needed to power-on the system using the front panel switch. It also requires an additional ATX 12V 4-pin connection for CPU power

Does anyone know if the "optional" 1x Oculink 4 SATA cable is actually included in this SKU? Is there a way to order if not? If neither, has anyone tried using the Supermicro CBL-SAST-0933 with this board?

The Oculink-to-SATA cable is not included in the retail package. I purchased the Supermicro CBL-SAST-0933 cable and it works just fine.

Returns

50 Series Gaming PCs & Laptops

Out of stock

$879^.00

Price alert

Add to wish list(Found on 5 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of AsRock Rack EPYC3251D4I-2T Mini-ITX Server Motherboard AMD EPYC 3251 SoC 8 Cores Dual 10 GLAN

Alt view image 2 of 3 - AsRock Rack EPYC3251D4I-2T Mini-ITX Server Motherboard AMD EPYC 3251 SoC 8 Cores Dual 10 GLAN

Alt view image 3 of 3 - AsRock Rack EPYC3251D4I-2T Mini-ITX Server Motherboard AMD EPYC 3251 SoC 8 Cores Dual 10 GLAN

Shop All ASRock Rack Products

AsRock Rack EPYC3251D4I-2T Mini-ITX Server Motherboard AMD EPYC 3251 SoC 8 Cores Dual 10 GLAN

(2) Write a Review

Mini-ITX 6.7" x 6.7"
Support AMD EPYC 3251 Processor, SoC
Support 4 x DIMM slots, DDR4 ECC / UDIMM, RDIMM up to 2667 MT/s; 2DPC
Support 1 x PCIe 3.0 x 16
Support up to 1 x OCulinks (PCIe 3.0 x4 or 4 x SATA III 6Gb/s) + 2 x SATA III 6.0Gb/s
Support 1 x M.2 (PCIe3.0 x4 and SATA3 shared with SATA_4 port) up to 22110 form factor
Support 2 x 10GLAN RJ45 by Intel X550-AT2 + 1 x Dedicated LAN IPMI
Supports 12V DC or ATX Power Source

View User Manual Details

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

MEMORY QVL

8GB DDR4 2666 non-ECC	Kingston KVR26N19S8/8
32GB DDR4 2666 RDIMM	Crucial CT32G4RFD4266-2G6H1.001
16GB DDR4 2666 ECC	Kingston KSM26ED8/16ME
32GB DDR4 2400 RDIMM	Kingston KVR24R17D4/32
16GB DDR4 2133 ECC	Crucial CT16G4WFD8213.18FB1

64GB DDR4 2666 RDIMM	Crucial CT64G4YFQ426S.36DG1
16GB DDR4 2666 non-ECC	Crucial CT16G4DFD8266.C16FD1
32GB DDR4 2400 LRDIMM	Crucial CT32G4LFD424A.36FB1
16GB DDR4 2400 ECC	Crucial CT16G4WFD824A.18FB1

TPM QVL

TPM 2.0, LPC, 13 pin	INFINEON SLB9665, TPM2-SLI

Model
Brand	AsRock Rack
Model	EPYC3251D4I-2T

Supported CPU
CPU Type	Support AMD EPYC 3251 (8 cores, 16 threads)
Number of Processor Support	1

Chipsets
North Bridge	Soc

Memory
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	ECC / UDIMM: 2133 / 2400 / 2666 MHz RDIMM: 2133 / 2400 / 2666 MHz
Maximum Memory Supported	Max. Capacity per DIMM ECC UDIMM, RDIMM, LRDIMM: up to 128GB
Channel Supported	Dual Channel
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express 3.0 x16	SLOT7: PCIe3.0 x16

Storage Devices
SATA	AMD Built-in Storage: 6 x SATA III 6.0 Gb/s (4 x SATA from OCulink, 2 x SATA III 6.0 Gb/s)
M.2	1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factor

Onboard Video
Onboard Video Chipset	Aspeed AST2500

Onboard LAN
LAN Chipset	Intel X550-AT2
LAN Speed	10Gbps
Max LAN Speed	2 x 10Gbps

Rear Panel Ports

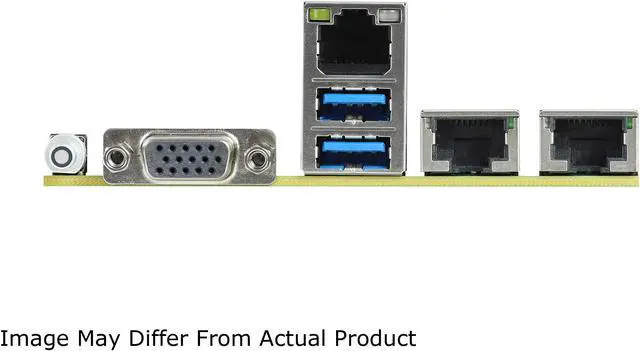

Back I/O Ports	UID Button/LED: 1 VGA Port: D-sub x 1 USB 3.2 Gen1 Port: 2 RJ45: - 2 x 10GLAN RJ45(by Intel X550-AT2 ) - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED)

Onboard Ports
Onboard USB	USB 3.2 (Gen1) Header: 1 (supports 2 USB 3.1 Gen1 ports)
Other Connectors	Power Connector: 1 x (4-pin) + 1 x (8-pin) support 12V DC-IN Other Power Connectors: 1 (4-pin) for HDD power Auxiliary Panel Header: 1 (include chassis intrusion, 2 front LAN LED, System LED) System Panel: 1 COM Header: 1 Fan Header: 1 x CPU Fan, 2 x System Fans (1 front, 1 rear) (build in CPU active fansink) TPM Header: 1 x (13-pin) SGPIO Header: 1 SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 (short pad)

Dimensions
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Additional Information
First Listed on Newegg	October 02, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
