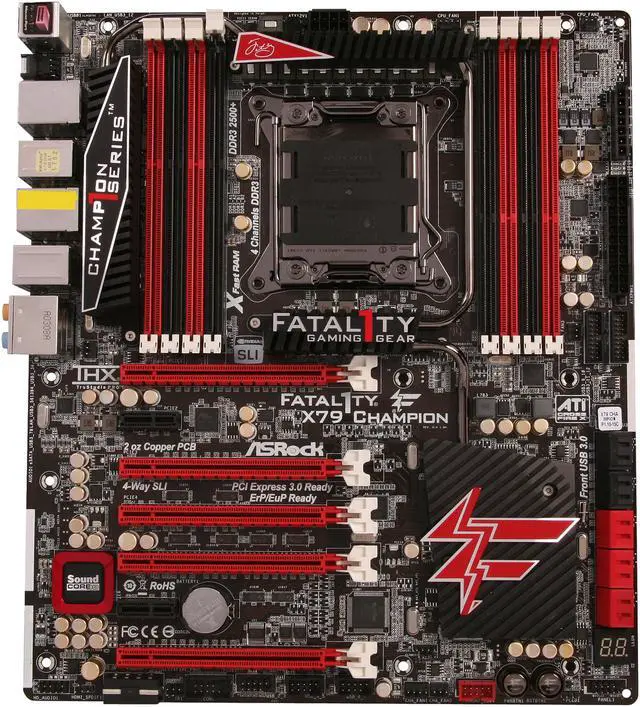

ASRock X79 Champion LGA 2011 Intel X79 USB 3.0 Extended ATX Intel Motherboard with UEFI BIOS

(23) Write a Review
  • Intel X79
  • Core i7 (LGA2011)
  • DDR3 2500+(OC)/2133(OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (23)

Learn more about the ASRock X79 Champion

Model
Brand ASRock
Model X79 Champion
Supported CPU
CPU Socket Type LGA 2011
CPU Type Core i7 (LGA2011)
Supported CPU Technologies Intel Turbo Boost 2.0 Technology
Hyper-Threading Technology
Untied Overclocking Technology
Chipsets
Chipset Intel X79
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 8x240pin
Memory Standard DDR3 2500+(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported 64GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 5 (PCIE1/PCIE5: x16/16 mode; PCIE1/PCIE3/PCIE5: x16/8/8 mode; PCIE1/PCIE4/PCIE7: x16/8/8 mode; PCIE1/PCIE3/PCIE5/PCIE7: x16/8/8/8 mode)
PCI Express x1 2 x PCI Express x1
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
SATA RAID 2 x SATA3 6.0 Gb/s by Intel X79, support RAID 0, 1, 5, 10
4 x SATA3 6.0 Gb/s by Marvell SE9230, support RAID 0, 1, 10
4 x SATA2 3.0 Gb/s support RAID 0, 1, 5, 10
Onboard Audio
Audio Chipset Creative Sound Core3D quad-core sound and voice processor
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Broadcom BCM57781
Second LAN Chipset Broadcom BCM57781
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 1
USB 3.0 8 x USB 3.0
USB 1.1/2.0 1 x USB 2.0 Port
1 x Fatal1ty Mouse Port (USB 2.0)
IEEE 1394 1 x IEEE 1394
eSATA 2 x eSATA 6Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 4 x USB 3.0 + 6 x USB 2.0
Onboard 1394 1 x 1394
Other Connectors 1 x IR header
1 x CIR header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
1 x V-Probe: 7-set of onboard voltage measurement points laid
CPU/Chassis/Power Fan connectors
24 pin ATX power connector
8 pin 12V power connector
SLI/XFire power connector
Front panel audio connector
1 x Dr. Debug with LED
1 x Post Status Checker (PSC)
Physical Spec
Form Factor Extended ATX
Dimensions (W x L) 12" x 10.5"
Power Pin 24 Pin
Features
Features Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors

Digi Power Design, 12 + 2 Power Phase Design

Supports Quad Channel DDR3 2500+(OC)

Supports Dual-Stack MOSFET (DSM)

5 x PCIe 3.0 x16 slots, supports AMD 4-Way CrossFireX, NVIDIA 4-Way SLI

Creative Sound Core3D 7.1 CH HD Audio, Supports Premium Headset Amplifier (PHA)

Broadcom PCIE Dual LAN with Teaming Function

12 x USB 3.0 (4 Front, 8 Back), 6 x SATA3, 1 x Fatal1ty Mouse Port (USB 2.0), 1 x Post Status Checker (PSC)

Supports Fatal1ty XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, HyperDuo Plus

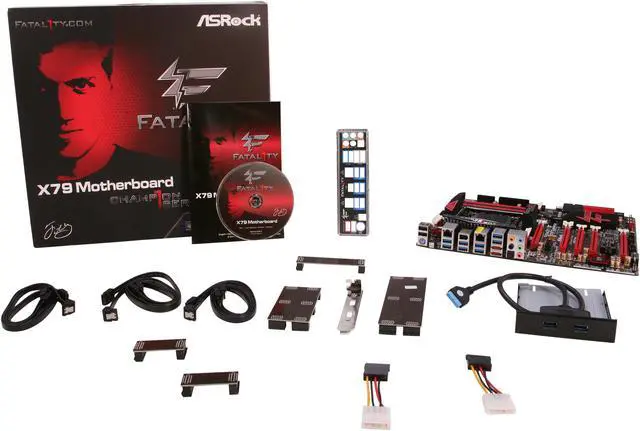

Free Bundle : 1 x Front USB 3.0 Panel, 1 x Rear USB 3.0 Bracket, CyberLink MediaEspresso 6.5 Trial, MAGIX Multimedia Suite
Additional Information
First Listed on Newegg May 11, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
