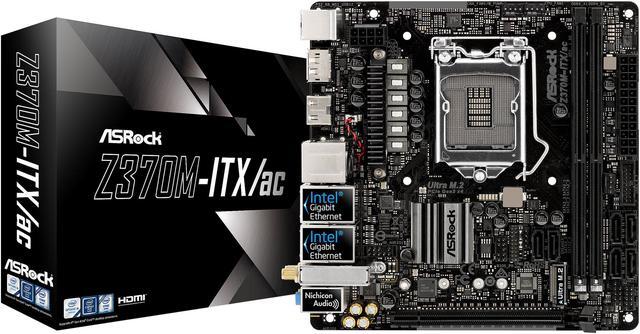

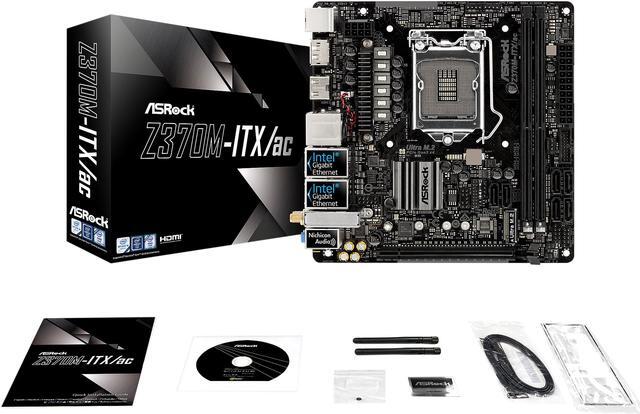

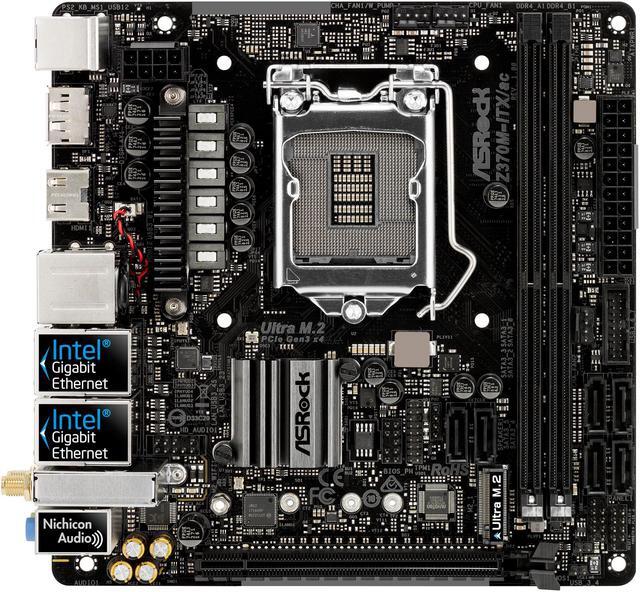

ASRock Z370M-ITX/ac LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 Mini ITX Intel Motherboard
OPEN BOX Product Type
- Intel Z370
- Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
- * Not backward compatible with older generation of LGA 1151 CPUs
- DDR4 4000+(OC)*/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
- * Please refer to Memory Support List on ASRock's website for more information.
- * 8th Gen Intel CPU supports DDR4 up to 2666.
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z370M-ITX/ac
| Brand | ASRock |
|---|---|
| Model | Z370M-ITX/ac |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151 * Not backward compatible with older generation of LGA 1151 CPUs |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z370 |
|---|
| Onboard Video Chipset | * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics - DirectX 12 - HWAEncode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG, VC-1 - Max. shared memory 1024MB * The size of maximum shared memory may vary from different operating systems. - Three graphics output options: DisplayPort 1.2 and 2 x HDMI ports - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4000+(OC)*/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 * Please refer to Memory Support List on ASRock's website for more information. * 8th Gen Intel CPU supports DDR4 up to 2666. |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) * Supports NVMe SSD as boot disks |
|---|---|
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O) |
| Serial ATA (SATA) | 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|---|---|
| M.2 | 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports Intel Optane Technology ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Intel I219-V |
|---|---|
| Second LAN Chipset | Intel I211-AT |
| Max LAN Speed | 2 x 1Gbps |
| Wireless LAN | Intel 802.11 ac Wi-Fi Module Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433 Mbps |
| Bluetooth | Supports Bluetooth 4.2 / 3.0 + High speed class II |

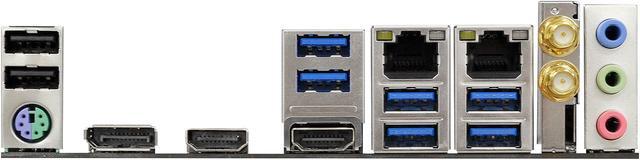

| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| HDMI | 2 x HDMI |
| RJ45 | 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB 3.1 | 6 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Antenna Connectors | 2 x Antenna Ports |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x TPM Header 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x Chassis Fan Connector (4-pin) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) * The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. 1 x Front Panel Audio Connector |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Premium 60A Power Choke - Dual-Stack MOSFET (DSM) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB - High Density Glass Fabric PCB Intel 802.11 ac Wi-Fi ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS Feature: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCST, CPU Internal PLL Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Software and UEFI: Software - ASRock A-Tuning - ASRock XFast LAN * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock Easy RAID Installer Hardware Monitor: - Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans - Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS: - Microsoft Windows 10 64-bit Certi?cations: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Date First Available | April 20, 2018 |
|---|
