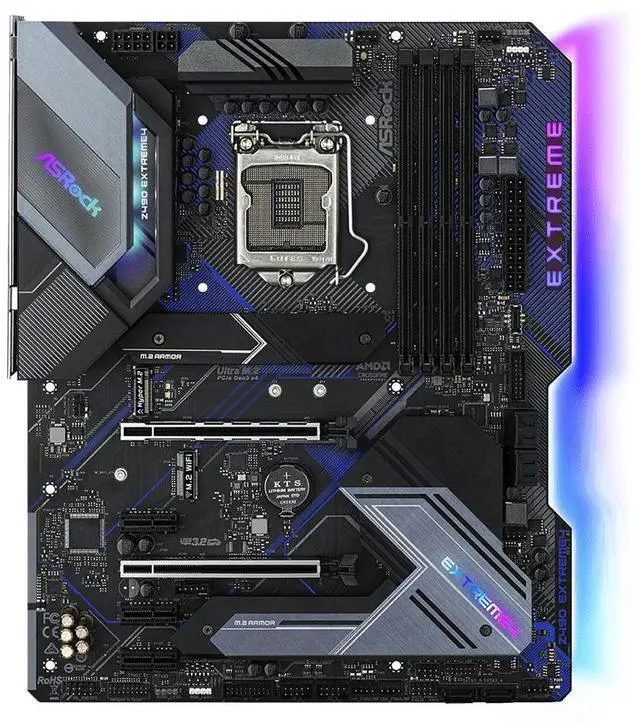

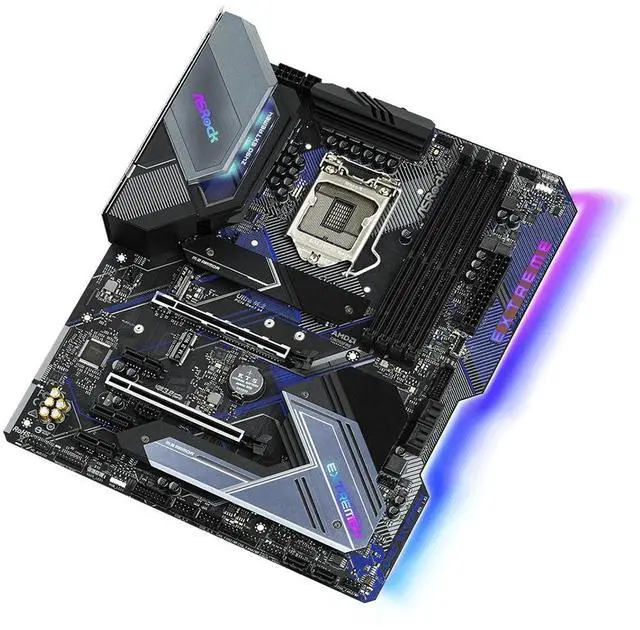

The ASRock Z490 Extreme4 is an ATX form factor motherboard based on the Intel Z490 chipset, designed to support 10th and 11th Generation Intel Core processors (LGA 1200 socket).
It is positioned as a solid, feature-rich option for mainstream to enthusiast builders looking for performance and strong connectivity, with a focus on stable power delivery and networking speed.
Key Product Highlights:
- CPU Support: Supports 10th Gen and future generation (11th Gen) Intel Core Processors (LGA 1200).
- Power Design: Features a robust power solution, typically an 11-Phase Dr. MOS Power Design with Premium 60A Power Chokes and Nichicon 12K Black Caps, providing clean and stable power for reliable performance and overclocking.
- Networking: Equipped with Dragon 2.5 Gigabit LAN for up to 2.5× faster bandwidth than standard Gigabit Ethernet, catering to gamers and high-speed media streaming.
- Storage & PCIe:
- Includes Dual Ultra M.2 Sockets that support both SATA3 and PCIe Gen3 x4 modes for fast SSD performance.
- It is advertised as PCI Express 4.0 Hardware Ready (for use with compatible 11th Gen CPUs) with a dedicated PCIe 4.0 Clock Generator and a reinforced Steel Slot.
- Memory: Supports Dual Channel DDR4 memory with overclocking capabilities up to 4266MHz+(OC).
- Aesthetics & Cooling: Features ASRock Polychrome SYNC for customizable RGB lighting control and utilizes a 2oz Copper PCB design and XXL Aluminum Alloy Heatsinks for effective heat dissipation and improved stability.

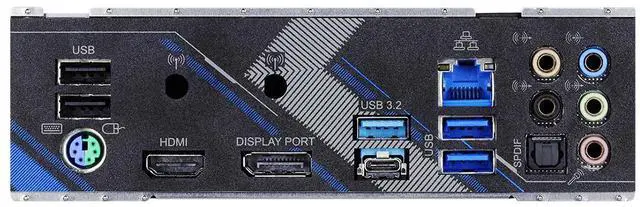

- Connectivity: Offers a range of fast ports, including USB 3.2 Gen2 Type-A and Type-C (up to 10 Gb/s) on the rear I/O.
- Audio: Incorporates 7.1 CH HD Audio utilizing the Realtek ALC1200 Audio Codec and Nahimic Audio for an enhanced, immersive sound experience.
