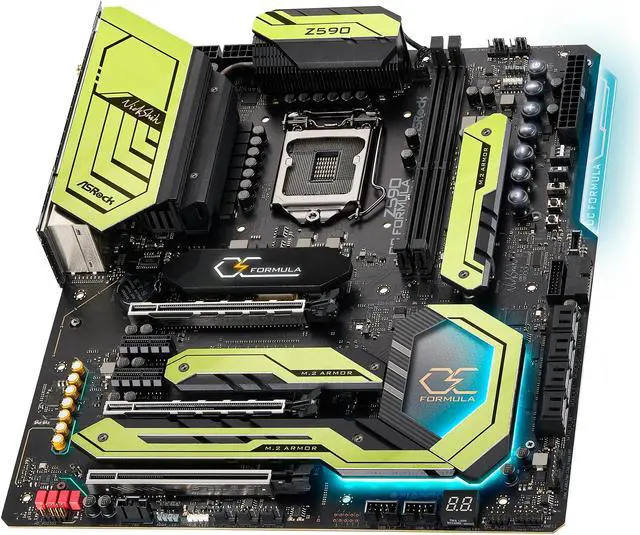

ASRock Z590 OC FORMULA LGA 1200 Intel Z590 Extended ATX Intel Motherboard
- Intel Z590
- Supports 11th / 10th Gen Intel Core Processors
- DDR4 6000(OC)+ (11th Gen Intel Core Processors)
- DDR4 5000(OC)+ (10th Gen Intel Core Processors)
Specs
Reviews (4)
Learn more about the ASRock Z590 OC FORMULA
| Brand | ASRock |
|---|---|
| Model | Z590 OC FORMULA |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel Z590 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 6000(OC)+ (11th Gen Intel Core Processors)* DDR4 5000(OC)+ (10th Gen Intel Core Processors)* * 11th Gen Intel Core (i9 / i7 / i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666 natively. * 10th Gen Intel Core (i9 / i7) support DDR4 up to 2933; Core (i5 / i3), Pentium and Celeron support DDR4 up to 2666 natively. |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16* * Actual support may vary by CPU. * Supports NVMe SSD as boot disks. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 2 x PCI Express 2.0 x1 |
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
| Serial ATA (SATA) | 8 x SATA 6Gb/s* * M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. * M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with 11th Gen Intel Core Processors) or Gen3 x4 (32Gb/s) (with 10th Gen Intel Core Processors)* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports Intel Optane Technology. * M2_1 supports Intel Optane Technology only with 10th Gen Intel Core Processors. * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I225-V |
|---|---|
| Second LAN Chipset | Intel I219V |
| Max LAN Speed | 2.5Gbps + 1Gbps |
| Wireless LAN | Intel 802.11ax Wi-Fi 6E Module IEEE802.11a/b/g/n/ax |
| Bluetooth | Bluetooth 5.2 |

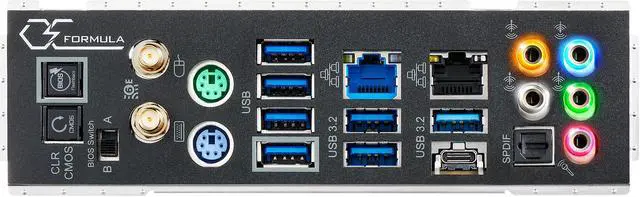

| Back I/O Ports | 2 x Antenna Ports 1 x PS/2 Keyboard Port 1 x PS/2 Mouse Port 1 x Optical SPDIF Out Port 3 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (ReDriver) (Supports ESD Protection)* 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)* 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)* 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button 1 x BIOS Selection Switch 1 x Clear CMOS Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED) * USB3_1 is from Intel Z590; USB3_234 are from ASMedia ASM1074 hub. * Ultra USB Power is supported on USB3_234 port. * ACPI wake-up function is not supported on USB3_234 port. ** This motherboard does not support integrated graphics. |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)* 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type-C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection) * USB_1 is from ASMedia ASM1074 hub; USB_234 are Intel Z590. |
|---|---|
| Other Connectors | 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED 1 x Retry Button 1 x Safe Boot Button V-Probe: 2 x 5-set of onboard voltage measurement points laid Rapid OC Buttons: +/buttons to adjust OC frequency 1 x PCIe ON/OFF Switch 1 x Post Status Checker (PSC) 1 x Slow Mode Switch 1 x LN2 Mode Switch 1 x NickShih's OC Profile 1 Button with LED 1 x NickShih's OC Profile 2 Button with LED 1 x NickShih's OC Profile 3 Button with LED * Support in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP, CHA_FAN5/WP and CHA_FAN6/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Windows 11 | Supported |
|---|
| Form Factor | Extended ATX |
|---|---|
| LED Lighting | RGB |

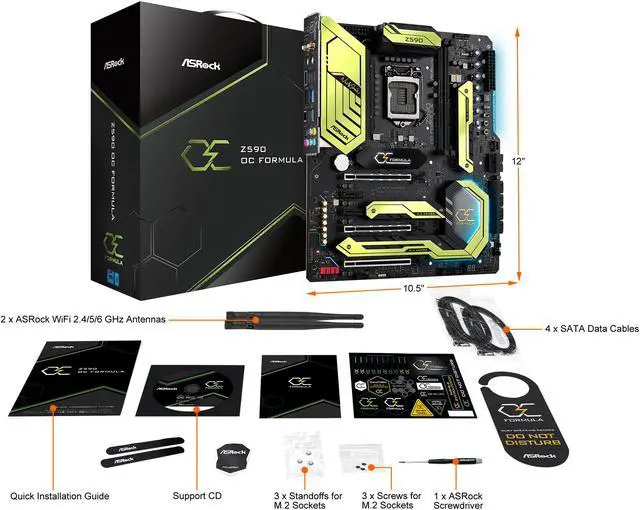

| Dimensions (W x L) | 12.0" x 10.5" |
| Power Pin | 1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 2 x 8-pin 12V Power Connectors (Hi-Density Power Connector) |
| Date First Available | June 04, 2021 |
|---|
