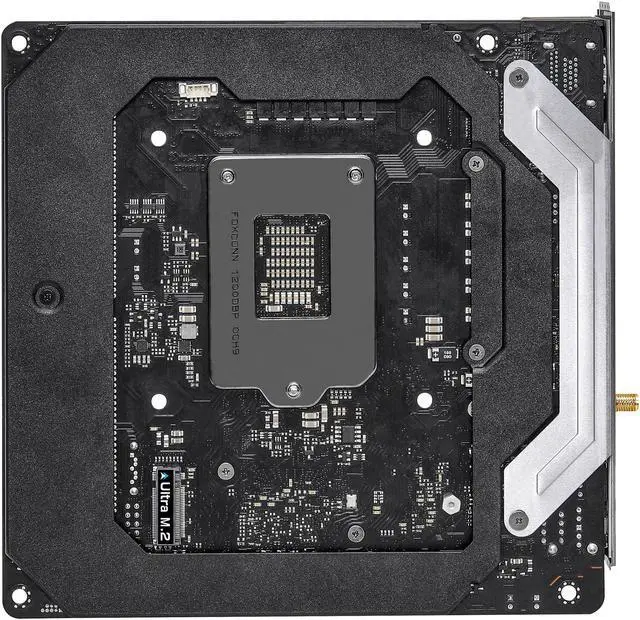

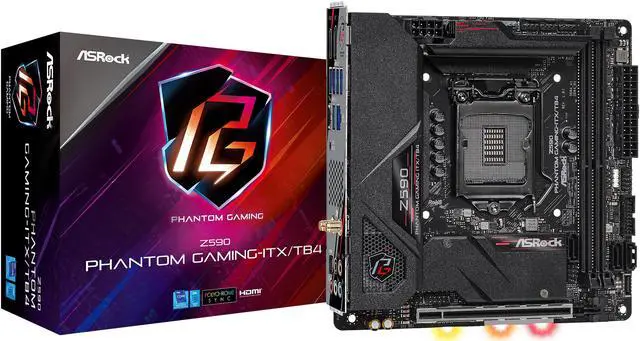

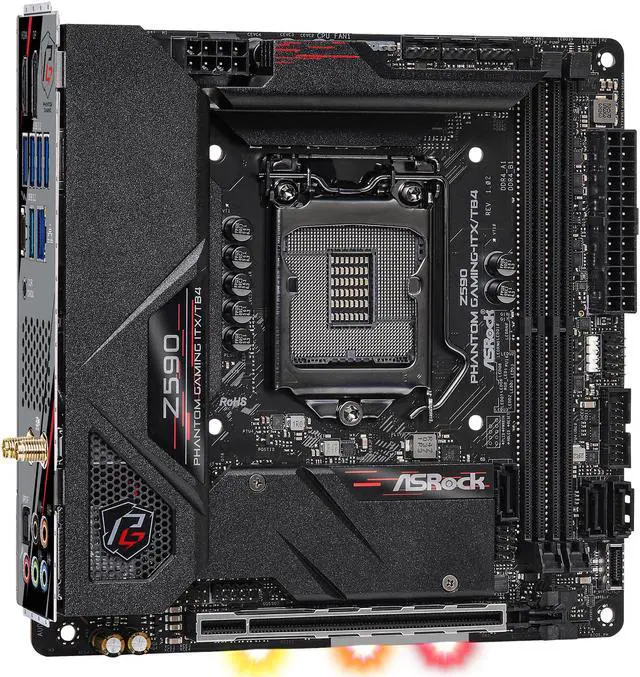

ASRock Z590 PHANTOM GAMING-ITX/TB4 LGA 1200 Intel Z590 Mini ITX Intel Motherboard
- Intel Z590
- Supports 11th Gen Intel Core Processors
- Supports 10th Gen Intel Core Processors
- DDR4 4266+(OC) (11th Gen Intel Core Processors)
+
+
Specs
Reviews (368)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z590 PHANTOM GAMING-ITX/TB4
| Brand | ASRock |
|---|---|
| Model | Z590 PHANTOM GAMING-ITX/TB4 |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th Gen Intel Core Processors Supports 10th Gen Intel Core Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel Z590 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4266+(OC) (11th Gen Intel Core Processors)* DDR4 4266+(OC) (10th Gen Intel Core Processors)* * 11th Gen Intel Core (i9 / i7 / i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9 / i7) support DDR4 up to 2933; Core (i5 / i3), Pentium and Celeron support DDR4 up to 2666. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. * Supports PCIe riser cards to extend one x16 slot to two x8 slots. * Supports NVMe SSD as boot disks. |
|---|---|
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
| Serial ATA (SATA) | 3 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_2), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)* 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports Intel Optane Technology. * Supports NVMe SSD as boot disks. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Killer E3100G |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Killer AX1675x 802.11ax Wi-Fi 6E Module IEEE802.11a/b/g/n/ax |
| Bluetooth | Bluetooth 5.2 |

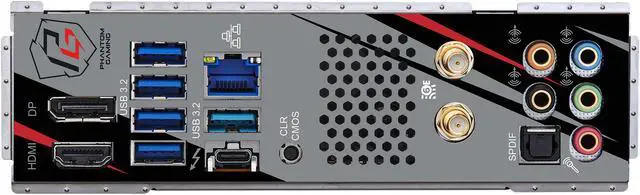

| Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 5 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection) 1 x USB 4.0 Thunderbolt 4 Type-C Port (40Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)* 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging. |
|---|
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header * Support in total up to 12V/3A, 36W LED Strip. 1 x Addressable LED Header * Support in total up to 5V/3A, 15W LED Strip. 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is in use. 1 x Chassis Fan Connector (4-pin) * The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. 1 x Front Panel Audio Connector (15µ Gold Audio Connector) |
| Windows 11 | Supported |
|---|
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) |
| Features | Unique Feature: ASRock USB 4.0 - ASRock USB 4.0 ThunderboltTM 4 Type-C Port (40Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) ASRock USB 3.2 Gen2 - ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10Gb/s) ASRock Super Alloy - Premium 90A Power Choke - 90A Dr.MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 10 Layer PCB Killer 2.5G LAN Killer 802.11ax Wi-Fi 6E Killer DoubleShotTM Pro ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS Feature: - 128 MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, DRAM, VPPM, VTTDDR, CPU PLL, VCC PLL, PCH Voltage, VCCIO, VCCIO_Memory, VCCSA, CPU Standby 1, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Software and UEFI: Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer Hardware Monitor: - Fan Tachometer: CPU, CPU_OPT/Water Pump, Chassis Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU_OPT/Water Pump - Fan Multi-Speed Control: CPU, CPU_OPT/Water Pump, Chassis Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH, VCCSA, VCCIO, VCCIO_Memory OS: - Microsoft Windows 10 64-bit |
|---|

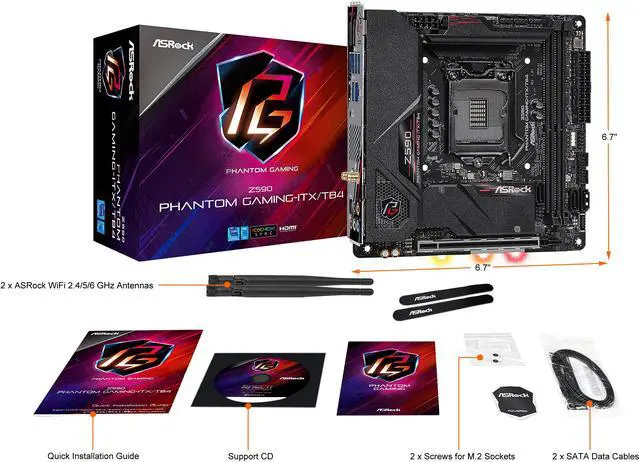

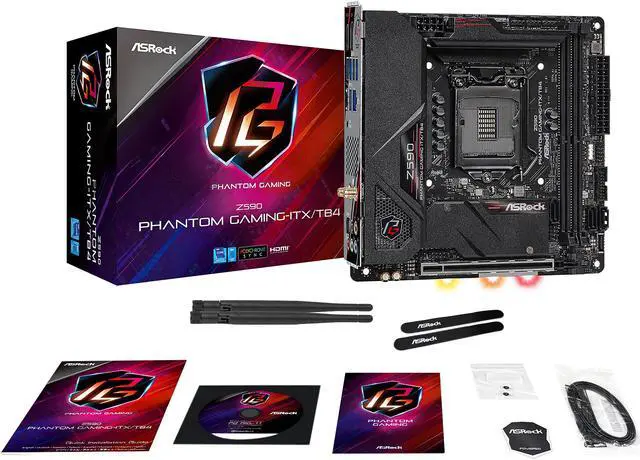

| Package Contents | Accessories: - Quick Installation Guide, Support CD - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 2 x Screws for M.2 Sockets |
|---|
| First Listed on Newegg | October 29, 2024 |
|---|
