| Brand | ASUS |
|---|---|
| Model | A8N-SLI |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000 MHz |
| Chipset | NVIDIA nForce4 SLI |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| PATA RAID | NV RAID 0/1/0+1 JBOD |
| SATA 3Gb/s | 4 x SATA 3Gb/s |
| SATA RAID | NV RAID 0/1/0+1 JBOD |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC850 |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 10/100/1000Mbps |
|---|
| PS/2 | 2 |
|---|---|
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 connectors support 6 ports |
|---|---|
| Onboard 1394 | 1 x 1394a connector support 1 port |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

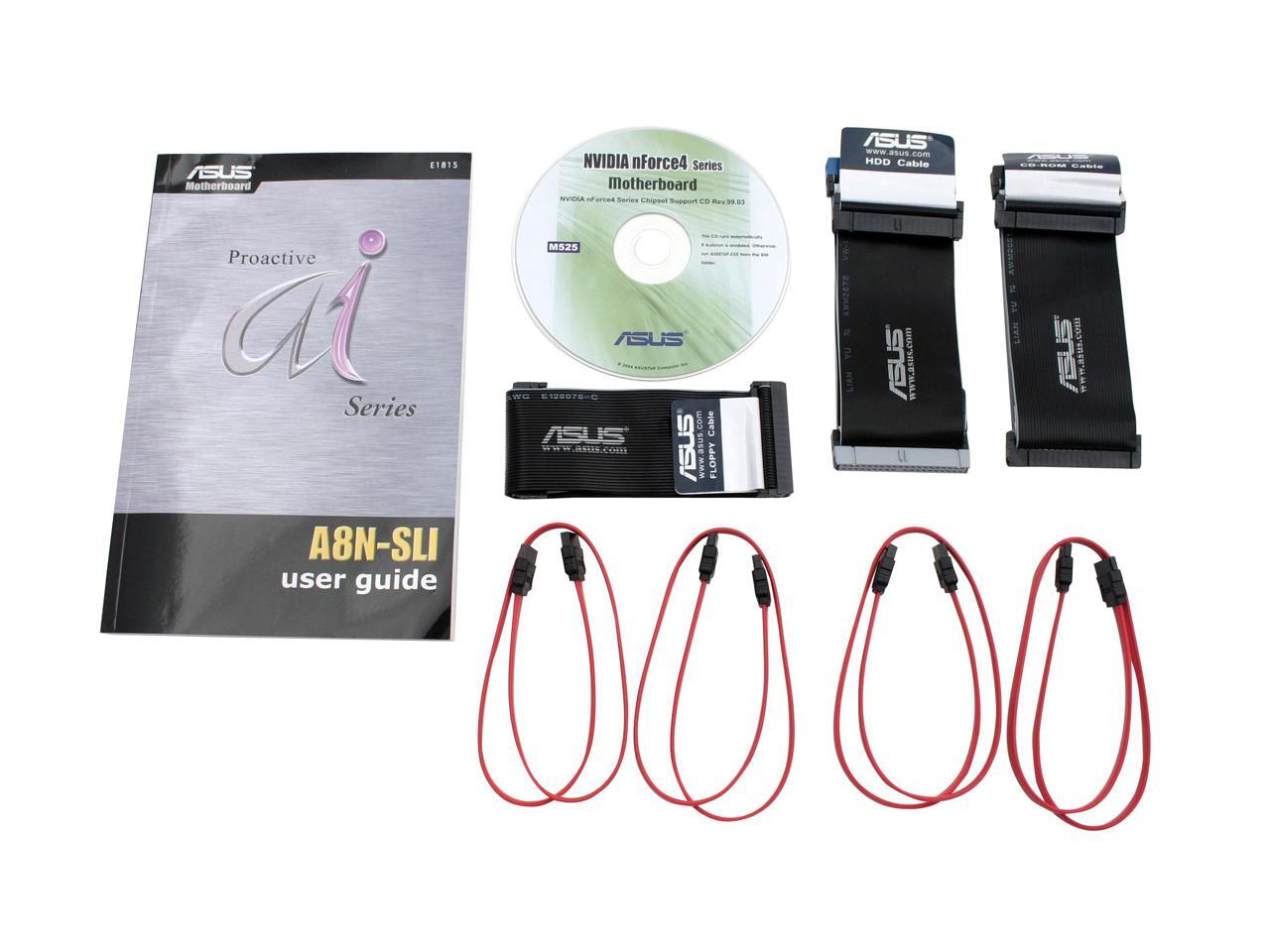

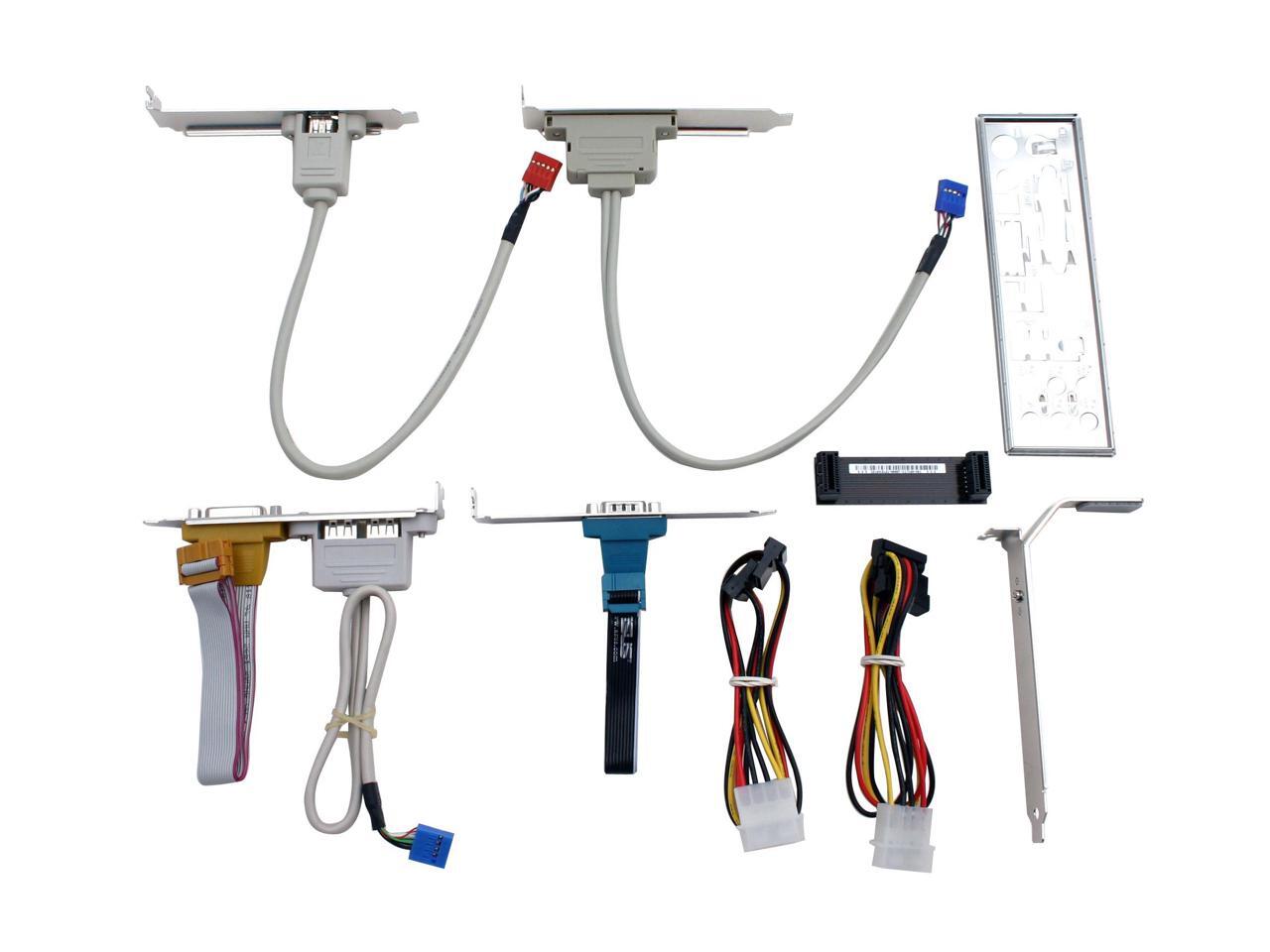

| Package Contents | A8N-SLI Driver Disk User Manual Rear I/O Panel Shield 2 x IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x 4-pin to SATA Power Cable SLI Bridge SLI Retention Bracket USB Bracket IEEE 1394 Bracket Serial/COM Bracket USB and Game/MIDI Bracket |
|---|
| Date First Available | February 04, 2005 |
|---|
Pros: I used this board for my first build. I'm a complete newbie, but I researched a lot of boards and liked this one for its expandability, price, and dual GPU support (SLI). I see it as a board that can accomodate a lot of growth over the years. Experienced folks can probably ignore this review, but newbies take heart: I was able to install all the board components, mount in case, plug in all wires, and have it boot up fine on first try. So if an idiot like me can build a computer with this board in a few hours, it must be pretty user-friendly! I found everthing fairly easy to identify, and manual and included parts, cables, etc. were great. Sata II (3gb/s) support is nice and my computer boots faster than any other I've owned. Included utilities are sweet, and the PC Probe and AI Booster are very cool and give a useful Windows interface for monitoring your processor and board, and look like they will allow for easy overclocking when that time comes. :) I'm very happy with my choice
Cons: No bad experiences to speak of.
Overall Review: My computer specs: *this board *Athlon X2 3800 *2x A-DATA V-Series 1GB DDR 400 *Western Digital Caviar SE 250GB (3gb/s) * GIGABYTE Geforce 6600GT 128MB *ASYS 8654BW Case 450W Power Supply
