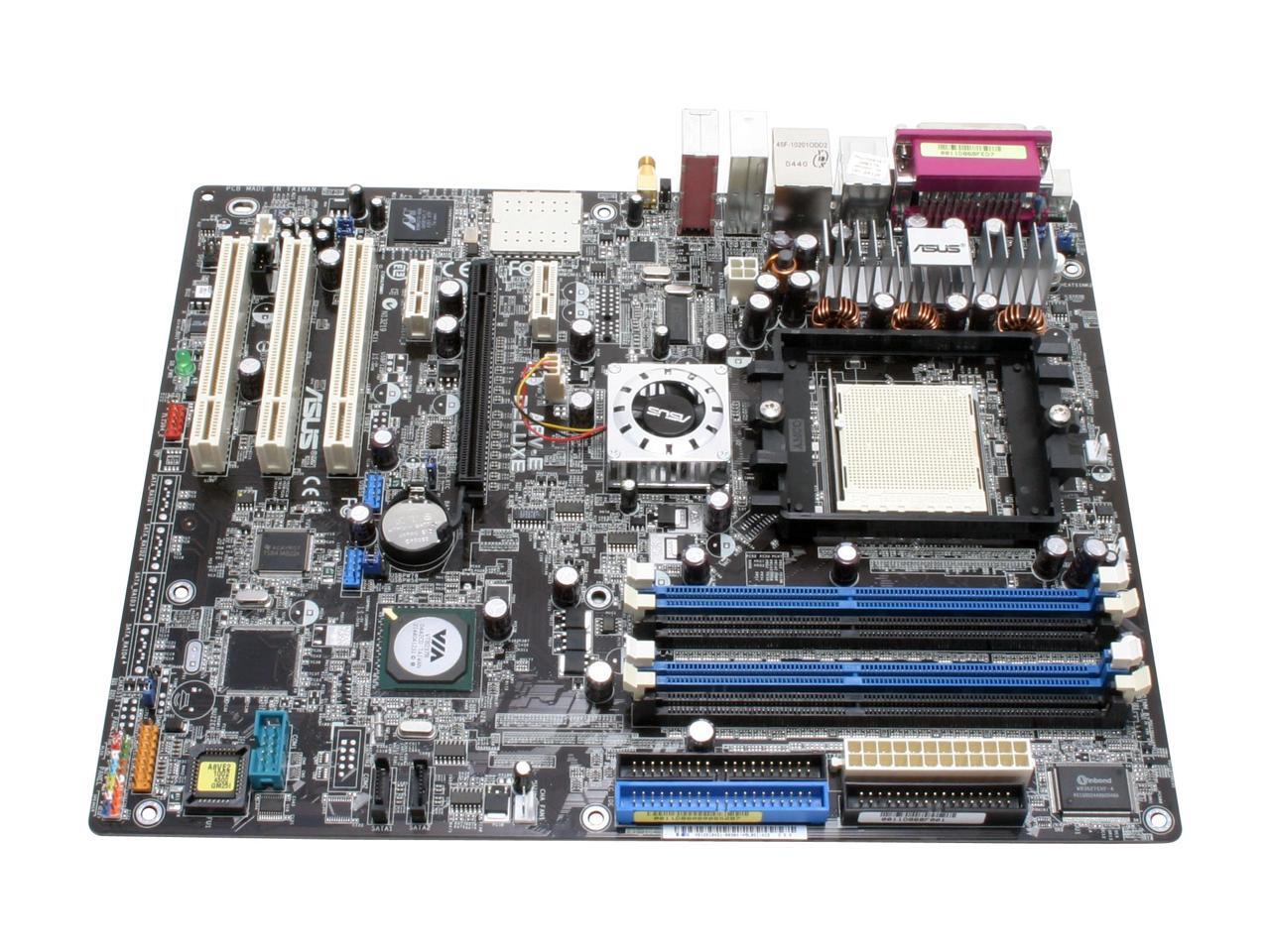

ASUS A8V-E Deluxe 939 VIA K8T890 ATX AMD Motherboard

OUT OF STOCK.
  • VIA K8T890
  • Athlon 64 FX / Athlon 64 / Sempron
  • DDR 400
Specs
Reviews

Learn more about the ASUS A8V-E Deluxe

Model
Brand ASUS
Model A8V-E Deluxe
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 FX / Athlon 64 / Sempron
FSB 1000 MHz
Chipsets
Chipset VIA K8T890
South Bridge VIA VT8237R
Memory
Number of Memory Slots 4×184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5Gb/s 2 x SATA 1.5 Gb/s
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8053
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
LPT 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Onboard 1394 1 x 1394a connector supports 1 port
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

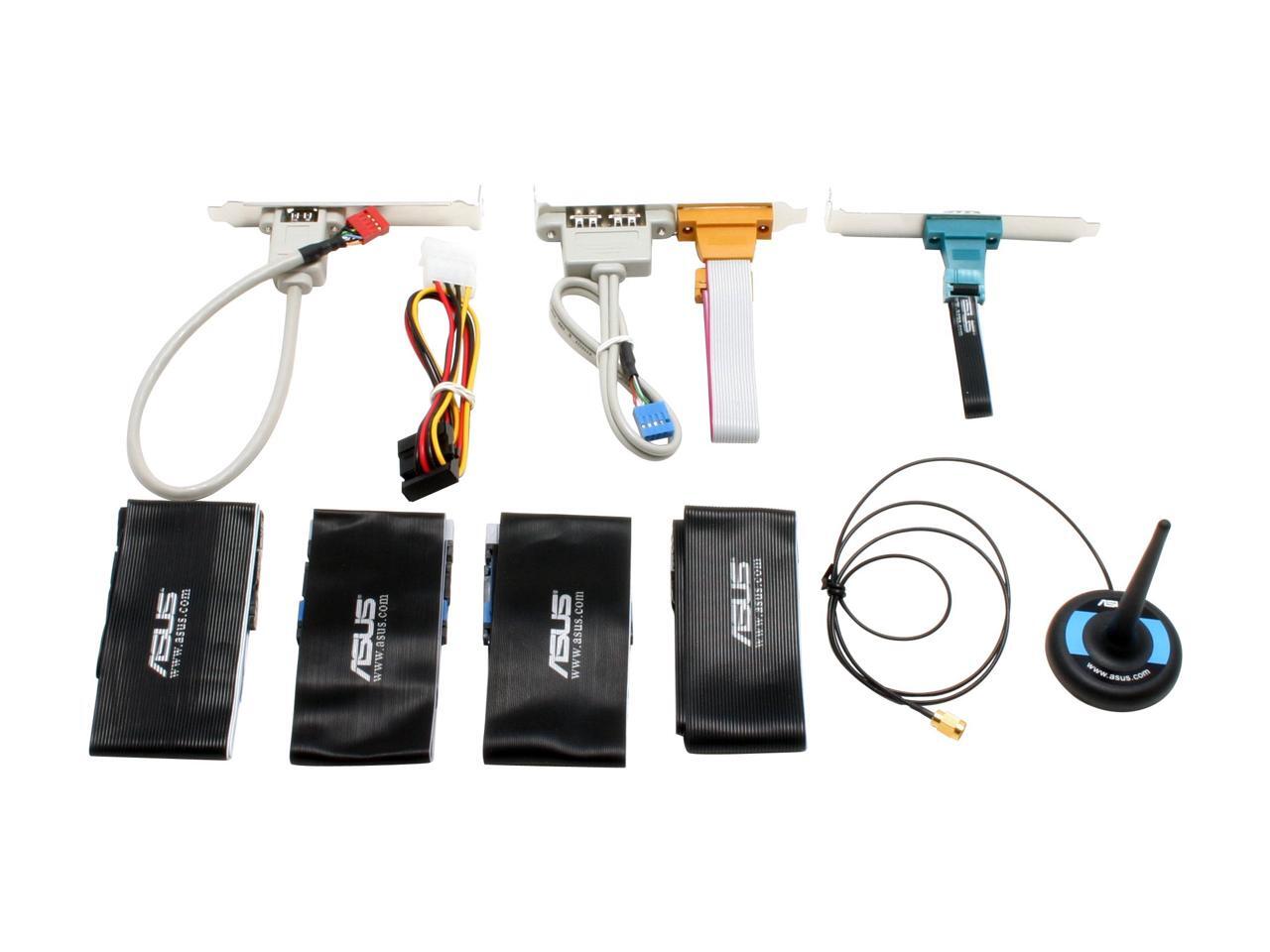

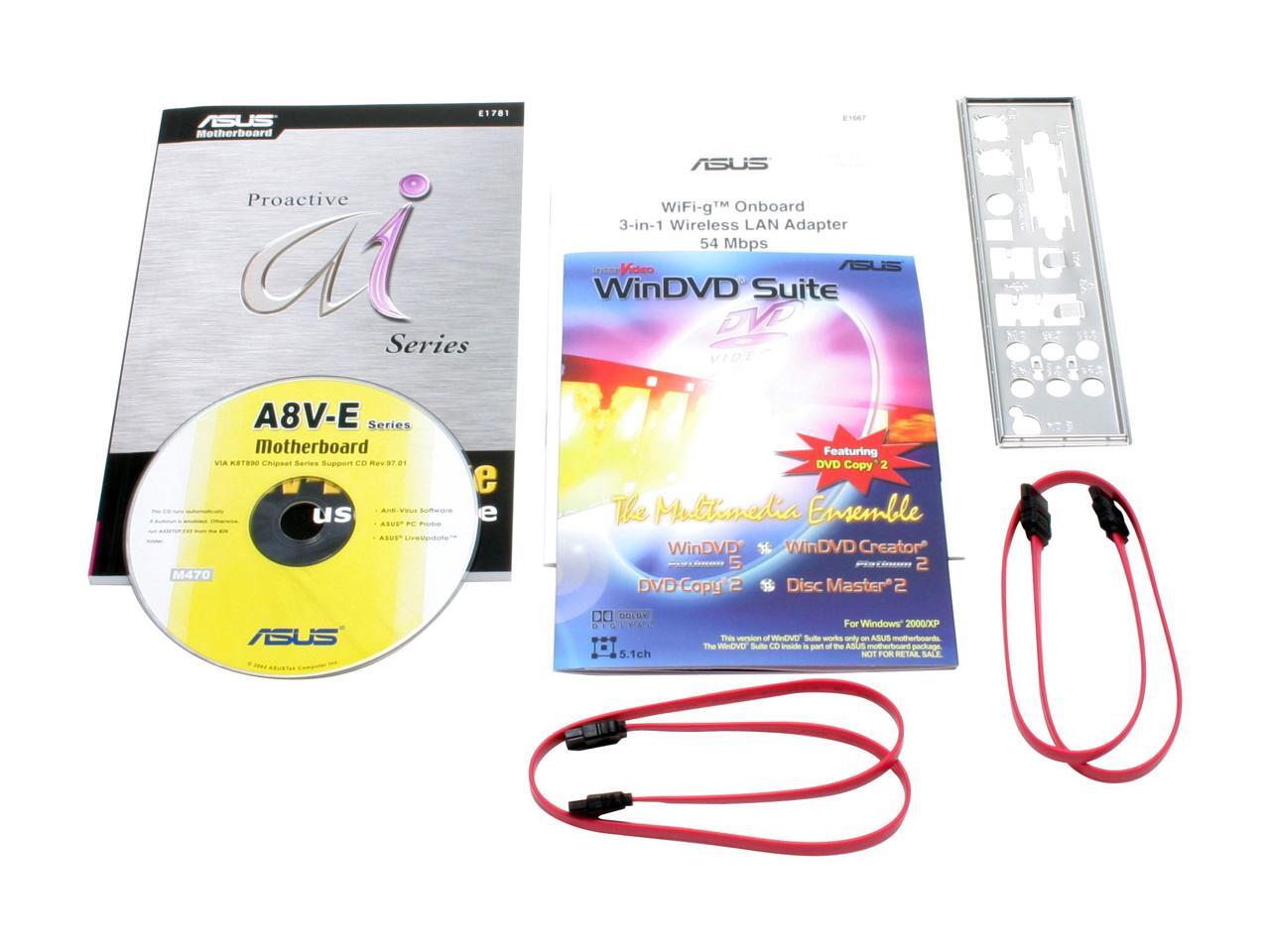

Package Contents A8V-E Deluxe
Driver Disk
2 x User Manual
IDE/PATA Cables
FDD Cable
2 x SATA Cable
4-pin to SATA Power Cable
USB and Game/MIDI Bracket
Serial/COM Bracket
IEEE 1394 Bracket
Additional Information
Date First Available February 01, 2005
