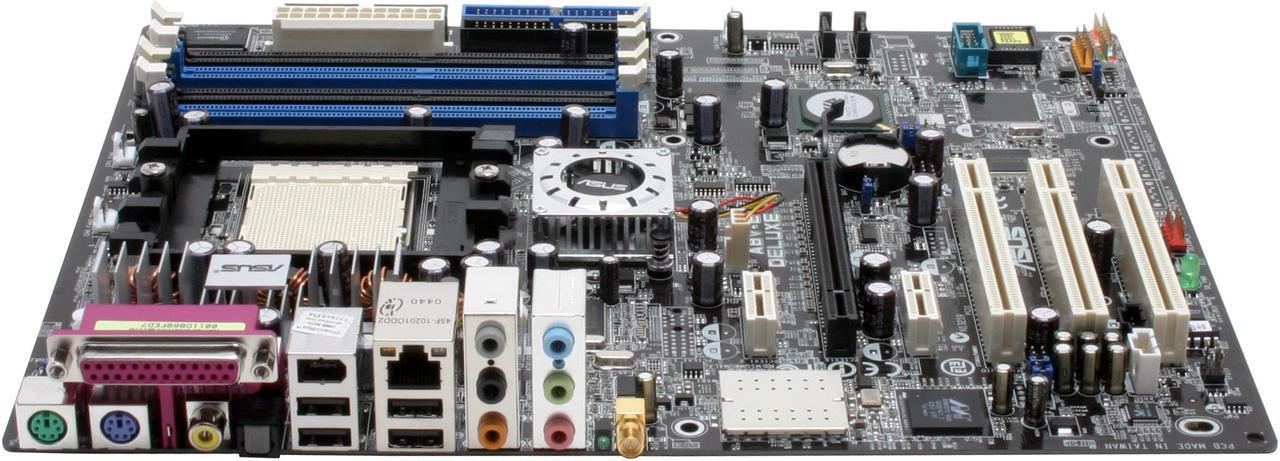

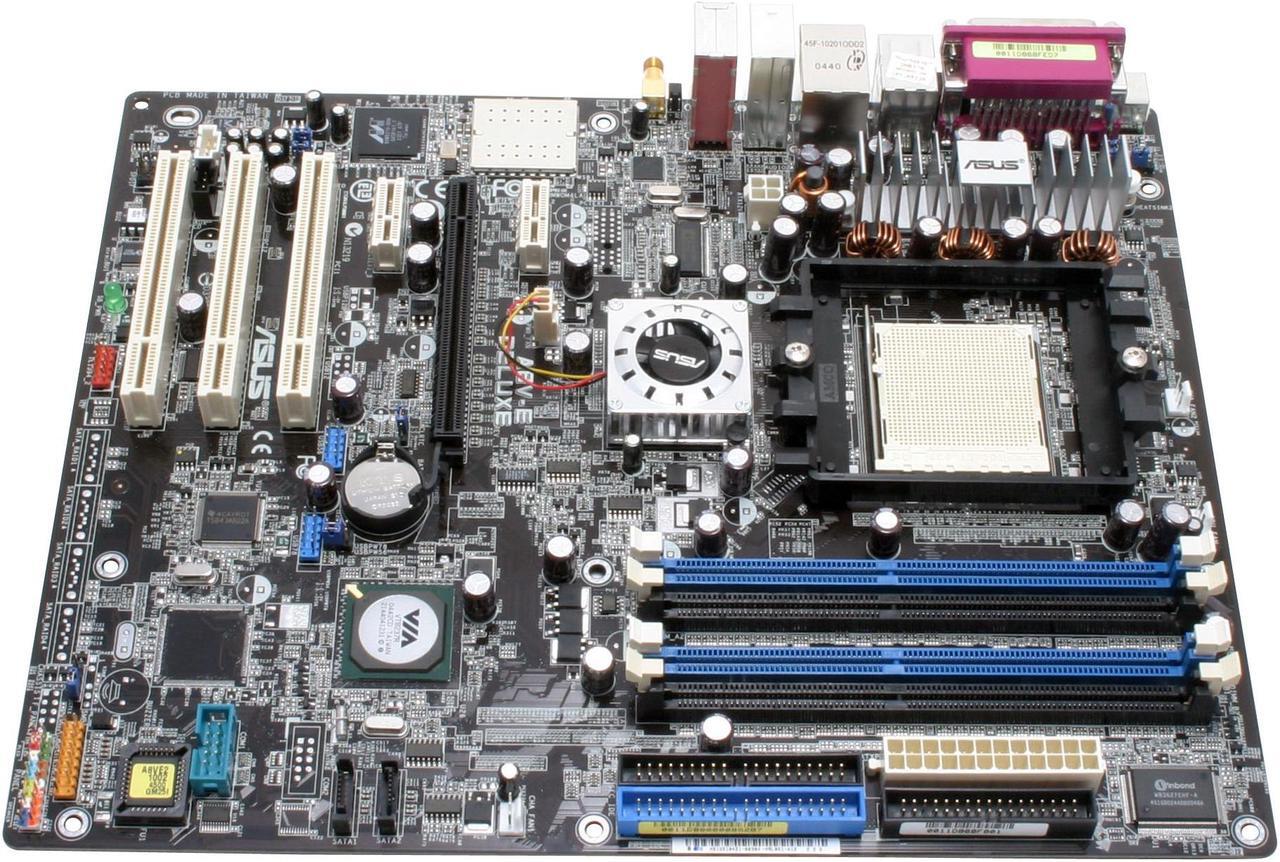

ASUS A8V-E Deluxe 939 VIA K8T890 ATX AMD Motherboard

(46) Write a Review
  • VIA K8T890
  • Athlon 64 FX / Athlon 64 / Sempron
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (46)

Learn more about the ASUS A8V-E Deluxe

Model
Brand ASUS
Model A8V-E Deluxe
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 FX / Athlon 64 / Sempron
FSB 1000 MHz
Chipsets
Chipset VIA K8T890
South Bridge VIA VT8237R
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8053
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x LPT (Parallel Port) / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
LPT 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Onboard 1394 1 x 1394a connector supports 1 port
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

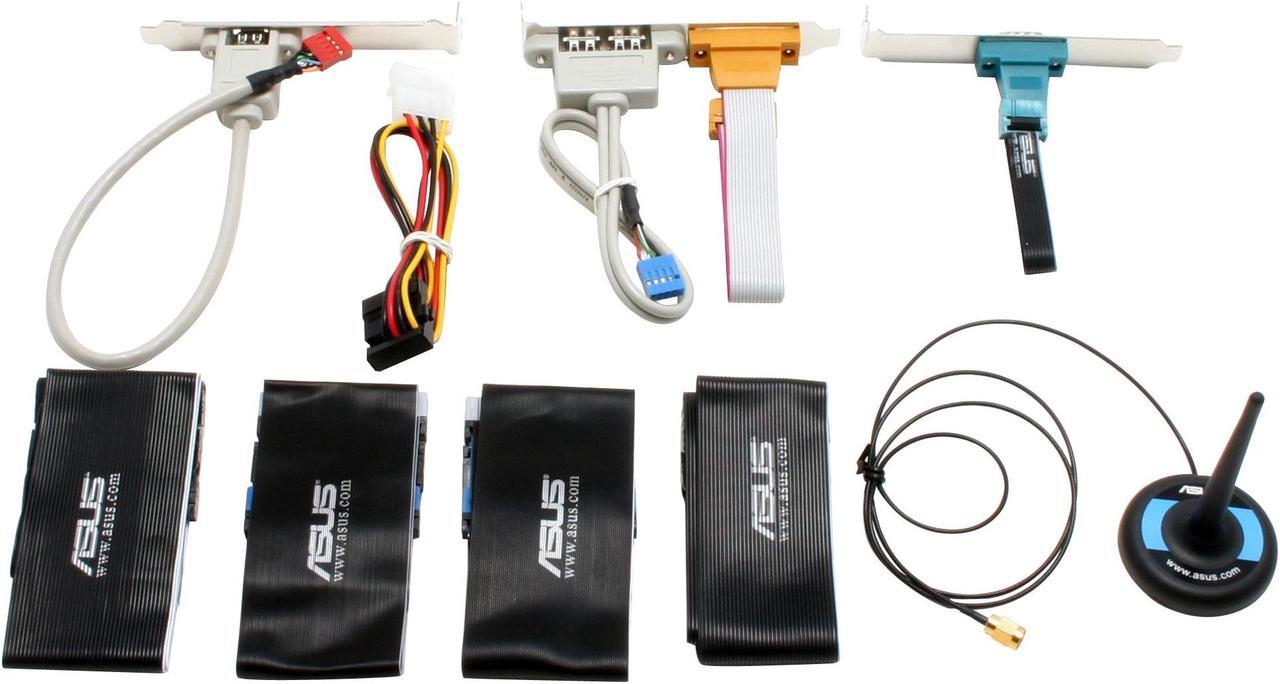

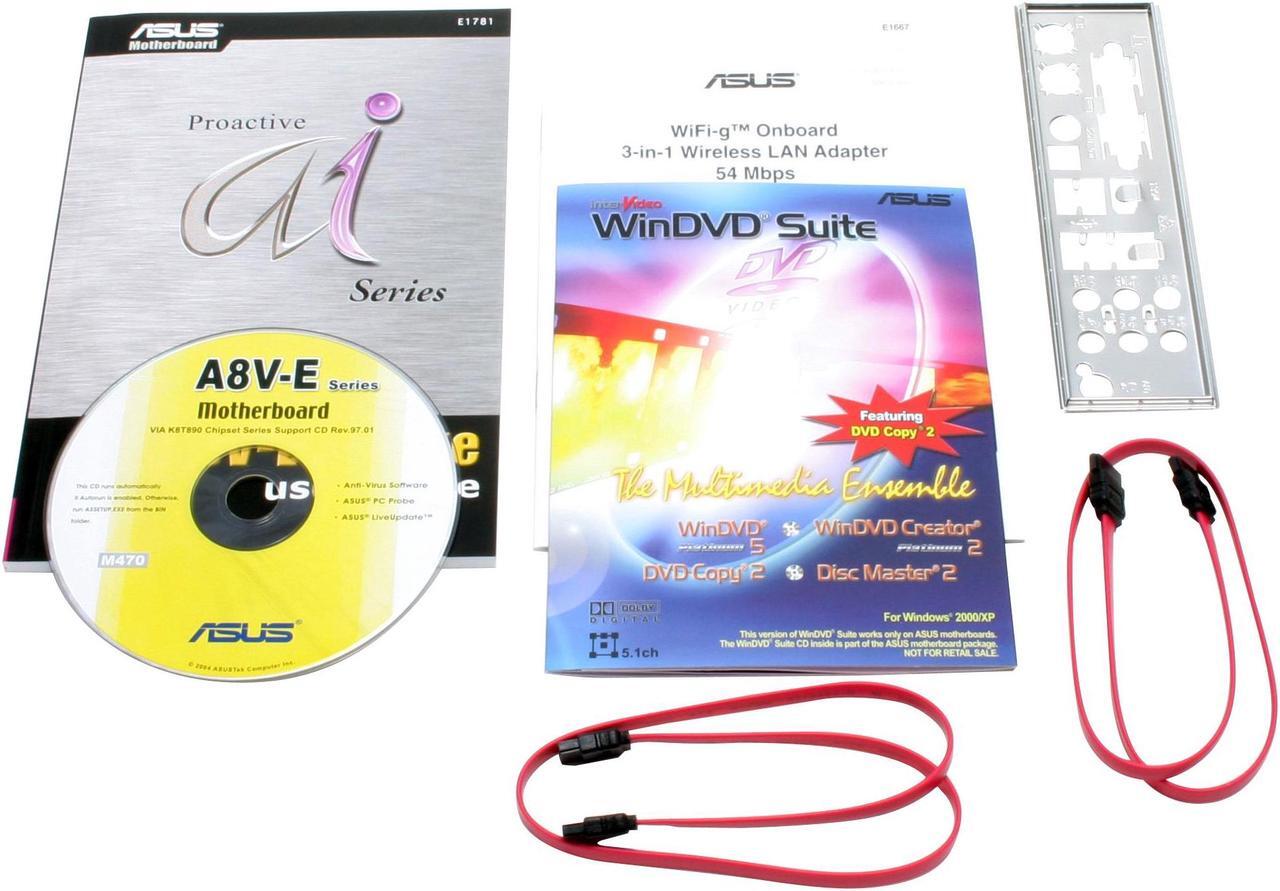

Package Contents A8V-E Deluxe
Driver Disk
2 x User Manual
IDE/PATA Cables
FDD Cable
2 x SATA Cable
4-pin to SATA Power Cable
USB and Game/MIDI Bracket
Serial/COM Bracket
IEEE 1394 Bracket
Additional Information
Date First Available February 01, 2005
