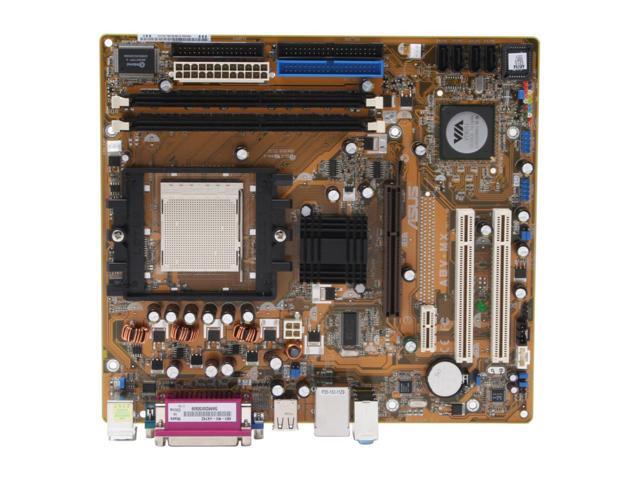

| Brand | ASUS |
|---|---|
| Model | A8V-MX |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 800 MHz |
| Chipset | VIA K8M800 |
|---|---|
| South Bridge | VIA VT8251 |
| Number of Memory Slots | 2×184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA 3Gb/s | 4 x SATA 3Gb/s |
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Audio Chipset | Realtek ALC653 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 10/100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |
| Power Pin | 24 Pin |

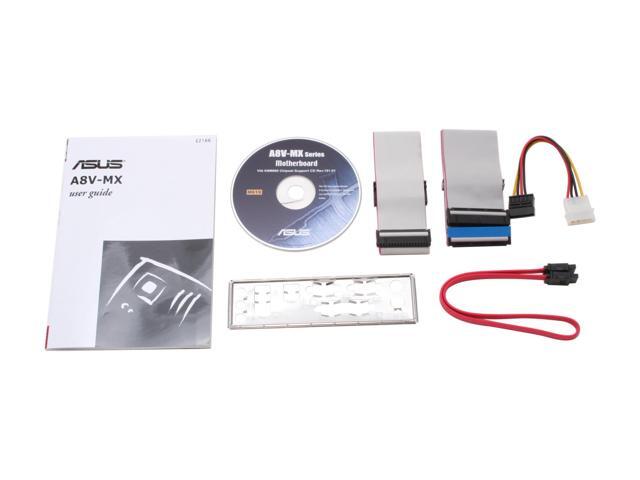

| Package Contents | A8V-MX User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | October 05, 2005 |
|---|
Pros: Absolutely no trouble setting it up this slick little mainboard right out of the box. Its quick booting. As always with a graphic and audio integrated board you will have far less trouble to just use the onboard devices even though they are lackluster, if you want a gaming machine this is not the proper board. It works well as an inexpensive workstation or internet surfer.
Cons: Be sure to look at the photo and description and make certain that the AV8-MX has enough features to suit your intended use. Even though only two RAM sockets it does support Dual Channel so be sure to use a matched pair of DDR 3200 for best performance.
Overall Review: Shipped with BIOS 0402 which may have been buggy as it's no longer offered at www.asus.com, flashed to latest BIOS 0503 with no issues.
