DDR4 memory will work just fine in this board. The performance isn't phenomenally better, but a 5-10% boost is still 5-10% more. Ensure you check the compatibility list from ASUS, memory that isn't on the list might not work. I encountered this exact problem, ordered memory that should have worked but wasn't tested and not on the compatibility list.

is this a good motherboard overall bios is fine runs good has usb 2.0 and 3.0 internal connectors?

Yes, it runs good. It has 6 usb ports on the board. I've had this board for awhile and it does a great job for me. I put an I5 in at first but recently went to core I7. The only thing I ran into was 4 of the 5 sata ports, depending on your case. Mine, the metal was molded in a way that I could only get one cord plugged into. After minimal tweaking and bending of the case all is good now.

What is the video output type? DVI? HDMI? Not sure if i need to buy certain cables. Thanks!

ASUS B150 PRO GAMING/AURA LGA has both HDMI and DVI GOOD LUCK

Can I add 1 8gb HyperFury X Kingston Ram 2133MHz on the motherboard ?

As long as it's DDR4 I don't see why not

$129^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by Smith's Computer Market

Top Rated

3.9 (131 seller ratings)

Shipped by Smith's Computer Market

Meet Your Seller

Smith's Computer Market

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

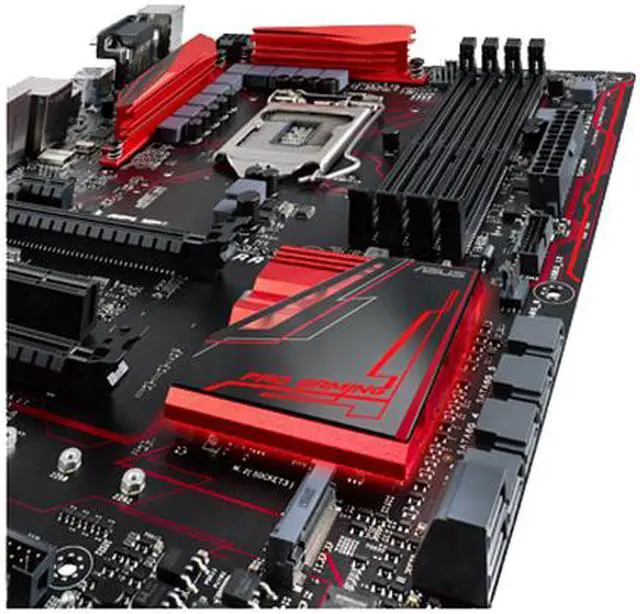

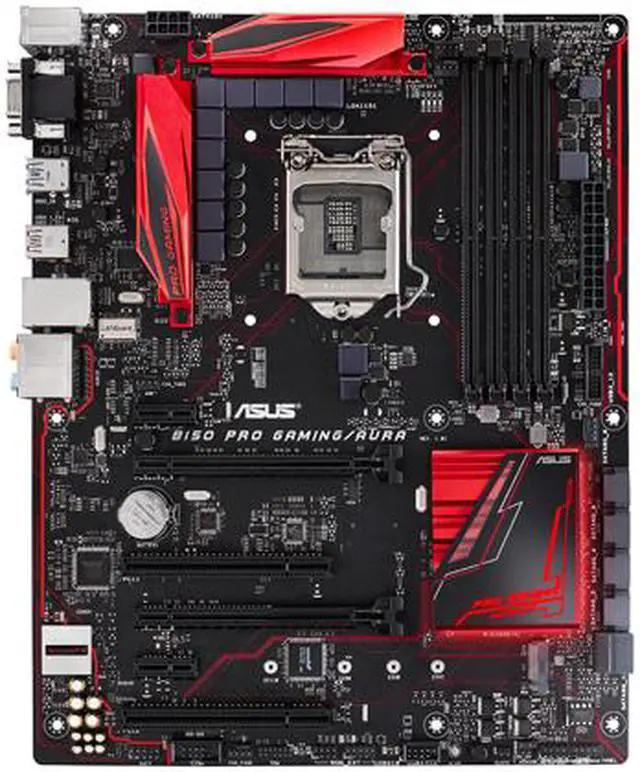

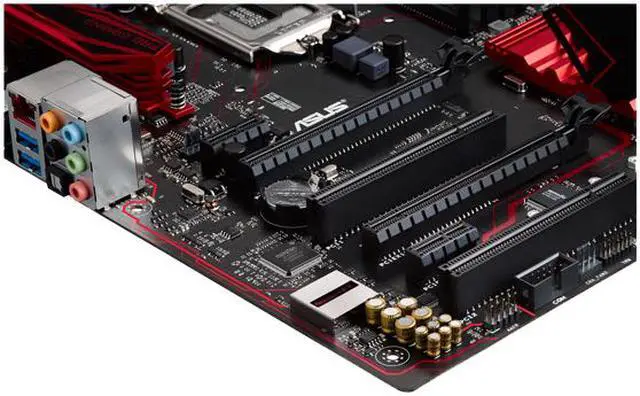

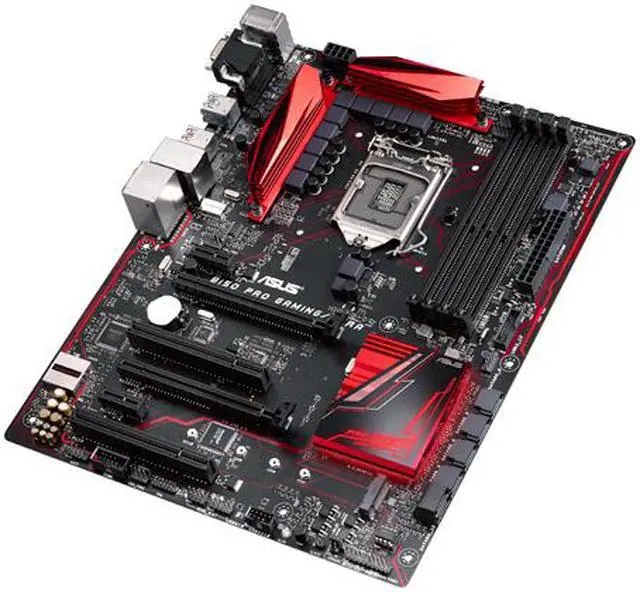

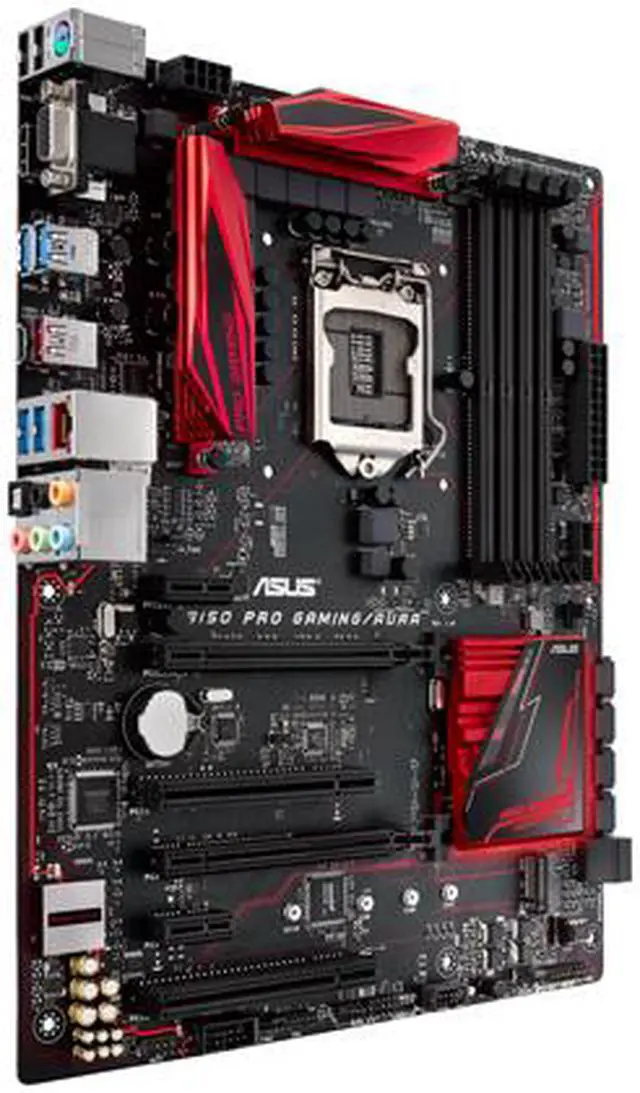

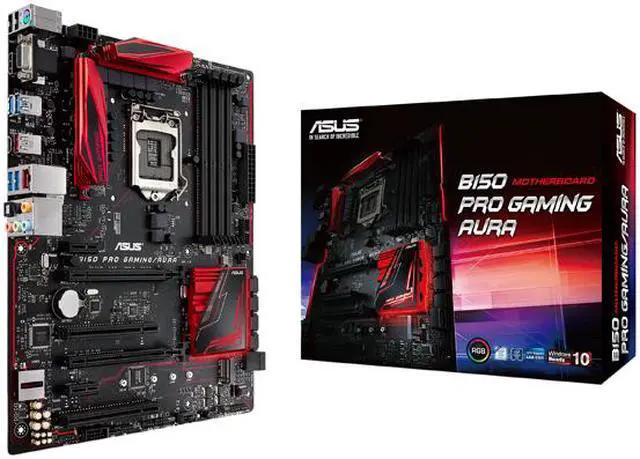

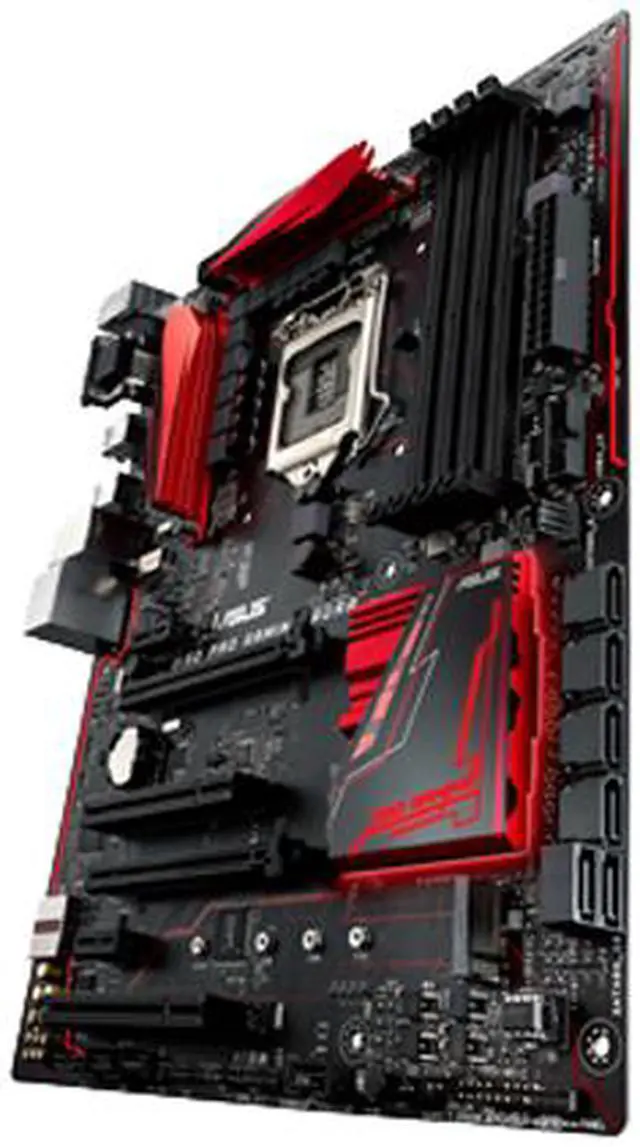

Main image of ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 2 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 3 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 4 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 5 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 6 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 7 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 8 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 9 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 10 of 10 - ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Shop All ASUS Products | Visit Smith's Computer Market Store

ASUS B150 PRO GAMING/AURA LGA 1151 Intel B150 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Used - Good

Option: B150 PRO GAMING/AURA

B150 PRO GAMING/AURA
B150-PLUS
B150M-A D3
B150M-K
B150M-PLUS D3

DDR4 Memory Compatibility & M.2 Slot
5X Protection II
Media-acclaimed UEFI BIOS with EZ Flash 3
Fan Xpert 2+ advanced fan controls
Epic gaming audio with LED-illuminated shielding

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

MAIN OVERVIEW FEATURES:

Chipset Manufacturer: Intel
Chipset Model: B150
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7,Core i5,Core i3,Pentium,Celeron D
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory: 64 GB
Memory Speed Supported: 2.13 GHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 3.0 Ports: 4
Number of USB 3.1 Ports: 2
S/PDIF: Yes
VGA: Yes
HDMI: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Form Factor: ATX
Width: 12"
Depth: 9.6"
Limited Warranty: 3 Year

Model
Brand	ASUS
Model	B150 PRO GAMING/AURA

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel B150

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/RGB ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 1 1: When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled.
PCI Express x1	2 x PCIe 3.0/2.0 x1
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 2 2: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.

Onboard Audio
Audio Chipset	SupremeFX
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports

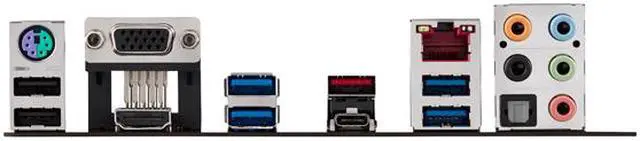

Back I/O Ports	1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub
HDMI	1 x HDMI
RJ45	1 x LAN (RJ45) port
USB 3.1	1 x USB 3.1 (red) Type-A 1 x USB 3.1 Type-C
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin) 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Features
Features	Multi-GPU Support: Supports AMD Quad-GPU CrossFireX Technology Supports AMD 2-Way CrossFireX Technology Special Features: Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM ASUS EPU: - EPU ASUS Exclusive Features: - AI Suite 3 - Ai Charger+ - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 3 ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Media Streamer RAMCache Operating System Support: Windows 10, 64bit Windows 8.1, 64bit Windows 7, 32bit/64bit BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc: Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)

Packaging

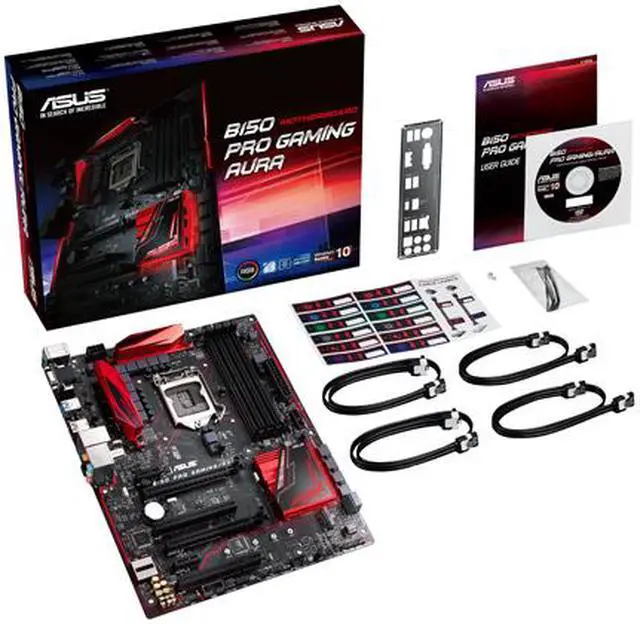

Package Contents	Accessories: User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x pack of cable tie 1 x Supporting DVD 1 x 12 in 1 Cable Label(s)
