Question 1

I have gotten MBs that say they are Win-11 but then won't load it. Has anyone actually tried to install Win-11 on the is MB and gotten it to load?

Accepted Answer

Yes,  but you must install some MB's drivers in a separate USB in order to load W11  intaller.

Question 2

Can this motherboard run Intel i7 14700k or i9 14900k at 253 watts? The AI bot says it's compatible but I don't know what compatible really means. I'm asking if it can run Intel i7 14700k or i9 14900k at 253 watts, not if it's compatible with Intel i7 14700k or i9 14900k CPU.

Accepted Answer

Hi. Compatible means literally "able to work together" or able to exist together without issue. I looked up the manual on ASUS site and they list this MB as W10 64 bit and W11 under Operating System. I think you are good with Windows 11 based on Mfg website manual for this exact board. B760M-AYW WIFI D4 II

Question 3

Does this motherboard require a Bios update to protect 14000 series CPUs?

Accepted Answer

No, it's ready for 12th, 13th, and 14th gen CPUs right out of the box.

Question 4

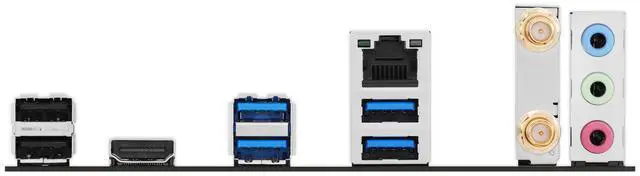

How many video outlets does the MB ASUS|B760M-AYW WIFI D4 II R have?

Accepted Answer

Only 01 HDMI port

Question 5

Can I use Intel's graphics with the MB ASUS|B760M-AYW WIFI D4 II R motherboard?

Accepted Answer

Yes yo can.

Question 6

Does this motherboard need a add on TPM module to run windows 11 or is it built in?

Accepted Answer

NO. I just added a Raptor Lake i5 and my old SSD to this MB and I'm running Windows 11. I used my old Samsung SSD and when I booted-up the first time, it booted successfully from the old SSD.  I was then able to, somehow, "Upgrade" to Windows 11 rather than buying a new copy.  All good but the Authentication process, though successful, took about an hour of trial-and-erro.  So, running Windows 11 right out of the box AND even with my old SSD

Question 7

Can I use a i5-14600kf on this? Is the power enough?

Accepted Answer

Yes, the ASUS B760M-AYW WIFI D4 II motherboard supports Intel Core 14th Gen processors, including the i5-14600KF, as it is compatible with the Intel LGA 1700 socket. The motherboard has a power connector setup that includes 1 x 24-pin Main Power connector and 1 x 8-pin +12V CPU Power connector, which should be sufficient for providing power to the CPU.

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 2133 / DDR4 2400 / DDR4 2666 / DDR4 2667 / DDR4 2933 / DDR4 3200 / DDR4 3333 / DDR4 3400 / DDR4 3466 / DDR4 3600 / DDR4 3733 / DDR4 4000 / DDR4 4266 / DDR4 4400 / DDR4 4600 / DDR4 4800 / DDR4 5000 / DDR4 5066 / DDR4 5333
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express x1	2 x PCIe 4.0 x1 slots

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAID	0/1/5/10

Onboard USB	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header

Best Sellers

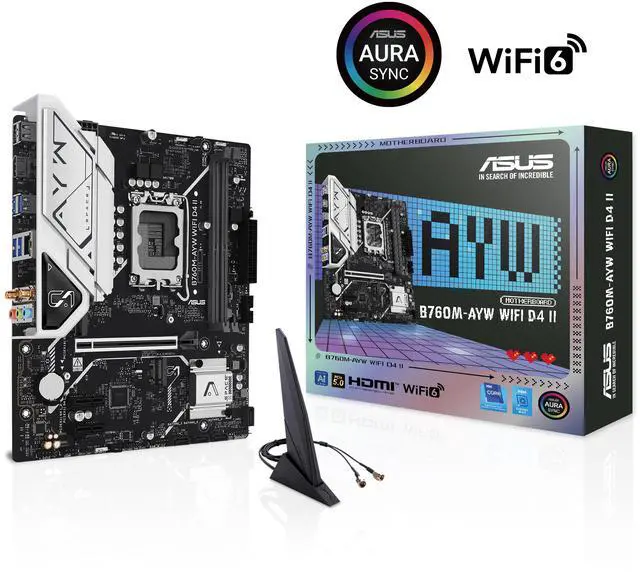

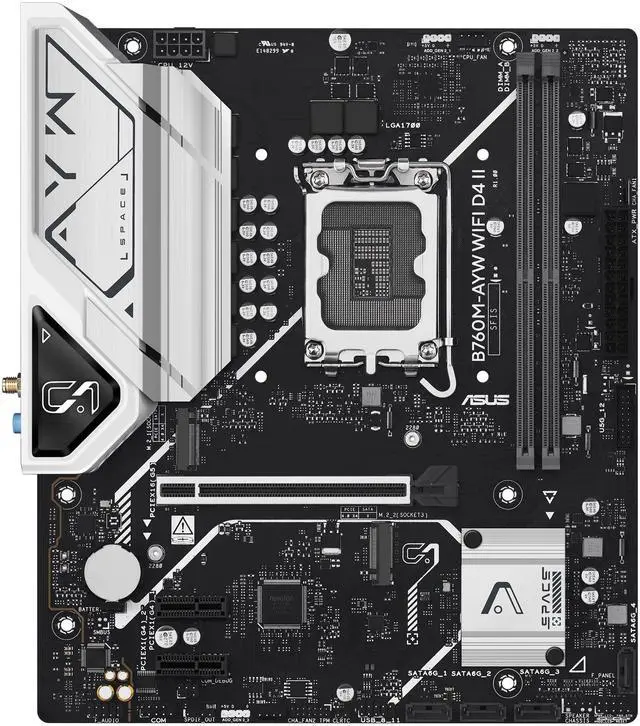

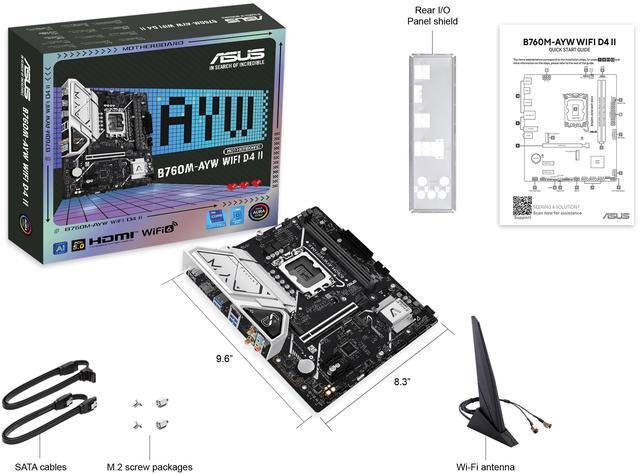

ASUS B760M-AYW WIFI D4 II Intel B760 (LGA 1700) microATX mATX motherboard, PCIe 5.0 x16 Support, two M.2 slots, DDR4, Realtek 2.5Gb Ethernet, Wi-Fi 6, HDMI, SATA 6 Gbps, front USB 5Gbps, Aura Sync

Learn more about the ASUS B760M-AYW WIFI D4 II

Customer Reviews of the ASUS B760M-AYW WIFI D4 II

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

BIOS Feature	128 Mb Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancellation ASUS DriverHub -ASUS CPU-Z AI Suite 3 - DIGI+ VRM - PC Cleaner Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Windows 11	Supported

Form Factor	Micro ATX
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector
