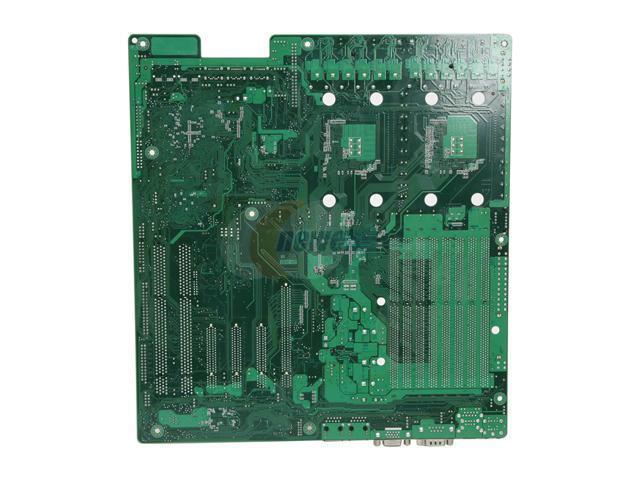

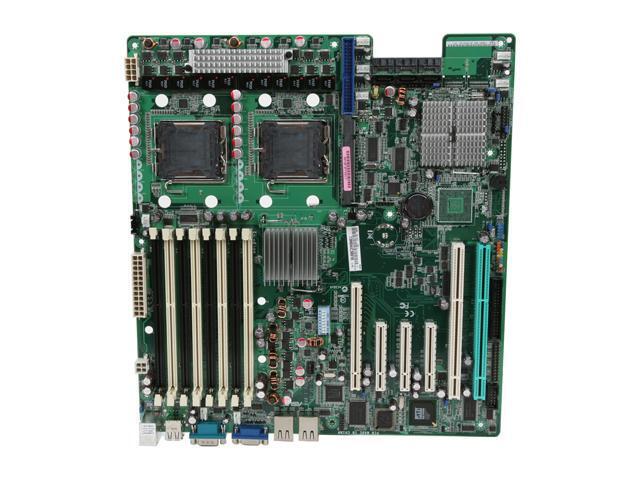

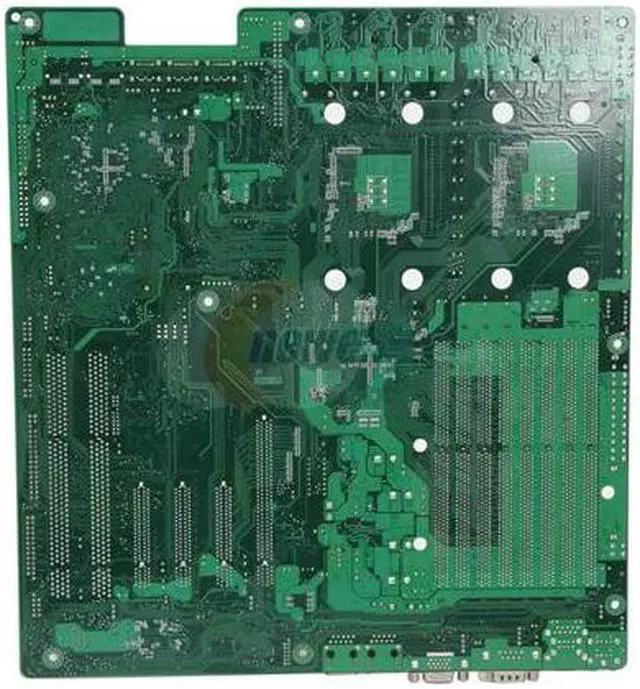

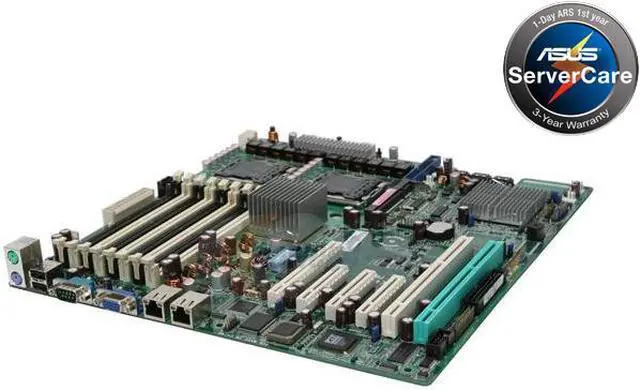

ASUS DSBF-DE Dual LGA 771 Intel 5000P MCH SSI EEB 3.61 Dual Intel Xeon Server Motherboard

Used - Like New Product Type
In stock.
Ships from China.
Most customers receive within 5-23 days.
  • Dual LGA 771
  • Intel 5000P MCH
  • 8 x 240Pin
Specs

Learn more about the ASUS DSBF-DE

Model
Brand ASUS
Model DSBF-DE
Supported CPU
CPU Socket Type Dual LGA 771
CPU Type Quad-Core Intel Xeon 5400 Series (45nm)
Dual-Core Intel Xeon 5200 Series (45nm)
Quad-Core Intel Xeon 5300 Series
Dual-Core Intel Xeon 5100 Series
System Bus 1333/1066 MHz
Chipsets
North Bridge Intel 5000P MCH
South Bridge Intel 6321 ICH
Memory
Number of DDR2 Slots 8 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Registered FBDIMM
Expansion Slots
PCI Express x16 1 x PCI-E x16 (x 8 link)
PCI Express x8 2 x PCI-E x8 (x 8 link)
1 x PCI-E x8 (x 4 link)
PCI-X Slots (64-bit 133MHz) 2 x PCI-X 133/100 MHz
Other Slots 1 x SODIMM socket for ASMB3-SOL
Storage Devices
PATA 1 x ATA 100 2 Dev. Max
SATA 6 x SATA 3.0Gb/s
SATA RAID Intel Matrix Storage (Windows) support RAID 0, 1, 0+1, RAID 5 (S/W)
LSI MegaRAID (Linux/Windows) support RAID 0, 1, 0+1
Onboard Video
Onboard Video Chipset ATI ES1000
Onboard LAN
LAN Chipset Intel 82563EB
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82563EB
Second LAN Speed 10/100/1000Mbps
Max LAN Speed Dual 10/100/1000Mbps

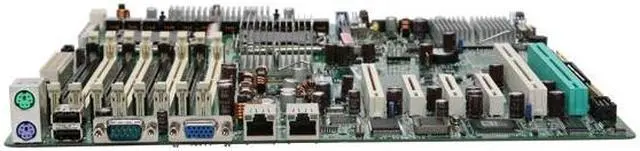

Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Dimensions
Form Factor SSI EEB 3.61
Dimensions (W x L) 13.0" x 12.0"
Additional Information
Date First Available August 29, 2020
