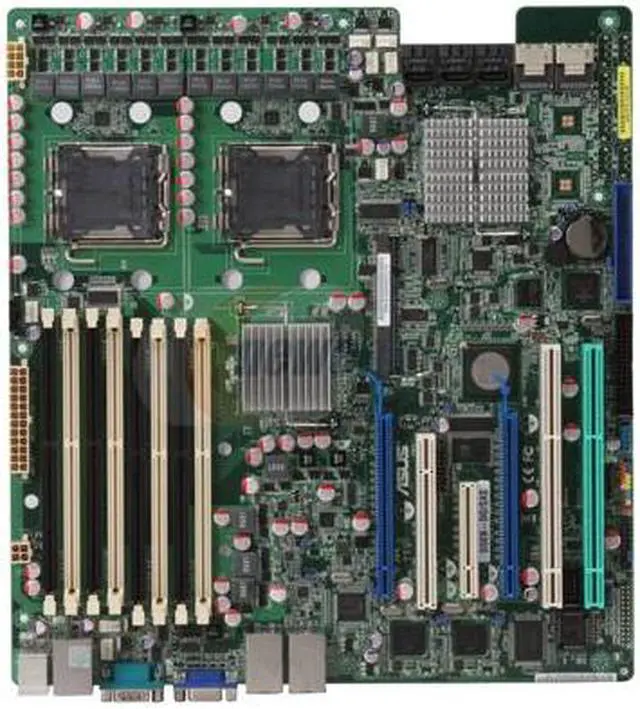

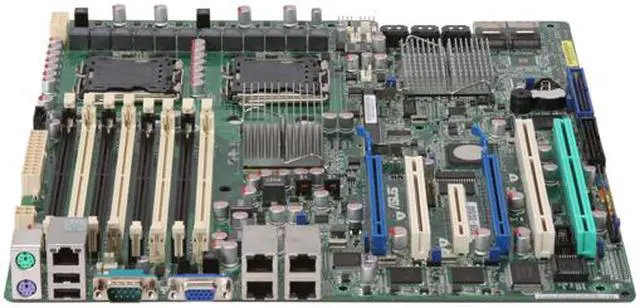

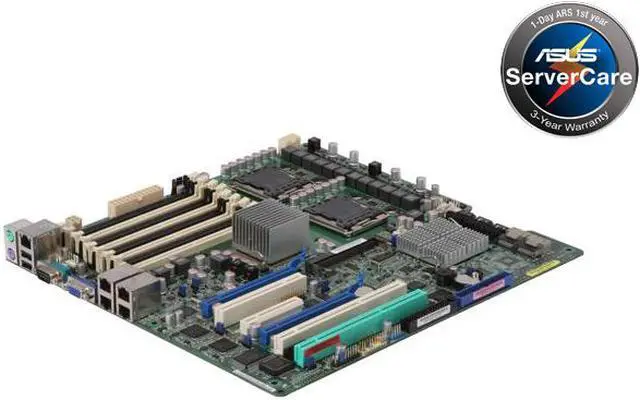

ASUS DSEB-DG/SAS Dual LGA 771 Intel 5400 SSI EEB 3.61 Dual Intel Xeon Server Motherboard
- Dual LGA 771
- Intel 5400
- 8 x 240Pin
Specs
Reviews (2)
Learn more about the ASUS DSEB-DG/SAS
| Brand | ASUS |
|---|---|
| Model | DSEB-DG/SAS |
| CPU Socket Type | Dual LGA 771 |
|---|---|
| CPU Type | Quad-Core Intel Xeon 5400 Series (45nm) Quad-Core Intel Xeon 5300 Series Dual-Core Intel Xeon 5200 Series (45nm) Quad-Core Intel Xeon 5100 Series |
| System Bus | 1600/1333/1066 MHz |
| North Bridge | Intel 5400 |
|---|---|
| South Bridge | Intel 6321ESB |
| Number of DDR2 Slots | 8 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 800 |
| Maximum Memory Supported | 64GB |
| ECC Supported | Yes |
| Registered | FBDIMM |
| PCI Express 2.0 x16 | 2 |
|---|---|
| PCI Express x8 | 1 x PCI Express x8 |
| PCI-X Slots (64-bit 133MHz) | 2 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | Intel Matrix Storage (for Windows only) (Support software RAID 0, 1, 10 & 5) |
| Onboard Video Chipset | XGI Z9s |
|---|
| LAN Chipset | Intel 6321+ Intel 82563EB Dual Port GbE Intel 82573 GbE x 2 |
|---|---|
| Max LAN Speed | 4 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Features | SAS Controller LSI 1068 PCI-X 8-port SAS controller: LSI Integrated RAID 0, 1, 1E support |
|---|
| Form Factor | SSI EEB 3.61 |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | April 01, 2008 |
|---|
