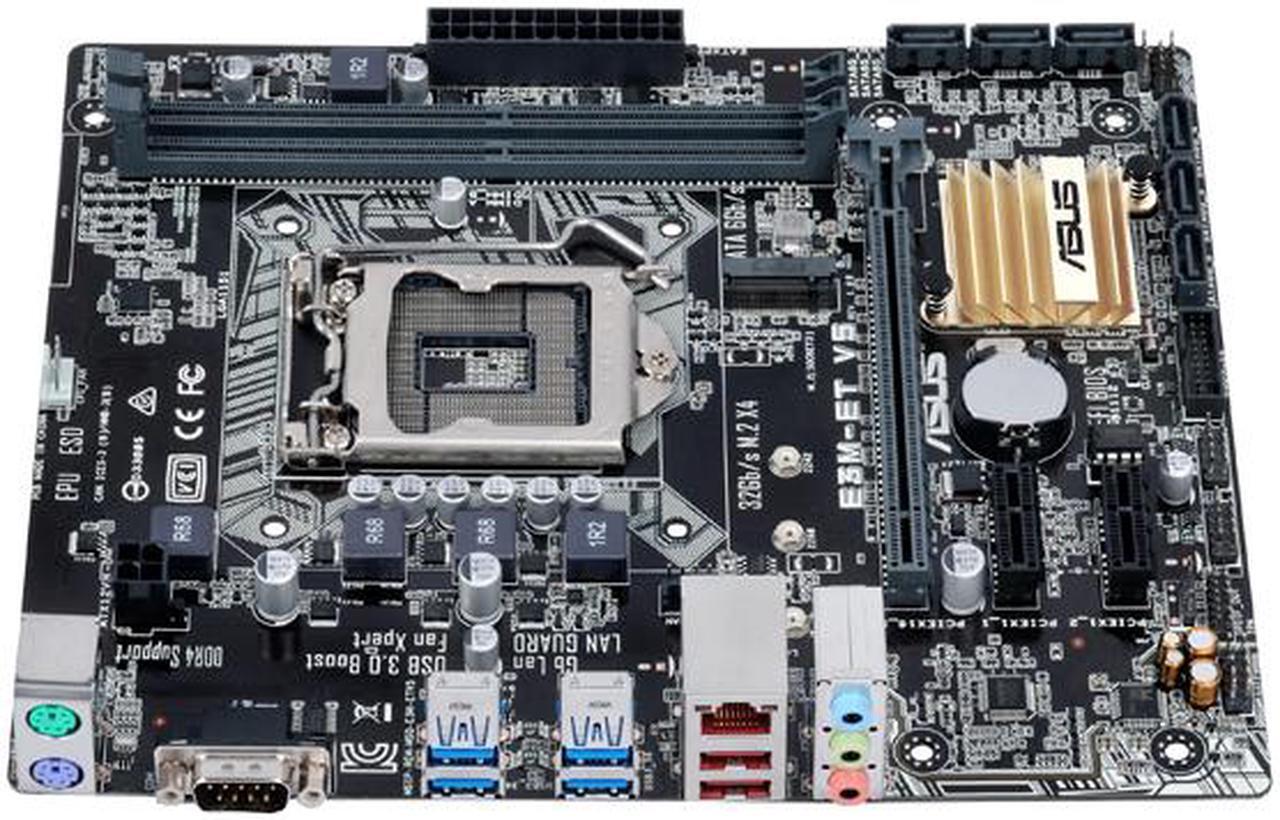

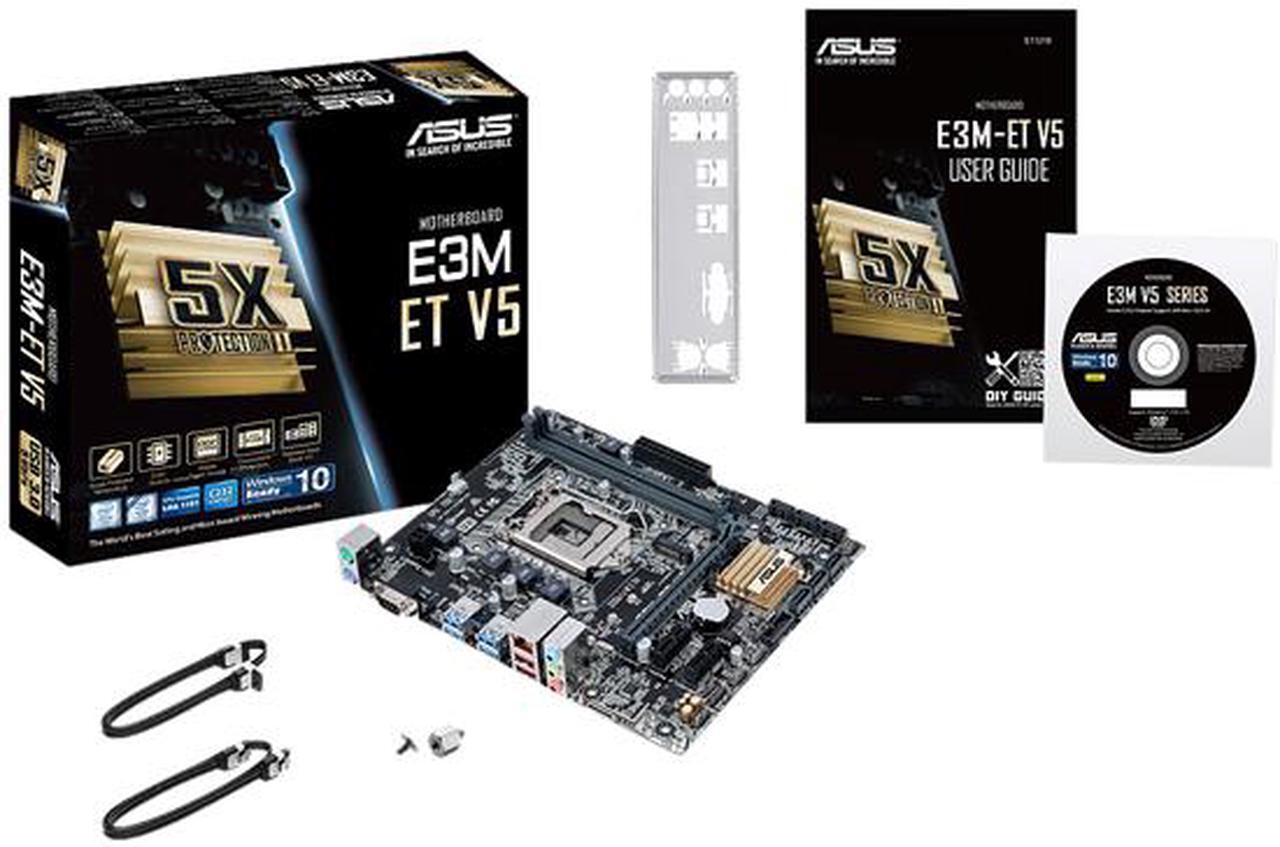

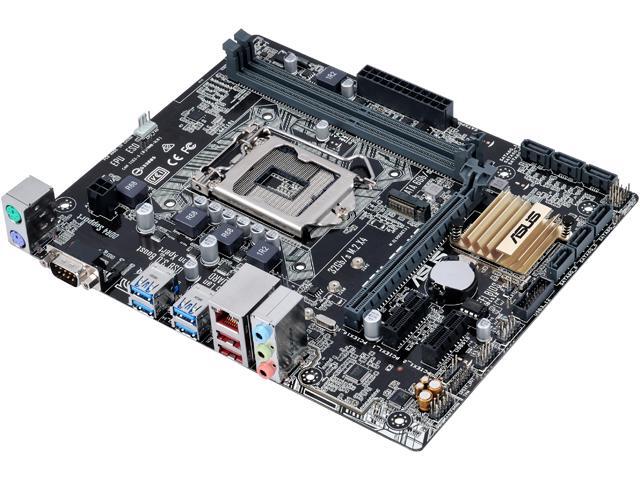

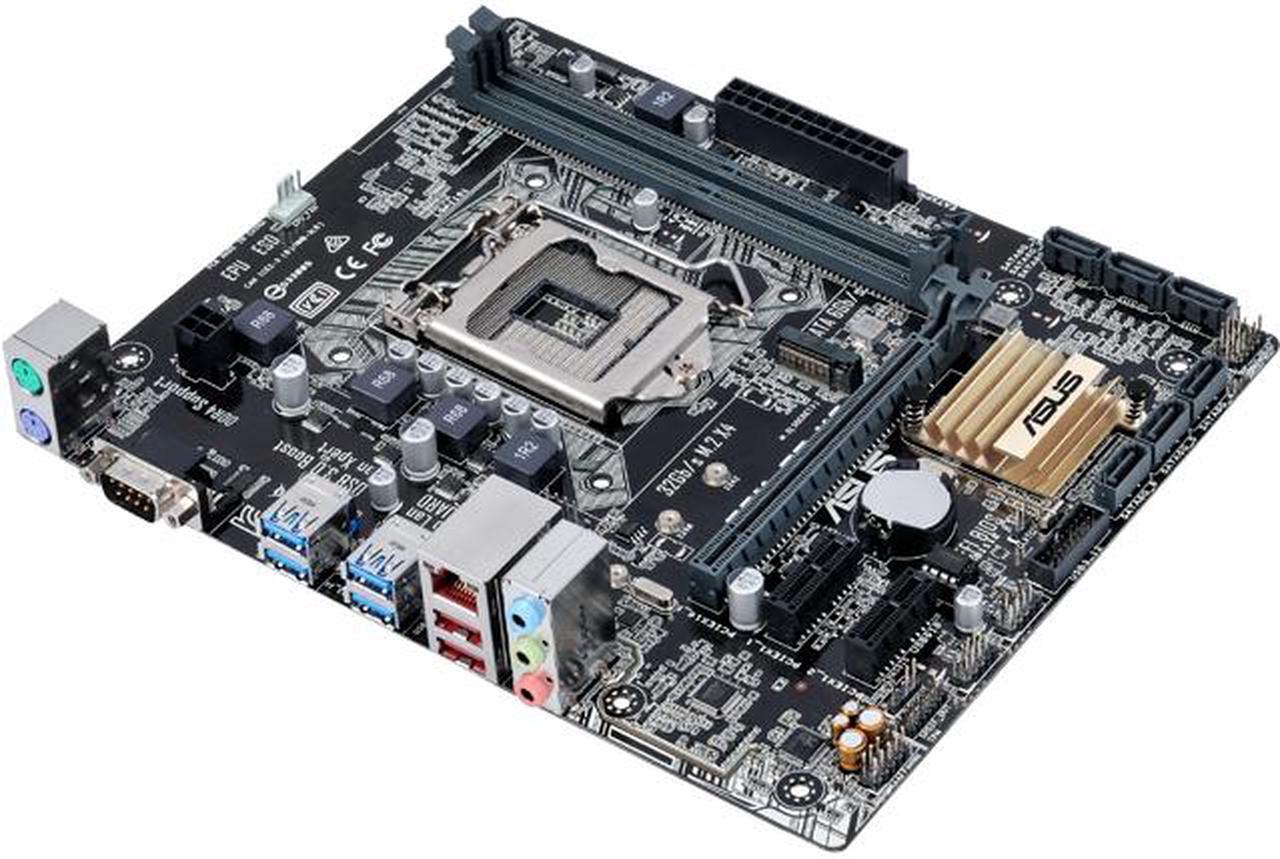

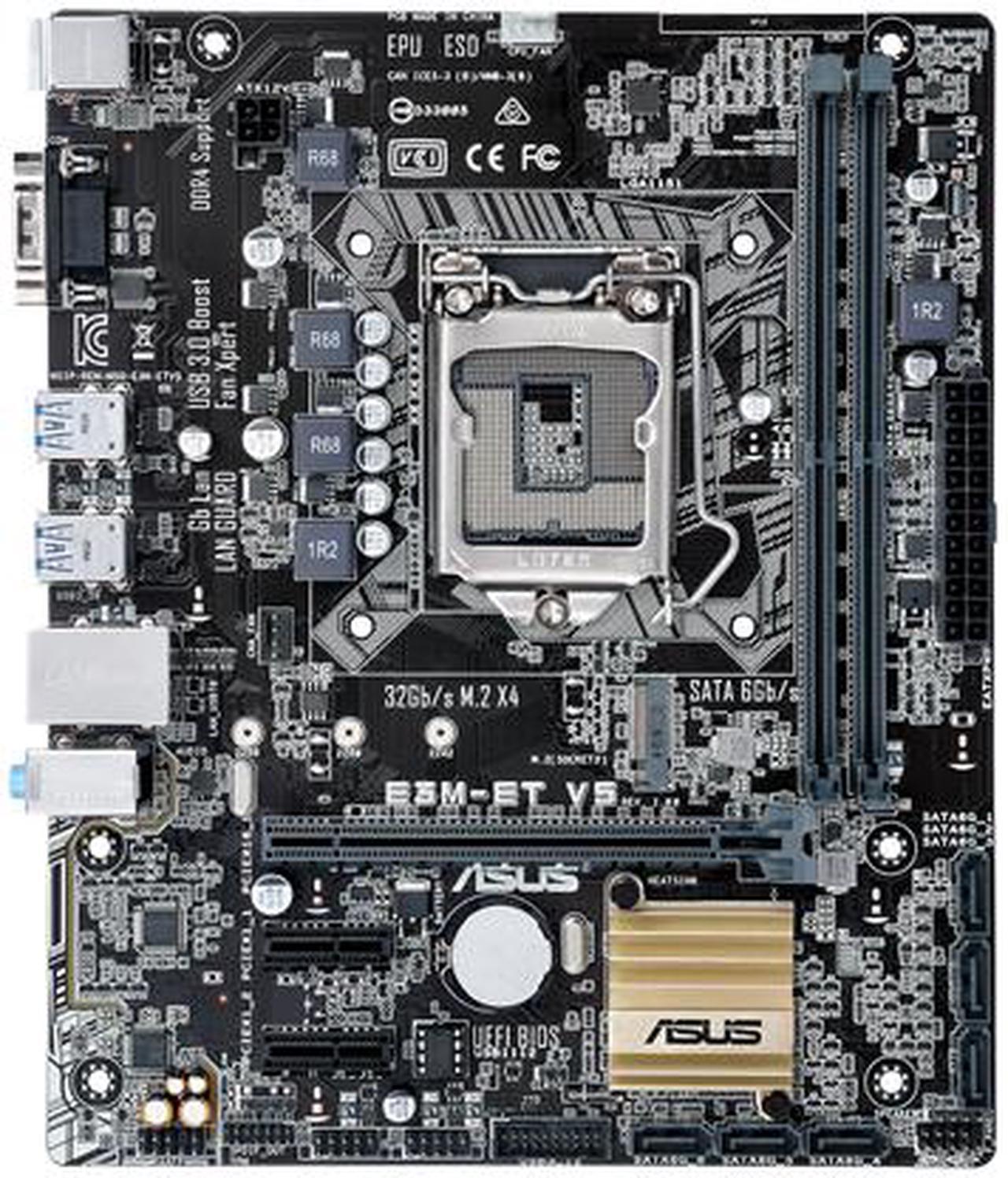

    ASUS E3M-ET V5 LGA 1151 Intel C232 SATA 6Gb/s USB 3.0 mATX Intel Motherboard

    Used - Like New Product Type
    • Intel C232
    • Xeon E3-1200 v5 and 6th genereation Core, Pentium and Celeron
    • DDR4 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the ASUS E3M-ET V5

    Model
    Brand ASUS
    Model E3M-ET V5
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Xeon E3-1200 v5 and 6th genereation Core, Pentium and Celeron
    Supported CPU Technologies Turbo Boost Technology 2.0
    Chipsets
    Chipset Intel C232
    Memory
    Number of Memory Slots 2 x DIMM
    Memory Standard DDR4 2133
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCIe 3.0/2.0 x16 (x16 mode)
    PCI Express x1 2 x PCIe 3.0/2.0 x1
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC887-VD2
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8111H
    Max LAN Speed 1Gbps

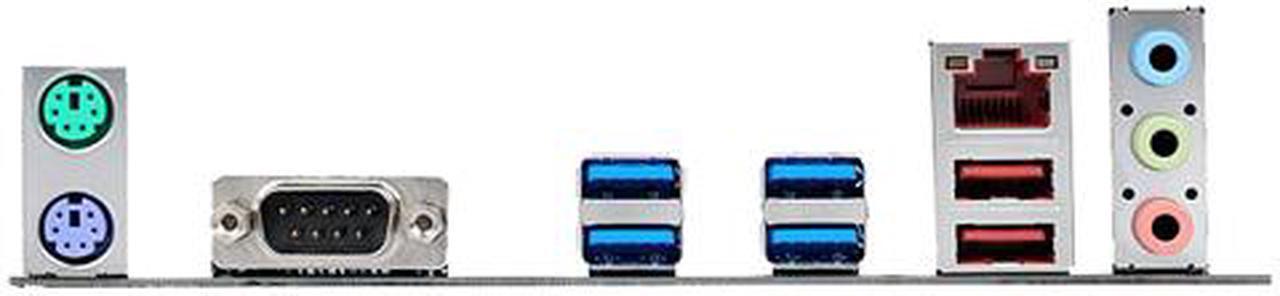

    Rear Panel Ports
    Back I/O Ports 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0
    PS/2 1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    COM 1
    RJ45 1 x RJ45
    USB 3.0 4 x USB 3.0
    USB 1.1/2.0 2 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    Other Connectors 1 x TPM header
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    Physical Spec
    Form Factor mATX
    Dimensions (W x L) 8.9" x 7.3"
    Power Pin 24-pin EATX Power connector(s)
    4-pin ATX 12V Power connector(s)
    Features
    Features Supreme micro-ATX C232 with 5X Protection II for dependable stability, M.2 for enhanced performance, LED-illuminated audio shielding and DDR4 support.


    LGA1151 socket for Intel Xeon E3-1200 v5 processors and 6th Generation Intel Core / Pentium / Celeron processors

    Dual-channel DDR4 2133MHz support

    Lightning-fast M.2 with PCIe 3.0 x4 interface

    5X Protection II - Advanced hardware safeguards for all-round protection

    Epic gaming audio with LED-illuminated shielding

    DDR4 memory compatibility

    Easy PC DIY with safe motherboard-mounting design
    Additional Information
    Date First Available December 30, 2024
