Does this board have wake on LAN capability?

Fred, This motherboard does not have wake on LAN capability!!

Does this board have the wake on LAN capability?

I have never used it, the owners manual would have that info

Which CPU COOLING FAN IS COMPATIABLE WITH THIS MOTHERBOARD?

Use the cooling fan that came with the AMD CPU socket fm2. Or look for a cooling fan compatible fm2 or cooling system fm2 compatible...see link http://www.newegg.com/Product/ProductList.aspx?Submit=ENE&DEPA=0&Order=BESTMATCH&Description=fm2+cooling+fan&N=-1&isNodeId=1

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

More Resources

MB ASUS|F2A55-M LK PLUS A55 FM2 R Memory Compatibility

MB ASUS|F2A55-M LK PLUS A55 FM2 R CPU Compatibility

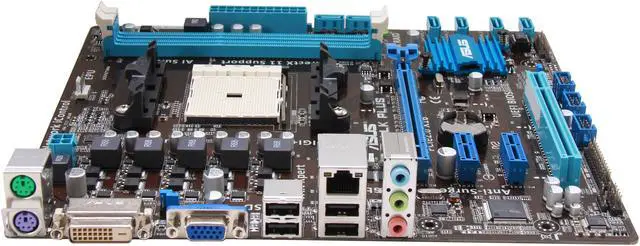

Main image of ASUS F2A55-M LK PLUS FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 2 of 5 - ASUS F2A55-M LK PLUS FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 3 of 5 - ASUS F2A55-M LK PLUS FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 4 of 5 - ASUS F2A55-M LK PLUS FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 5 of 5 - ASUS F2A55-M LK PLUS FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard with UEFI BIOS

Shop All ASUS Products

ASUS F2A55-M LK PLUS FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard with UEFI BIOS

(47) Write a Review

AMD A55 (Hudson D2)
APU (FM2 Socket)
DDR3 1866/1600

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (47)

Model
Brand	ASUS
Model	F2A55-M LK PLUS

Supported CPU
CPU Socket Type	FM2
CPU Type	APU (FM2 Socket)

Chipsets
Chipset	AMD A55 (Hudson D2)

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 1866/1600/1333/1066/
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	2 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
SATA RAID	0/1/10/JBOD

Onboard Video
Onboard Video Chipset	None

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111F
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	6 x USB 2.0
Other Connectors	1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.2"
Power Pin	24 Pin

Features
Features	DIGI+ VRM - Digital Power Design for the APU AI Suite II - One stop Access to Innovative ASUS Features Network iControl - Real-time Network Bandwidth Control UEFI BIOS - Flexible & Easy BIOS Interface Windows 8 Ready - Assured Compatibility
