How much power does it require?

After a bit of googling, the GTX Titan Black has a Maximim Power Usage (TDP) of 250W, but is recommended with at least a 600W PSU. (Heck, just go 1000W over that with the LEPA G-1600. Plenty of growing room!) DON'T SKIMP ON A POWER SUPPLY! A $175 PSU might destroy your $1000 graphics card. And your $400 CPU. And everything else.

is this product coming back and will 4 of them work on an ax1200i?

HI Chris, Thanks for your inquire about the ASUS GTXTITANBLACK-6GD5 GeForce GTX TITAN BLACK 6GB 384-Bit GDDR5 PCI Express 3.0 HDCP Ready SLI Support Video Card. It seems we are on the same hunt. I am also looking for a board that will accomodate this card. Yes the product is comming back, I have one sitting in my lap right now. The 2 issues for me are the motherboard conpatibility and the power supply. Currently I am running a PNY 8800 GTS and a WT 5500 power supply, neither of which will handel will handel the Titan Black GDD5. The Titan requires an 8 & 4 pin connector which my current power supply does not have. I made the mistake of going to my usual confuser hang out to see if I could find a cable adapter, apparently the answer is no and they sold me a Thermaltake 650 Watt power supply that not only did not work coming out of the box but wad not 100% compatible with my mother board, missing a 4 prong cable. So first issue I discovered for the new 6GD5 was matching up a power supply. The Titan also is a power glutt so I am looking for at least a 1200 series power supply. The second issue is space assuming you are mounting everything internally. The Titan (1) will mount on the board but I loose 2 disk connector slots do to the length of the Titan. So I need to match a new motherboard and power supply to get the power and cabling requirements. 3rd issue is my box which is a normal midsize box that currently handles 3 drives, 2 DVD R/W and a multi flash drive unit. Just for 1 Titan GDDR5 I have to start looking at my old tower box to see there are any mother board and power supply issues. You are looking to install 4 Titans? Will you install the all internally or link to a separate box? While the Titan only plugs into one strip it covers 2 so your motherboard needs at least 8 strips. You may be able to split the 8 & pin connectors using adaptors, but think about power and major cooling needs. let me know what you find and stay in touch.

$493^.00

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Tech Trends

4.7 (172 seller ratings)

Shipped by Tech Trends

Meet Your Seller

Tech Trends

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

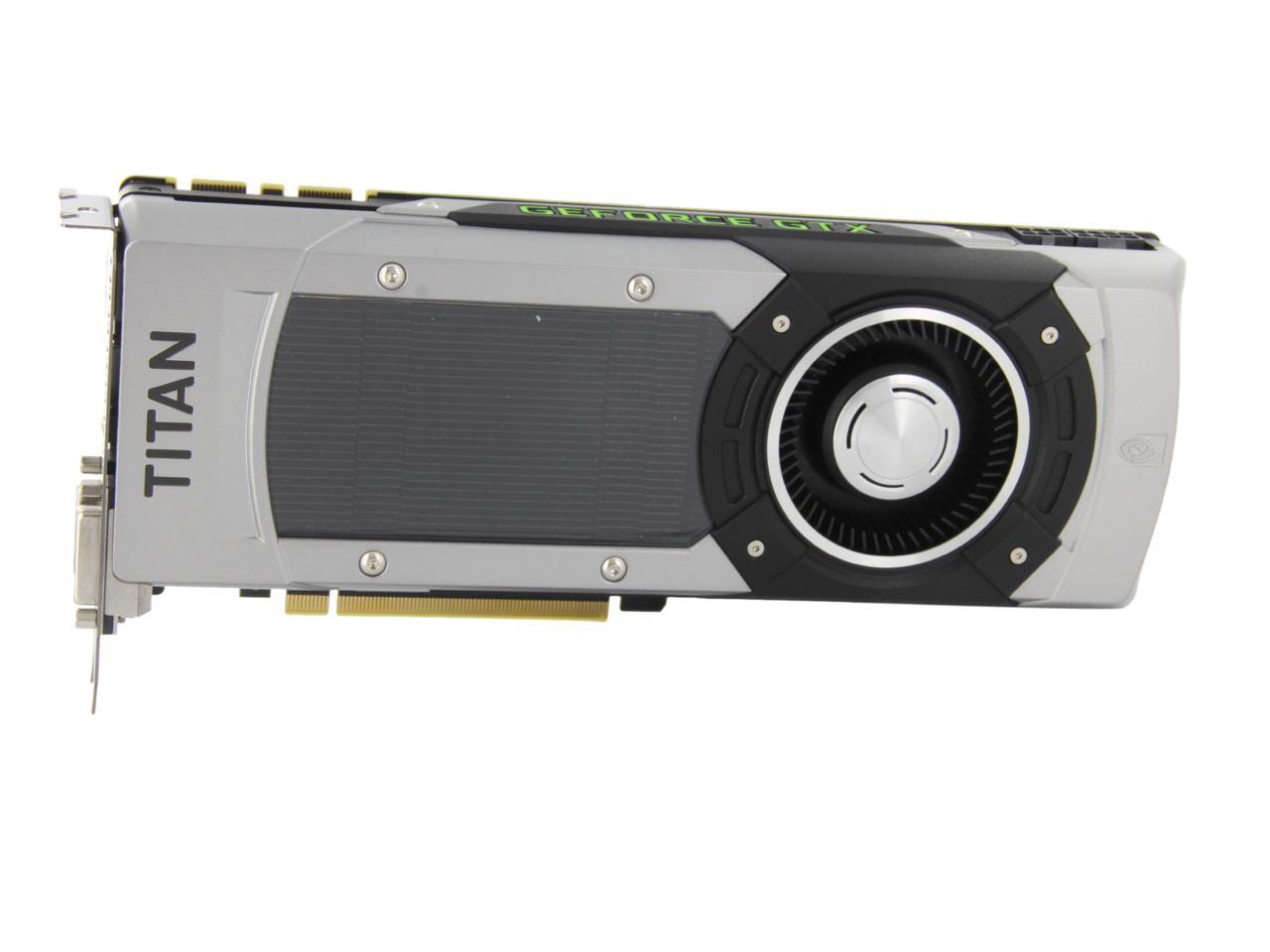

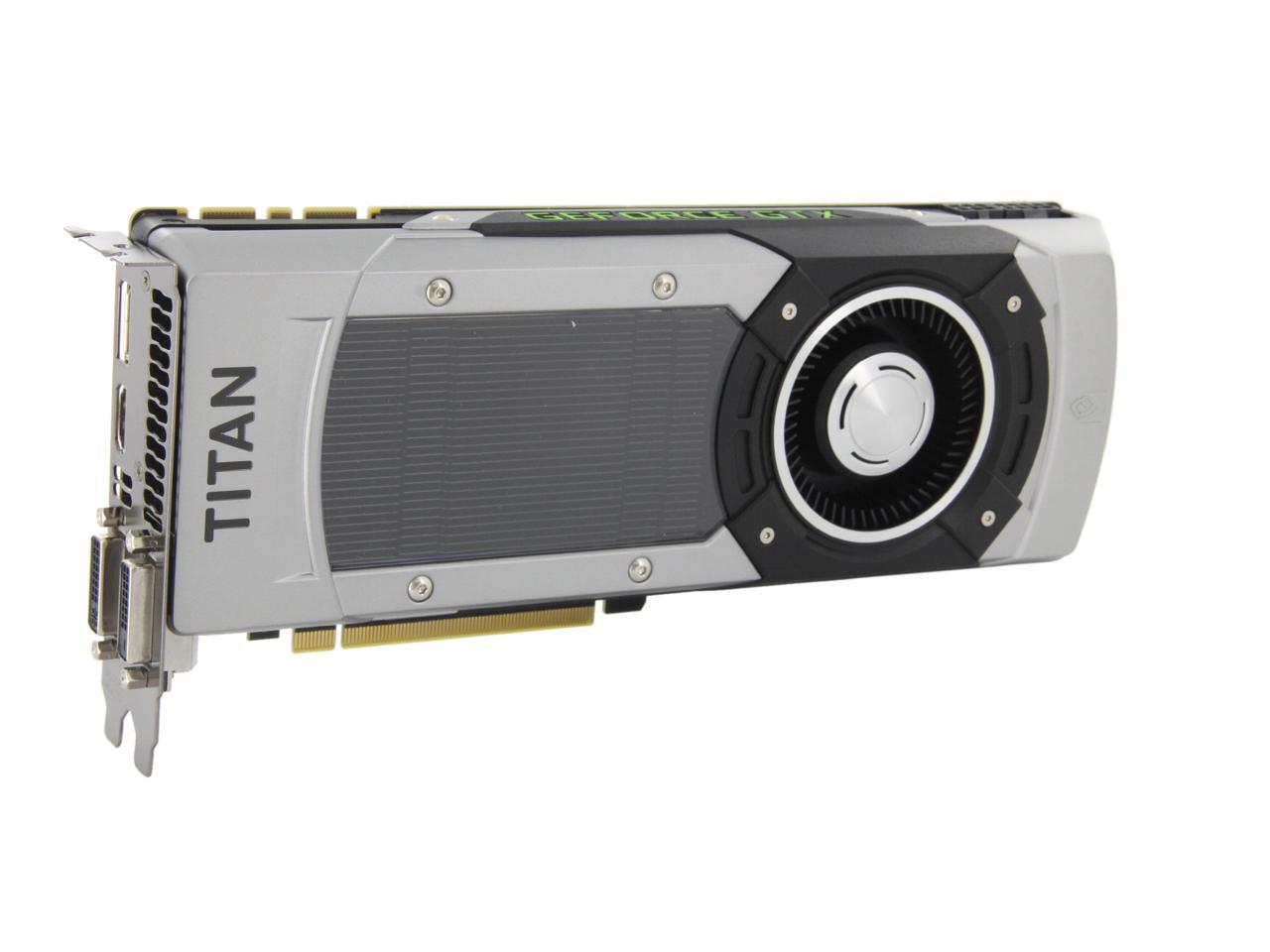

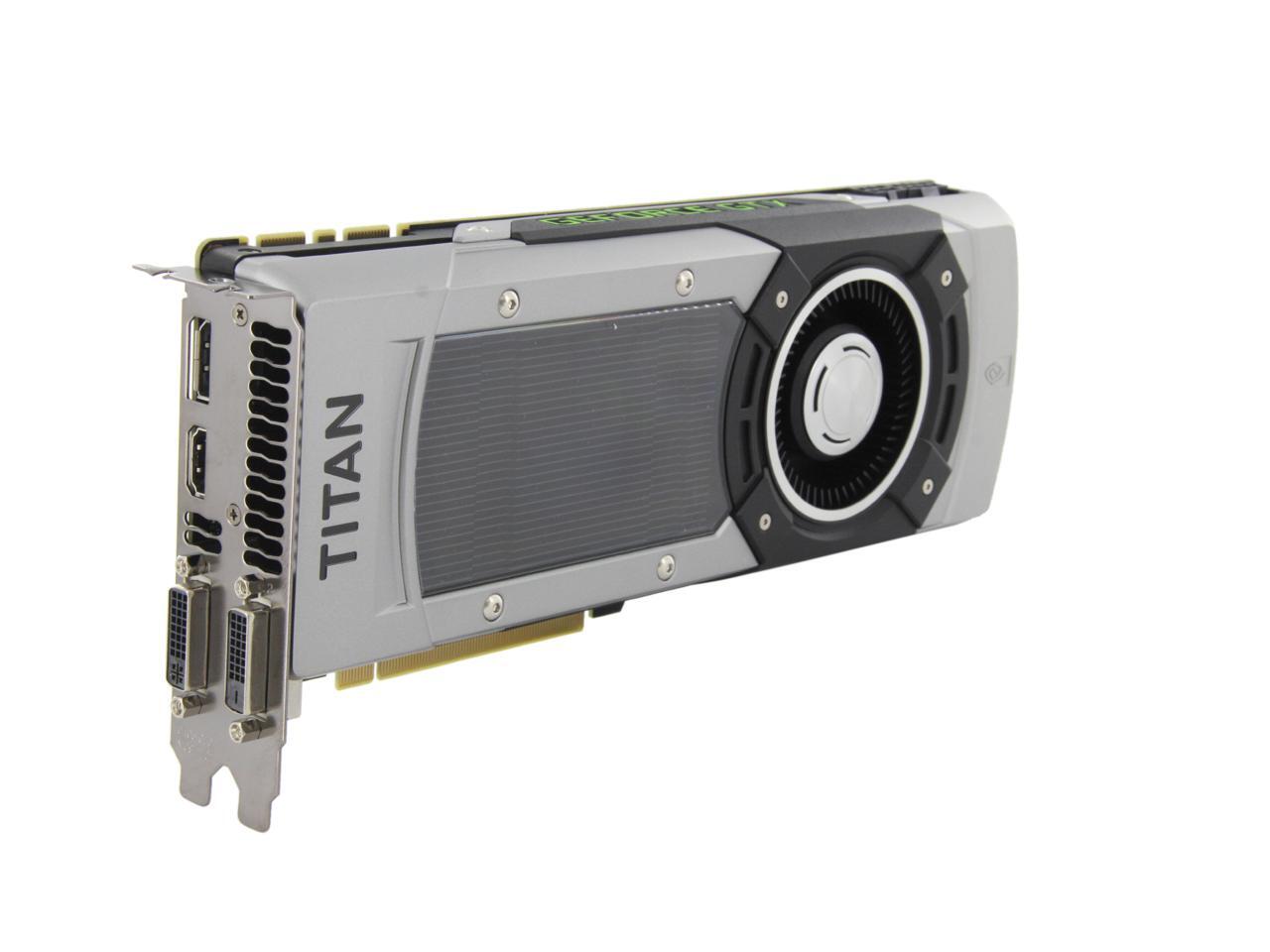

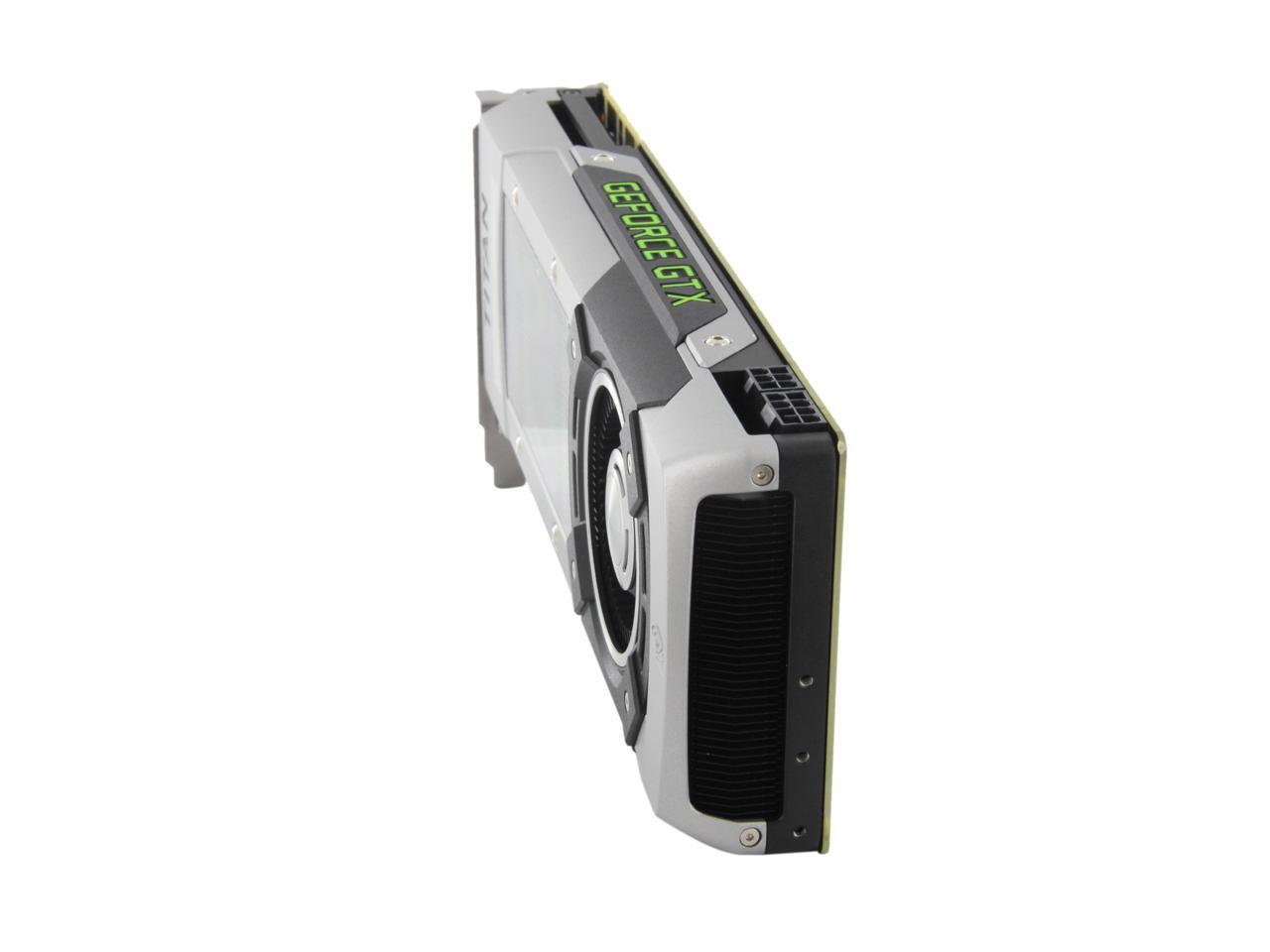

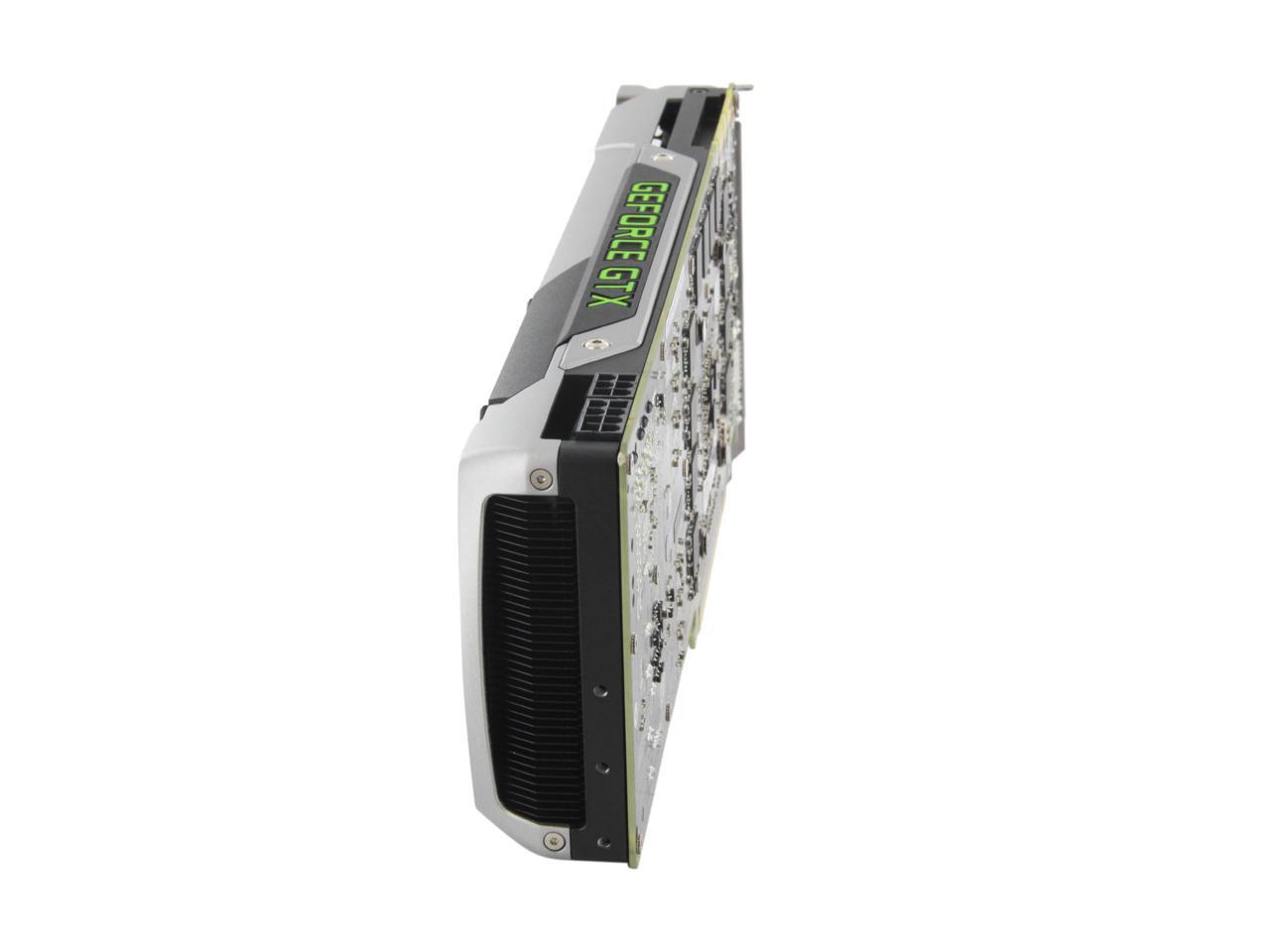

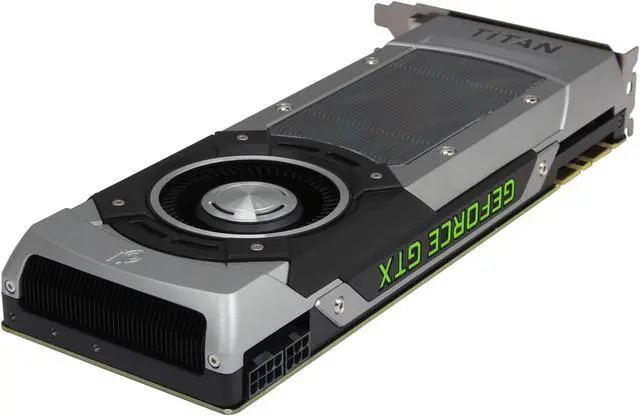

ASUS GTXTITANBLACK-6GD5 G-SYNC Support GeForce GTX TITAN BLACK 6GB 384-Bit GDDR5 PCI Express 3.0 HDCP Ready SLI Support Video Card

(3) Write a Review

2880 CUDA Cores
6GB 384-Bit GDDR5
PCI Express 3.0

☀️Check Out Game Sale. Over 1000+ Games up to 90% off! ☀️

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

GTXTITANBLACK-6GD5
ASUS GTX TITAN Black: Built to Power the World's First Gaming Supercomputers

The World's Fastest Graphics Card with GTX TITAN Black GPU and beefy 6GB GDDR5 memory.
GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
GPU Tweak Streaming Tool allows you to share on-screen action in real-time. Add scrolling text, pictures, and web cam images to the streaming window easily.
NVIDIA GPU Boost 2.0 Technology gives you dynamic clock speed maximization based on game workload and pushes performance to new levels.
Immerse Yourself in your game with hardware-based frame metering, ultra-fast TXAA/FXAA advanced anti-aliasing, and Adaptive Vertical Sync technology.
Transform hundreds of PC games into full stereoscopic 3D with NVIDIA 3D Vision and dual-GPU power.

Supercomputer Technology - Revolutionary Gaming

ASUS today announced GTX Titan Black, a graphics card powered by the brand-new GeForce® GTX Titan Black graphics-processing unit (GPU) clocked at 980MHz and bundled with exclusive GPU Tweak technology for advanced overclocking. With 6GB of super-fast GDDR5 video memory and NVIDIA® GPU Boost 2.0 and G-SYNC™ technologies, GTX Titan Black is a powerhouse graphics card for the very best gaming experiences.

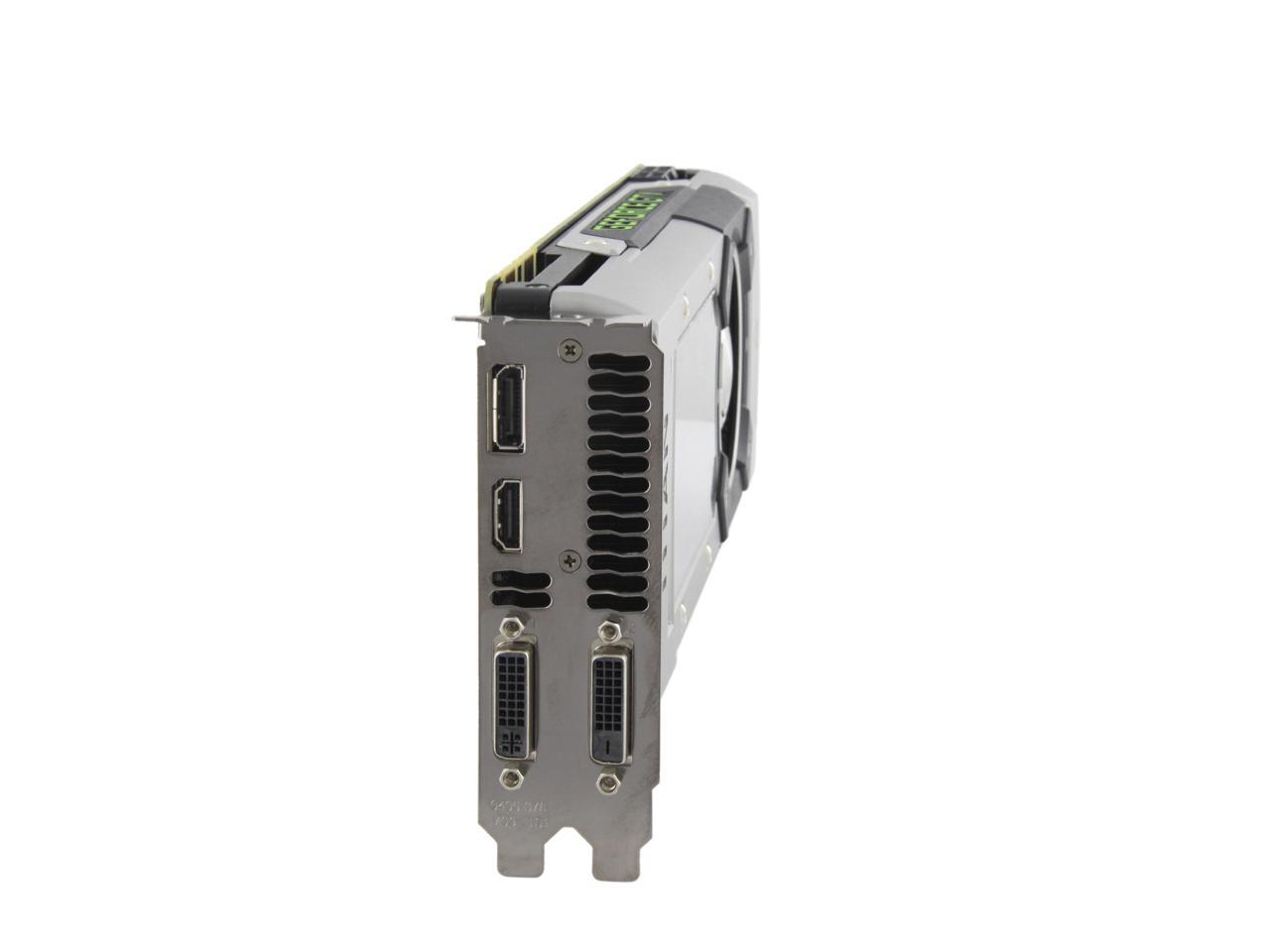

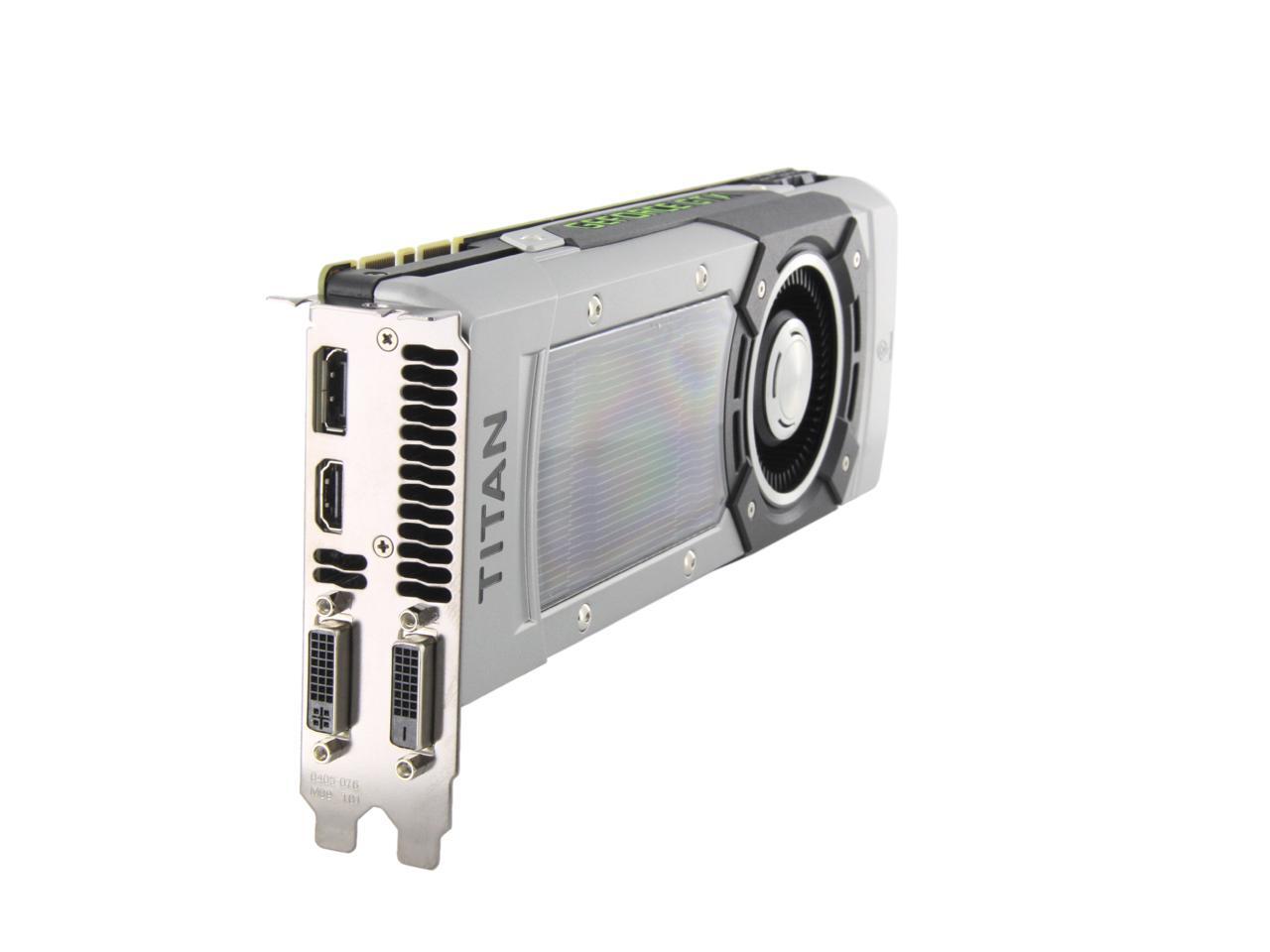

I/O Ports Highlights

Native DVI-D
Native DVI-I
Native HDMI
Native DispalyPort

GPU Tweak with Streaming

Real-Time Intuitive Graphics Tuning

Shows detailed specs and actual card status with GPU-Z
Monitoring widget provides real-time detailed multi-parameter info
Automatically checks and updates drivers and BIOS versions

Stream Online Instantly
GPU Tweak streaming tool lets you share on-screen action in real time – so others can watch live as games are played. It's even possible to add to the streaming window scrolling text, pictures, and webcam images.

Graphics GPU Features

NVIDIA® 3D Vision™

Transform hundreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760 x 1080 resolution.

NVIDIA® GPU Boost 2.0

Technology for intelligent monitoring of clock speeds ensures that the GPU runs at its peak and the game is at its highest frame rate possible. It offers new levels of customization, including GPU temperature target, overclocking, and unlocked voltage.

NVIDIA® Adaptive V-Sync

Get more than just faster frame rates. Get ultra-smooth gaming every time with NVIDIA® gaming innovation Adaptive Vertical Sync. This technology dynamically adjusts Vsync to current frame rates for maximum playability.

PCI Express 3.0

Delivers double the bandwidth per lane of PCIe 2.0 for faster GPU-CPU communication.

Microsoft DirectX® 11.2

Brings new levels of visual realism to gaming on the PC and get top-notch performance.

Specifications

Graphics Engine	NVIDIA GeForce GTX TITAN BLACK
Bus Standard	PCI Express 3.0
Video Memory	GDDR5 6GB
Engine Clock	GPU Boost Clock: 980MHz GPU Base Clock: 889MHz
CUDA Core	2880
Memory Clock	7000MHz (GDDR5)
Memory Interface	384-bit
Interface	DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes

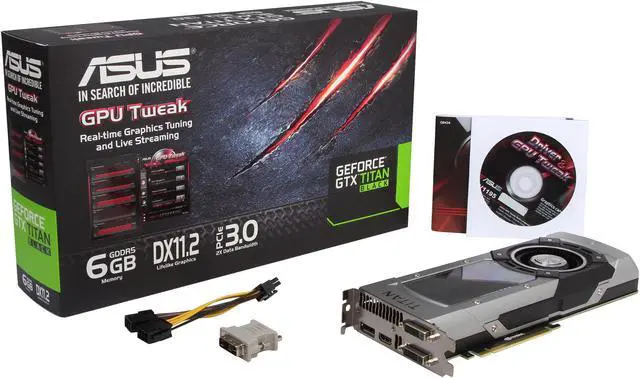

Accessories	1 x Power cable 1 x DVI to D-Sub adaptor
Software	ASUS GPU Tweak & Driver
Dimensions	10.5 x 4.376 x 1.5 Inches (26.67 x 11.11 x 3.81 Centimeters)
Note	To have the best cooling performance, ASUS GTXTITAN BLACK extends the fansink to 2 slots. Please double check your Chassis and Motherboard dimensions prior to purchase to make sure it fits in your system! Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit //www.geforce.com/

Model
Brand	ASUS
Model	GTXTITANBLACK-6GD5

Interface
Interface	PCI Express 3.0

Chipset
Chipset Manufacturer	NVIDIA
GPU Series	NVIDIA GeForce GTX TITAN
GPU	GeForce GTX TITAN BLACK
Core Clock	889 MHz
Boost Clock	980MHz
CUDA Cores	2880 Cores

Memory
Effective Memory Clock	7000MHz
Memory Size	6GB
Memory Interface	384-Bit
Memory Type	GDDR5

3D API
DirectX	DirectX 11.2
OpenGL	OpenGL 4.4

Ports
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
DVI	1 x DVI-I 1 x DVI-D

Details
3D VISION Game Ready	Yes
SLI Support	SLI Ready
Cooler	Single Fan
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

Features
Features	Gigantic 6GB GDDR5 memory for the best gaming experience & the best resolution. NVIDIA GPU Boost 2.0 Technology for intelligent monitoring of clock speed, ensuring that the GPU runs at its peak and the game is at its highest frame rate possible. It offers new levels of customization, including GPU temperature target, overclocking, and unlocked voltage. ASUS exclusive GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface. GPU Tweak Streaming tool allows you to share on-screen action in real-time. Add scrolling text, pictures, and webcam images to the streaming window easily. PCI Express 3.0 Delivers double bandwidth per lane of PCIe Gen 2 for faster GPU - CPU communication.

Form Factor & Dimensions
Card Dimensions (L x H)	10.8" x 4.4" x 1.5"
Slot Width	2 Slots

Additional Information
First Listed on Newegg	December 21, 2021
