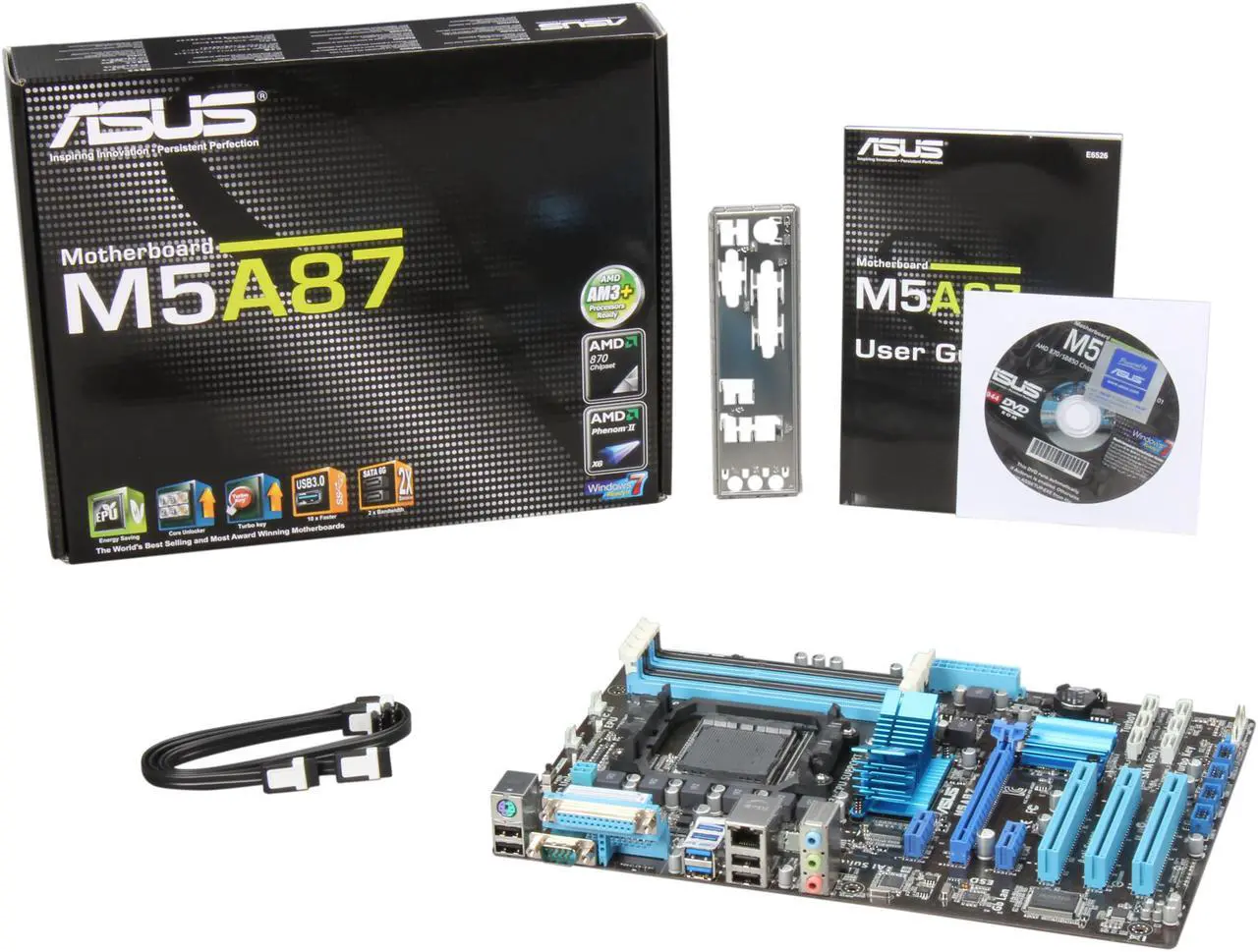

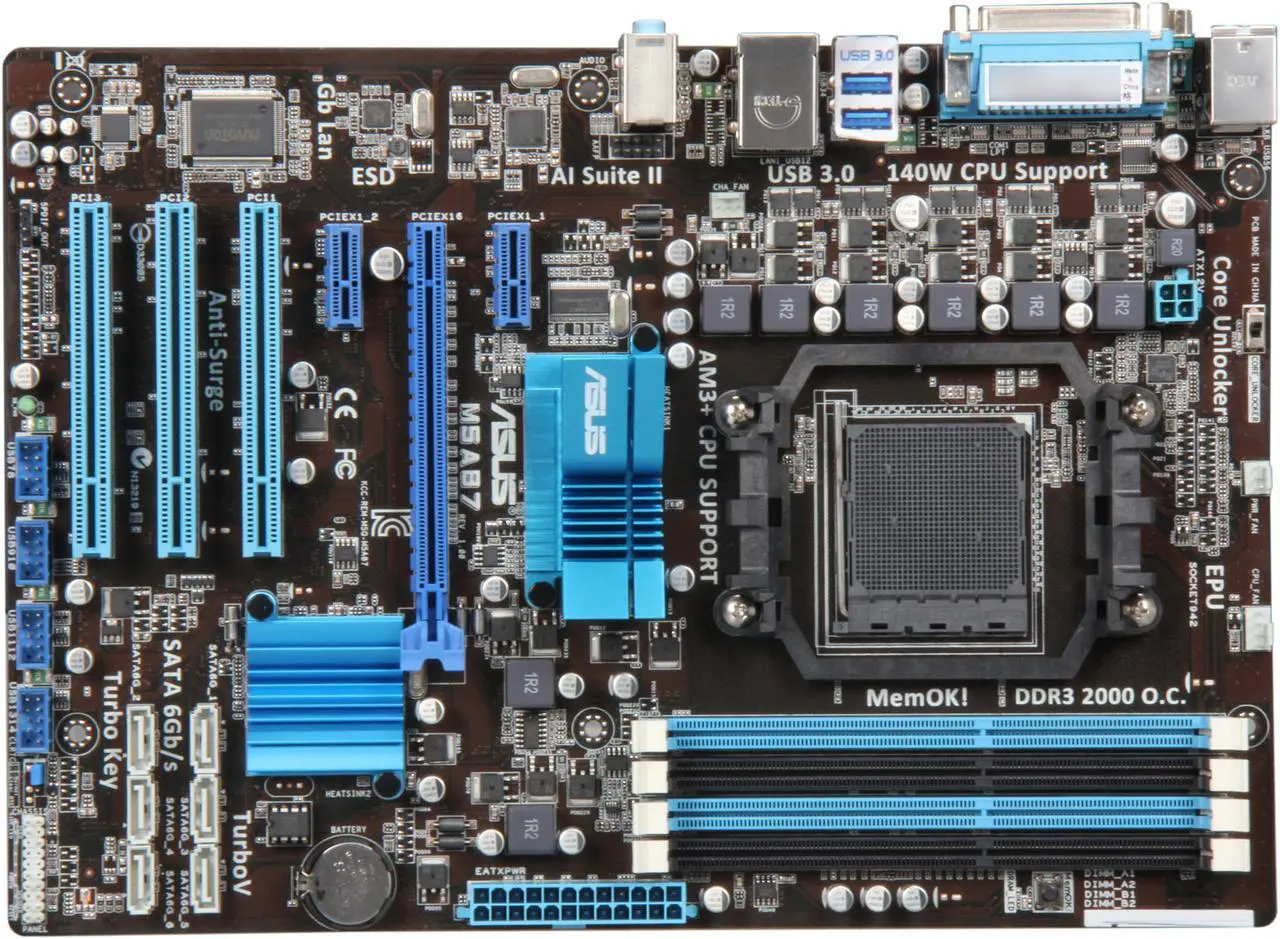

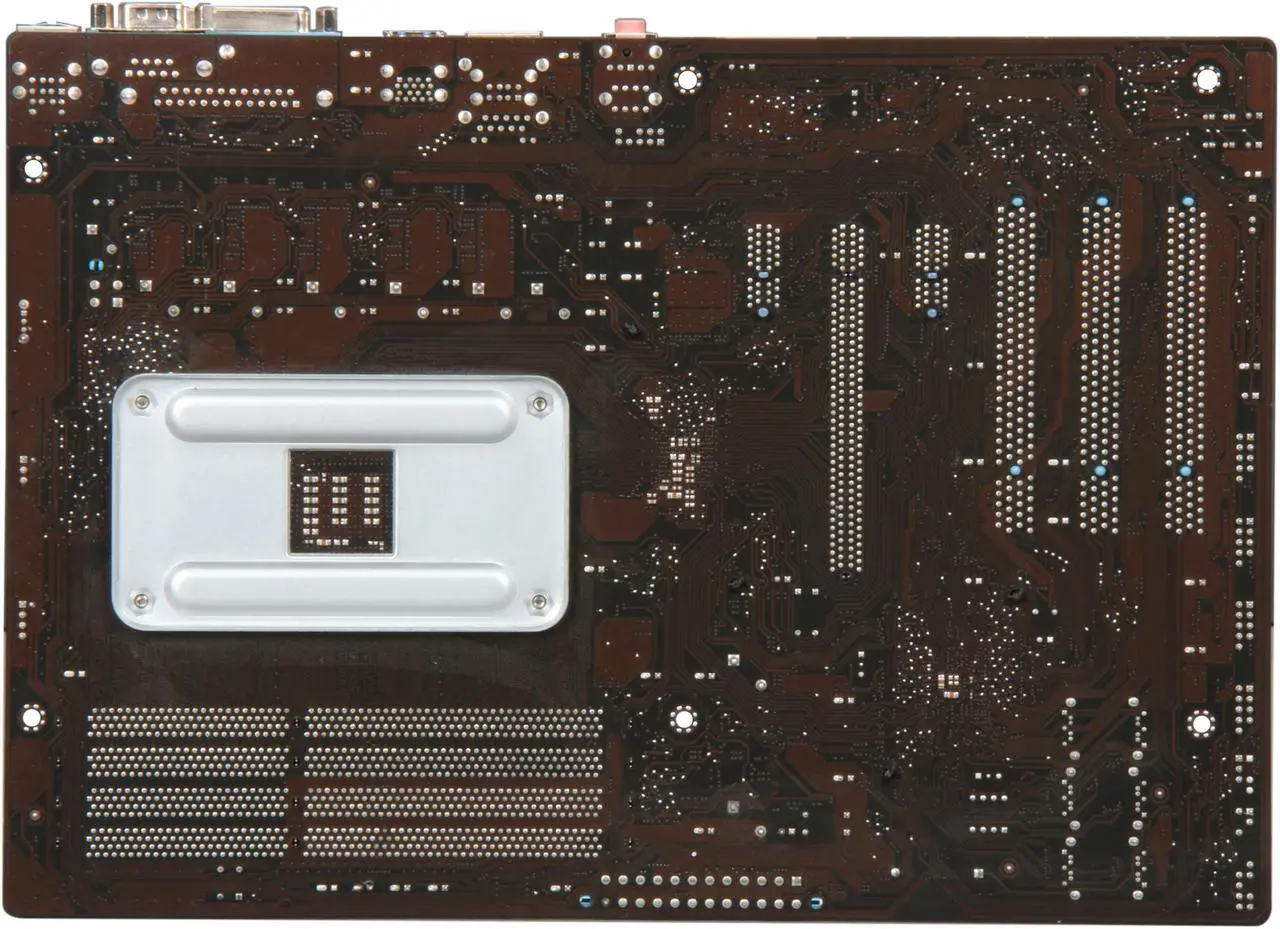

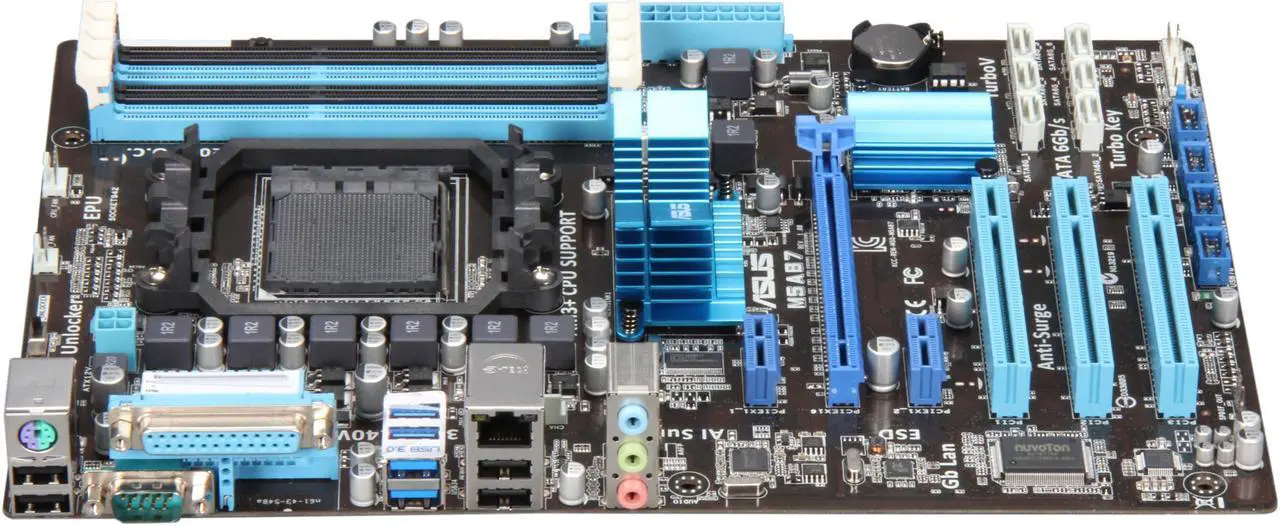

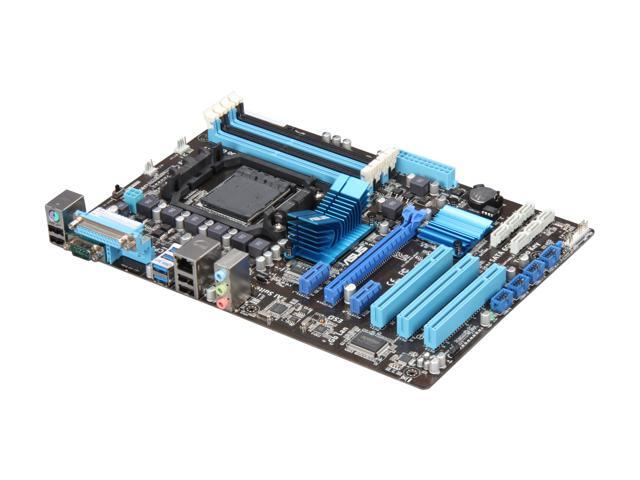

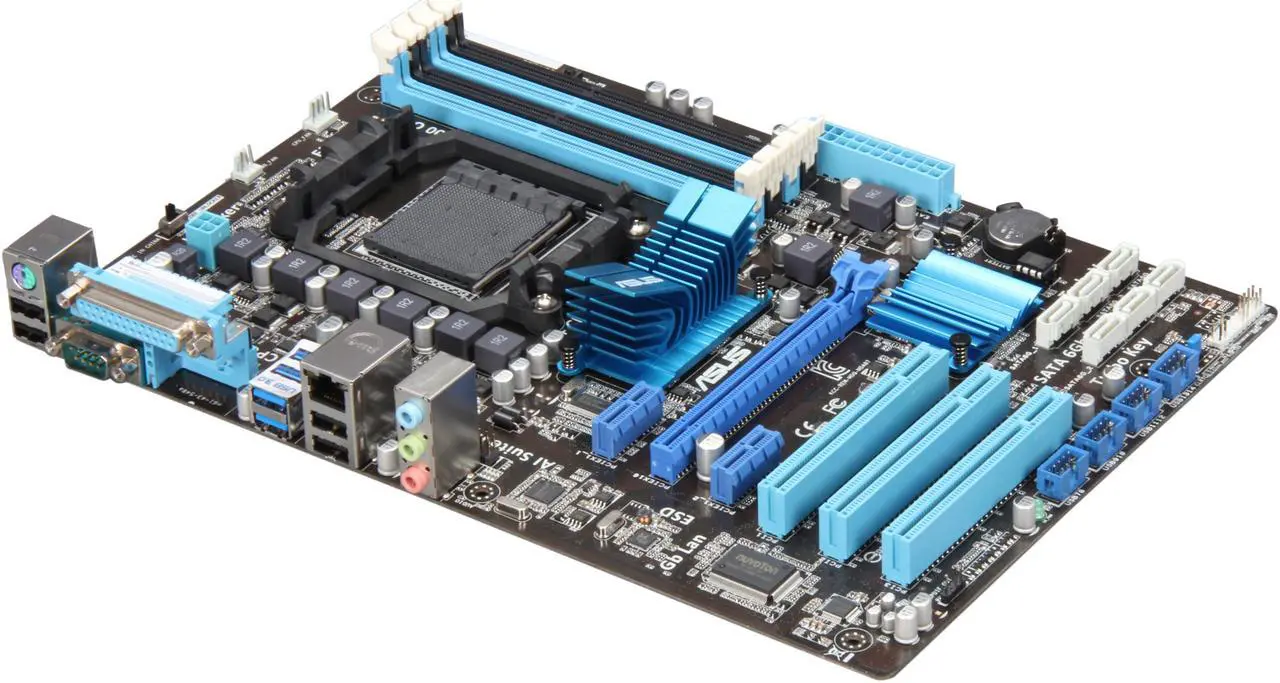

ASUS M5A87 AM3+ AMD 870 USB 3.0 ATX AMD Motherboard
(24)
Write a Review
AMD 870
Athlon Series / FX Series / Phenom II / Sempron
DDR3 2000(O.C.)/1600(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
🔥Don't forget your OS, we have
Windows 11 OEM
,
Download
and
USB
versions available
Unleash the performance of the AMD 9800X3D CPU with a
premium X870E motherboard
,
RGB liquid CPU cooler
,
high speed DDR5
and
SSD
.
Maximize the power of GeForce 5000 series cards with
Gen5 NVMe SSD
.
Overview
Specs
Reviews
(24)
Learn more about the ASUS M5A87
Model
Brand
ASUS
Model
M5A87
Supported CPU
CPU Socket Type
AM3+
CPU Type
Athlon Series / FX Series / Phenom II / Sempron
FSB
2600 MHz
Chipsets
Chipset
AMD 870
South Bridge
AMD SB850
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR3 2000(O.C.)/1600(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Maximum Memory Supported
16GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
1 x PCI Express 2.0 x16
PCI Express x1
2 x PCI Express x1
PCI Slots
3 x PCI Slots
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
SATA RAID
0/1/5/10/JBOD
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111E
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2
1 x PS/2 keyboard/mouse port
COM
1
LPT
1
USB 3.0
2 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
8 x USB 2.0
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12" x 8.4"
Power Pin
24 Pin
Features
Features
AMD 140W CPU Support
Core Unlocker - Intelligently Unlocks True Core Performance
MemOK! - Any Memory is A-OK!
TurboV - Feel the adrenaline rush of real-time O.C.!
AI Suite II - One-Stop Access to Innovative ASUS Features
USB 3.0 & SATA 6Gb/s Support - Let you experience the latest transfer technology!
Additional Information
Date First Available
May 19, 2011
Customer Reviews of the
ASUS M5A87
There are no reviews yet.
Do you own this product?
write a review
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details
Return Policies
Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's Standard Return Policy.
Read full return policy for details.
Manufacturer Contact Info
Manufacturer Product Page
Manufacturer Website
Support Phone: 1-510-739-3777
Support Website
