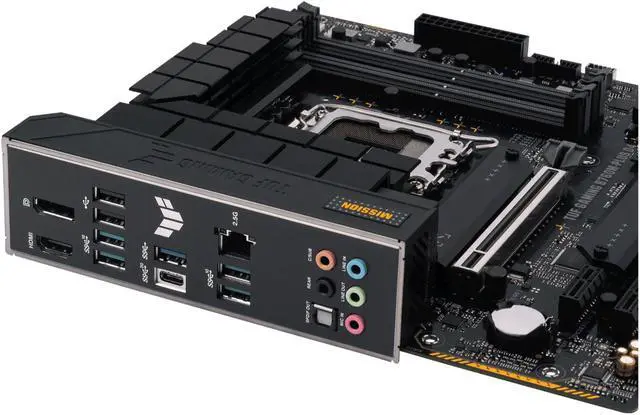

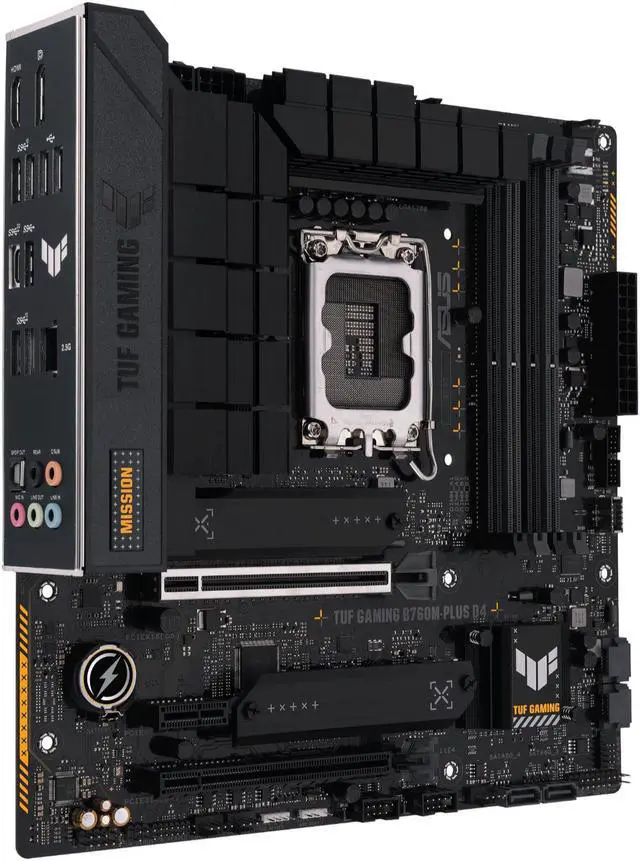

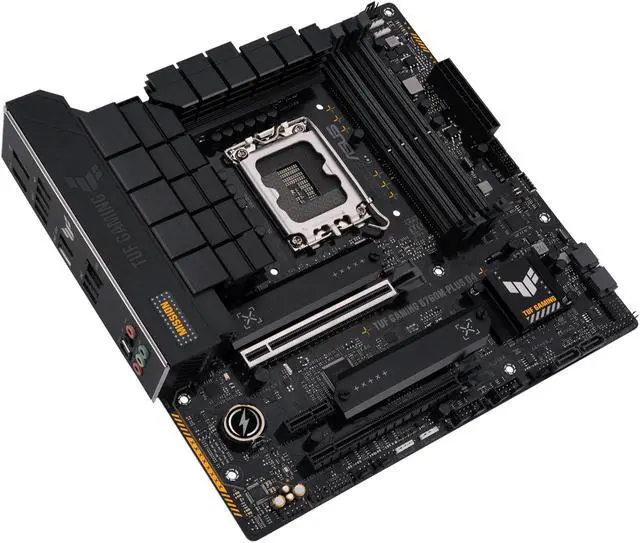

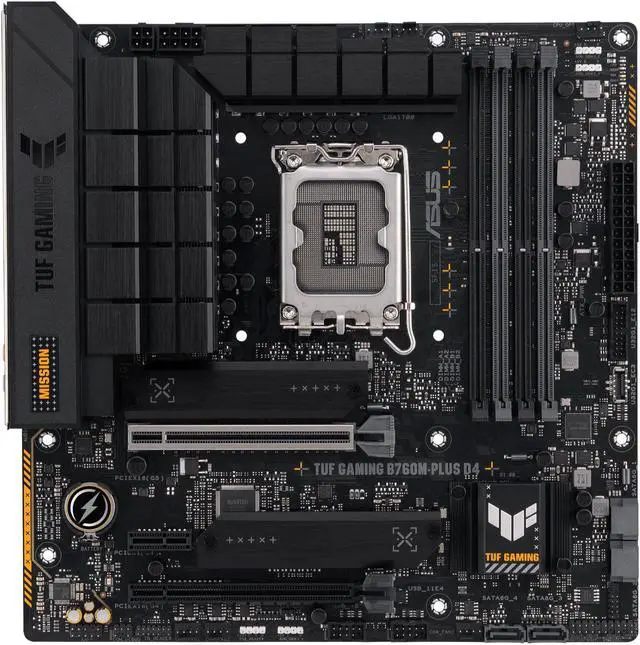

    ASUS TUF GAMING B760M-PLUS D4 Intel B760 (13th and 12th Gen) LGA 1700 mATX motherboard, PCIe 5.0, 2x 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C

    • IntelLGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron® Processors.
    • Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability.
    • Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4.
    • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support.
    • Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard.
    • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
    • Memory: DDR4-5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/
    • 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Model
    TUF GAMING B760M-PLUS D4
    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 **
    * Refer to www. asus. com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    Intel® B760 Chipset
    Memory
    4 x DIMM, Max. 128GB, DDR4 5333 (OC) / 5066 (OC) /5000 (OC) /4800 (OC) /4600 (OC) /4400 (OC) /4266 (OC) /4000 (OC) /3733 (OC) /3600 (OC) /3466 (OC) /3400 (OC) /3333 (OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the
    Support tab or visit https: //www. asus. com/support/
    Graphics
    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to www. intel. com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    ***Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion Slots
    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    Intel® B760 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x1 slot
    - To ensure compatibility of the device installed, please
    refer to https: //www. asus. com/support/ for the list of supported peripherals.
    Storage
    Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® B760 Chipset
    M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Ethernet
    1 x Realtek 2.5G b Ethernet
    TUF LANGuard
    USB
    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports*
    * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback "
    Audio Features
    - Audio Shielding
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Dedicated audio PCB layers

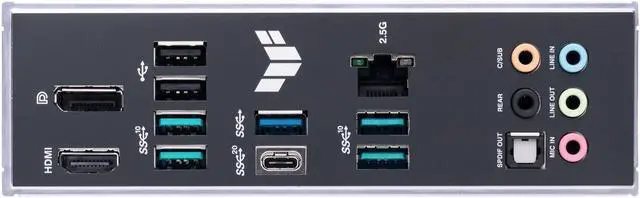

    Back Panel I/O Ports
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5G b Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    I/O Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    2 x M. 2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt (USB4®) header
    Special Features
    ASUS TUF PROTECTION
    - DIGI+ VRM (- Digital power design with DrMOS)
    - ESD Guards
    - TUF LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M. 2 Q-Latch
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M. 2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - CPU Socket lever protector
    - ProCool
    - Pre-mounted I/O shield
    - SafeDIMM
    AURA Sync
    - AURA RGB header
    - Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    - AURA Creator
    - AURA Sync
    - Fan Xpert 2+
    - Power Saving
    - Two-Way AI Noise Cancelation
    AI Suite 3
    DIGI+ VRM
    - PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE
    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x M. 2 Rubber Package
    1 x Screw package for M. 2 SSD
    1 x TUF Gaming sticker
    Documentation
    1 x TUF Certification card
    1 x User guide
    Operating System
    Windows® 11, Windows® 10 64-bit
    Form Factor
    mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
