ASUS NUC 15 Pro RNUC15CRKU70000U Black Barebone System w/ Intel Ultra 7 255H CPU, Integrated - Intel Arc 140T Graphics ,US cord, Single Unit - Memory and Storage Sold Separately
You’re seeing this ad based on the product’s relevance to your search query. If you are a seller and want to participate in this program click here to learn more.
Processor Essentials *Processor Number 255H *Overall Peak TOPS (Int8) 96
CPU Specifications Total Cores 16 # of Performance-cores 6 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 16 Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes *AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
NPU Specifications: *NPU Name: Intel® AI Boost *NPU Peak TOPS (Int8) 13 *Sparsity Support Yes *AI Software Frameworks Supported by NPU :OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
CPU Supported
CPU Type
Intel Core Ultra 7 255H
CPU Socket
FCBGA2049
CPU Cores
Total Cores 16 # of Performance-cores 6 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 16 Max Turbo Frequency 5.1 GHz Performance-core Max Turbo Frequency 5.1 GHz Efficient-core Max Turbo Frequency 4.4 GHz Low Power Efficient-core Max Turbo Frequency 2.5 GHz Performance-core Base Frequency 2 GHz Efficient-core Base Frequency 1.5 GHz Low Power Efficient-core Base Frequency 700 MHz Cache 24 MB Processor Base Power 28 W Maximum Turbo Power 115 W Minimum Assured Power20 W CPU Lithography TSMC N3B
Memory Supported
Memory installed
No Memory
Memory slot
2 x 262Pin SO-DIMM
Memory Type Supported
SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported
96GB
Storage
Hard Drive Installed
No Hard Drive
M.2
1 x M.2 2280 PCIe Gen4x4 NVMe SSD* (empty) 1 x M.2 2242 PCIe Gen4x4 NVMe SSD (empty) *PCIe Gen 5 ready
Graphics
Intergrated Graphics
GPU Name Intel® Arc™ 140T GPU Graphics Max Dynamic Frequency 2.25 GHz Xe-cores 8 Ray Tracing Yes DirectX* Support 12.2 OpenGL* Support 4.6 OpenCL* Support 3.0 Multi-Format Codec Engines 2 H.264 Hardware Encode/Decode Yes H.265 (HEVC) Hardware Encode/Decode Yes AV1 Encode/Decode Yes VP9 Bitstream & Decoding Yes Intel® Quick Sync Video Yes # of Displays Supported 4
Communications
LAN
Intel i226V
Max LAN Speed
10/100/1000/2500Mbps
Wireless LAN
802.11be
WiFi Generation
Wi-Fi 7
Bluetooth
Bluetooth 5.4

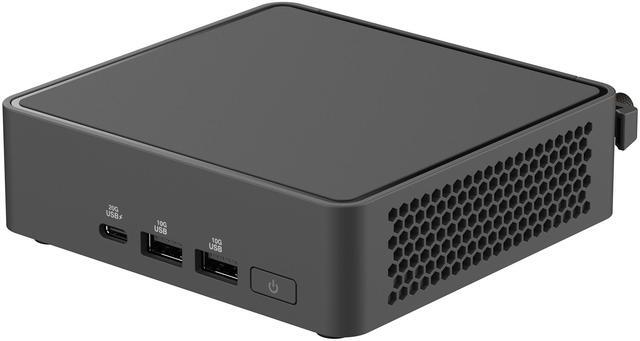

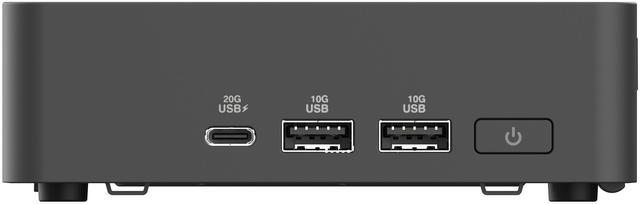

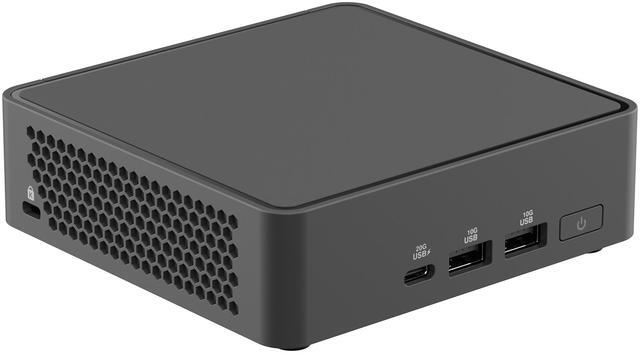

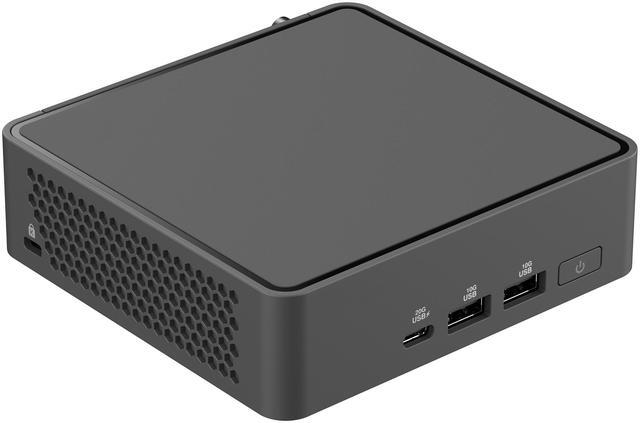

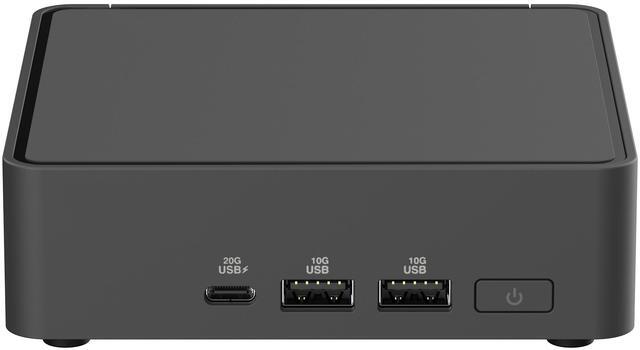

Front Panel Ports
Front USB

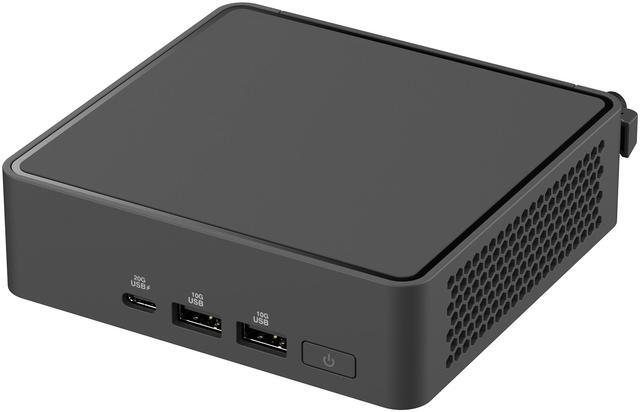

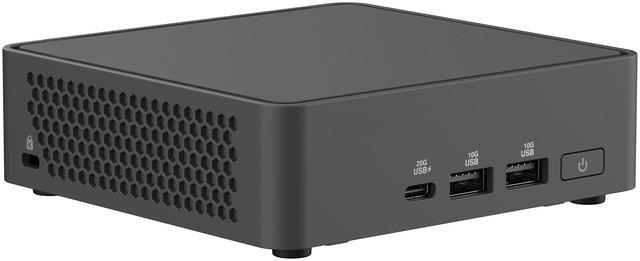

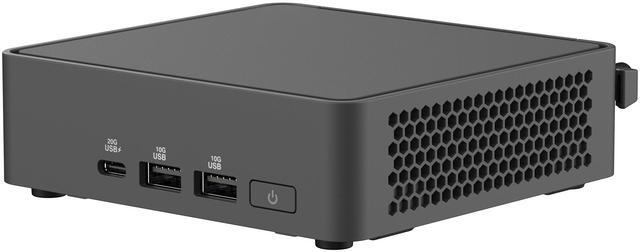

1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 2 Type-A

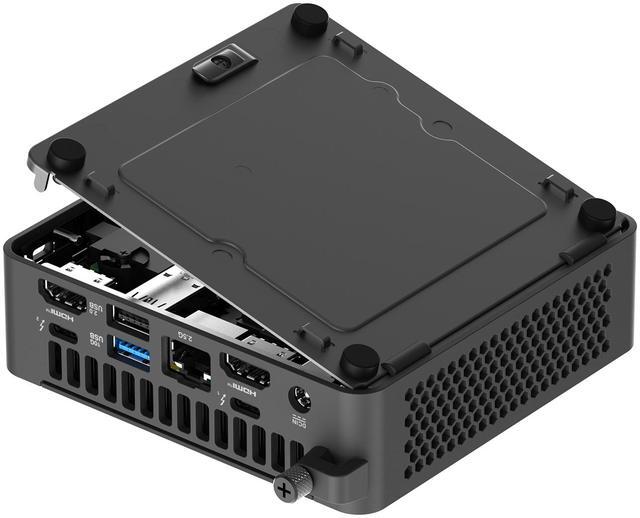

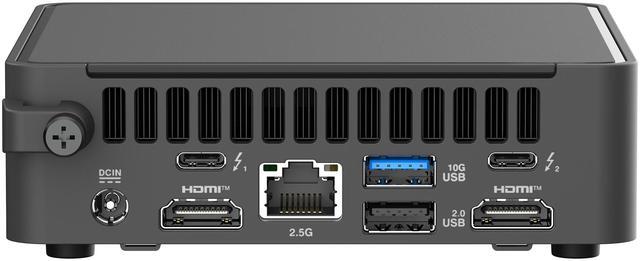

Back Panel Ports
HDMI
2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt
2 x Thunderbolt 4 (with DisplayPort 2.1)
Rear USB
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ45
1x RJ45 (2.5Gb Ethernet)
Power Supply
Power Supply
120W
Physical SPEC
Dimensions
4.61" x 4.41" x 1.45"
Weight
0.79 lb.
Features
Features
Onboard Processor Features Intel® Core™ Ultra 7 Processor 255H (24M Cache, up to 5.10 GHz) Overall Peak TOPS (Int8): 96
CPU Specifications Total Cores 16 # of Performance-cores 6 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 16 Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes *AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN *CPU Lithography TSMC N3B
GPU Sepcifications: *Name : Intel® Arc™ 140T GPU *Graphics Max Dynamic Frequency : 2.25GHz *GPU Peak TOPS (Int8) 74 *Ray Tracing Yes *AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU DirectX* Support 12.2 OpenGL* Support 4.6 OpenCL* Support 3.0 Multi-Format Codec Engines 2 H.264 Hardware Encode/Decode Yes H.265 (HEVC) Hardware Encode/Decode Yes AV1 Encode/Decode Yes VP9 Bitstream & Decoding Yes Intel® Quick Sync Video Yes # of Displays Supported 4
NPU Specifications: *NPU Name: Intel® AI Boost *NPU Peak TOPS (Int8) 13 *Sparsity Support Yes *AI Software Frameworks Supported by NPU :OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
