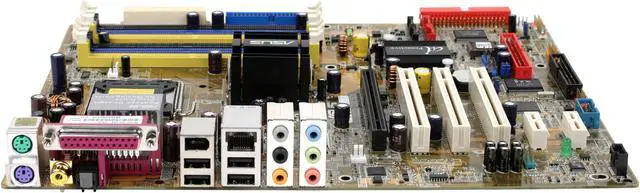

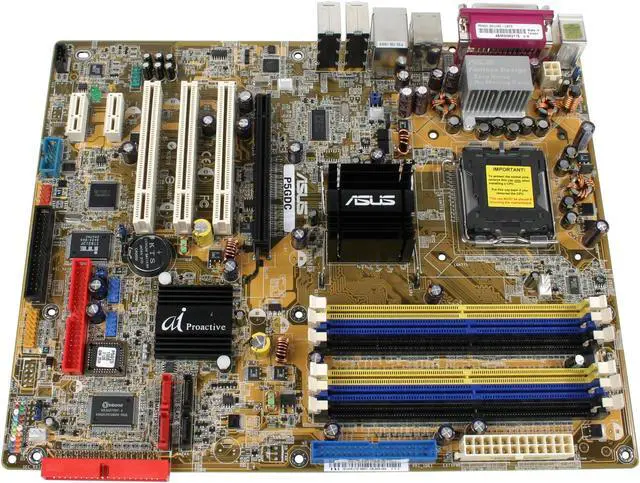

ASUS P5GDC Deluxe LGA 775 Intel 915P ATX Intel Motherboard
- Intel 915P
- Pentium 4 Prescott / Celeron D
- DDR2 533 / DDR 400
Specs
Reviews (27)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P5GDC Deluxe
| Brand | ASUS |
|---|---|
| Model | P5GDC Deluxe |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 915P |
|---|---|
| South Bridge | Intel ICH6R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x184pin + 2x240pin |
|---|---|
| Memory Standard | DDR2 533 / DDR 400 |
| Maximum Memory Supported | 2 x 240-pin DIMM sockets support max. 2GB 4 x 184-pin DIMM Sockets support max. 4GB (Note: DDR and DDR2 memory can not be used simultaneously) |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 3 x ATA100 6 Dev Max. |
|---|---|
| PATA RAID | 0/1/0+1 |
| SATA RAID | 0/1/0+1 Matrix RAID |
| Audio Chipset | C-Media High Definition Audio |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8053 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Date First Available | December 15, 2004 |
|---|
