Learn more about the ASUS P5V800-MX
Model
Brand
ASUS
Model
P5V800-MX
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Intel Pentium D/Pentium 4/Celeron (Note: Due to chipset limitation, the Intel Enhanced Intel SpeedStep Technology, C1E, and TM2 are not supported in this model)
FSB
800/533 MHz
Supported CPU Technologies
Hyper-Threading Technology
Chipsets
Chipset
VIA P4M800
South Bridge
VIA VT8251
Onboard Video
Onboard Video Chipset
S3 Graphics UniChrome 2D/3D
Memory
Number of Memory Slots
2x184pin
Memory Standard
DDR 400
Maximum Memory Supported
2GB
Expansion Slots
AGP Slots
1 x AGP 4X / 8X
PCI Express x16
None
PCI Express x1
1 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
PATA
2 x ATA100 4 Dev. Max
PATA RAID
0/1/0+1
SATA RAID
0/1/0+1
Onboard Audio
Audio Chipset
ADI AD1986A
Audio Channels
6 Channels
Onboard LAN
LAN Chipset
Realtek 8201CL PHY
Max LAN Speed
100Mbps
Rear Panel Ports
Back I/O Ports
2 x PS/2 / 4 x USB 2.0/1.1
PS/2
2
COM
1
LPT
1
Video Ports
D-Sub
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 8.6"
Power Pin
24 Pin
Packaging
Package Contents

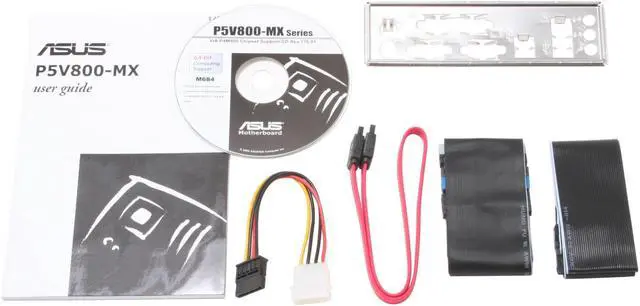

P5V800-MX User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Power Cable
