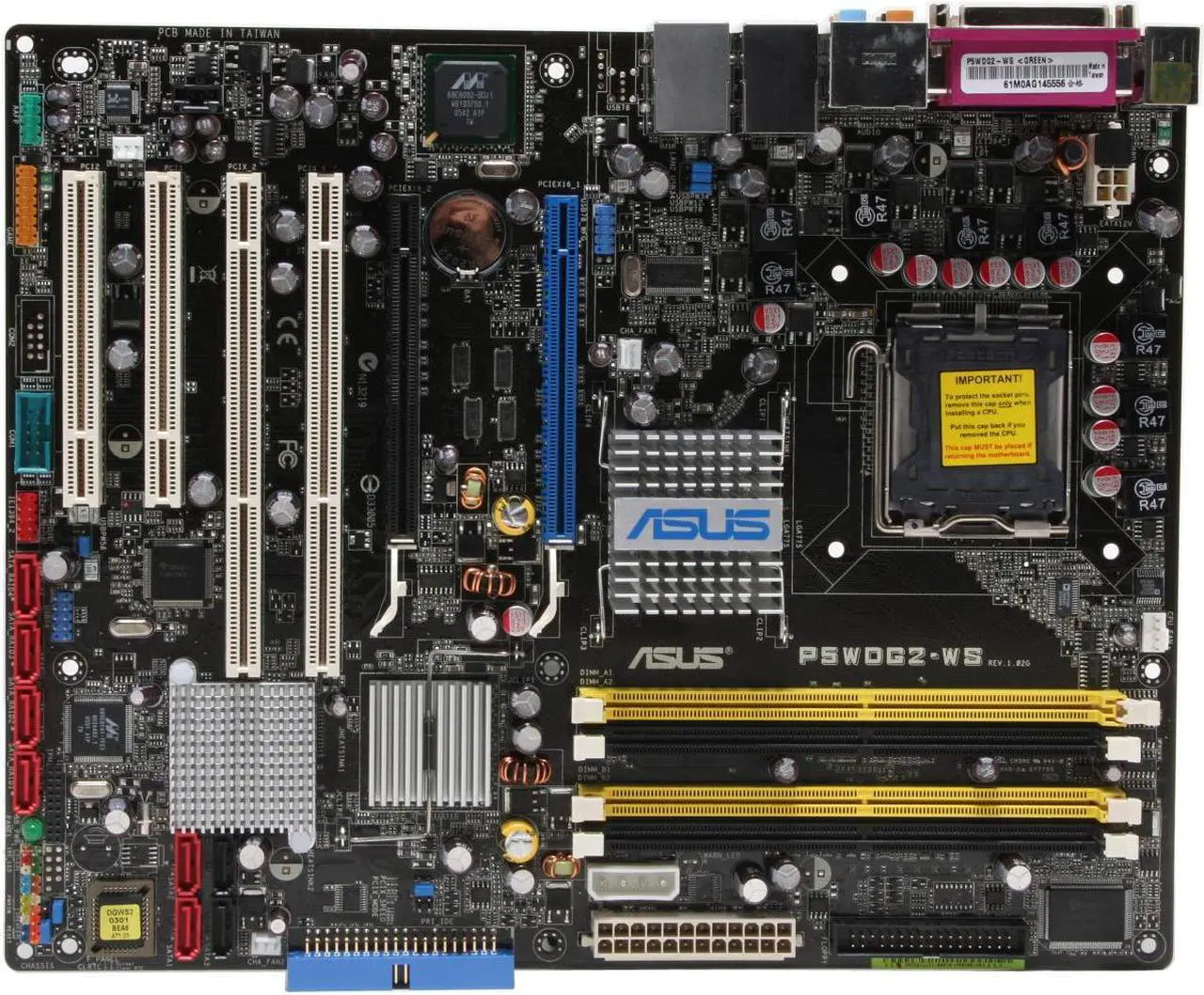

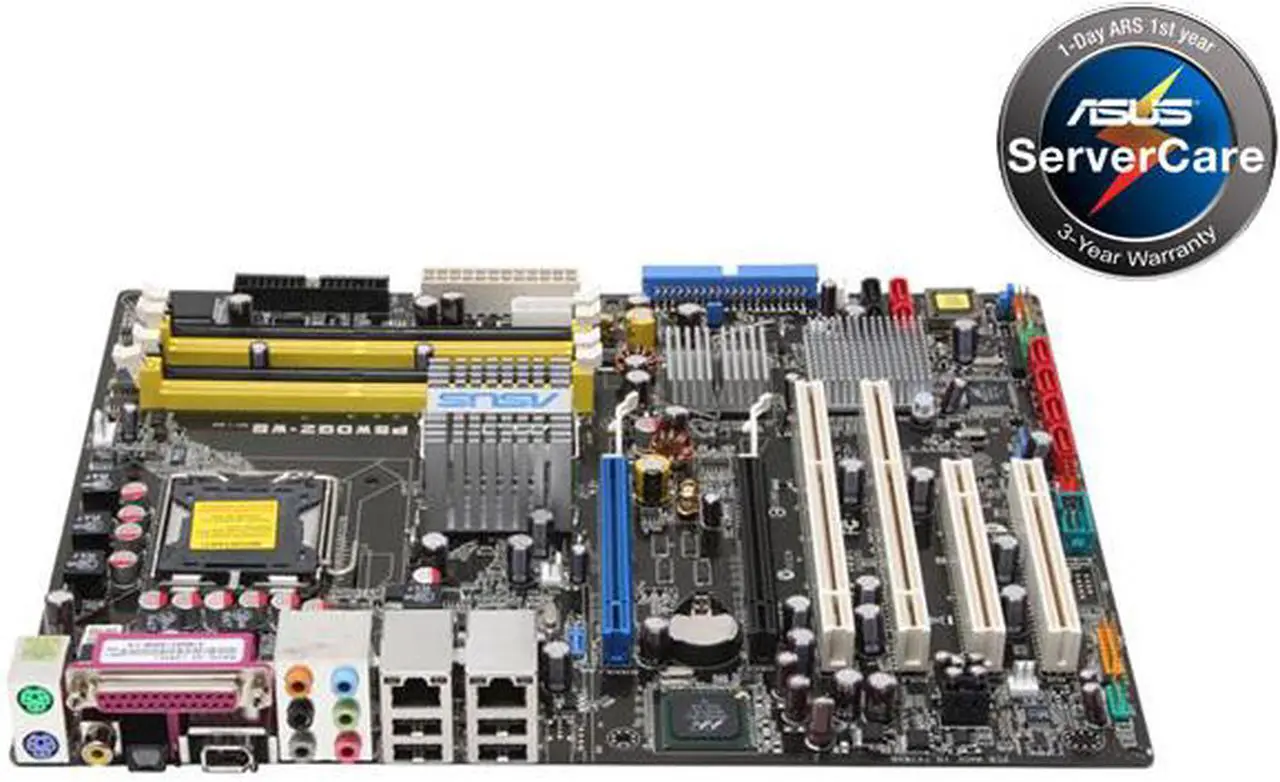

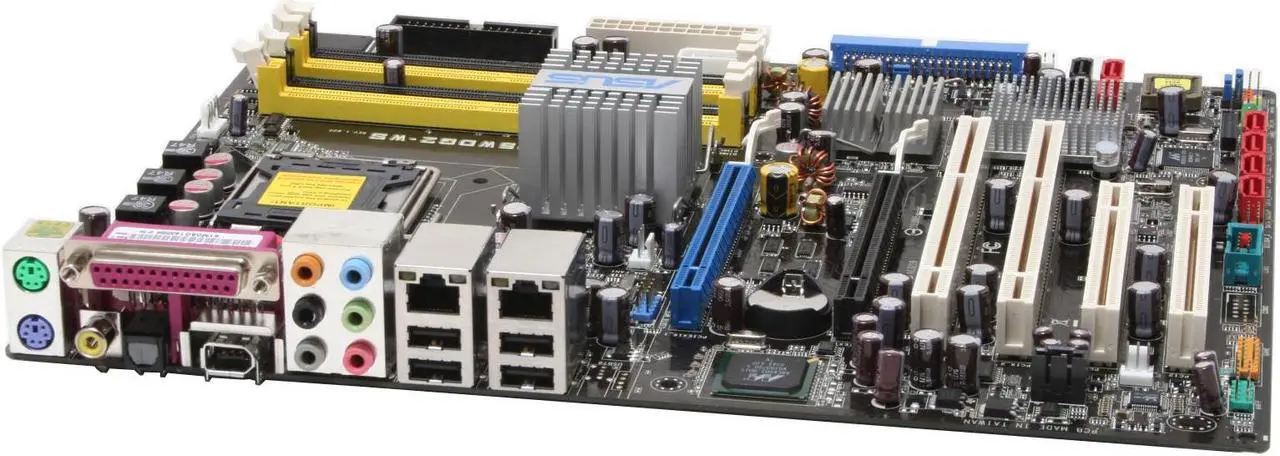

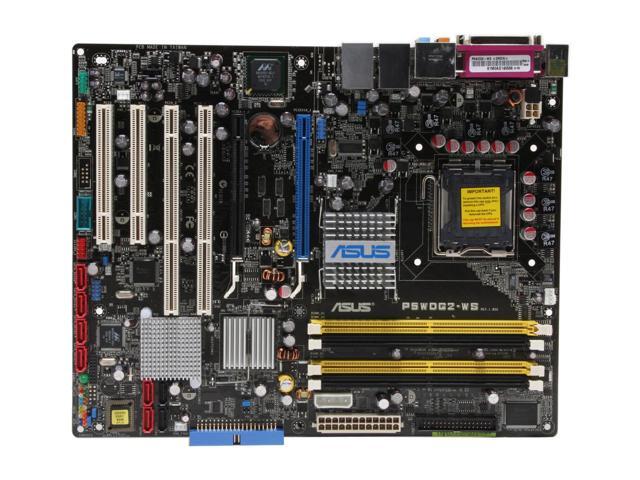

ASUS P5WDG2-WS<GREEN> ATX Server Motherboard LGA 775 Intel 975X DDR2 667/533, Native DDR2 800 Support
- LGA 775
- Intel 975X 6702 PXH
- 4 x 240Pin
Specs
Reviews (18)
Learn more about the ASUS P5WDG2-WS<GREEN>
| Brand | ASUS |
|---|---|
| Model | P5WDG2-WS<GREEN> |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Pentium4 EE / Pentium D / Pentium 4 / Celeron |
| System Bus | 1066/800/533 MHz |
| Supported CPU Technologies | Intel EM64T / EIST / Hyper-Threading / VT / XD Technology |
| North Bridge | Intel 975X |
|---|---|
| South Bridge | Intel ICH7R |
| Other Chipset | 6702 PXH |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667/533, Native DDR2 800 Support |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 2 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | 0/1/10/5 |
| Additional SATA | 4 x SATA 3.0Gb/s |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC882 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8066 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Marvell 88E8062 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Features | ATI CrossFire Intel MPT PEG Link AI NOS |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

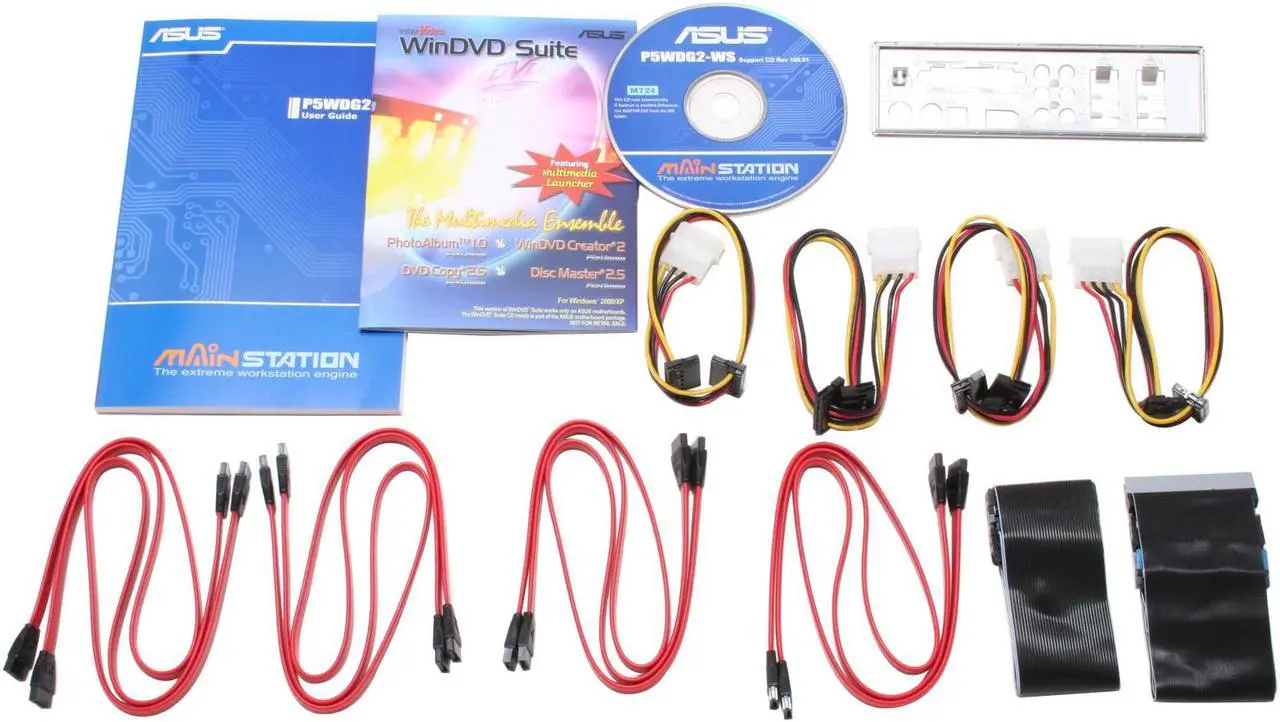

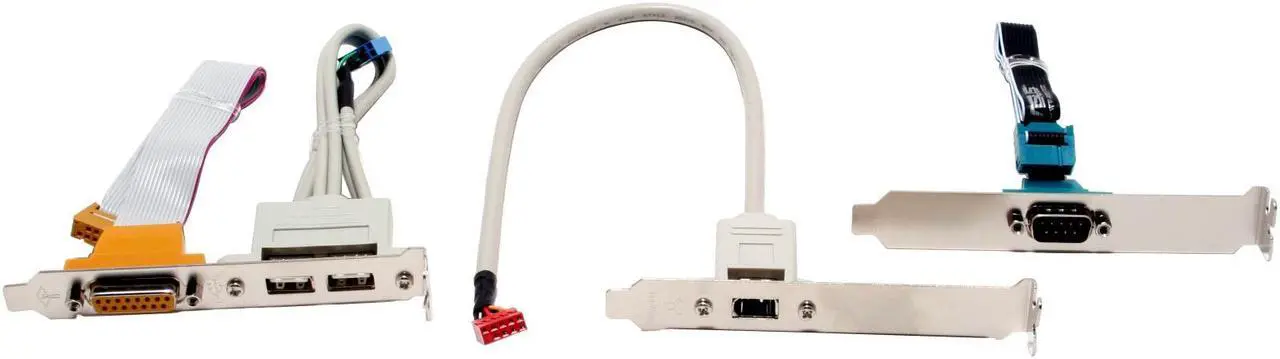

| Package Contents | P5WDG2-WS<GREEN> User Manual Software disk 4 x SATA Cable IDE Cable FDD Cable 4 x Power Cable Rear I/O Panel Shield USB and Game/MIDI Bracket COM Port Bracket IEEE 1394 Bracket Other Accessories |
|---|
| Date First Available | February 01, 2006 |
|---|
