$76.98
Ships from China.
Meet Your Seller
Get Educated
Make informed decisions with expert advice. Learn More

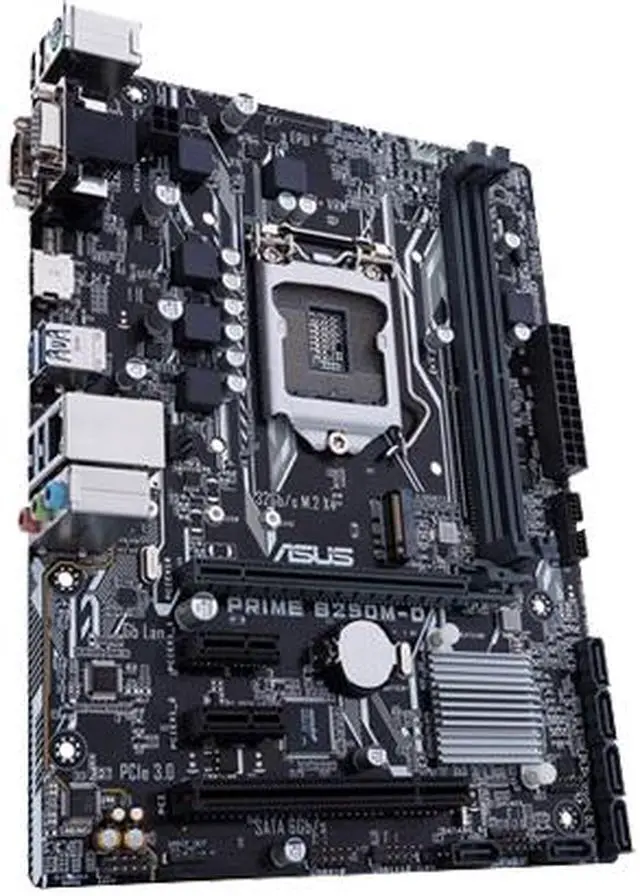

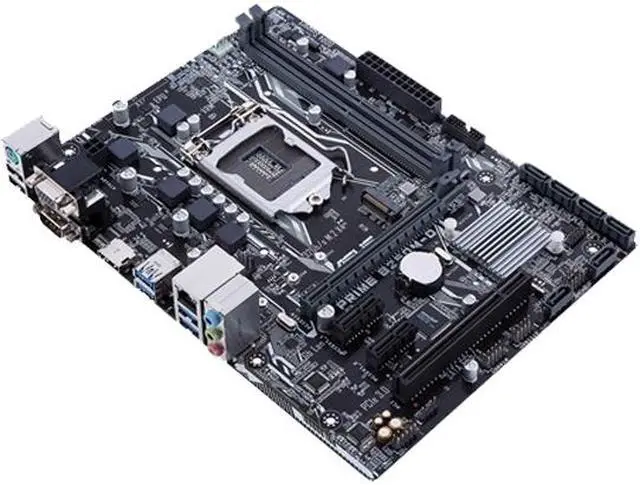

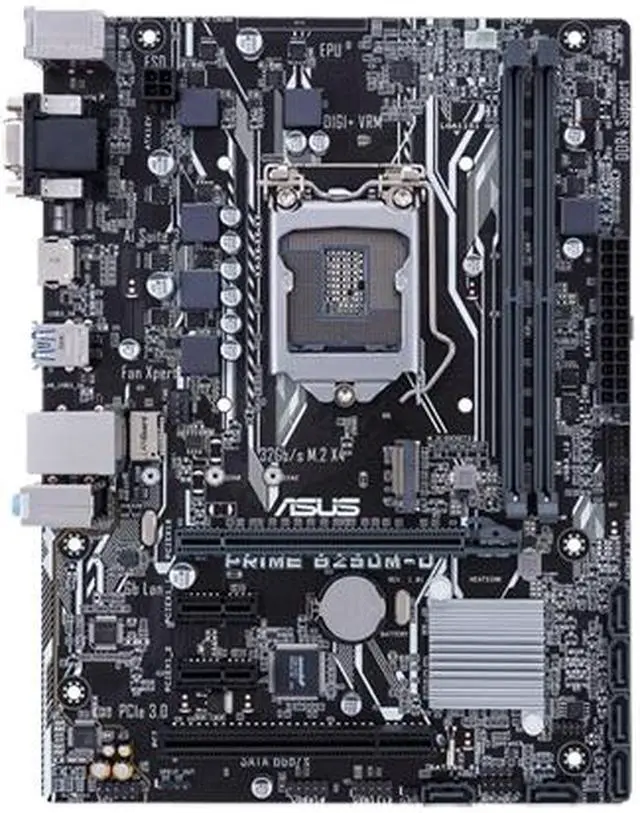

ASUS PRIME B250M-D LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
Used - Very Good Product Type
- Intel B250
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 2400/ 2133
- * Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Gen Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
- ** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Gen Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS PRIME B250M-D
| Brand | ASUS |
|---|---|
| Model | PRIME B250M-D |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel B250 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2400/ 2133 * Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Gen Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Gen Intel processors will run at the maximum transfer rate of DDR4 2133MHz. |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0/2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0/2.0 x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s port(s), gray |
|---|---|
| M.2 | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1 *1 When a device in SATA mode is installed on the M.2 socket, SATA_1 port cannot be used. |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| COM | 1 |
| Video Ports | 1 x D-Sub |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 Type-A |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 x Audio jack(s) 1 x 8-channel Audio I/O |
| Onboard USB | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.2" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
| Features | Special Features: ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design ASUS EPU: - EPU ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-DIMM M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) BIOS: 64MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE Operating System: Windows 10 64-bit Windows 8.1 64-bit *2 Windows 7 32-bit *2 Windows 7 64-bit *2 *2 Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors. |
|---|

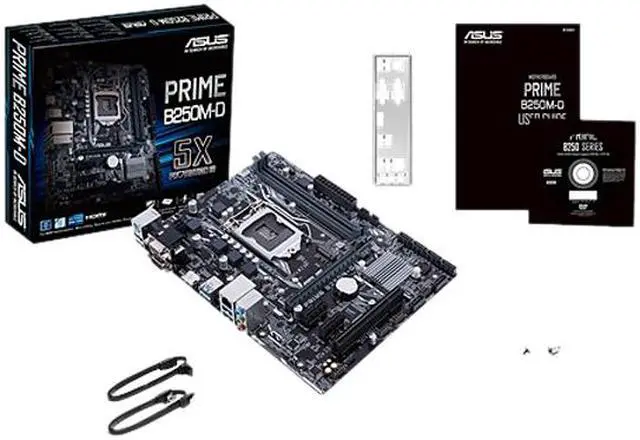

| Package Contents | Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD |
|---|
| First Listed on Newegg | December 30, 2024 |
|---|
