Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with integrated M.2 with Intel Optane Memory compatibility and USB 3.1 Gen2
5X Protection III Hardware-level safeguards provide component longevity and reliability
FanXpert 2+ delivers advanced fan control for dynamic cooling
ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

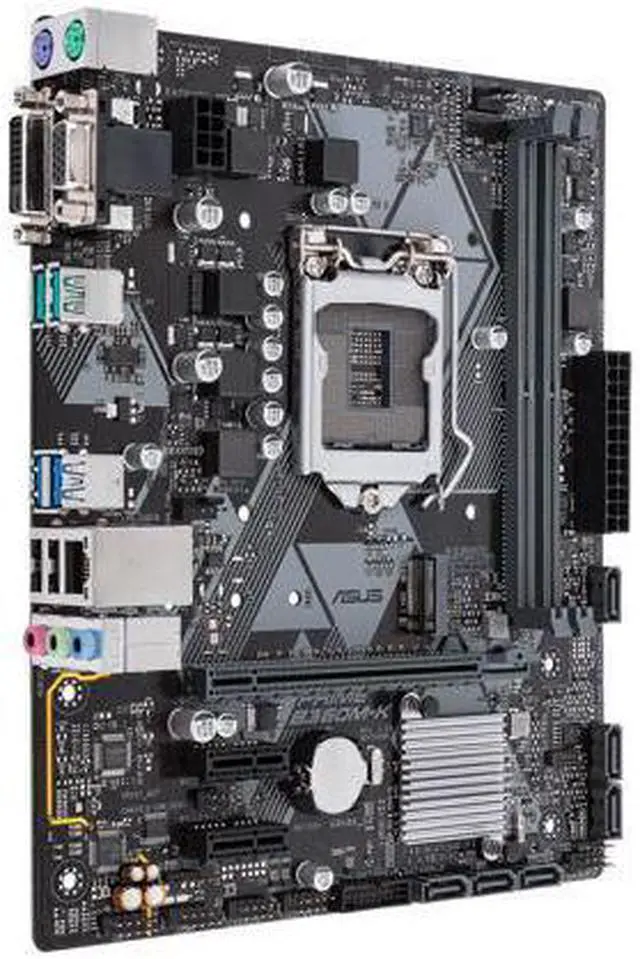

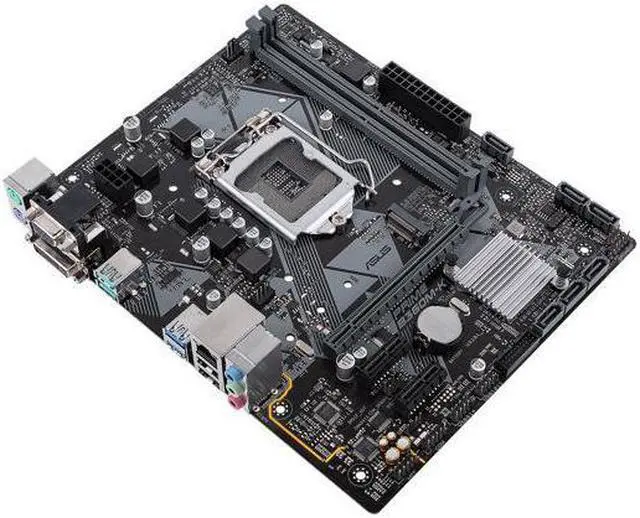

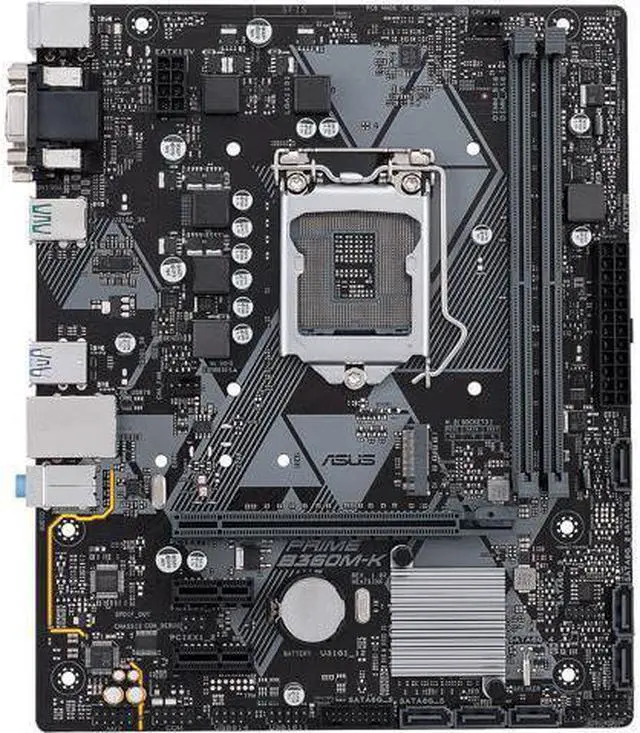

ASUS PRIME B360M-K - Motherboard - micro ATX - LGA1151 Socket - B360 - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Learn more about the ASUS PRIME B360M-K
Model
Brand
ASUS
Model
PRIME B360M-K
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Core i7 / i5 / i3 (8th Gen, LGA1151)
Supported CPU Technologies
Turbo Boost Technology 2.0
Chipsets
Chipset
Intel B360
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 2666
Maximum Memory Supported
32GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
PCI Express x1
2 x PCI Express x1
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
1 x M.2
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111H
Max LAN Speed
1Gbps

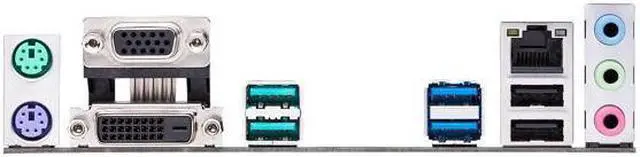

Rear Panel Ports
PS/2
2
Video Ports
D-Sub + DVI
RJ45
1 x RJ45
USB 3.1
4 x USB 3.1
USB 1.1/2.0
2 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.1 + 4 x USB 2.0
Other Connectors
1 x 4-pin CPU Fan connector for 4-pin (PWM mode) coolers control1 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control1 x Front Panel Audio connector (AAFP)1 x System panel connector1 x S/PDIF out header1 x Speaker header1 x Clear CMOS header1 x COM header
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
8.9" x 7.3"
Power Pin
24 Pin
Features
Features
ASUS Special Features:ASUS 5X PROTECTION III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability- ASUS DIGI+ VRM: 5 Phase digital power designSuperb Performance:ASUS OptiMem- Improved DDR4 stabilityM.2 onboard- The latest transfer technologies with up to 32Gb/s data transfer speedsASUS EPU- EPUUEFI BIOS- Most advanced options with fast response timeGaming Scenario:Audio Features - Audio that roars on the battlefieldASUS Exclusive Features:- ASUS AI Charger- ASUS AI Suite 3- ASUS File Transfer- ASUS PC CleanerEZ DIY:UEFI BIOS EZ Mode- featuring friendly graphics user interface- ASUS CrashFree BIOS 3- ASUS EZ Flash 3Q-Design- ASUS Q-DIMMASUS Quiet:Thermal SolutionQuiet Thermal Design:- ASUS Fan Xpert - Stylish Fanless Design: PCH heatsink solution BIOS:128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability:WOL by PME, PXESupport DVD:DriversASUS UtilitiesASUS EZ Update Anti-virus software (OEM version)Operating System Support:Windows 10 (64-bit)
Packaging
Package Contents
Accessories:- 2 x Serial ATA 6.0Gb/s cables- 1 x I/O Shield- 1 x M.2 Anchor- 1 x Support DVD- 1 x User's manual
Additional Information
First Listed on Newegg
December 25, 2024
