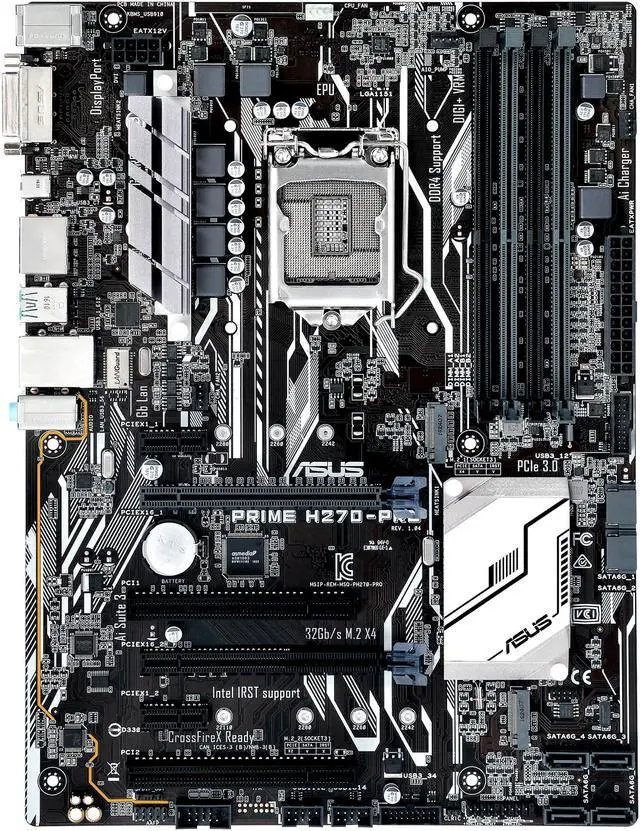

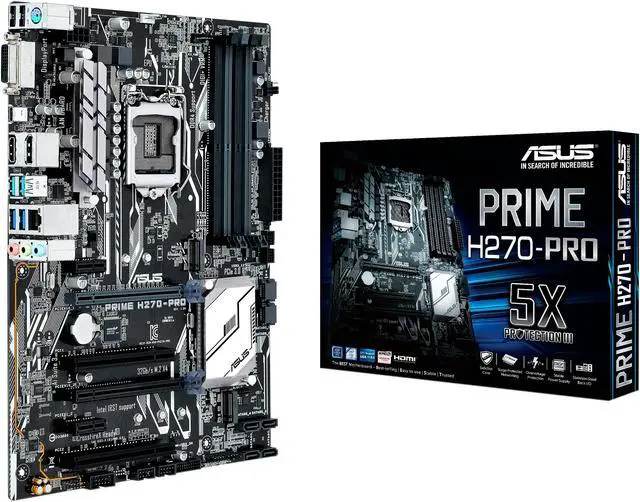

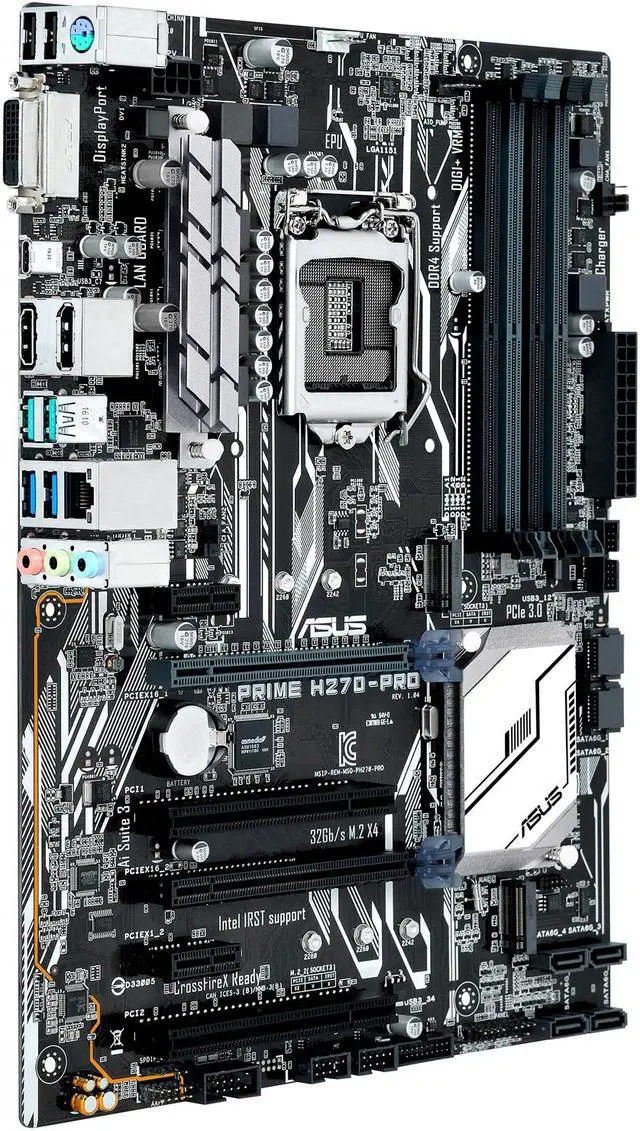

ASUS PRIME H270-PRO LGA 1151 Intel H270 HDMI USB 3.1 ATX Motherboards - Intel
- Intel H270
- Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
- * Not Compatible with Intel 8th Gen CPUs
- DDR4 2400/ 2133
- *Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
- * Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
- * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- * The maximum memory frequency supported varies by processor.
Specs
Reviews
Learn more about the ASUS PRIME H270-PRO
| Brand | ASUS |
|---|---|
| Model | PRIME H270-PRO |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors * Not Compatible with Intel 8th Gen CPUs |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel H270 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/DisplayPort 1.2 ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024MB Supports up to 3 displays simultaneously |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2400/ 2133 *Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. * Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0/2.0 x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s port(s), gray |
|---|---|
| M.2 | 1 x M.2 Socket 3*1, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3*2, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode) *1. When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. *2. When a device is installed on the M.2_2 socket, SATA_6 ports cannot be used. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

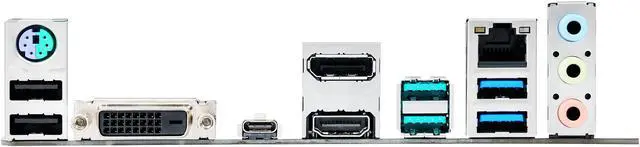

| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 2 x USB 3.1 Gen 2 (teal blue) 2 x USB 3.1 Gen 1 (blue) Type-A |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB Type-C | 1 x 5Gb/s port(s) USB Type-C (support 3A power output) |
| Audio Ports | 1 x 8-channel Audio I/O |
| Onboard USB | 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x AIO PUMP Header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.9" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) |
| Features | Multi-GPU Support: Supports AMD CrossFireX Technology Special Features: ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS EPU: - EPU ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc: Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Operating System: Windows 10 64-bit Windows 8 64-bit Windows 7 32-bit Windows 7 64-bit * Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors |
|---|

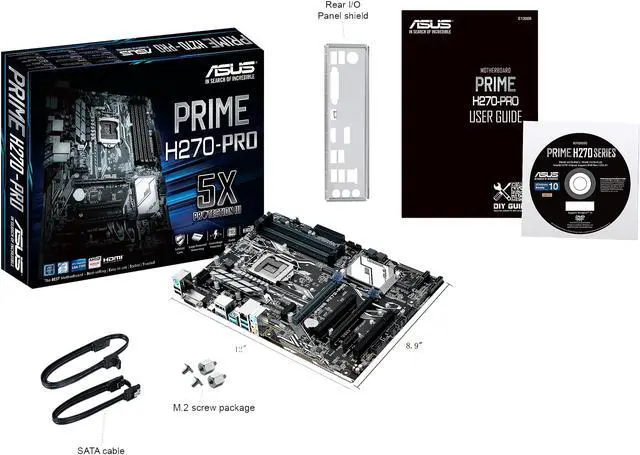

| Package Contents | Accessories: User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SCD |
|---|
| First Listed on Newegg | January 29, 2020 |
|---|
