Question 1

i was maybe gonna build ..intel i7-10700f cpu need motherboard to install gpu and sound blaster card .. i   have a tower . will need atx board ?

Accepted Answer

The ASUS PRIME Z590M-PLUS motherboard is a Micro ATX (mATX) board, not a full ATX board. It supports 10th Gen Intel Core processors like the i7-10700F and has expansion slots for a GPU and additional cards. However, if you specifically need an ATX form factor, this might not meet your requirement, as it is a Micro ATX board.

Question 2

Does this motherboard have a TPM 2.0 chip?

Accepted Answer

It must because I am running windows 11 on this board right now.
The TPM chip must be present to run win 11.

Question 3

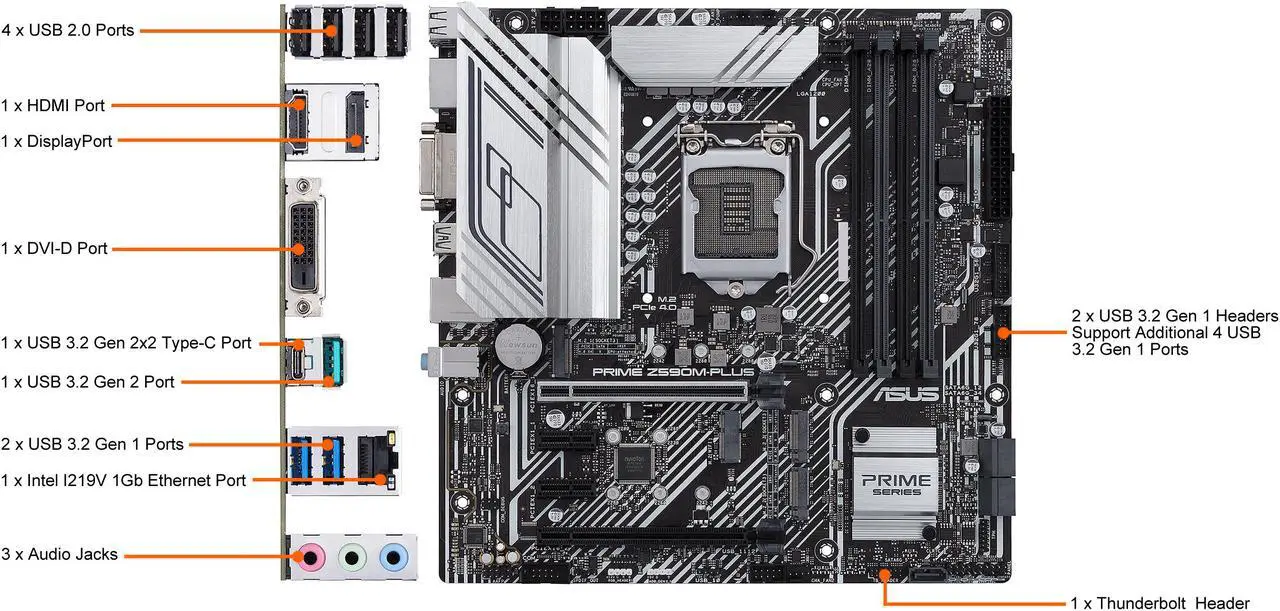

Can someone help confirm, pcie x16_2 (slot 2) at the corner edge, is that working fine?  the specification says only 1 pcie x16 but the board diagram has another pcie x16 slot 2.

Accepted Answer

The specifications mention that the motherboard has 1 x PCIe 4.0/3.0 x16 slot and 1 x PCI Express 3.0 x16 slot, as well as 2 x PCIe 3.0 x1 slots. Therefore, it does have two PCIe x16 slots as indicated by the board diagram.

Question 4

will i get 7.1 sound through the HDMI port ?

Accepted Answer

No, the 7.1 Surround Sound audio output requires a chassis with an HD audio module in the front panel, not the HDMI port.

Question 5

does this work with an RTX 3070 Ti?

Accepted Answer

The compatibility with an RTX 3070 Ti is not explicitly mentioned in the provided product information. However, the ASUS PRIME Z590M-PLUS motherboard has a PCIe 4.0/3.0 x16 slot which is generally compatible with modern GPUs including the RTX 3070 Ti.

Question 6

Does it have a port on the motherboard where i need to power the cpu?

Accepted Answer

Yes, the motherboard has a 1 x 8-pin +12V Power connector and a 1 x 4-pin +12V Power connector for powering the CPU.

Question 7

would i be able to put a m.2 wifi card in one of the slots?

Accepted Answer

I just received this mother board. Seems GREAT so far. Yes you can. For future reference you can find these user guides online, just search the model number.

Question 8

is this motherboard compatible with the intel core i7 8th gen prossesor ?

Accepted Answer

Only 10th & 11th gen processors are supported by this board.

Question 9

Does this support bluetooth?

Accepted Answer

The product information provided does not mention Bluetooth support.

CPU Socket Type	LGA 1200
CPU Type	Supports 11th Gen / 10th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* * 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Serial ATA (SATA)	5 x SATA 6Gb/s

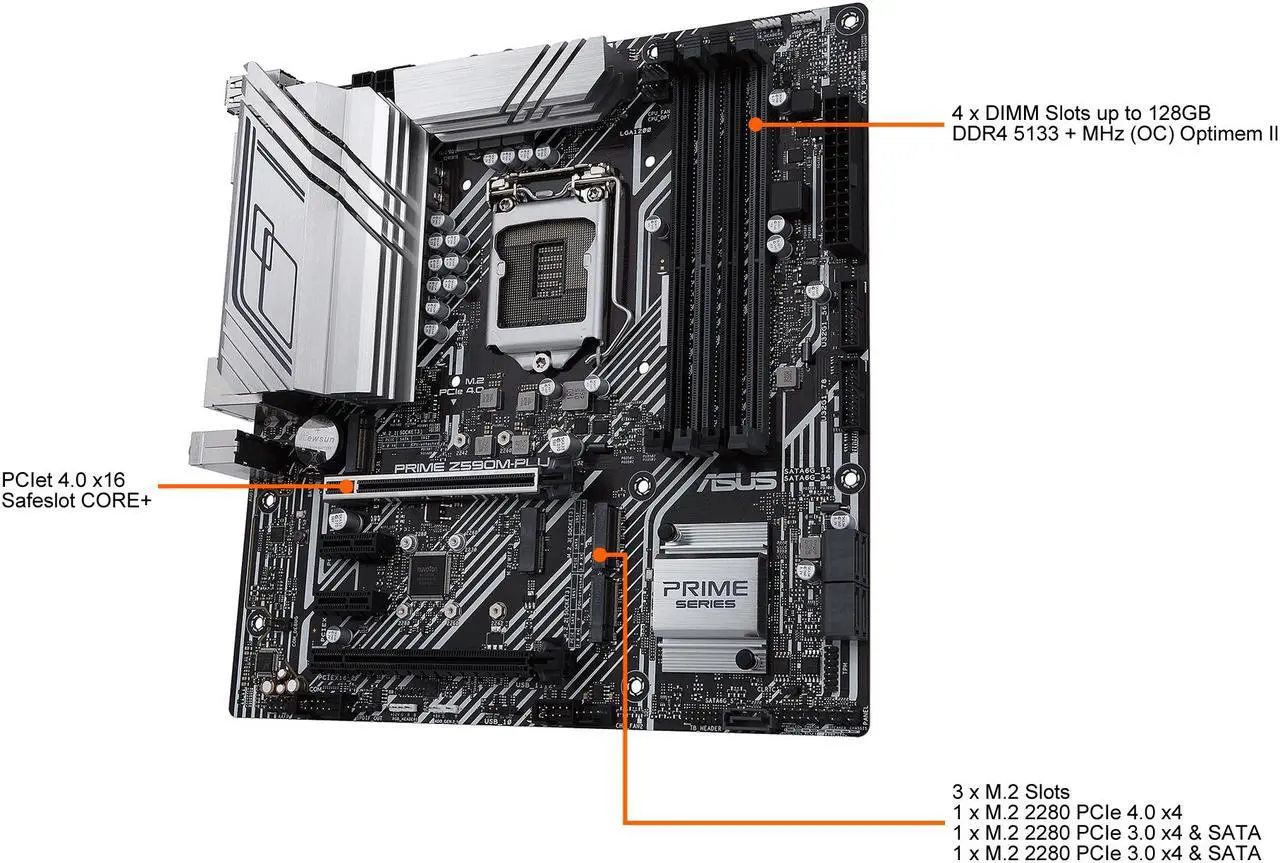

M.2	Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_1 port cannot be used.
Intel Optane Ready	Yes

Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Best Sellers

Meet Your Seller

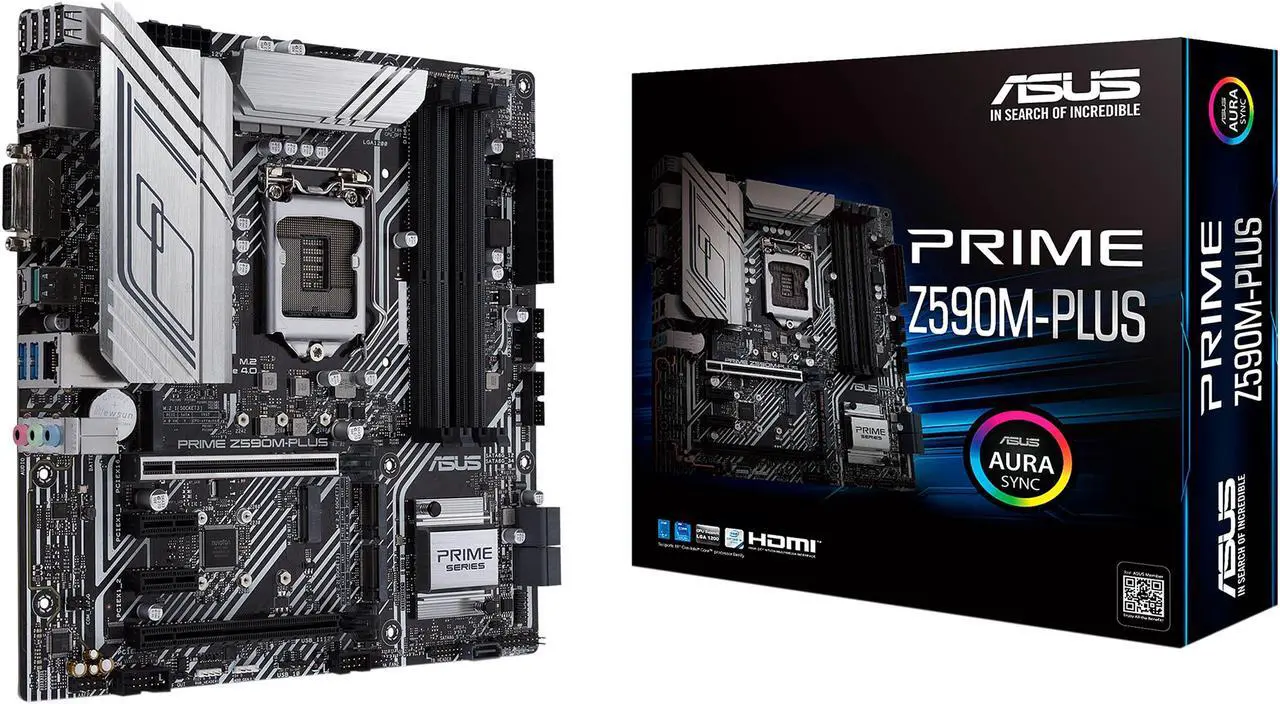

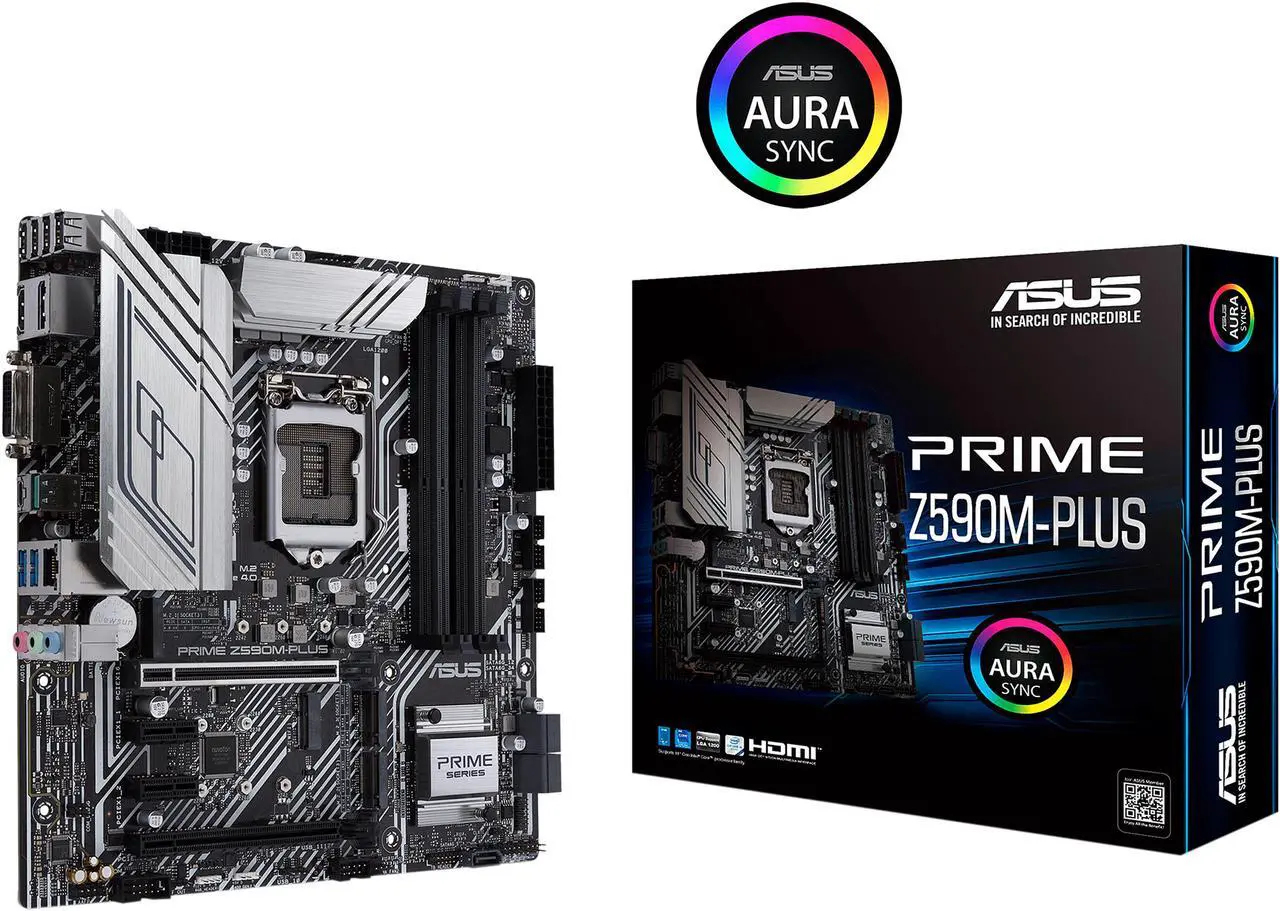

ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

Learn more about the ASUS PRIME Z590M-PLUS

Customer Reviews of the ASUS PRIME Z590M-PLUS

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

PCI Express 4.0 x16	1 x PCIe 4.0/3.0 x16 slot * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCIe 3.0 x1

Onboard USB	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports

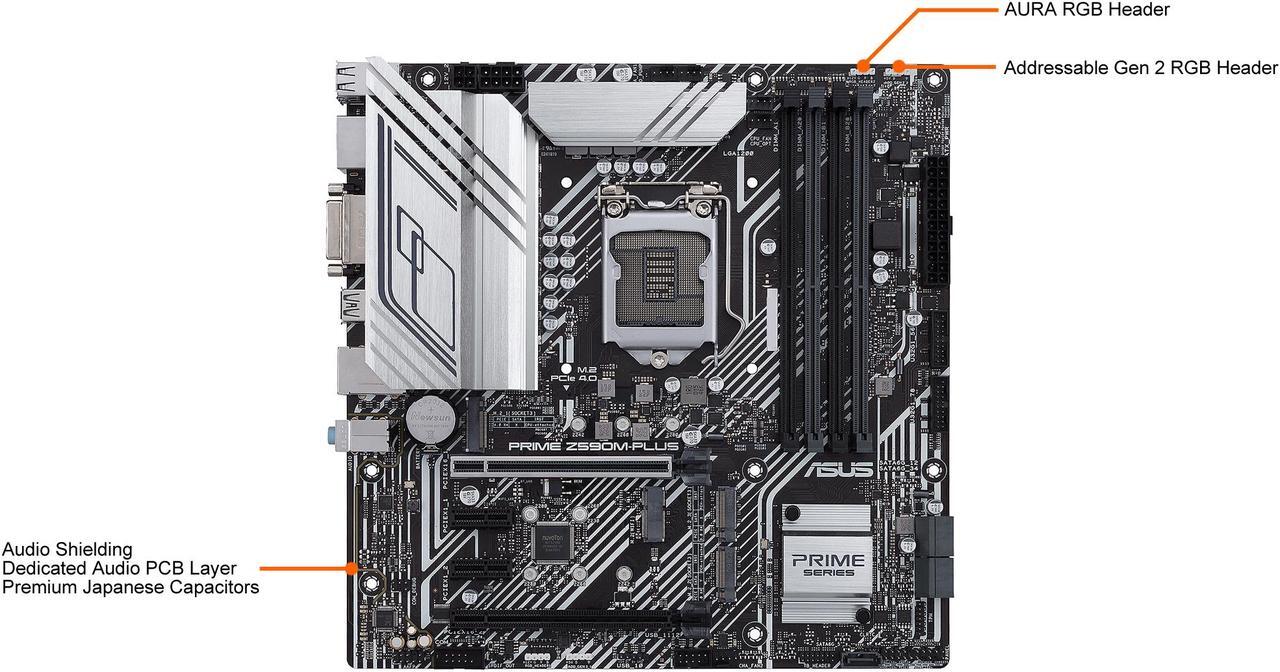

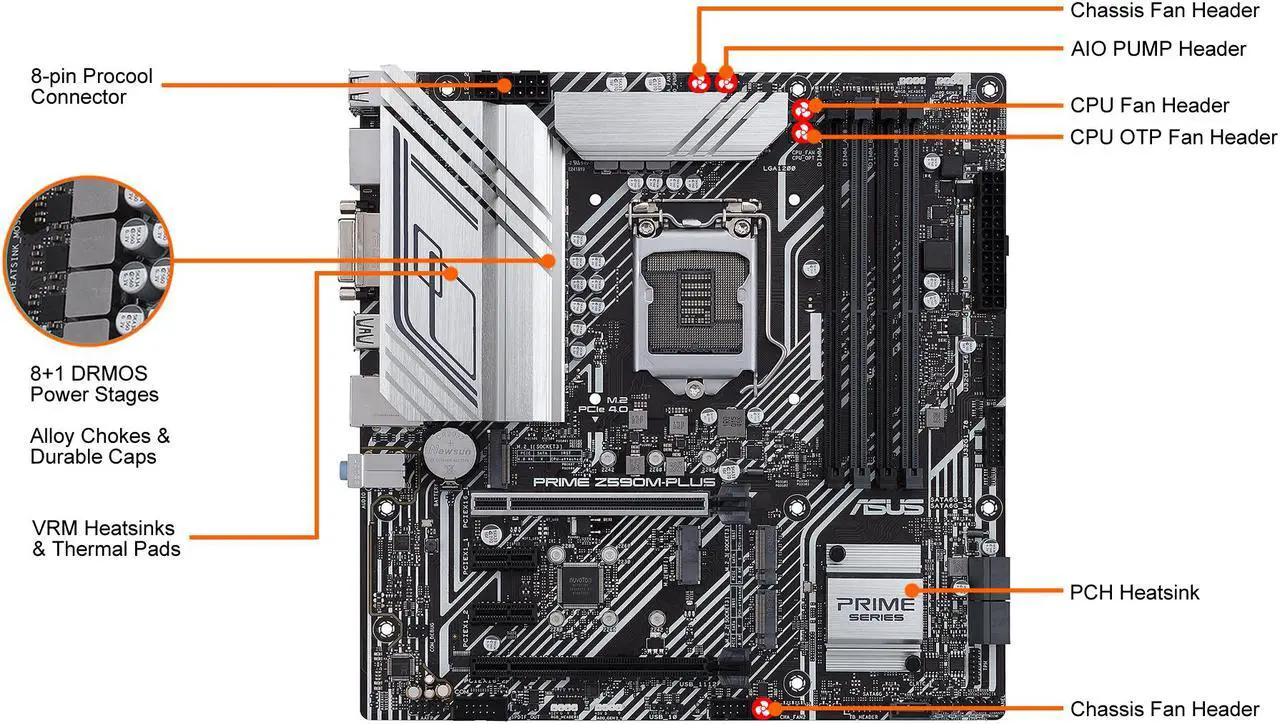

Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Item#: 9SIBTK0KAH5689
