ASUS DirectCU II Radeon R9 270X 2GB GDDR5 PCI Express 3.0 CrossFireX Support Video Card R9270X-DC2T-2GD5



20% Cooler, 3X Quieter

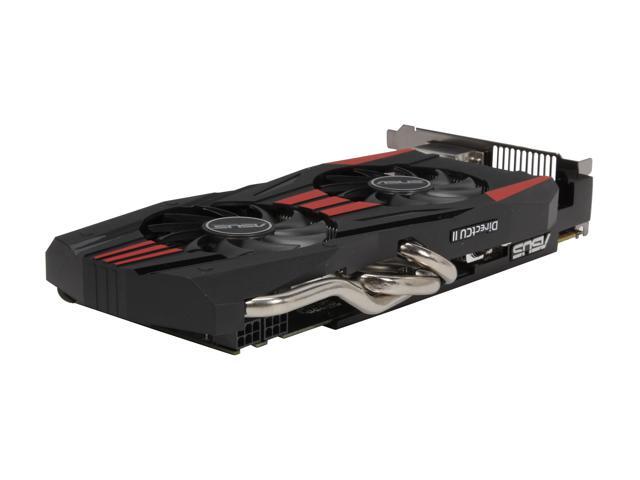

ASUS graphics card engineering leads the industry once again with the introduction of DirectCU II SSU thermal design. Comprising two "S" and one "U" shapes, the new heatpipes are precision shaped for optimal efficiency and heat transfer. They are also nickel-plated to minimize oxidization, with their mid-section now placed directly over the GPU die. This design shortens heat transfer travel to lower thermal resistance and create bi-directional flow for up to twice the cooling capacity in the same space as that required by existing graphics card cooler designs. High-conductivity copper used in heatpipe formulation creates tube-like vapor chambers, moving heat to a large aluminum heatsink that features extended fins for multiple points of dissipation. The assembly is further chilled by two high performance but carefully-tuned and sound-dampened fans for faster and quieter cooling.





1120MHz engine clock for better performance and outstanding gaming experience.





30% Less Power Noise and 2.5X Greater Durability
Acclaimed DIGI+ VRM has been applied via an 8-phase power design that uses digital voltage regulators to minimize power noise by 30%, enhance power efficiency by 15%, widen voltage modulation tolerance, and improve overall stability and longevity by 2.5 times over the reference design.





Real-Time Intuitive Graphics Tuning

• Shows detailed specs and actual card status with GPU-Z
• Sync GPU clocks and voltages for easier overclocking
• Monitoring widget provides real-time detailed multi-parameter info
• 2D/3D switcher locks cards in 3D mode for higher benchmarks
• Automatically checks and updates drivers and BIOS versions
• Stream on-screen action to the web in full HD





On-board memory for the best gaming experience and the best resolution.
