ASUS ROG Crosshair VIII Formula AMD X570 AM4 ATX Motherboard with PCIe 4.0, Dual M.2, SATA 6Gb/s, USB 3.2 Gen 2, 5Gbps LAN, Wi-Fi 6
- PRIME X570-P
- PRIME X570-PRO
- Pro WS X570-ACE
- ROG CROSSHAIR VIII FORMULA
- ROG CROSSHAIR VIII HERO
- ROG CROSSHAIR VIII HERO (WI-FI)
- ROG STRIX X570-E GAMING
- ROG STRIX X570-F GAMING
- TUF GAMING X570-PLUS
- TUF GAMING X570-PLUS (Wi-Fi)
- BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.
- High-performance networking: On-board Wi-Fi 6 (802.11 ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
Learn more about the ASUS CROSSHAIR VIII FORMULA
| Best Seller Ranking | #57 in AMD Motherboards |
|---|
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | CROSSHAIR VIII FORMULA |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | AMD AM4 Socket AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors Processors * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. |
| Chipset | AMD X570 |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | 3rd Gen AMD Ryzen Processors DDR4 4800(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory 2nd Gen AMD Ryzen Processors DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (x4 mode) |
|---|---|
| PCI Express x1 | 1 x PCIe 4.0 x1 |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | 3rd Gen AMD Ryzen Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode) AMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support |
| SATA RAID | 0/1/10 |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220 |
|---|---|
| Audio Channels | 8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio. |
| LAN Chipset | Aquantia AQC111C |
|---|---|
| Second LAN Chipset | Intel I211-AT |
| Max LAN Speed | 100/1000/2500/5000Mbps + 10/100/1000Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 |
| Bluetooth | Bluetooth 5.0 |

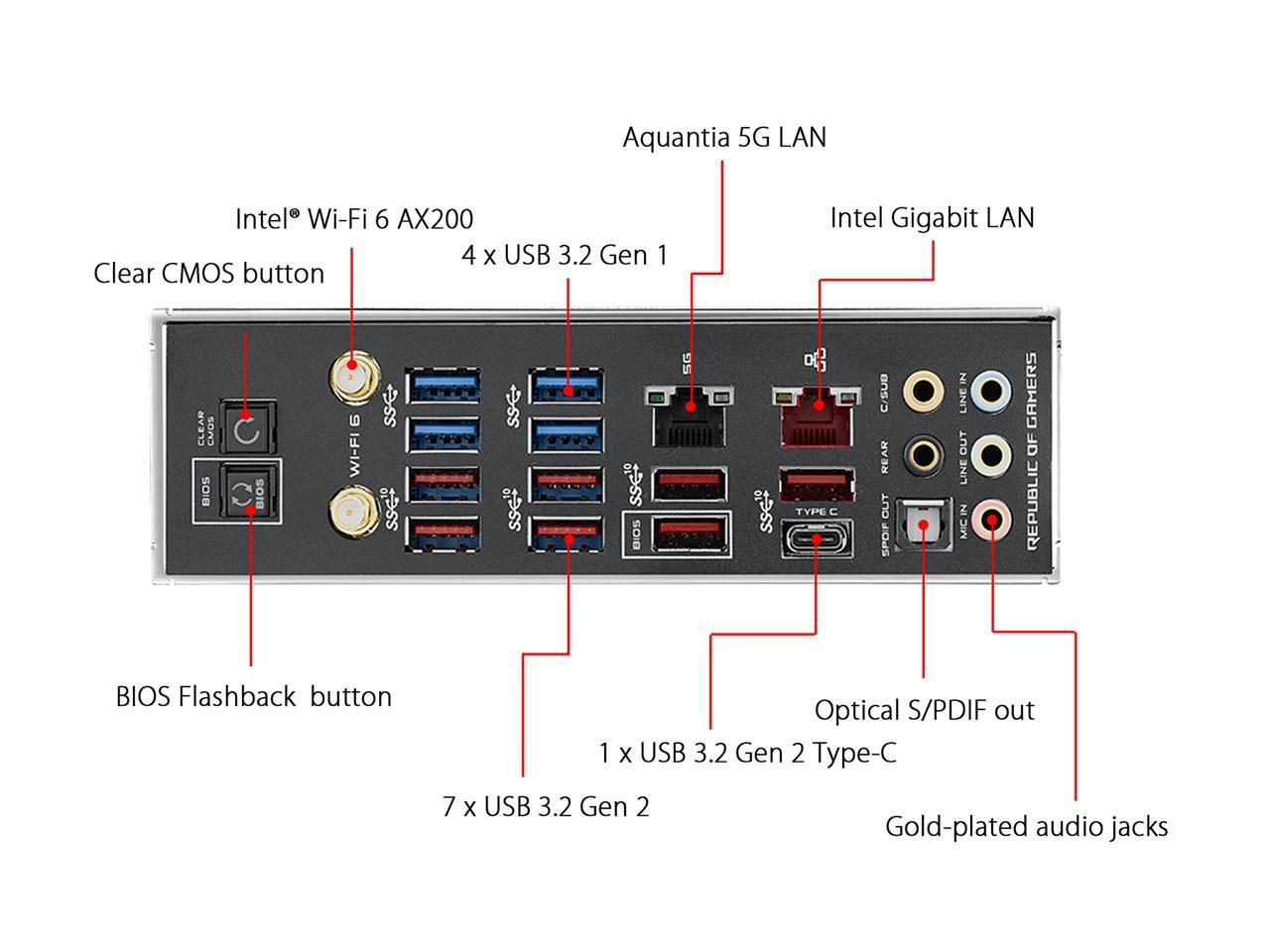

| Back I/O Ports | 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi Module 1 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports (7 x Type-A, 1 x Type-C) Anti-surge LAN (RJ45) port 1 x AQC-111C 5G LAN port |
|---|
| Onboard USB | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |
|---|---|

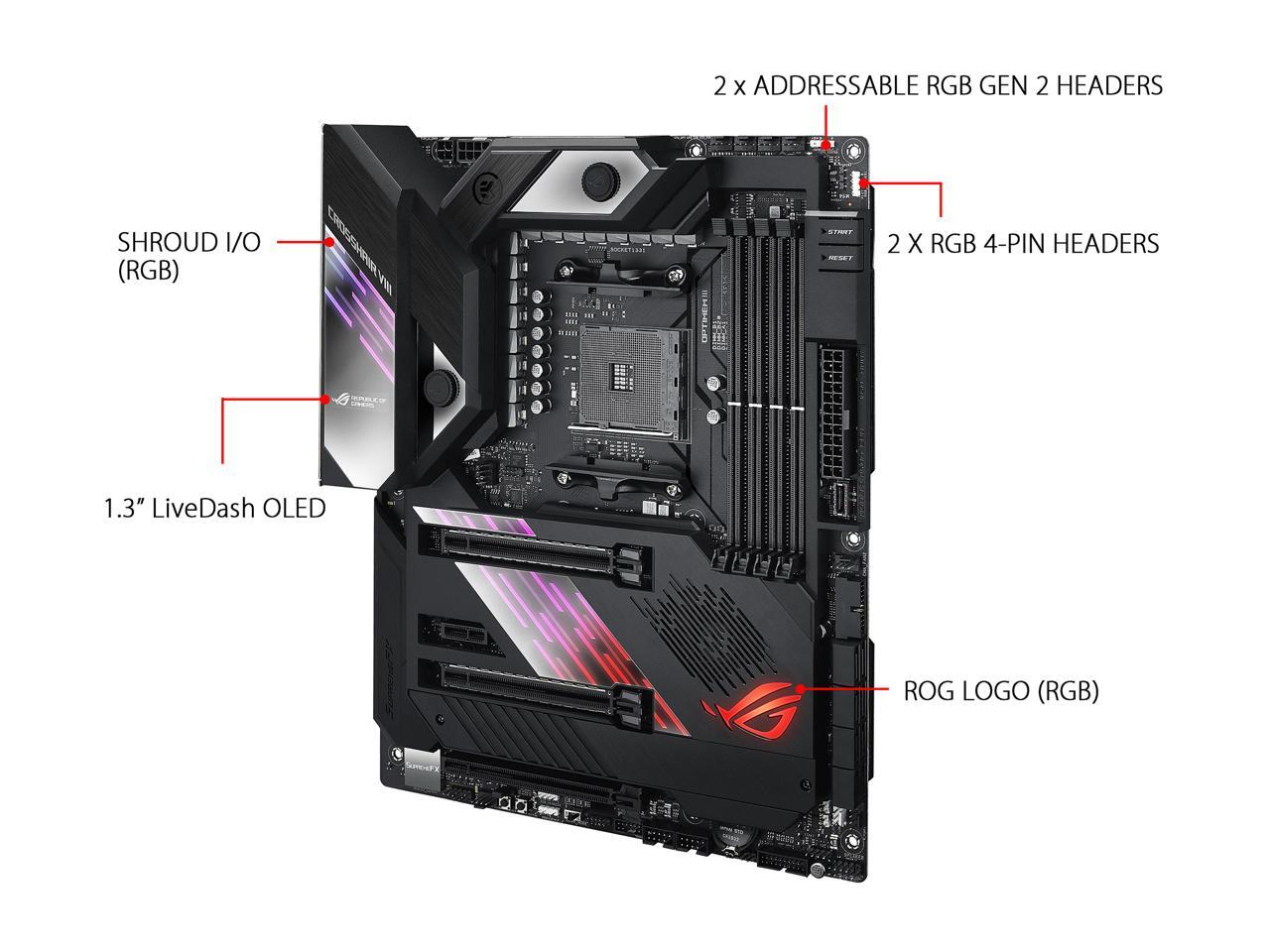

| Other Connectors | 1 x PCH_FAN 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x LN2 Mode header(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Node Connector(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Speaker connector |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
| Features | Multi-GPU Support: 3rd and 2nd Gen AMD Ryzen Processors Supports NVIDIA 3-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology ROG Exclusive Features: ROG RGB Armor Start Button Reset Button ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+: - IR3555 PoweIRstage - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit: - Safe Boot button - Slow Mode - LN2 Mode UEFI BIOS features: - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview USB BIOS Flashback Crosschill EK III ROG Unique Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III - Overwolf Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian: - DRAM Overcurrent Protection - 10K Black Metallic Capacitors - ESD Guards on LAN, Audio,and USB ports ASUS SafeSlot - Protect your graphics card Investment LiveDash OLED AURA: - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features: - USB BIOS Flashback - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - BIOS Flashback Button - Clear CMOS Button ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector BIOS: 256MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 Manageability: WOL, PXE Operating System: Windows 10 64-bit |
|---|
| Package Contents | Accessories: User's manual 1 x ROG logo plate sticker 4 x SATA power cable 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card |
|---|
| Date First Available | July 07, 2019 |
|---|
Pros: Great build quality lots of expandability and connectivity. wifi included
Cons: A couple of design issues prevent things from fitting 100%....specifically.... 1. The m2 slot sits under the second PCIe slot. This probably would not have been a problem, but my m2 drive had an installed HS, so if I had tried to put the GPU into this slot the GPU HSF would not have cleared the m2 drive heatsink. Also the m2 coverplate will not fit back on if you get an m2 drive with a HS, I just left it off, don't think this is terrible. Not really a big deal...except it exposed issue #2 2. Had to mount GPU in slot 1, fine no problem....except that I had a Noctua DH-15 ...that HS was too wide based upon the location of the cpu. If the board had been designed with the cpu 2 mm to the north it would have cleared GPU, but as it was the HS is right up against the GPU backplate, and I couldn't install the fan. I switched out to a corsair A500 and it fit (running cool and quiet, but their are some sub-optimal issues with A500 also -- I lapped the A500 though and seemed to improve the interface)
Overall Review: Every build has its its quirks. The cons above were not terribly big issues, everything worked and fit in the end, so quite happy. Note in the photos the board is great looking and has a lot of amazing features...but with the CPU HSF in place you cant even seen it!! The board is designed for a water cooled build in mind. I was initially planning to do this, but I haven't committed yet (or been able to find a GPU) so I will probably convert to a liquid cooled build when I update my GPU.
Pros: Very fast attractive board, lots of USB connections, plenty of SATA ports and a lot of features..
Cons: First board I got failed and had to RMA it due to a USB over-current error. The board would not get past this error. I RMA the board and received another board and all seems ok now. That being said, I will have to say that while I was disappointed with this issue I am still an avid ASUS fan.. I've been buying nothing but ASUS motherboards and other PC related items for over 20 years and this was my first problem ever! My first motherboard from ASUS was the A7V-133 then the A7N8X Deluxe other items by ASUS that I have owned are the Asus A8N-E, Asus M5A99X EVO R2.0, the Eee PC, ZEN pad 3S and several other items. Thanks to ASUS for fixing my issue with no hassles..
Overall Review: Over-all I do believe this board will service me great over the next few years.
Pros: Great VRM and cooling and dual usb 3.0 front io headers, not many boards have dual usb 3.0
Overall Review: Great Motherboard for enthusiast i bent one of my usb 3.0 headers by accident but it has dual so its nice. I use it without vrm block on water yet but the back Armor and the oled screen is nice gives post code readouts. i had to bios flash just saying for my 5950x but a nice board for enthusiast
Pros: DRGB Works ! Now at least. Fixed my error. VRM's never get hot ! 19c is the highest ive seen at my ambient temperature.
Cons: Initial bios has wonky PBO that wont boost to processors boost speed. But, manual OC on CCX0 in Ryzen master does the trick there. Not knocking off an egg for early bios deals. They'll get better and I can maybe switch back to PBO .
Overall Review: I initially thought I had RGB problems on my board, but after some tinkering I found that I installed the connector wrong :o DRGB connectors arent dummy proof ! but, that does make them backward compatible with normal RGB headers I suppose. Would be nice if the arrow on the EK-Velocity block pointed at the ground pin, not the 5V pin :3 Was what I assumed at first. I'm new to RGB headers :|
Pros: * Solid, with a metal backplate. * Comes with supports for the stock Ryzen cooler pre-installed. * BIOS update was trivial. * Driver disk didn't try to install too much shovelware. * Attractive.
Cons: * Documentation leaves a little to be desired here and there, and some of the illustrations are confusing (e.g., putting the standoffs in to support the M.2 drives). * I still have no idea how to assemble the included WiFi antenna on its base. I ended up cracking the plastic base. Not a big deal, but a good example of where a couple words or a good illustration could have gone a long way. * If you have M.2 devices with their own heatsinks, you likely won't be able to insert a card into the nearby PCI slot. The board includes a heatspreader cover for the M.2 drives, but you can't use that in conjunction with your M.2 devices' own heatsinks.
Overall Review: I'm a noob when it comes to building PCs. This is only my second, and my first was many years ago. This board is a dream, with the metal backplate to give it rigidity, the mounting hardware for the stock AMD cooler already installed, and well marked connectors all around. Many of the complaints in the other reviews seem to be about the water cooling features. I'm not taking advantage of water cooling, so I can't speak to those issues.
Pros: nice looking board comes with water block attached
Cons: First board i recieved had a bad chip causing cpu to run hot cause it wasnt aloud to lower voltage
Overall Review: i bought this board in july of 2019 and was excited to finally have flagship board as i had only ever used low end boards before.within 2 months had to rma the first board due to voltage issues got the replacement in and had been running it until for little over a year when i decided to change cases.i removed the motherboard to find that the backplate had come off the motherboard and was laying in the case.side note my computer stays on a desk,has never been dropped mishandled or even moved more than five feet to clean it in the time it spent in the old case.i contacted asus about the issue and was told that it would be classified as physical damage and that i could send it in but i would void the warranty.really disappointed in the quality of the board and honestly feel like i got slapped in the face cause i choose to support a company by buying the (best) board they could put out.
Pros: very well constructed
Cons: just the bios flash
Overall Review: I would recommend this mother board
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Replacement Only Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-739-3777
- Support Website
- View other products from ASUS
Pros: -Watercooled VRM option -plenty of sata ports for more drives
Cons: -does not have much options for water cooling the VRM due to space availability for top mounted radiator with fans. Rad/fans blocks VRM ports for 16mm OD rigid tubings.
Overall Review: -recommend new placement for VRM ports for accessibility compatibility or custom mono block for Crosshair VIII formula.
