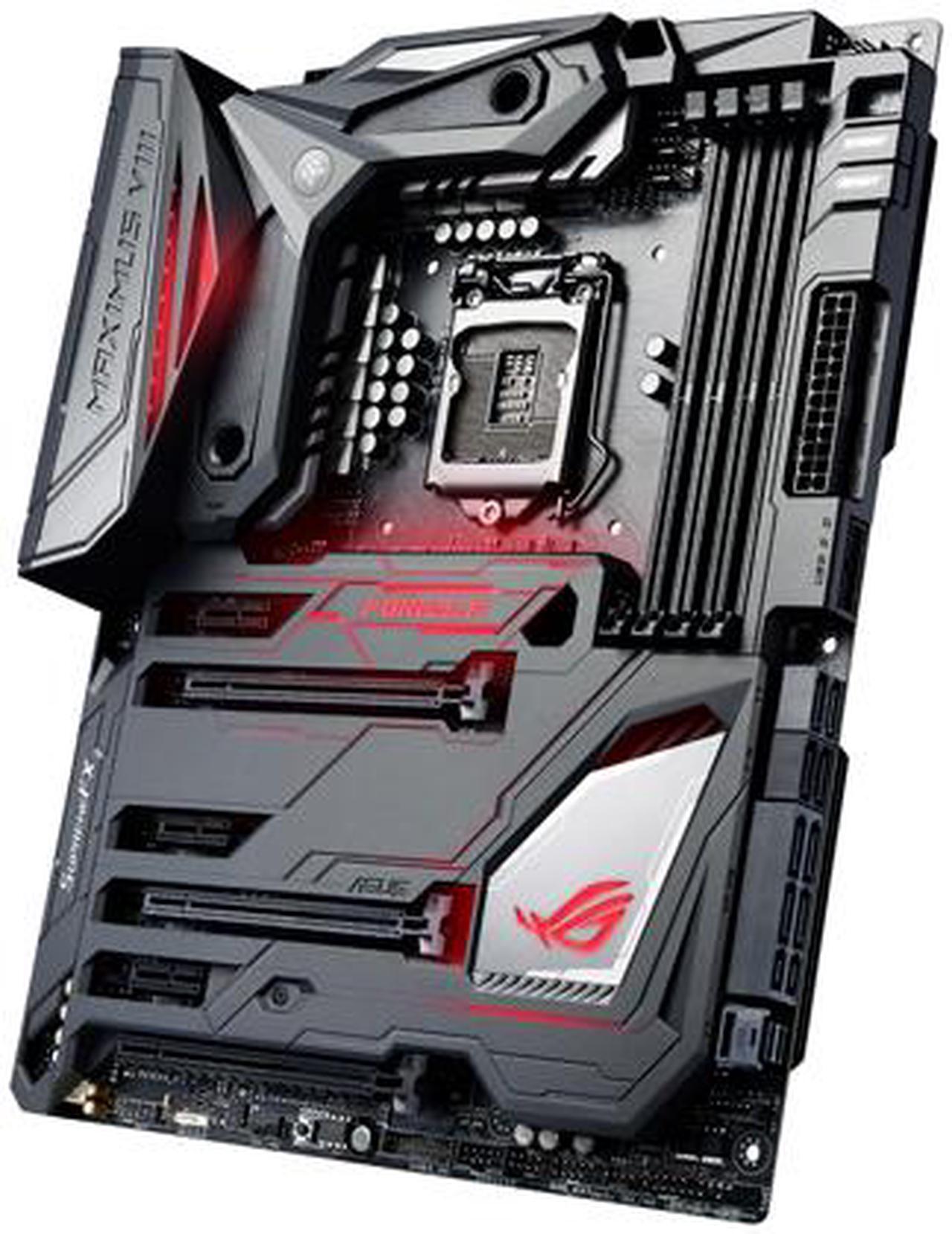

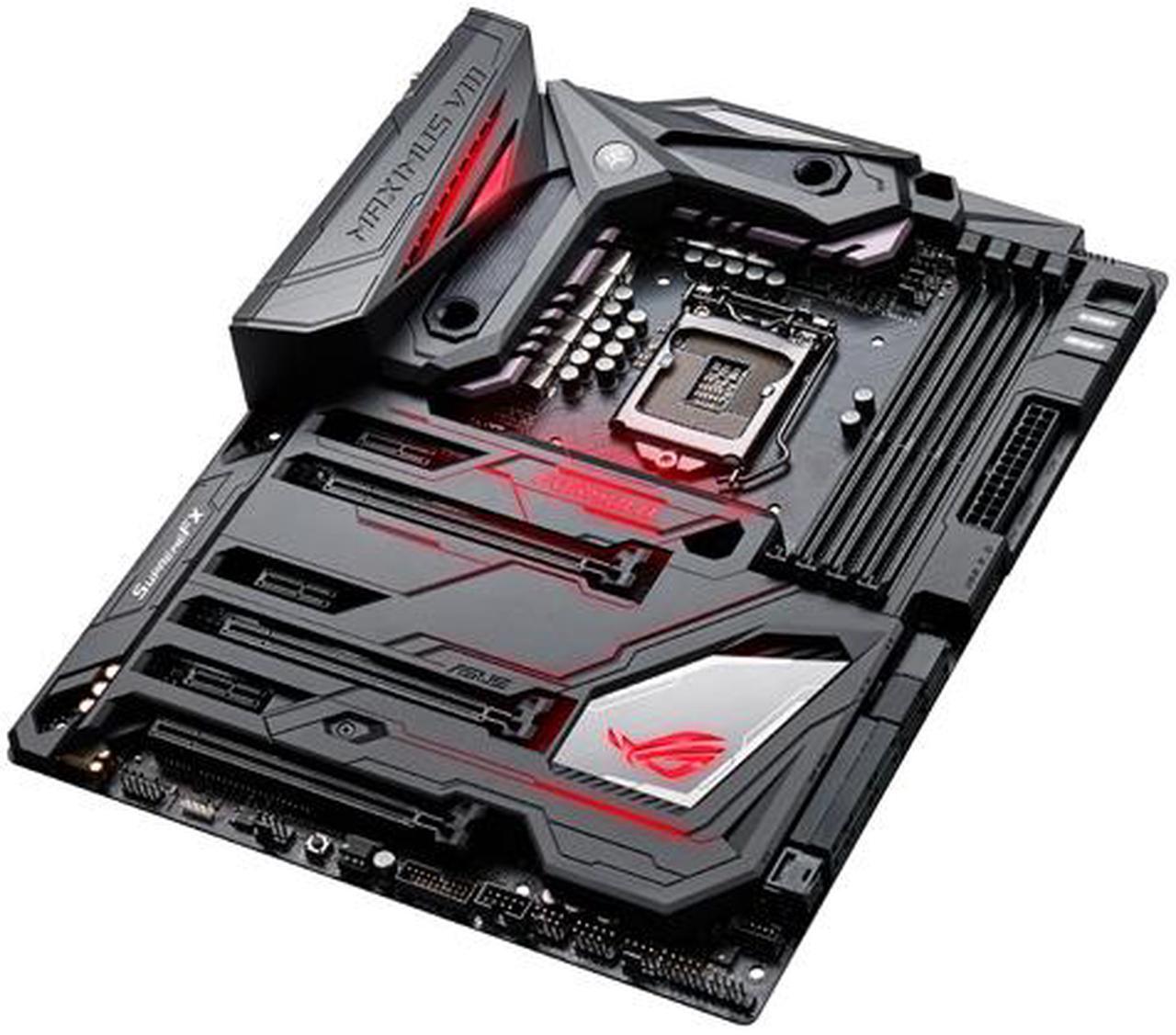

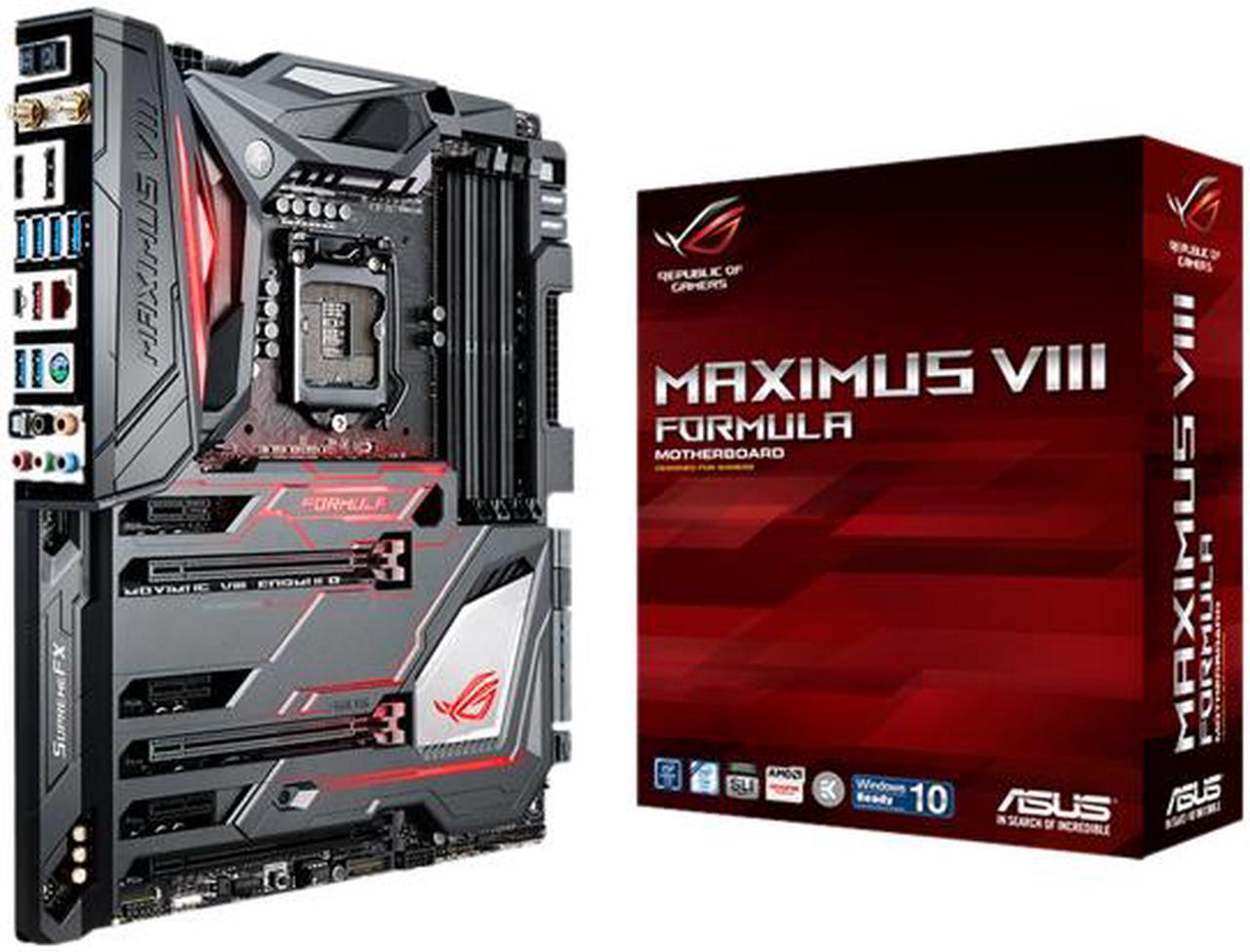

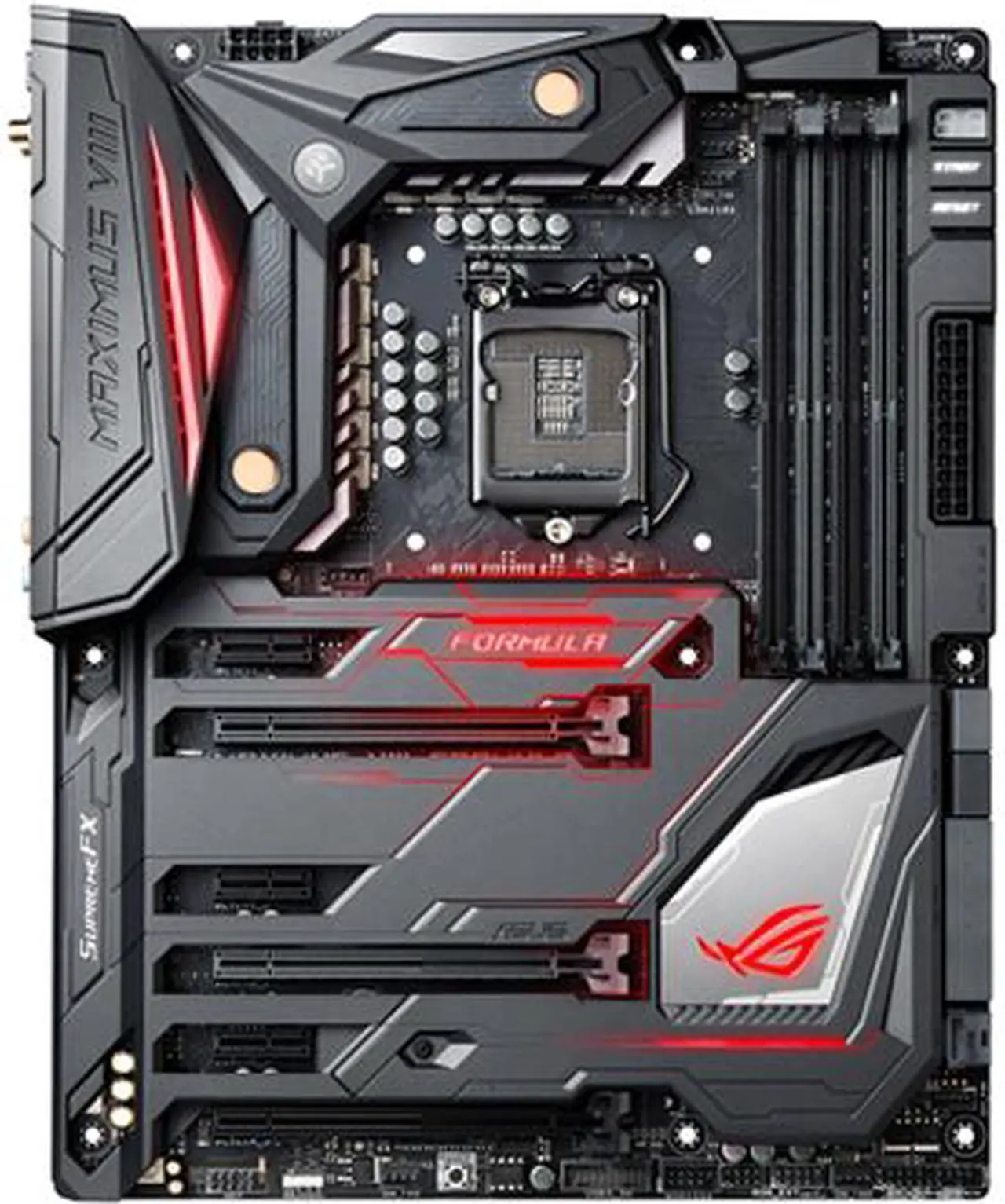

ASUS ROG MAXIMUS VIII FORMULA LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Used - Very Good

5-way Optimization with 1-click overclocking

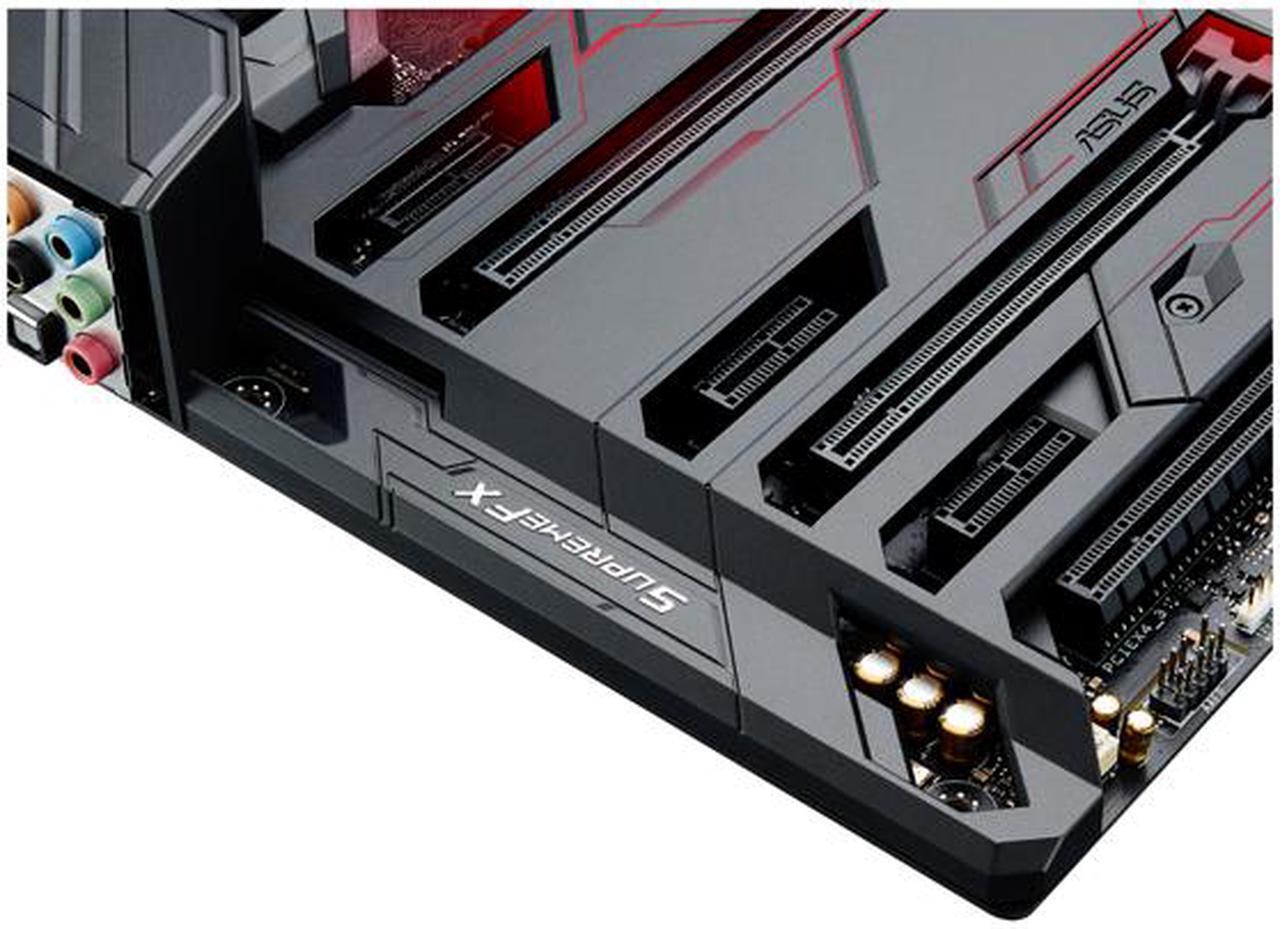

Reinvented SupremeFX 2015 Audio with top-to-bottom upgrades
Intel Gb LAN & MU-MIMO 2T2R 802.11ac for lag-free gaming

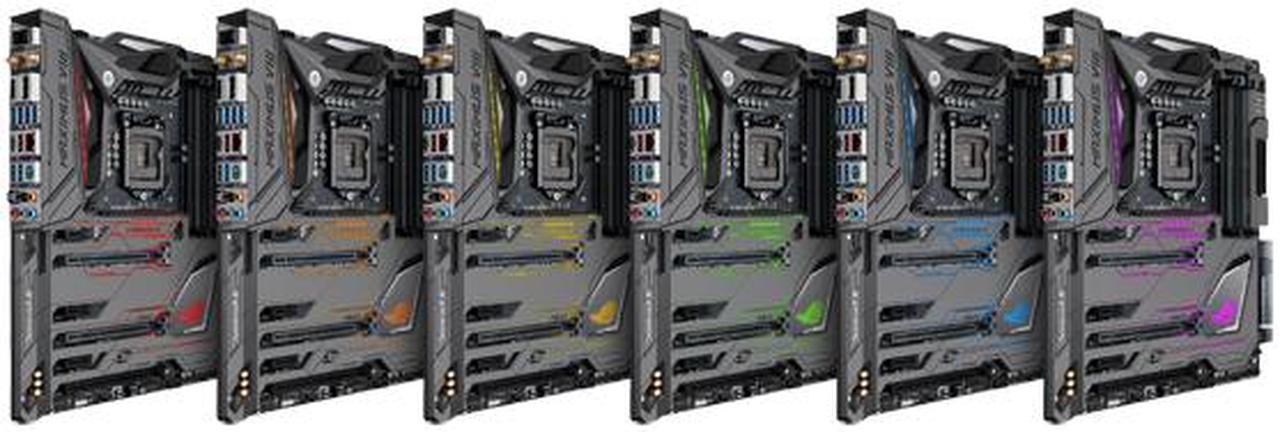

LED Lighting and Aura Flex RGB headers for a personalized look

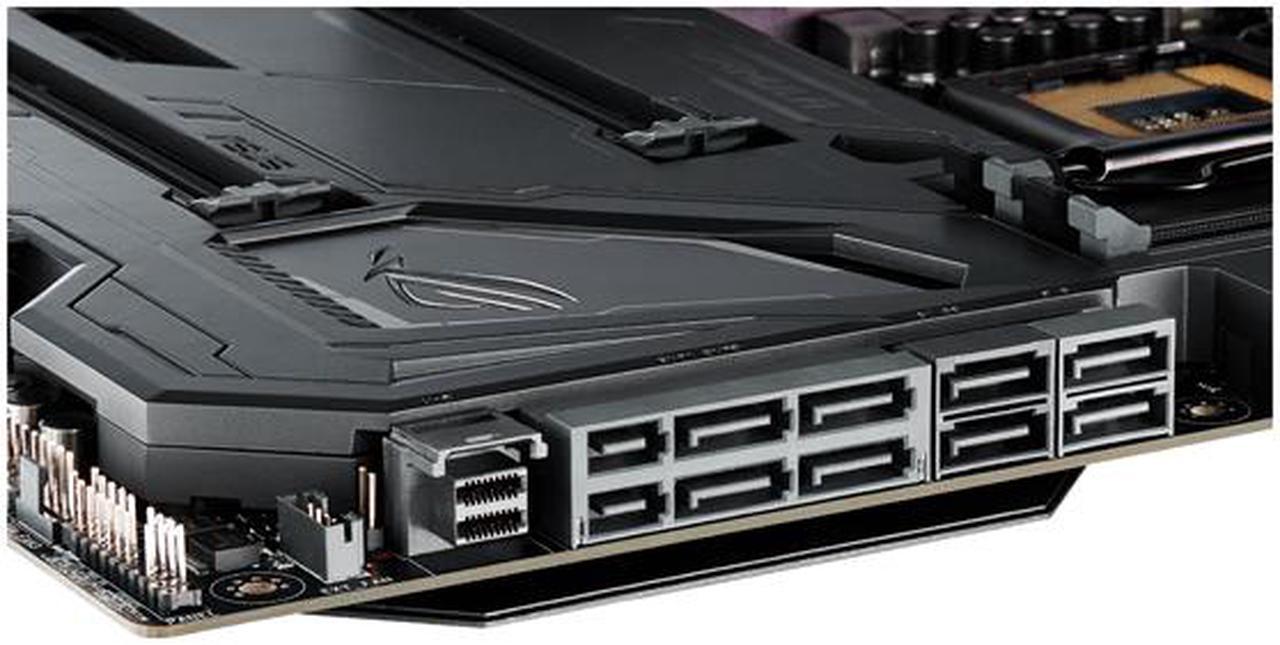

Dual U.2 + M.2 + SATA Express for uncompromising storage speeds

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
This item is covered by Smith's Computer Market Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3733(O.C.)/ 3600/ 3500/ 3466/ 3400/ 3300/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray) 1 x PCIe 3.0/2.0 x16 (x4 mode, black)
PCI Express x1	3 x PCIe 2.0 x1 (black)
Other Slots	3 x PCI Express 2.0 x1

SATA 6Gb/s	6 x SATA 6Gb/s port(s), by Intel Z170 chipset 2 x SATA 6Gb/s port(s), black, by ASMedia ASM1061 controller 3 3: These SATA ports are for data hard drives only. ATAPI devices are not supported.
SATA Express	2 x SATA Express port
M.2	1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) 1 1: The The M.2 slot shares bandwidth with U.2 slot and SATA Express 1 slot.
SATA RAID	0/1/5/10

Audio Chipset	ROG SupremeFX 2015
Audio Channels	8 Channels

LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

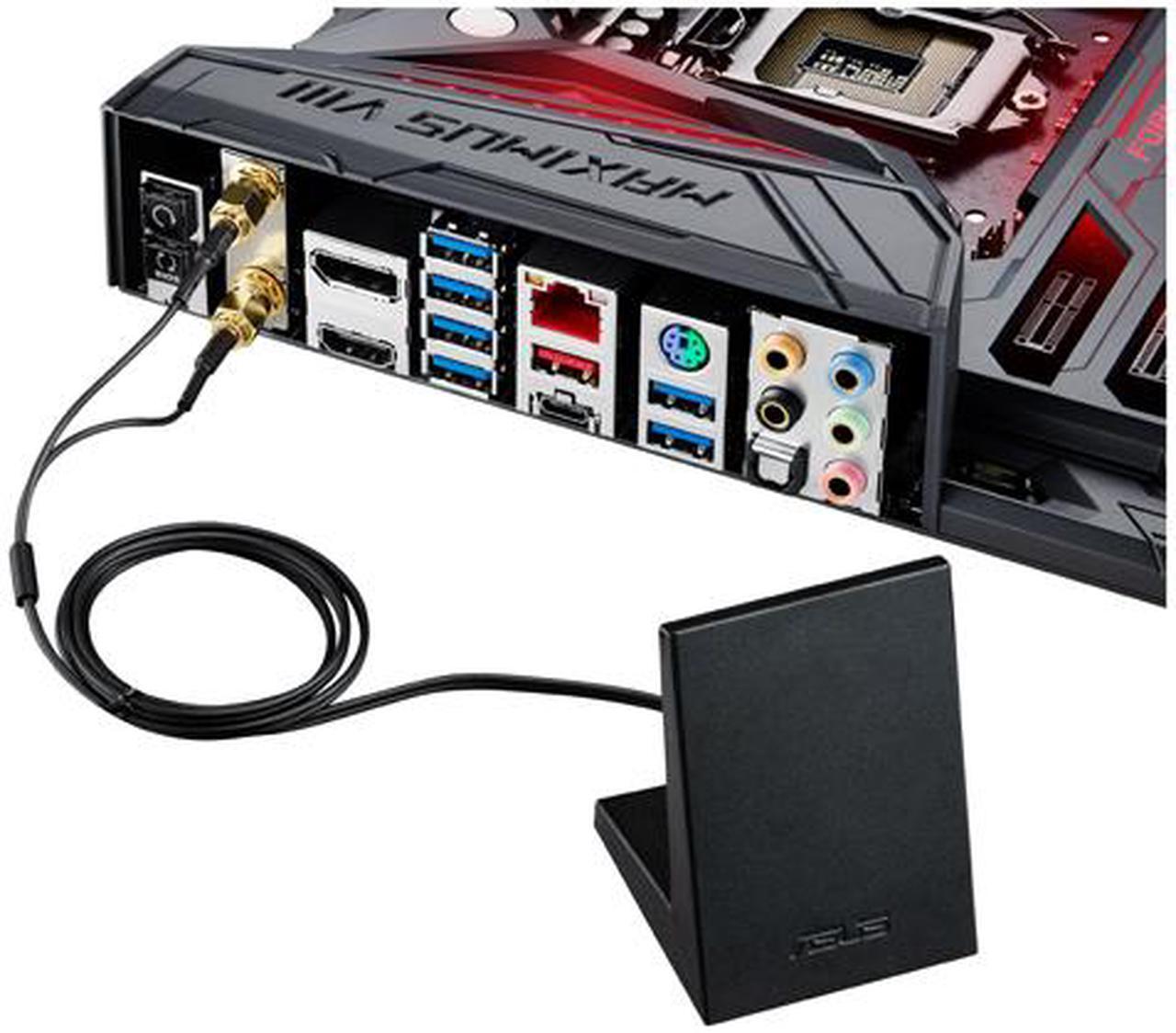

Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth	Bluetooth V4.1

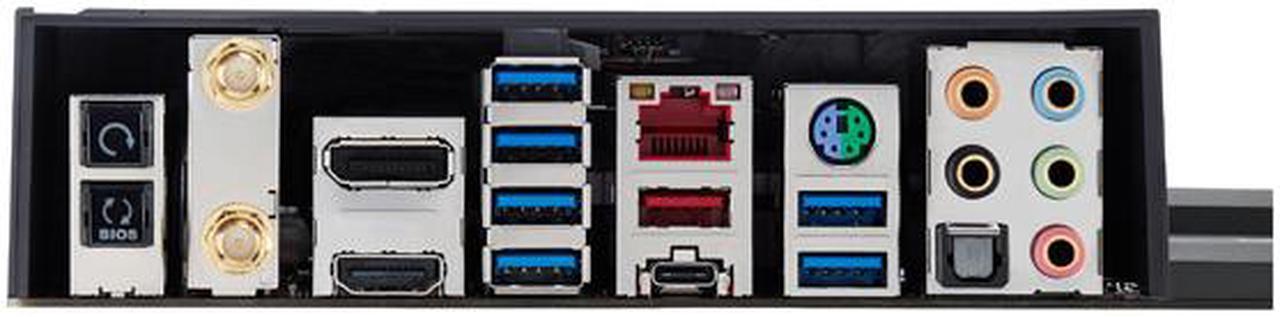

PS/2	1 x PS/2 keyboard/mouse port
HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.1	1 x USB 3.1 (red) Type-A 1 x USB 3.1 (black) Type-C
USB 3.0	8 x USB 3.0 (blue)
S/PDIF Out	1 x Optical
Audio Ports	5 Ports
Antenna Connectors	2 x Wi-Fi antenna port(s)

Onboard USB	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x U.2 port 1 x Aura RGB Strip Headers 1 x CPU Fan connector(s) (4-pin) 1 x CPU OPT Fan connector(s) (4-pin) 4 x Chassis Fan connector(s) (4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 3 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Water Pump header (4-pin) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x System panel connector

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin
