Brand | ASUS |
---|---|
Series | ROG |

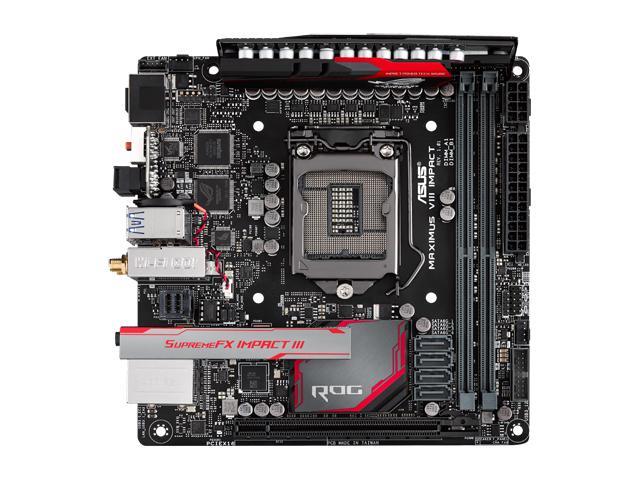

Model | MAXIMUS VIII IMPACT |
CPU Socket Type | LGA 1151 |
---|---|
CPU Type | Intel Socket 1151 for 7th/6th Generation Core i7/i5/i3/ Pentium / Celeron Processors * Refer to www.asus.com for CPU support list * Not Compatible with Intel 8th Gen CPUs |
Supported CPU Technologies | Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
Chipset | Intel Z170 |
---|
Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
---|
Number of Memory Slots | 2x288pin (DDR4) |
---|---|
Memory Standard | DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3500(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Maximum Memory Supported | 32GB |
Channel Supported | Dual Channel |
PCI Express 3.0 x16 | 1 x PCIe 3.0/2.0 x16 (x16 mode, black) |
---|
SATA 6Gb/s | 4 x SATA 6Gb/s port(s), gray |
---|---|
M.2 | 1 x U.2 port, black |
SATA RAID | 0/1/5/10 |
Audio Chipset | ROG SupremeFX Impact III High Definition Audio CODEC |
---|---|
Audio Channels | 5.1 Channels |
LAN Chipset | Intel I219-V |
---|---|
Max LAN Speed | 10/100/1000Mbps |
Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO |
Bluetooth | Bluetooth V4.1 |
HDMI | 1 x HDMI |
---|---|
RJ45 | 1 x RJ45 |
USB 3.1 | 1 x USB 3.1 Gen 2 (black) Type-C 1 x USB 3.1 Gen 2 (red) Type-A 4 x USB 3.1 Gen 1 (blue) |
S/PDIF Out | 1 x Optical |
Audio Ports | 3 Ports |
Antenna Connectors | 2 x Wi-Fi antenna port(s) |
Onboard USB | 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) |
---|---|
Other Connectors | 1 x CPU Fan connector(s) (4-pin) 1 x Chassis Fan connector(s) (4-pin) 1 x Front panel audio connector(s) (AAFP)* 1 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x LN2 Mode jumper(s) 1 x Slow Mode jumper(s) 1 x SupremeFX Impact III connector 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 1 x System panel connector * AAFP connector is built-in on the SupremeFX Impact III card |
Form Factor | Mini ITX |
---|---|
Dimensions (W x L) | 6.7" x 6.7" |
Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) |
Features | ROG Exclusive Features: Slow Mode ROG RAMCache Overwolf SupremeFX Impact III Start Button Reset Button LN2 Mode Impact Power III: - MicroFine Alloy Chokes - 10K Black Metallic Capacitors - IR3553 PowIRStage MOSFETs Mem TweakIt ProbeIt KeyBot II - One-click Overclocking - X.M.P. - DirectKey - ClrCMOS - Power On UEFI BIOS features: - O.C. Profile - GPU.DIMM Post - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview ROG RAMDisk Extreme Tweaker Special Features: OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App ASUS Wi-Fi GO! ASUS Exclusive Features: - AI Suite 3 - Ai Charger+ - USB 3.1 Boost - Disk Unlocker - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer - HyStream ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - Push Notice ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection: - ASUS C.P.R. (CPU Parameter Recall) Operating System Support: Windows 10, 64-bit Windows 8.1, 64-bit Windows 7, 32-bit/64-bit BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WfM2.0, DMI3.0, WOL by PME, PXE Support Disc: Drivers ROG GameFirst technology ROG RAMDisk ROG RAMCache ROG CPU-Z ROG Mem TweakIt Overwolf Keybot II Kaspersky Anti-Virus DAEMON Tools Pro Standard ASUS WebStorage ASUS Utilities |
---|
Package Contents | Accessories: User's manual ASUS Q-Shield 4 x SATA 6Gb/s cable(s) 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x Fan Extension Card (3 x 4-pin fan out) 1 x Fan Extension card screw pack 1 x 12 in 1 ROG Cable Label(s) ROG Fan Label 1 x 5-pin to 5-pin cable 1 x Panel cable 1 x Thermistor cable(s) |
---|
Date First Available | February 11, 2022 |
---|
Pros: - Loaded with features - Worked/works great - Good looking board
Cons: - Some of the software doesn't work properly, but I don't plan on using much of the software so now concern for me
Overall Review: Some people are complaining about no M.2 support or some other thing rand frankly I don't know why. It's a mITX motherboard. Sacrifices have to be made somewhere. Prior to purchasing this motherboard read the specs and find out if the motherboard has what you need! Some people complain about no M.2 support and about the U.2 connector. I specifically bought this motherboard because it has the U.2 connector that connects to the PCI-E lane so I can use the new Intel 750 series hard drive and a video card without any adapters. I also read some people say that it's hard to find an aftermarket heatsink that will fit. Again that is not true. There are plenty of aftermarket low-profile heat-sinks and fans that will fit, sure it might be snug, but again its a mITX. I used the NOCTUA NH-L12 LOW PROFILE heat sink and fan setup and it works great.
Pros: Got a U.2 Intel 750 SSD, so this was very useful having a connector on the board without needing an adapter. No problems whatsoever with anything so far.
Cons: None yet
Pros: Simply the best Mini-ITX board out there. Everything about this board is quality. Everything booted up and worked like a charm first time for me. The UEFI bios are freakin awesome. Overclocking is a dream. The fan extension card is nice. ASUS's software is awesome. Amazing WiFi, I never had the driver issue some people have talked about. Excellent sound card. LED Code display is nice. I can't say enough good about this board. If you're looking to make a small Mini-ITX build without compromising really ANY features or power, this is your mobo. Simply rocks!
Cons: No USB 2.0 header. Not really a big deal, and excusable with the limited space of a Mini-ITX board.
Pros: no issues from day one
Cons: a little bit of extra bulk. just need to make sure you give yourself some extra room.
Overall Review: I would absolutely recommend this mobo
Pros: Board works amazing off the bat. Sound card is amazing and the extra fan connector was such a nice added for mini itx. Want to take advantage of the u.2 connector later down the road.
Cons: Nothing to me
Overall Review: Hopefully early down the road I don't run into problems. I'll report back
Pros: The primary selling point here is the U.2 connector on the top side of the board. Every other mITX board currently on market has a M.2 socket on the bottom of the board, which will not allow you to use the M.2 > U.2 adapter (unless you do some serious case modding). It was not confirmed on Noctua's website at the time of my build, but this motherboard IS compatible with the NH-D15. In fact, I swear ASUS designed this board just for that heatsink - it's a perfect fit. This was another huge selling point for me, since I did not want to bother with liquid cooling. Unfortunately, due to space limitations in my case, I can only run a single fan on the DH15. Still worth it. The fan extension card is great and compatible with the ASUS fan monitoring program; having 5 individually PWM-controlled fans makes for a silent build. The I/O port layout is pleasant and the included shield is well-constructed with thick sound-proofed padding. The built-in sound card is great and the holes glow!
Cons: There is a complete and utter lack of documentation surrounding the fan extension card. As far as the manual is concerned, it doesn't even exist. The box includes a couple mounting brackets that do not fit any hole spacing in a computer case that I'm aware of, so if you use it, you will likely be mounting it by a single screw. The screws used are the same type used to mount a hard drive, so I bolted mine to the side of an unused hard drive cage. Good luck!
Overall Review: You'll need to manually enable XMP in the BIOS and potentially tweak your memory speeds in order for the system to recognize anything over 2133Mhz. I think many motherboards are like this, though.
Pros: - Eventually worked - EZ flash utility worked - U.2 port (maybe) little product support available at this time
Cons: - Poor and frustrating build experience, DEBUG LEDs unhelpful for POST failures - On board HDMI worked a couple of times and then not at all - Motherboard would only work with a dedicated video card - U.2 port (maybe) if product support doesn’t materialize
Overall Review: Spent several frustrating hours diagnosing inability to POST. DEBUG LEDs provided no helpful information for POST failures. No information on ASUS support forums or FAQs pertaining to POST failures. Almost gave up and returned this mobo until I tried a dedicated GPU and everything started working and POST succeeded. My initial plan was to use Intel’s integrated GPU until 1070s were more available. I’m fairly certain other poor reviews resulted from similar experiences. I’ve spent a week using the PC since overcoming the POST failures and am glad I didn’t write this review immediately. PC has been stable since. Unsure if any combination of the components I chose contributed to the problems, sharing in case this helps anyone else: - CPU: 6700K - PSU: EVGA 550 Gold - CPU Cooler: Noctua NH-L12 (sans top fan) barely fits - RAM: Corsair Vengeance 2x16GB at 3200 - SSD: Samsung 850 P - CASE: Cooler Master Elite 130 - GPU: Radeon R9 270 ASUS get your act together! Posting comments on negative reviews for how to contact support is unsatisfactory. If you can’t produce a stable product, then document work-arounds and resolution steps on your support FAQ pages. Until then I can’t recommend this product—Buyer Beware!
Pros: Bought this motherboard for a Mini-Itx build and I love it. It looks awesome and everything I needed fit into it including a decently sized CPU Cooler. The BIOS is also really easy to use and some programs that are included really help make overclocking easier.
Cons: It is a bit pricey.
Overall Review: Used this motherboard with a Silverstone RVZ02 Case, Silverstone AR06 CPU Cooler, DDR4 16GB RipJaws (2133Mhz) (8x2), 2 256 GB Samsung Pro SSDs, and an i-7 6700k Processor. Everything fits snug despite it looking a little bulky. Personally do not like M.2 slots as I notice it heats up quite a bit (Not in favor of that as Mini-ITX cases don't have epic cooling to begin with).
