was this an upgrade from a PC you had already built or was this for an entirely new setup?

Upgraded - New CPU / Ram / OS SSD M2 / Case - Reused old hdds and powersupply

Does this motherboard have WiFi?

WiFi is not native to the board. A small X1 WiFi expansion board can be added for this requirement.

Is the motherboard compatible with 7th generation intel cpu's?

No, it isn't. In the description, it says... Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with dual M.2 and Intel Optane Memory compatibility

Does it have a USB-C header?

My understanding is that a USB port on a case would use the same header as the USB 3.1 on the board. It does have one of those, so you should be okay! I would recommend using some kind of part compatibility website to check that fact though. I believe Newegg has something of the sort...

How many fan ports are on the board?

Hello, Thank you for contacting us in regards to your question. The best way to confirm specs is actually by checking the manufacturer's website. With many of our products you can click on the "Warranty & Returns" tab and you will find the Manufacturer's contact info, including the manufacturer's website. According to the provided information, this unit includes 2 chasis fan connectors, 2 CPU fan connectors, an AIO pump connector, an M.2 fan connector (all of these are 4-pin), and a 5-pin "EXT_FAN" connector. Thank you, Newegg Support

Can this board be used with 9th gen processors?

No, it dos not without a BIOS update and you have only 9th gen processor - that board does not support CPU-less BIOS update

$178^.61

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by Volcanic electron

Top Rated

4 (124 seller ratings)

Shipped by Volcanic electron

Meet Your Seller

Volcanic electron

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

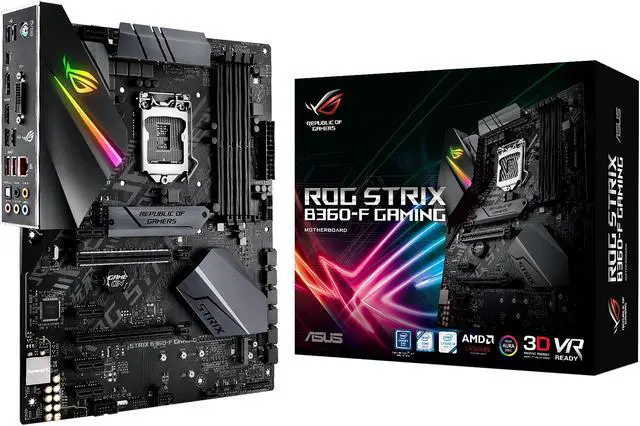

Main image of ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

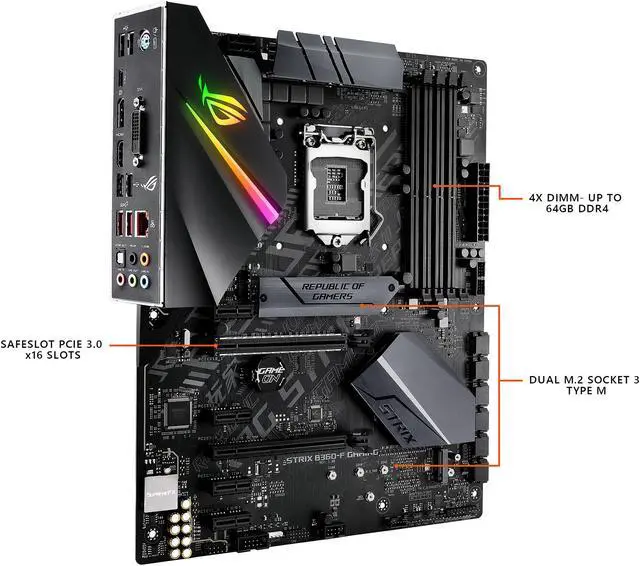

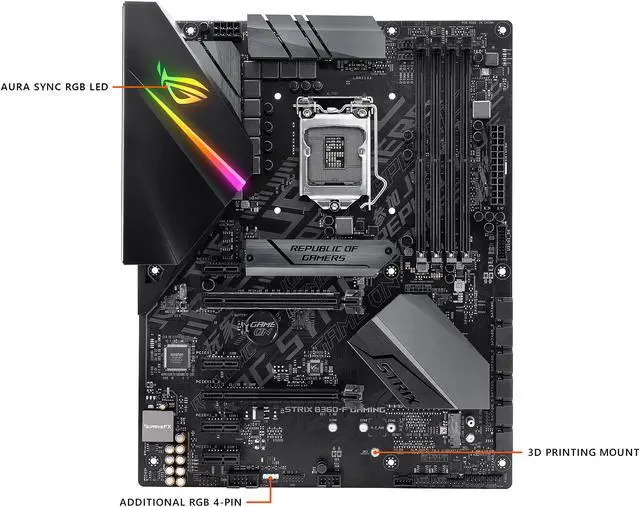

Alt view image 2 of 7 - ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

Alt view image 3 of 7 - ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

Alt view image 4 of 7 - ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

Alt view image 5 of 7 - ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

Alt view image 6 of 7 - ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

Alt view image 7 of 7 - ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

Customer images

Shop All ASUS Products | Visit Volcanic electron Store

ASUS ROG STRIX B360-F GAMING LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard

(77)(5) Write a Review

Option: STRIX B360-F GAMING

PRIME B360-PLUS
PRIME B360M-A
PRIME B360M-C/CSM
PRIME B360M-K
STRIX B360-F GAMING
STRIX B360-G GAMING
STRIX B360-H GAMING
STRIX B360-I GAMING
TUF B360-PLUS GAMING
TUF B360-PRO GAMING (WI-FI)
TUF B360M-E GAMING
TUF B360M-PLUS GAMING

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with dual M.2 and Intel Optane Memory compatibility
ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
Fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming
Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and a 3D-printing friendly mount
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (77)

Any questions? Our AI beta will help you find out quickly.

Try me now

STRIX B360-F GAMING LGA1151 MAX 64G ATX

Model
Brand	ASUS
Series	ROG
Model	STRIX B360-F GAMING

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	8th generation Intel Core processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Turbo Boost Technology 2.0 * The support of these features depends on the CPU types.

Chipsets
Chipset	Intel B360

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: DisplayPort/HDMI/DVI-D ports - Supports DisplayPort* with max. resolution 4096 x 2304@60Hz - Supports HDMI with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz - Supports DVI-D with max. resolution 1920 x 1200@60Hz Maximum shared memory of 1024MB * DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133 * DDR4 2666MHz memory frequency is only supported by 8th Generation Intel 6-core processors. Higher memory modules will run at the maximum transfer rate of DDR4 2666MHz. ** Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	8th Generation Intel Core Processor 1 x PCIe 3.0/2.0 x16 slot (supports x16) Intel B360 Chipset 1 x PCIe 3.0/2.0 x16 slot (max at x4 mode)* * The PCIEX16_2 slot shares bandwidth with PCIEX1_1 and PCIEX1_2 slots. When PCIEX1_1 and PCIEX1_2 slots are occupied, PCIEX16_2 slot runs at x2 mode.
PCI Express x1	4 x PCIe 3.0/2.0 x1 slots The M.2_1 socket shares bandwidth with PCIEX1_4

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)* 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode) * The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only). * The M.2_1 socket shares bandwidth with PCIEX1_4
Intel Optane Ready	Yes

Onboard Audio
Audio Chipset	ROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

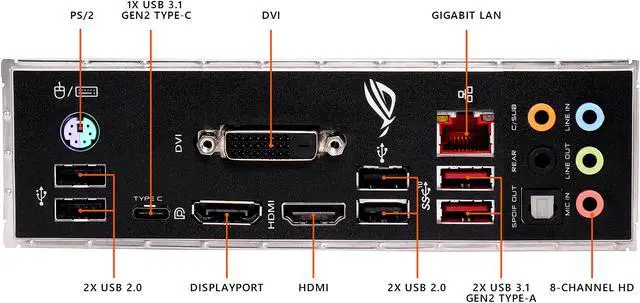

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI port
HDMI	1 x HDMI
RJ45	1 x Anti-surge LAN (RJ45) port
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB 3.1 Gen 2 Type-A ports [red]
USB 1.1/2.0	4 x USB 2.0 ports [black]
USB Type-C	1 x USB 3.1 Gen 2 Type-A port [black]
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	1 x USB 3.1 gen1 connector supports additional 2 x USB 3.1 gen1 ports 1 x USB 2.0 connectors support additional 2 x USB 2.0 ports
Other Connectors	1 x 4-Pin CPU_FAN connector 1 x 4-Pin CPU_OPT fan connector 1 x 4-Pin AIO_PUMP connector 2 x 4-Pin CHA_FAN connectors 1 x 4-Pin M.2_FAN connector 1 x 5-Pin EXT_FAN connector 1 x System panel connector 1 x Clear CMOS jumper 1 x T_SENSOR header 1 x TPM connector 1 x RGB_HEADER 1 x COM connector 1 x Front panel audio connector (AAFP)

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector

Features
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology ROG Exclusive Features: Aura ROG RAMCache II ROG CPU-Z ROG CloneDrive ROG Overwolf ROG GameFirst IV* *ROG GameFirst IV is only available for Windows 10 64-bit ASUS Special Features: ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gamer's Guardian - SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on LAN, Audio, KBMS and USB ports - Highly Durable Components - Stainless Steel Back I/O BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF and F9 Search Manageability: WOL, WOR, PXE Support DVD contents: Drivers EZ Update Anti-virus software (OEM version) ASUS Utilities Operating System Support: Windows 10 64-bit

Packaging
Package Contents	Accessories: User guide ROG motherboard support DVD 2 x 2-in-1 SATA 6Gb/s cables 1 x Extension Cable for RGB Strips 1 x Cable Ties set 1 x ROG Strix Series sticker 1 x ROG Strix Series Door Hanger 1 x M.2 Screws Package 1 x 3D Printing Mount Package
