Exclusive AI & memory technologies: ASUS AI Advisor, ASUS-exclusive AI Networking II, DIMM Fit and AEMP III to simplify setup and improve performance
Robust Power Solution: 10(80A)+1(80A)+2(80A)+1(80A) power stages with ProCool power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage
Abundant Connectivity: One Thunderbolt 4 USB Type-C port, one USB 20Gbps connector, two USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, and full support for next-gen graphics card, HDMI 2.1
Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Onboard Audio
Audio Chipset
Realtek ALC1220P
Audio Channels
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 be
Bluetooth
Bluetooth 5.4

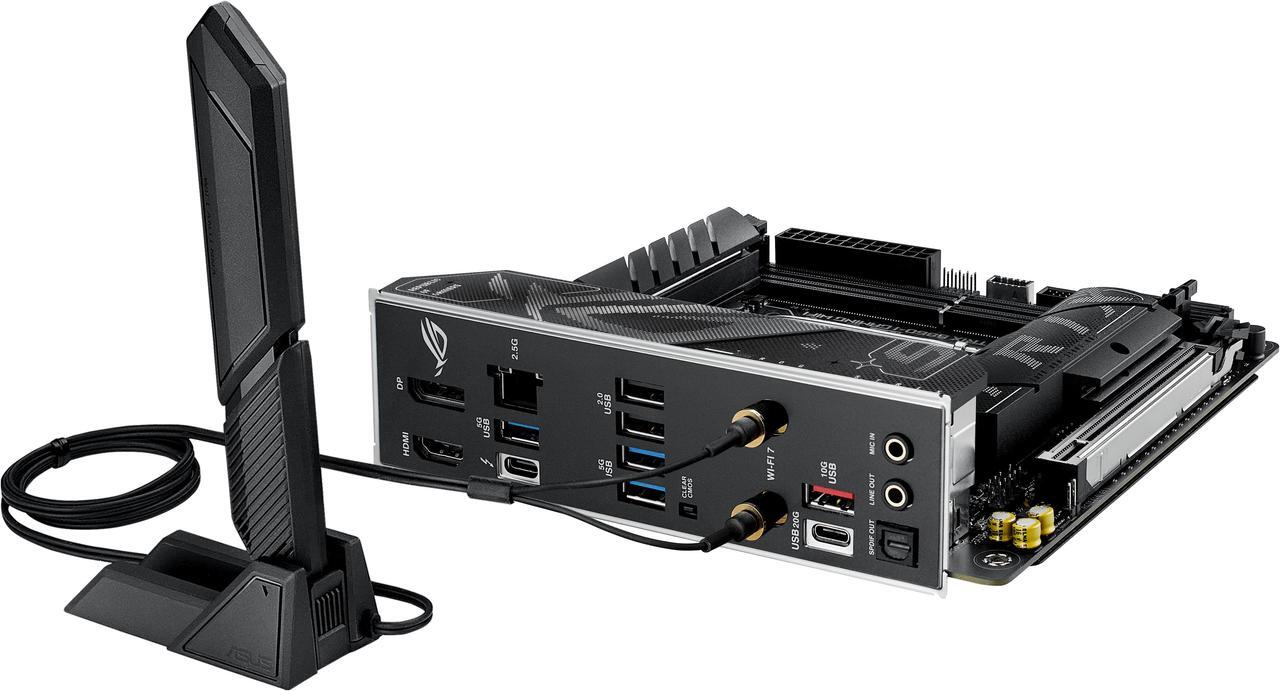

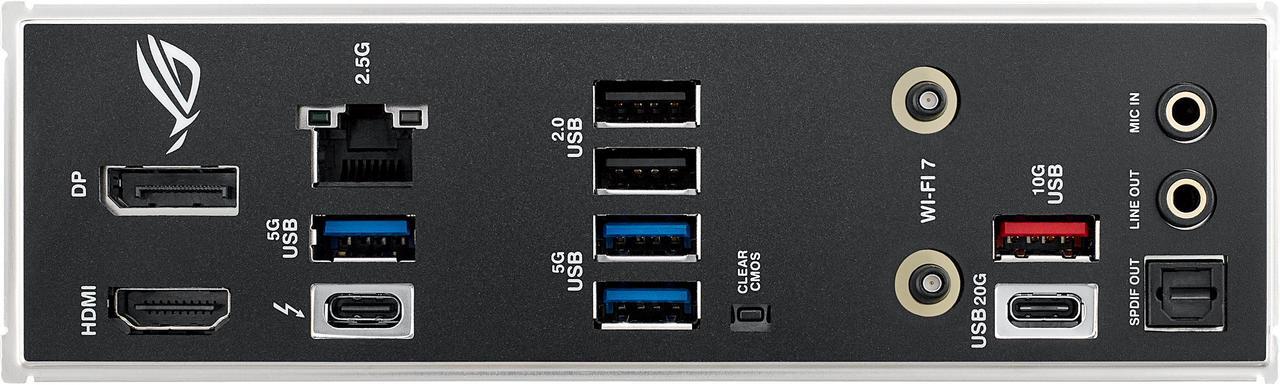

Rear Panel Ports
Back I/O Ports
1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x Clear CMOS button
Internal I/O Connectors
Onboard USB
1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers
Miscellaneous 2 x Addressable Gen2 headers 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Software Feature
BIOS Feature
256 Mb Flash ROM, UEFI AMI BIOS
Software
ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
Windows 11
Windows 11 (22H2 & later)
Physical Spec
Form Factor
Mini ITX
Dimensions (W x L)
6.7" x 6.7"
Power Pin
1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector
