ASUS ROG Strix X299-XE Gaming LGA 2066 Intel X299 SATA 6Gb/s USB 3.1 ATX Intel Motherboard

OUT OF STOCK.
  • Intel X299
  • Core X series (LGA2066)
  • Intel Core X-series Processors (6-core above):
  • DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3
Specs
Reviews

Learn more about the ASUS Strix X299-XE Gaming

Model
Brand ASUS
Series ROG
Model Strix X299-XE Gaming
Supported CPU
CPU Socket Type LGA 2066
CPU Type Core X series (LGA2066)
Supported CPU Technologies The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.
Chipsets
Chipset Intel X299
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots Intel Core X-series Processors (6-core above): 8x288pin

Intel Core X-series Processors (4-core): Max. 4x288pin
Memory Standard Intel Core X-series Processors (6-core above):
DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

Intel Core X-series Processors (4-core):
DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported Intel Core X-series Processors (6-core above): Max. 128GB

Intel Core X-series Processors (4-core): Max. 64GB
Expansion Slots
PCI Express 3.0 x16 44-Lane CPU-
Intel Core X-Series Processors Family:
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)

28-Lane CPU-
Intel Core X-Series Processors Family:
3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)

16-Lane CPU-
Intel Core X-Series Processors Family:
3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
PCI Express x4 44-Lane CPU-
Intel Core X-Series Processors Family:
2 x PCIe 3.0 x4 (max at x4 mode) *

28-Lane CPU-
Intel Core X-Series Processors Family:
2 x PCIe 3.0 x4 (max at x4 mode) *

16-Lane CPU-
Intel Core X-Series Processors Family:
2 x PCIe 3.0 x4 (max at x4 mode) *

*PCIEX4_1 max. at x1 mode
PCI Express x1 44-Lane CPU-
Intel Core X-Series Processors Family:
1 x PCIe 3.0/2.0 x1

28-Lane CPU-
Intel Core X-Series Processors Family:
1 x PCIe 3.0/2.0 x1

16-Lane CPU-
Intel Core X-Series Processors Family:
1 x PCIe 3.0/2.0 x1
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s
M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset SupremeFX High Definition Audio CODEC S1220A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Wireless LAN WiFi IEEE 802.11 a / b / g / n / ac
Bluetooth Bluetooth V4.2*, V4.1, V4.0 LE, V3.0+HS
* Bluetooth V4.2 will be supported on future versions of Windows. Refer to microsoft site for updateds on Windows OS Blutooth support version.

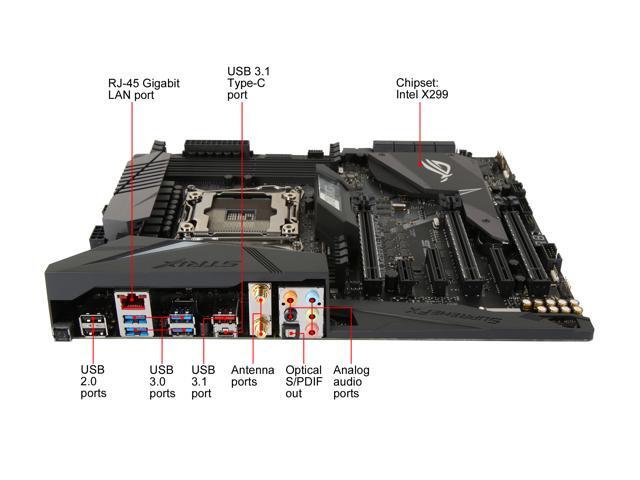

Rear Panel Ports
RJ45 1 x RJ45
USB 3.1 2 x USB 3.1 Gen 2 Type-A + USB Type-C
4 x USB 3.1 Gen 1 (blue)
USB 1.1/2.0 2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Antenna Connectors 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth)
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 2 front panel connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors 1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x COM port(s) connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Features
Features Multi-GPU Support:
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology

ROG Exclusive Features:
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Special Features:
OC Design - ASUS PRO Clock II Technology
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
AURA:
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features:
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- Onboard Button: Power
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS EZ DIY:
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System:
Windows 10 64-bit
Packaging

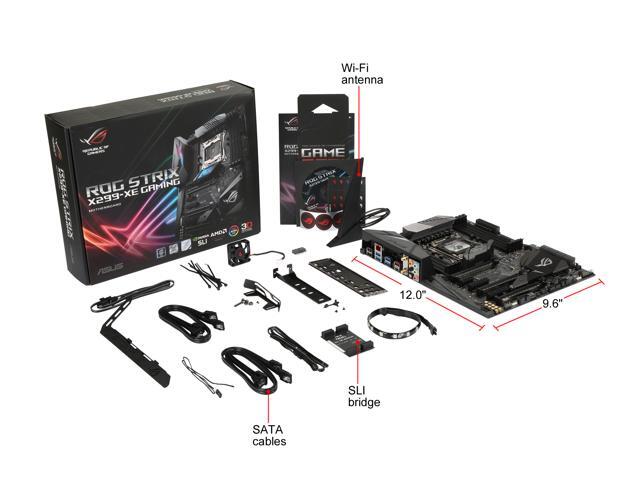

Package Contents Accessories:
User's manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x ROG addressable LED strip (30cm)
1 x Strix door hanger
1 x SLI HB BRIDGE (2-WAY-M)
1 x Q-Connector
1 x 10-in-1 ROG cable label
1 x M.2 screw kit (long screw and mount)
1 x Thermal sensor cable pack(s)
1 x Cable ties pack(s)
ROG Fan Label
1 x Extension Cable for RGB strips (80cm)
1 x Extension cable for Addressable LED
1 x 3D printing mount package
Additional Information
Date First Available October 13, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
