Can this motherboard accommodate the latest AMD processors?

Yes; I run the AMD Ryzen 9 9950X3D - Ryzen 9 9000 Series Granite Ridge (Zen 5) 16-Core 4.3 GHz Socket AM5 170W

What networking capabilities does this motherboard offer?

The motherboard offers on-board WiFi 7 (802.11be) and Realtek 5Gb Ethernet for high-performance networking.

What kind of memory does this motherboard support and how much can it handle?

This motherboard supports DDR5 memory with up to 8000+MT/s (overclocked) and can handle a maximum of 256GB.

What connectivity options does this motherboard provide for storage devices?

The motherboard provides storage connectivity options including two M.2 slots supporting PCIe 4.0 x4 and two M.2 slots supporting PCIe 5.0 x4.

How does the thermal design contribute to this motherboard's performance?

The thermal design of this motherboard includes massive heatsinks with an integrated I/O cover and high-conductivity thermal pads, which help to manage heat effectively, thereby contributing to the system's overall performance.

WD_BLACK SN7100 M.2 2280 4TB PCI-Express 4.0 x4 TLC 3D NAND Internal Solid State Drive (SSD) WDS400T4X0E

(12)

$569^.99 –

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

More Resources

AM5 vs Intel LGA 1700 & LGA 1851 Platform Comparison

MSI MEG X870E Godlike X Edition Review

Choosing the Right Gaming Motherboard Guide

How to Install a CPU Safely

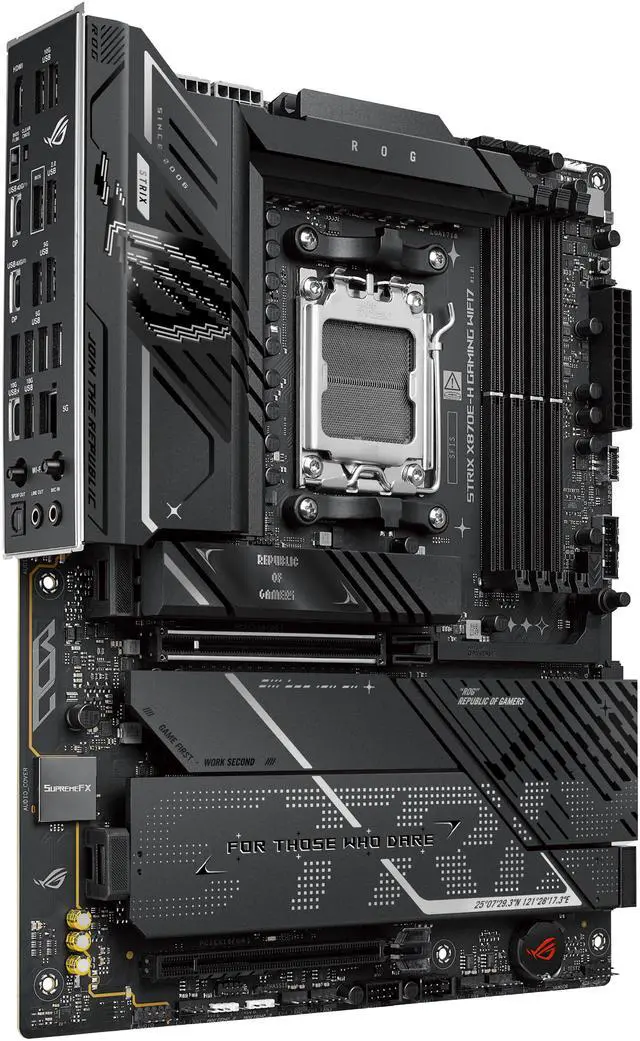

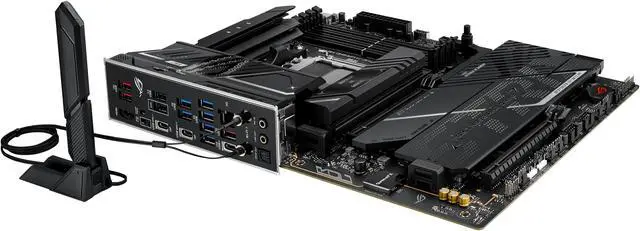

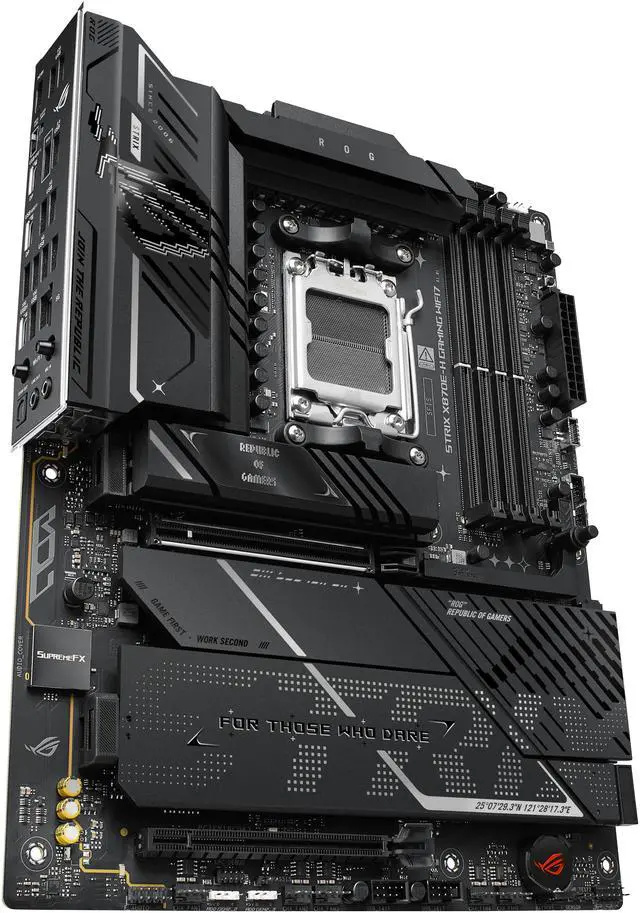

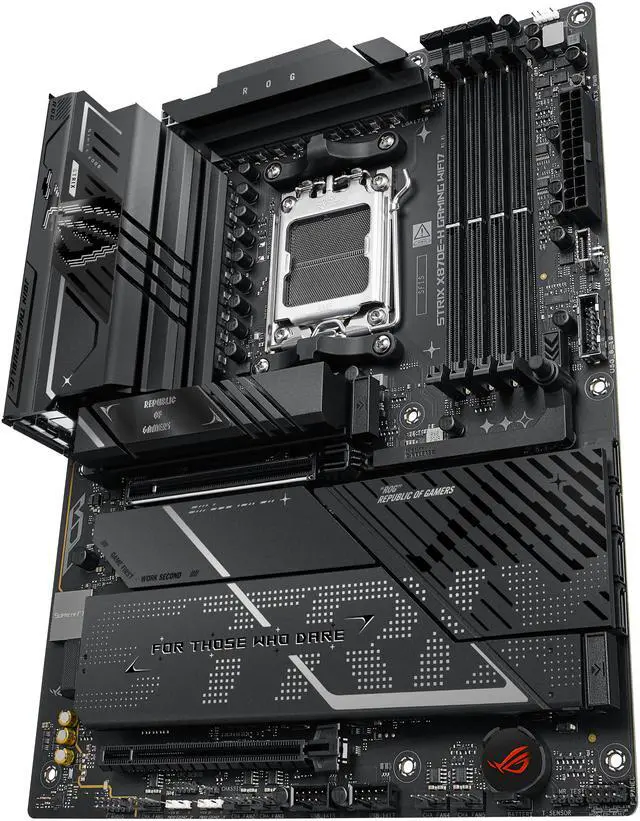

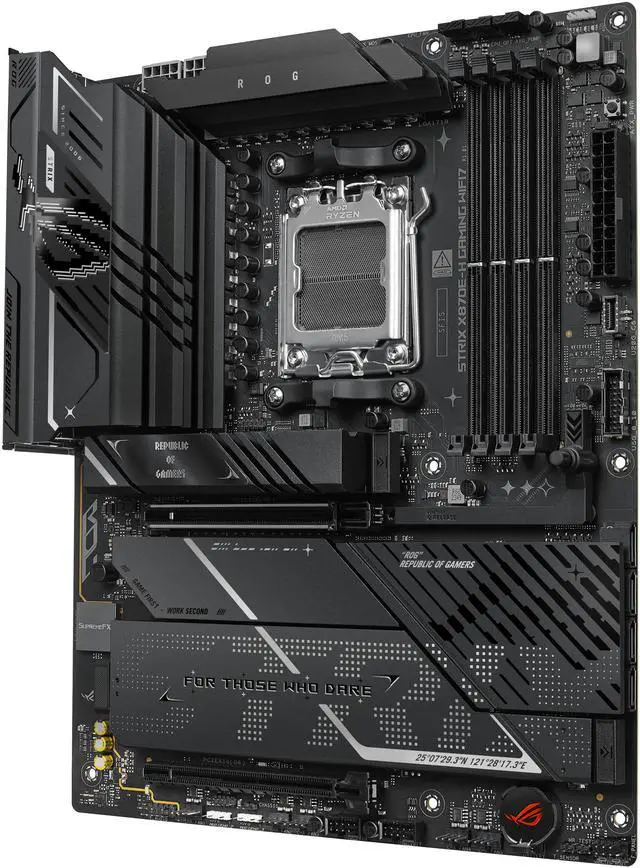

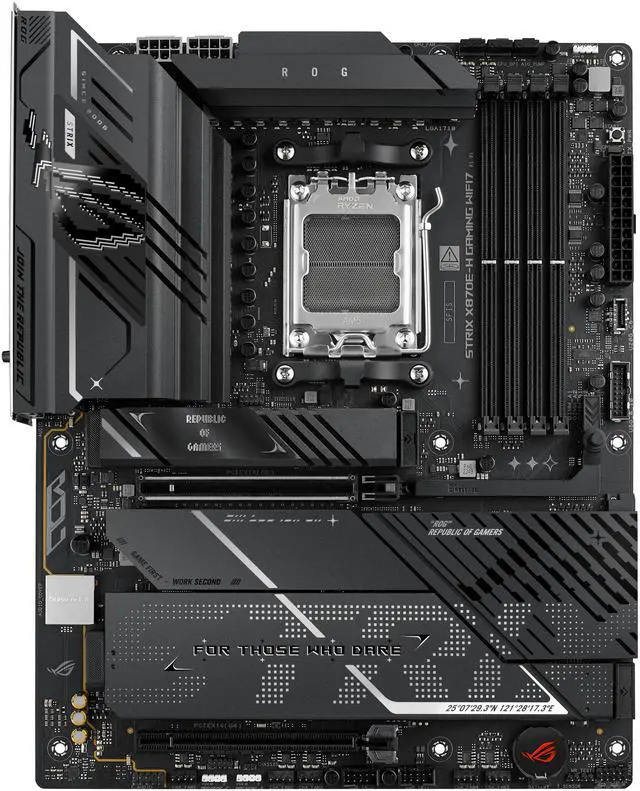

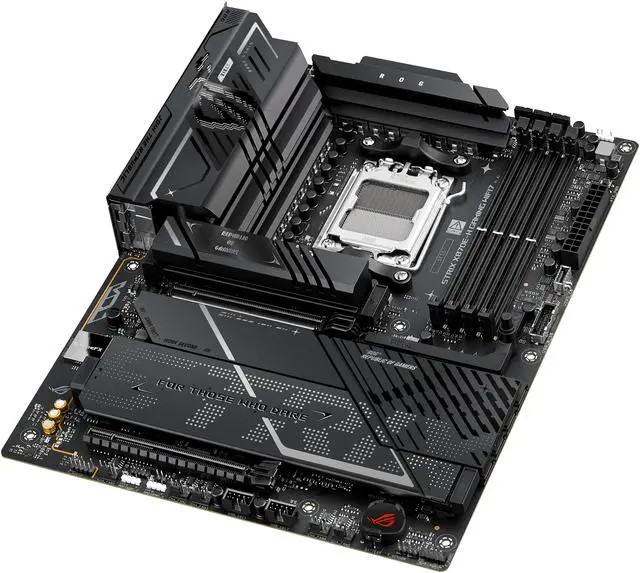

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E-H ATX motherboard with 16+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 4x M.2, PCIe 5.0, Q-Release, dual USB4 ports and USB 10Gbps Type-C

(32)(4) Write a Review

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Robust Power Solution: 16+2+1 power solution rated for 80A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Intelligent Control: ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP to simplify setup and improve performance
Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad
Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek 5Gb Ethernet

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (32)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	ROG STRIX X870E-H GAMING WIFI7

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC

Expansion Slots
PCI Express 5.0 x16	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Devices
M.2	2 x M.2 (Support PCIe 4.0 x4) / 2 x M.2 (Support PCIe 5.0 x4)
SATA RAID	AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	5Gbps

Rear Panel Ports

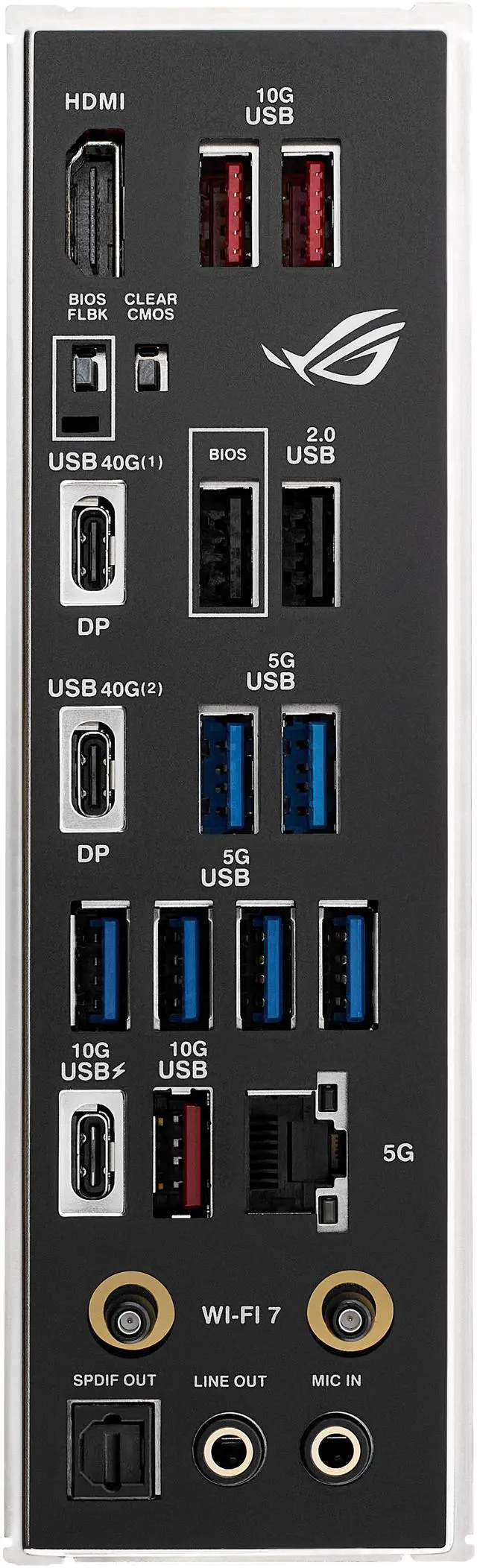

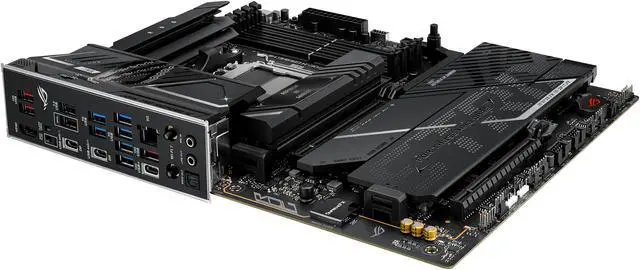

Back I/O Ports	2 x USB4 (40Gbps) ports(2 x USB Type-C) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge) 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector

Software Feature
BIOS Feature	256 Mb Flash ROM, UEFI AMI BIOS
Software	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst ASUS AI Advisor ASUS DriverHub - AIDA64 Extreme (60 days free trial) - HWiNFO ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
Windows 11	Supported

Features
Features	Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync -Addressable RGB Gen 2 headers

Packaging

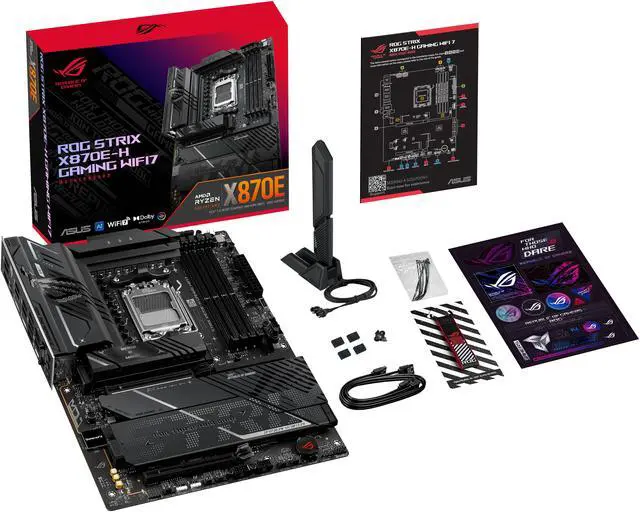

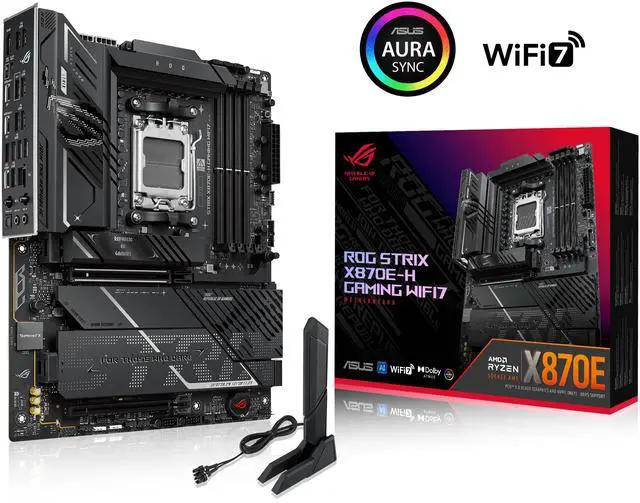

Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber Documentation 1 x Quick start guide
