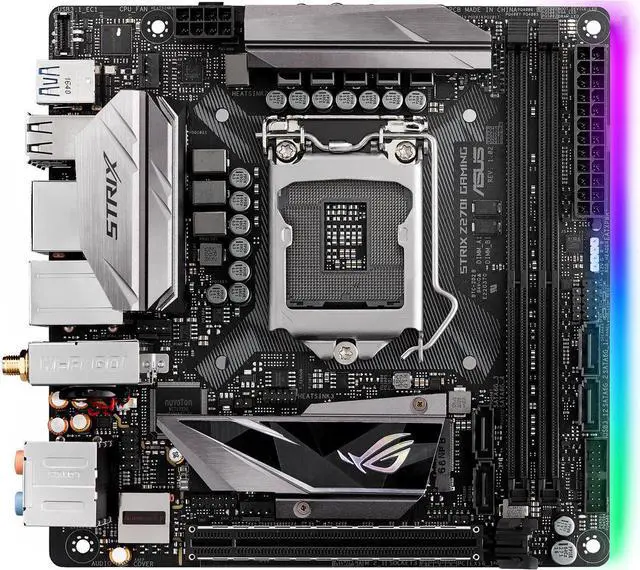

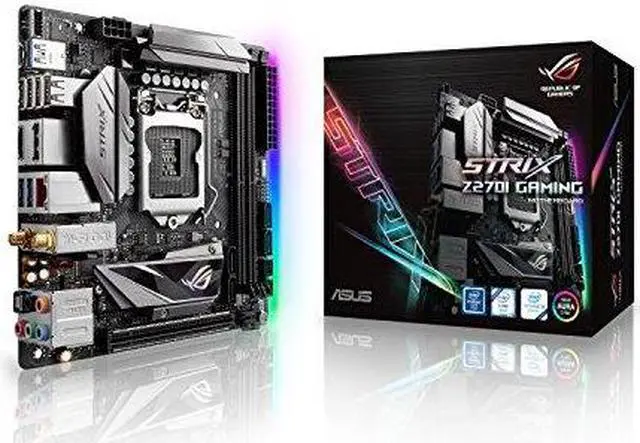

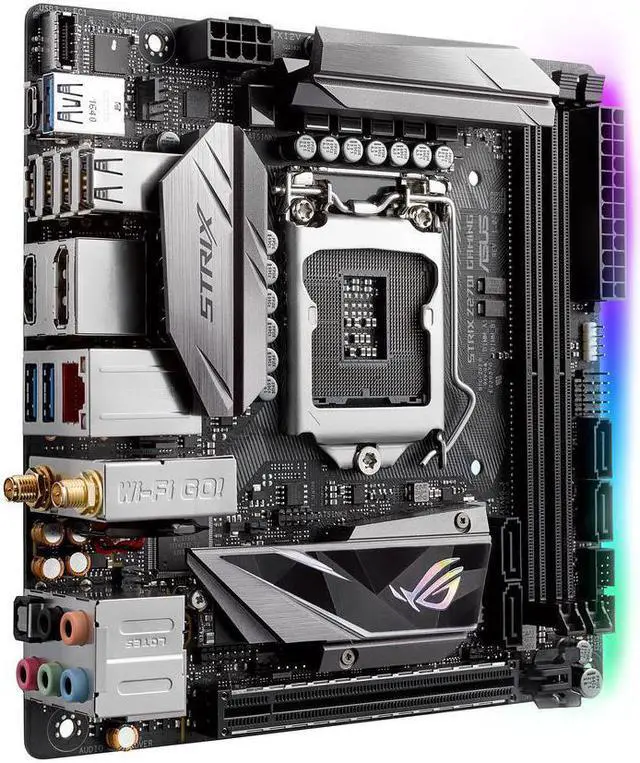

ASUS ROG STRIX Z270I GAMING LGA1151 DDR4 DP HDMI M. 2 mini-ITX Motherboard with onboard AC Wifi and USB 3.1 The successor to Pro Gaming motherboards 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling Patent-Pending M. 2 Double-Decker Heatsink shrouds the main M. 2 slot and provides shared cooling for both the M. 2 and PCH AURA Sync RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products Maximize your connectivity and speed with front panel USB 3.1, onboard 802.11 ac Wifi and Intel® Optane Memory compatibility Patent-pending SafeSlot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors
Learn more about the ASUS STRIX Z270I GAMING
Model
Brand
ASUS
Series
ROG
Model
STRIX Z270I GAMING
Supported CPU
CPU Socket Type
LGA 1151
CPU Type
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies
Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset
Intel Z270
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1 * 1 For a 2242 storage device, use the bundled 2242 mounting kit.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps
Wireless LAN
Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth
Bluetooth V4.1 *4 *4 Support for the Bluetooth specifcation depend on the Windows version. Windows 7 / 8 supports Bluetooth 4.0.

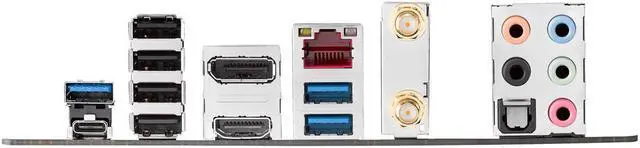

Rear Panel Ports
HDMI
1 x HDMI
RJ45
1 x RJ45
DisplayPort
1 x DisplayPort
USB 3.0
3 x USB 3.0 Type-A [blue]
USB 1.1/2.0
4 x USB 2.0
USB Type-C
1 x USB 3.0
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Antenna Connectors
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
Internal I/O Connectors
Onboard USB
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 3.1 front panel connector
Other Connectors
1 x RGB Header(s) 1 x TPM connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x Thermal sensor connector
Physical Spec
Form Factor
Mini ITX
Dimensions (W x L)
6.7" x 6.7"
Power Pin
24 Pin
Features
Features
ROG Exclusive Features: ROG RAMCache II ROG CloneDrive Overwolf GameFirst IV
Special Features: OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS EPU: - EPU ASUS Exclusive Features: - AI Suite 3 - Ai Charger - ESD Guards ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics: - AURA-RGB Lighting Digi+VRM
BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability: DMI3.0, WOL by PME, PXE
Operating System: Windows 10 64-bit Windows 8.1 64-bit *7 Windows 7 32-bit *7 Windows 7 64-bit *7
*7 Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors.
Packaging
Package Contents
Accessories: User's manual M.2 2242 mounting kit I/O Shield 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x ROG Strix stickers 1 x 10-in-1 ROG cable label 1 x Extension Cable for RGB strips (80 cm) 1 x Panel cable 1 x ROG coasters
Additional Information
Date First Available
February 16, 2025
