does this board have on board wifi?

I does not. Also it only has one Cat V connection one main reason the lower price vs the next upgraded version. Would like to see them offer at least 2 internet access ports to any of there boards. Just in case one goes out.

is this nvme compatible?

Most modern motherboards have this support but yes this board is compatible with nvme

If I sli on this board would it be considered SLI long or medium? Most acrylic sli bridges are long or 3 way or short and 2 way and I can never find a good match for Asus Maximus boards that are in between at medium length. This board looks like it's sli long can anyone confirm?

The spacing on the top two slots is 60mm. Measured my board personally to confirm.

$207^.17

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by LESCOLTON

Top Rated

3.7 (6 seller ratings)

Shipped by LESCOLTON

Meet Your Seller

LESCOLTON

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

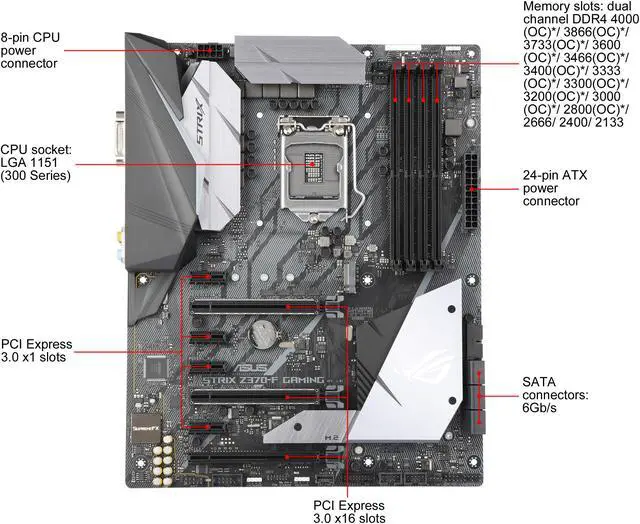

Main image of ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

100%

Alt view image 2 of 6 - ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 3 of 6 - ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 4 of 6 - ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 5 of 6 - ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 6 of 6 - ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

360^°

Customer images

Shop All ASUS Products | Visit LESCOLTON Store

ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

(443)(5) Write a Review

Option: Strix Z370-F Gaming

Prime Z370-A
PRIME Z370-A II
Prime Z370-P
PRIME Z370-P II
Strix Z370-E Gaming
Strix Z370-F Gaming
Strix Z370-G Gaming (Wi-Fi AC)
Strix Z370-I Gaming
TUF Z370-Plus Gaming

Intel Z370
Intel Socket 1151 only for 8th Generation Core Processors
* Not backward compatible with older generation of LGA 1151 CPUs
DDR4 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
Two Unique SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
Industry-leading 8-channel HD audio with dual headphone amplifiers and ROG exclusive SupremeFX S1220A CODEC driven by Japanese capacitors

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (443)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Series	ROG
Model	Strix Z370-F Gaming

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 only for 8th Generation Core Processors * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * The support of these features depends on the CPU types.

Chipsets
Chipset	Intel Z370

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: DisplayPort/HDMI/DVI-D ports Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz Supports DVI-D with max. resolution 1920 x 1200@60Hz Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider Supports up to 3 displays simultaneously Maximum shared memory of 1024MB * DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8, x8/x4+x4, x8+x4+x4/x0) 1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode) For 2 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX8_2 slot, enable this card under BIOS settings. ** For 3 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16/x8_1 slot, enable this card under BIOS settings.
PCI Express x1	4 x PCIe 3.0/2.0 x1 slot

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x4 modes)* 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode) Ready for Intel Optane Memory* * The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices. * Intel Optane Technology only supported when using 8th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. **** These functions will work depending on the CPU installed.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	ROG SupremeFX S1220A
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports
Video Ports	1 x DVI port
HDMI	1 x HDMI
RJ45	1 x Anti-surge LAN (RJ45) port
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB3.1 Gen2 ports (1 x Type-A [red] and 1 x Type-C ports at back panel) 2 x USB 3.1 Gen1 ports [blue]
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.1 Gen1 connectors support additional 4 x USB 3.1 Gen1 ports 2 x USB 2.0 connectors support additional 4 x USB 2.0 ports
Other Connectors	1 x 4-Pin M.2_FAN connector 1 x 4-Pin AIO_PUMP fan connector 1 x 4-Pin CPU fan connector 1 x 4-Pin CPU_OPT fan connector 2 x 4-Pin Chassis fan connectors 1 x 5-Pin Extension fan connector 1 x Front panel audio connector (AAFP) 1 x COM connector 2 x RGB Headers 1 x Addressable Header 1 x TPM connector 1 x System panel connector 1 x Thermal sensor connector 1 x CPU_OV 1 x Clear CMOS jumper (2-pin)

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector

Features
Features	Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology ROG Exclusive Features: ROG RAMCache II ROG GameFirst IV ROG CPU-Z ROG Overwolf ROG Clonedrive Special Features: Performance Optimization 5-Way Optimization - Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages. Digi+VRM EPU - EPU TPU - Auto Tuning, TPU, GPU Boost Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo APP featuring system performance tuning, network piority, and audio scene configuration for selected applications ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design - Q-Shield - Q-LED (CPU, DRAM, VGA, Boot Device LED) - Q-Slot - Q-DIMM Gamer's Guardian - SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on LAN, Audio and USB ports - Highly Durable Components - Stainless Steel Back I/O ASUS Exclusive Features - AURA Lighting Control - 3D Printing Friendly design - AI Suite 3 - AI Charger BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WfM2.0, DMI3.0, WOL by PME, PXE Support DVD: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) Operating System Support: Windows 10 64-bit

Packaging

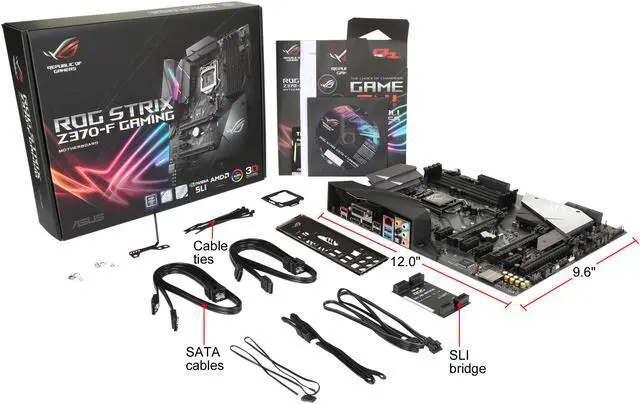

Package Contents	Accessories: User guide Support DVD I/O Shield 4 x SATA 6Gb/s cables 1 x SLI HB BRIDGE (2-WAY-M) 1 x RGB LED extension cable 1 x Addressable LED extension cable 1 x 3D Printing Mount 1 x M.2 Screw Package 1 x ROG STRIX Door Hanger 1 x Thermal Sensor Cable 1 x CPU Installation tool 1 x CPU Fan holder 1 x Pack of cable ties
