$379^.98

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by Smith's Computer Market

Top Rated

3.9 (133 seller ratings)

Shipped by Smith's Computer Market

Meet Your Seller

Smith's Computer Market

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

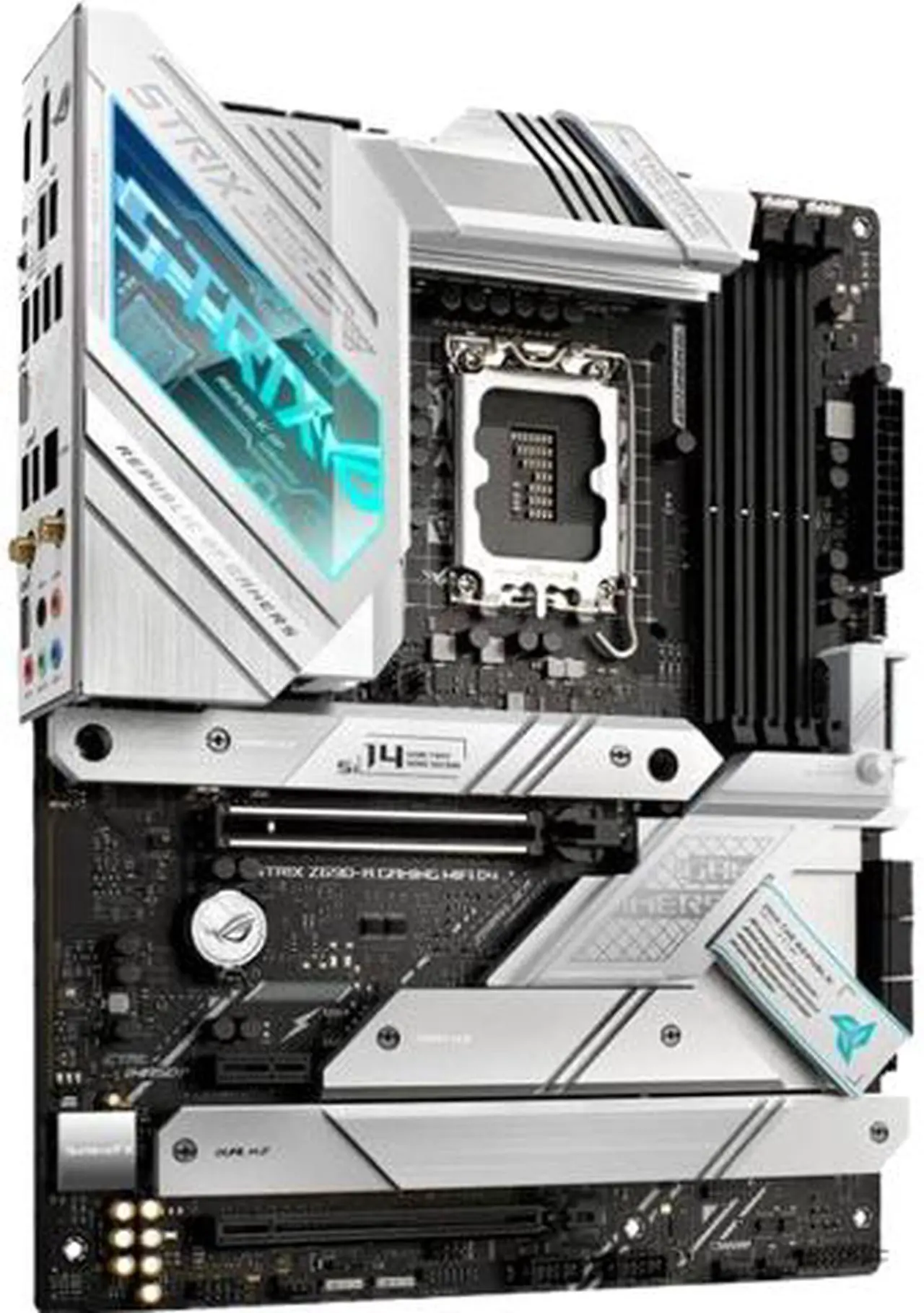

Main image of ASUS ROG STRIX Z690-A GAMING WIFI D4 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard

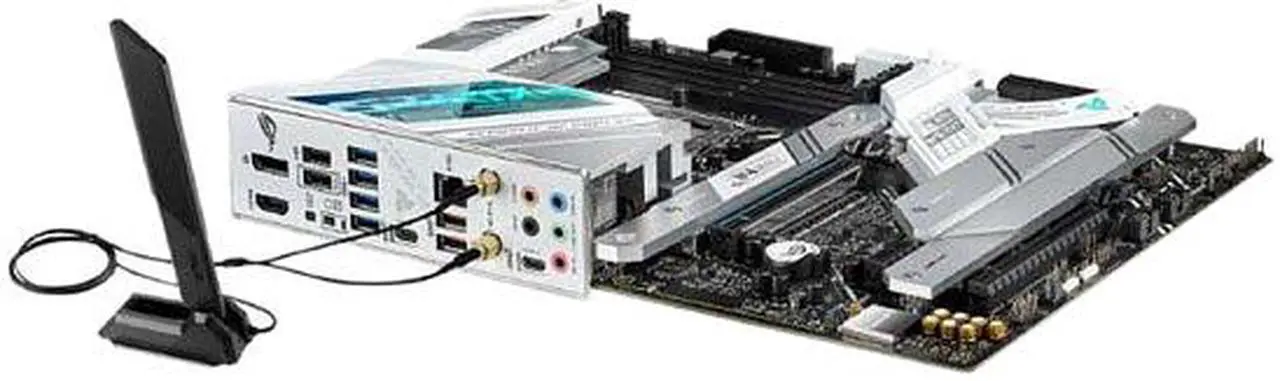

Alt view image 2 of 2 - ASUS ROG STRIX Z690-A GAMING WIFI D4 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard

Shop All ASUS Products | Visit Smith's Computer Market Store

ASUS ROG STRIX Z690-A GAMING WIFI D4 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard

Used - Very Good

Intel Z690
Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: non-replaceable
This item is covered by Smith's Computer Market Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Please check PCIe bifurcation table in support site.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Supports x4 mode.
PCI Express x1	1 x PCIe 3.0 x1

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled.
Intel Optane Ready	Yes

Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

LAN Chipset	Intel 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6 802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Onboard USB	1 x USB 3.2 Gen 2x2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors

Item#: 9SIAWFGKD92987
